9200-09-01-06-04 - two-wire moving-coil velocity transducer

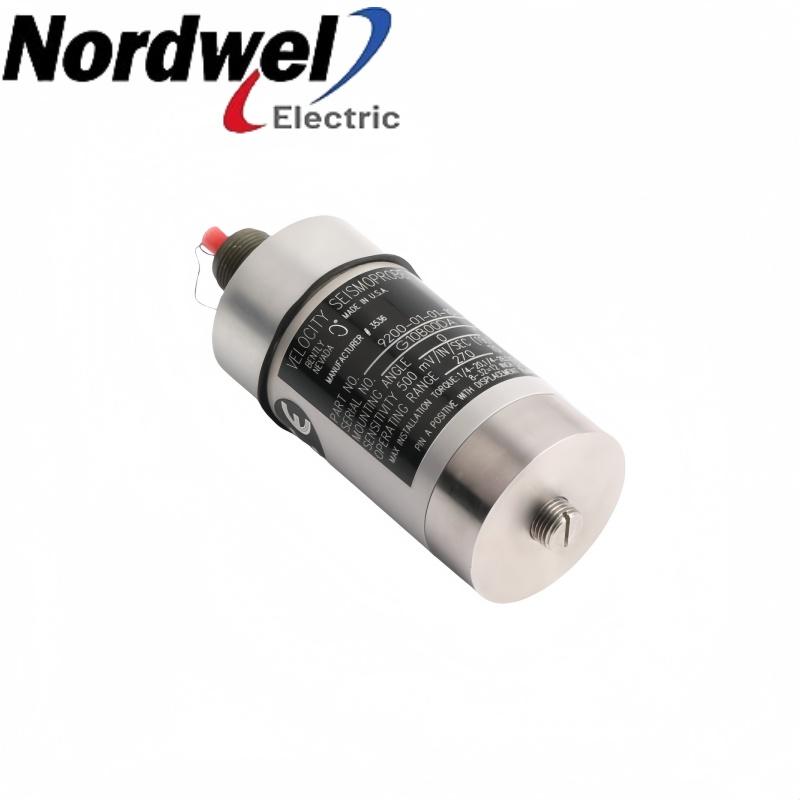

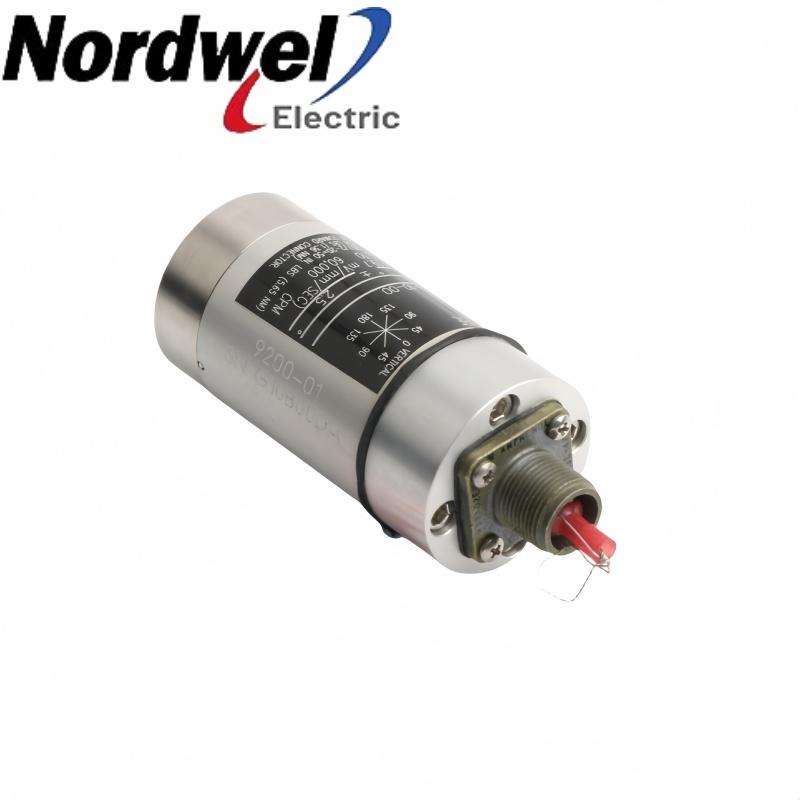

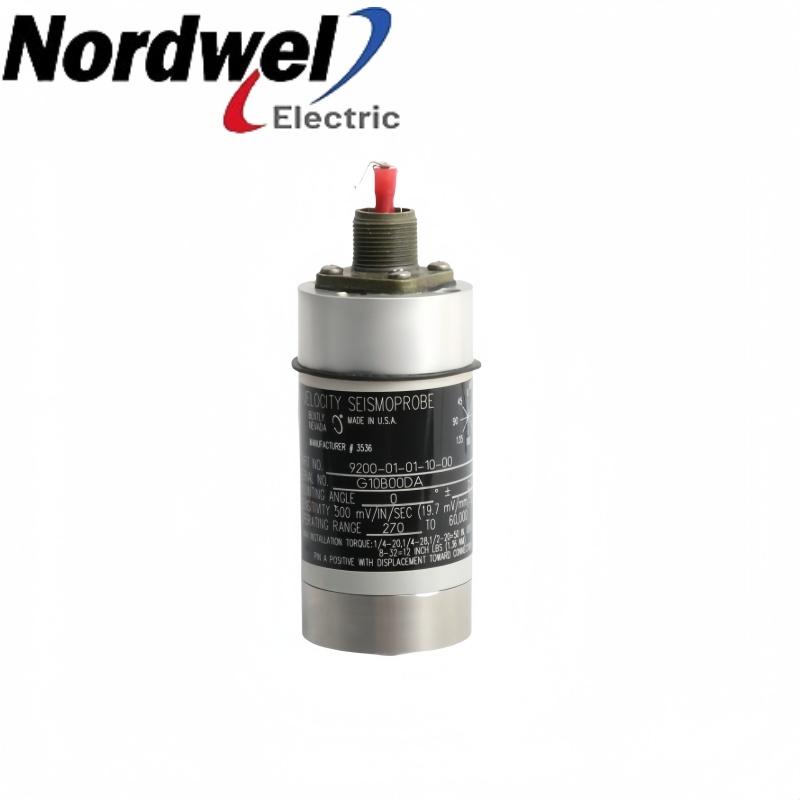

9200-09-01-06-04 measures absolute casing vibration with a moving coil. Its isolated mounting base and top connector match the selected options.

Bently NevadaSeismoprobeMoving-coil velocity sensor

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

9200-09-01-06-04 product profile

Product familySeismoprobe

Exact model9200-09-01-06-04

Mounting-angle option0° ±180°; 15 Hz minimum

Connection optionTop mount; no integral cable

Mounting baseIsolated circular 1/4-20 UNC

External excitationNot required

Brand:
Bently Nevada
Item NO.:
9200-09-01-06-04

Inquiry now

9200-09-01-06-04 configuration inquiry

Get a precise quote for 9200-09-01-06-04

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

9200-09-01-06-04 functions and interfaces

9200-09-01-06-04 is a passive two-wire Seismoprobe velocity transducer for bearing-housing, casing or structural vibration. Its ordering options specify a 0° ±180° mounting-angle range with a 15 Hz minimum operating frequency, a top-mounted connector without integral cable, an isolated circular 1/4-20 UNC stud base, and the ATEX/IECEx approval option. Its voltage signal is proportional to vibration velocity; the measuring input must provide the correct loading and polarity.

Velocity measurementGenerate an electrical signal proportional to absolute housing or casing velocity.

Option-specific mountingUse the selected isolated stud base and the calibrated mounting orientation.

Signal interfaceMatch the measuring-input loading, polarity and separate cable to the passive two-wire sensor.

Protected installationMount on the correct machine structure and protect connections in the required enclosure or conduit arrangement.

Installation and selection boundaries

The selected connector option does not include an integral cable; identify the required interconnection separately.
The isolated mounting base is required by the selected approval option; retain its isolation during installation.
A casing measurement depends on a suitable mechanical vibration path from the machine to the sensor mounting location.

Official product data

9200-09-01-06-04 key specifications

Sensing principle	Passive two-wire moving-coil velocity transducer
Sensitivity	20 mV/(mm/s), or 500 mV/(in/s), ±5% under the stated calibration conditions
Operating band for option 09	15 to 1000 Hz, +0/-3 dB typical
Mounting-angle option	0° ±180°
Connector/cable option 01	Top-mounted connector; no integral cable
Mounting-base option 06	Isolated circular base with 1/4-20 UNC stud
Approval option 04	ATEX/IECEx; installation and marking conditions apply
Operating/storage temperature	-29°C to +121°C
Calibration load	10 kΩ, with output across terminals A and B

Bently Nevada 141626 Rev. V, specifications and 9200 ordering table (pages 1-7).

Pre-order check 01

Installation environment

Check the complete 9200-09-01-06-04 identity and the actual installation before connection or replacement.

Confirm the complete ordering code, isolated 1/4-20 UNC base and approved mounting location on the bearing housing or casing.
Prepare the mounting interface and apply the specified 5.6 N·m stud-mount torque without defeating base isolation.
Connect the correctly wired separate cable and verify A/B polarity and the receiving-input calibration load.
Verify the 15 Hz minimum-frequency application, mounting orientation and actual approval conditions before accepting the measurement.

Keep the approved field drawing and installation records available during verification.

Pre-order check 02

Compatibility confirmation

Match the complete component identity with the fitted interfaces and installed configuration.

Sensor identity: The complete code selects angle 09, top connection 01, isolated base 06 and approval 04.
Frequency and mounting: Match the 15-1000 Hz typical response and the 0° ±180° mounting-angle option to the measurement.
Mechanical attachment: Isolated circular 1/4-20 UNC stud base, with installation isolation preserved.
Electrical receiving input: Passive two-wire voltage signal, correct A/B polarity and 10 kΩ calibration load.
Approval and environment: ATEX/IECEx option subject to marking, wiring and ambient restrictions; do not treat the general temperature limit as the hazardous-area limit.

Confirm 9200-09-01-06-04 against the fitted hardware, field wiring and approved commissioning records.
