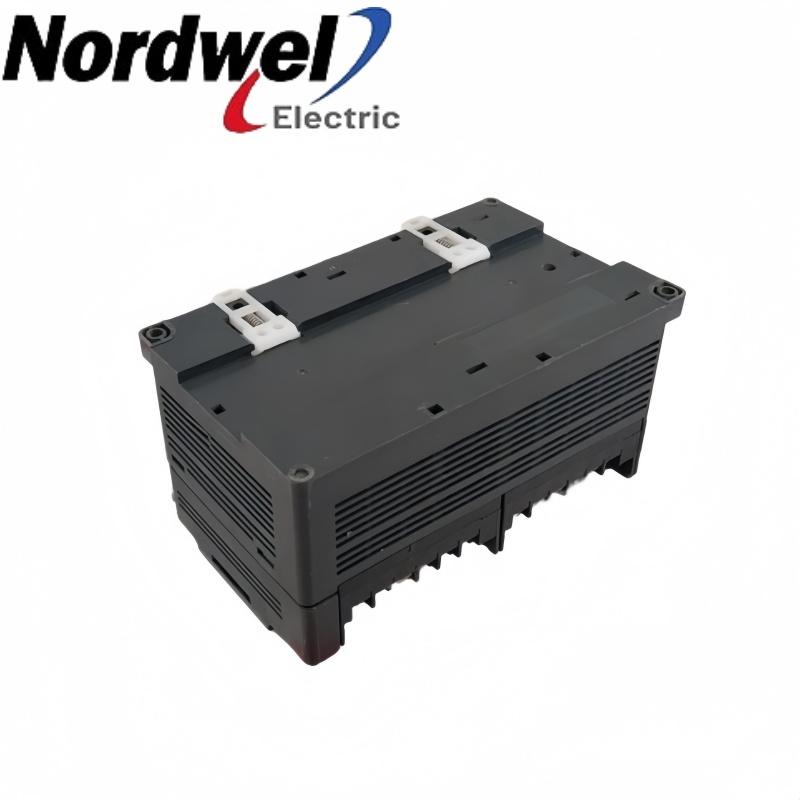

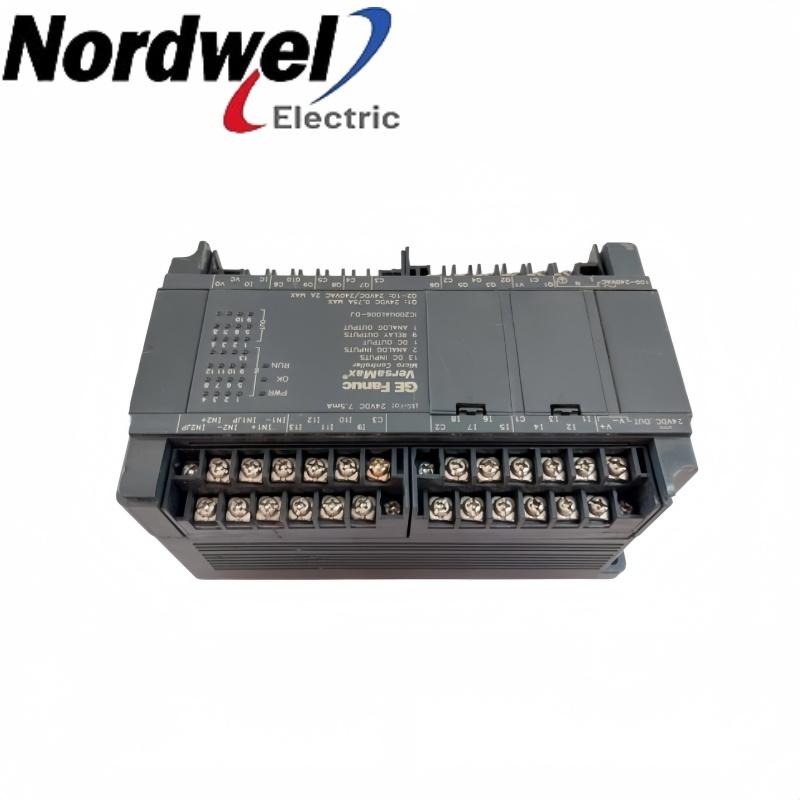

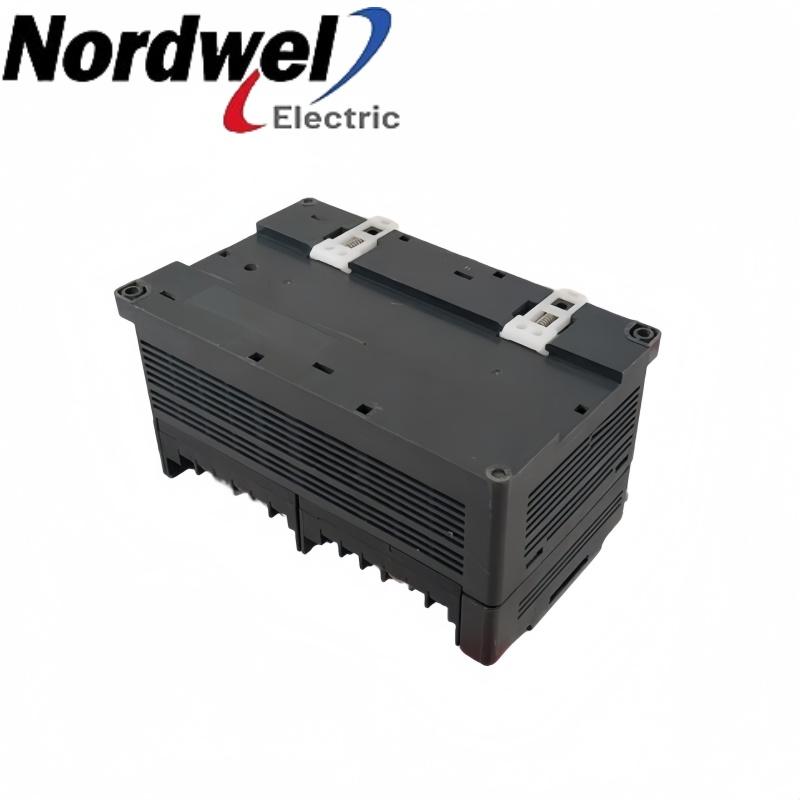

General Electric IC200UAL006 AC-powered mixed-output analog controller product images

General Electric IC200UAL006 AC-powered mixed-output analog controller

EMAIL SALES

VersaMax Micro 23-point

IC200UAL006 — AC-powered mixed-output analog controller

IC200UAL006 uses AC CPU power with 24 VDC inputs and configurable analog channels. Relay, transistor and analog outputs serve separate circuits.

General ElectricVersaMax Micro 23-point13 digital inputs and 3 analog channelsAC CPU power and 24 V DC inputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UAL006 product profile

ManufacturerGeneral Electric

Exact modelIC200UAL006

Product typeAC-powered mixed-output analog controller

Product familyVersaMax Micro 23-point

Primary roleMixed-signal machine automation

Interface contextAC CPU power and 24 V DC inputs

Brand:
General Electric
Item NO.:
IC200UAL006
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UAL006 configuration inquiry

Get a precise quote for IC200UAL006

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

AC-powered mixed-output analog controller configuration

IC200UAL006 combines thirteen 24 V DC inputs, two differential analog inputs, nine normally open relay outputs, one transistor output and one analog output. The mains-powered CPU and low-voltage field interfaces are distinct. Replacement must preserve the analog range, external output supplies and serial configuration.

Mains-powered logicRuns the Micro control program from the AC CPU supply.

Low-voltage sensor inputReads thirteen configured 24 V DC discrete circuits.

Analog measurement and commandProvides two differential measurement inputs and a single-ended analog output.

Separated load interfacesUses relay contacts and the Q1 transistor circuit with their respective external load arrangements.

Engineering selection points

An AC-powered CPU does not make the thirteen discrete input circuits AC inputs.
Relay contacts, the Q1 transistor path and the analog output must not be treated as electrically identical outputs.
The analog channels are non-isolated; signal-reference compatibility remains necessary.

Official product data

IC200UAL006 key specifications

CPU supply	100-240 V AC nominal
Supply tolerance	100 V -15% to 240 V +10% AC
Discrete inputs	13 nominal 24 V DC inputs
Discrete outputs	9 Form A relays plus 1 DC transistor output
Relay resistive-load rating	2 A at 24 V DC or 240 V AC
Analog inputs	2 differential, non-isolated
Analog output	1 single-ended, non-isolated
Analog ranges	0-10 V, 0-20 mA or 4-20 mA
Serial interfaces	RS-232/RJ45 and RS-485/DB15

Emerson GFK-1645M, sections 5.1-5.3.1, 5.6-5.6.5 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Connect CPU mains power to its L/N terminals and keep it separate from low-voltage field circuits.
Preserve 24 V input commons and identify the external transistor and relay load supplies.
Set analog range and current-mode input jumpers for the connected instruments.
Isolate power for terminal or expansion work and maintain the required enclosure, ground and ventilation.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Controller identity: Match IC200UAL006 and the installed revision before replacing the mains-powered CPU.
Discrete sensor circuits: Use the nominal 24 V DC input arrangement rather than mains-level input wiring.
Load circuits: Keep Q1 DC load wiring separate from the nine relay contact circuits.
Analog references: Match configured range, differential input connections and the non-isolated output reference.
Serial configuration: Match the RS-232/RS-485 physical interface, protocol settings and applicable firmware.

Check the AC CPU supply separately from the 24 V input, relay-load and analog circuits on IC200UAL006.
