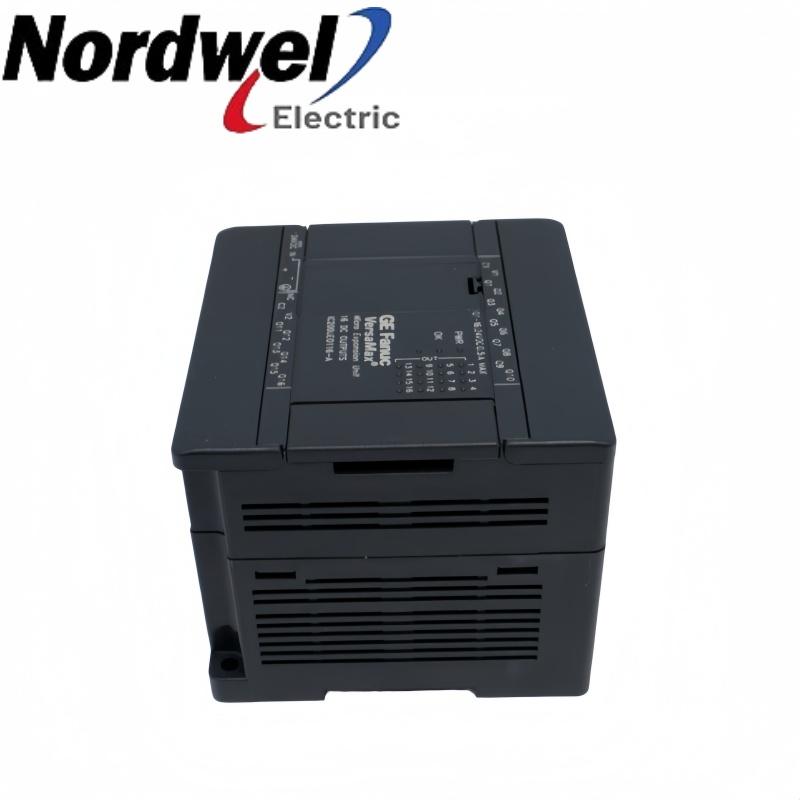

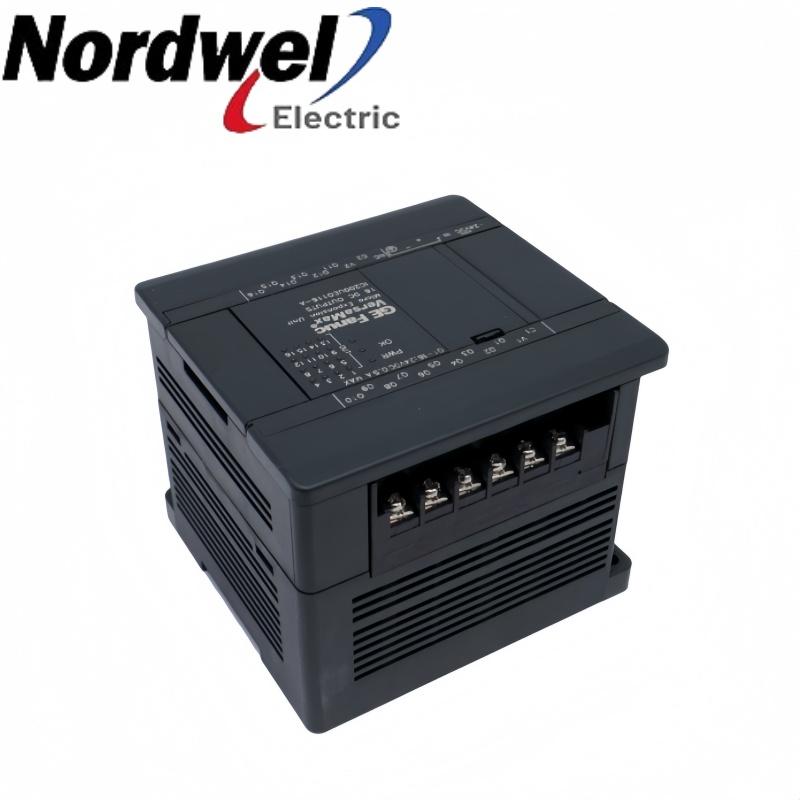

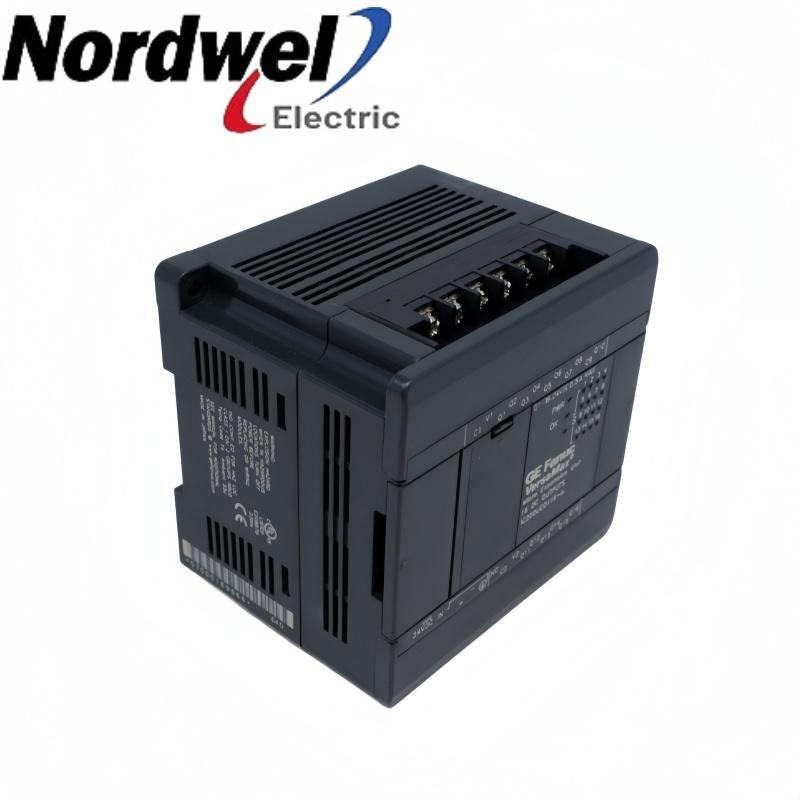

General Electric IC200UEC108 8-point sink-output I/O expansion unit product image

General Electric IC200UEC108 8-point sink-output I/O expansion unit

EMAIL SALES

General Electric VersaMax Micro expansion

IC200UEC108 - 8-point sink-output I/O expansion unit

IC200UEC108 adds four DC inputs and four sink-type transistor outputs. It connects to a supported Micro host through the expansion bus.

General ElectricVersaMax Micro expansion24 V DCExpansion I/O

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UEC108 product profile

ManufacturerGeneral Electric

Exact modelIC200UEC108

Product type8-point sink I/O expansion

Product familyVersaMax Micro expansion

Primary roleHost-controlled I/O expansion

Interface contextSinking field-output circuits

Brand:
General Electric
Item NO.:
IC200UEC108
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UEC108 configuration inquiry

Get a precise quote for IC200UEC108

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UEC108 function and field interfaces

IC200UEC108 is a Micro expansion unit with four nominal 24 V DC inputs and four sink-type transistor outputs. It requires nominal 24 V DC module power and a separate field-load supply arrangement. Match the output polarity and expansion wiring to the existing machine rather than selecting by the eight-point total alone.

Input-state extensionAcquire four nominal 24 V DC field signals for the host I/O allocation.

Output load interfaceProvide four sink-type transistor channels with the matching field wiring.

Expansion-bus connectionJoin the host or preceding unit through the left connector and continue the chain from the right connector.

Local status indicationUse local Power, OK and point LEDs when checking the installed I/O state.

Installation and selection boundaries

This is a host-controlled expansion unit, not a standalone CPU.
Separate module power from external output field power and retain the required output polarity.
Keep the keyed expansion chain within the host module-count and overall cable-length limits.

Official product data

IC200UEC108 key specifications

Input channel arrangement	4 nominal 24 V DC input circuits
Output channel arrangement	4 sink-type transistor outputs
Electronics supply	24 V DC nominal; -20% / +25%
Output load limit	0.7 A per point; 3 A per common
Auxiliary supply capacity	200 mA, inputs and user devices combined
Nominal external load supply	12/24 V DC
Input response time	4 ms typical in either transition direction
Module input power	4 W
Expansion connection	Keyed Micro expansion-bus cable

Emerson GFK-1645M, sections 9.1 and 9.3; chapter 15 installation requirements.

Pre-order check 01

Installation environment

Provide a grounded, ventilated installation and keep each field circuit matched to its terminal function.

Mount on a vertical surface in an appropriate enclosure; allow approximately 50 mm ventilation space and prevent condensation.
Identify the 24 V DC module power terminals separately from field input and output circuits.
Match the transistor output polarity, external field supply and load-return wiring.
Isolate power before changing expansion connections, preserve keyed orientation and coordinate host/expansion startup.

Keep the installed wiring and configuration record available for controlled restart checks.

Pre-order check 02

Compatibility confirmation

Check identity, power, field circuits and the actual host or controller configuration together.

Complete identity: IC200UEC108; match the required hardware revision.
Power arrangement: 24 V DC nominal module power; output field power is separate.
Input devices: 4 nominal 24 V DC input circuits; preserve the assigned commons and field-device wiring.
Output circuits: Four sink-type transistor channels; retain the matched field arrangement.
Host / configuration: Supported 14- to 64-point Micro host; up to four expansion units and 2 m total expansion cable.

IC200UEC108 is a Micro expansion unit with four nominal 24 V DC inputs and four sink-type transistor outputs. Keep the full model and actual terminal configuration matched before energizing.
