VersaMax Micro 28-point

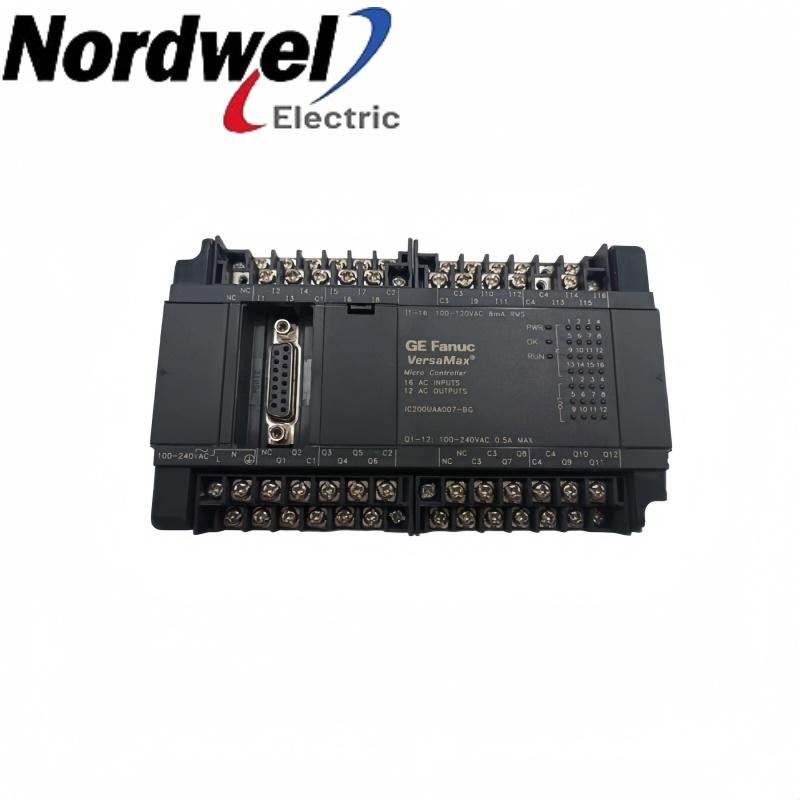

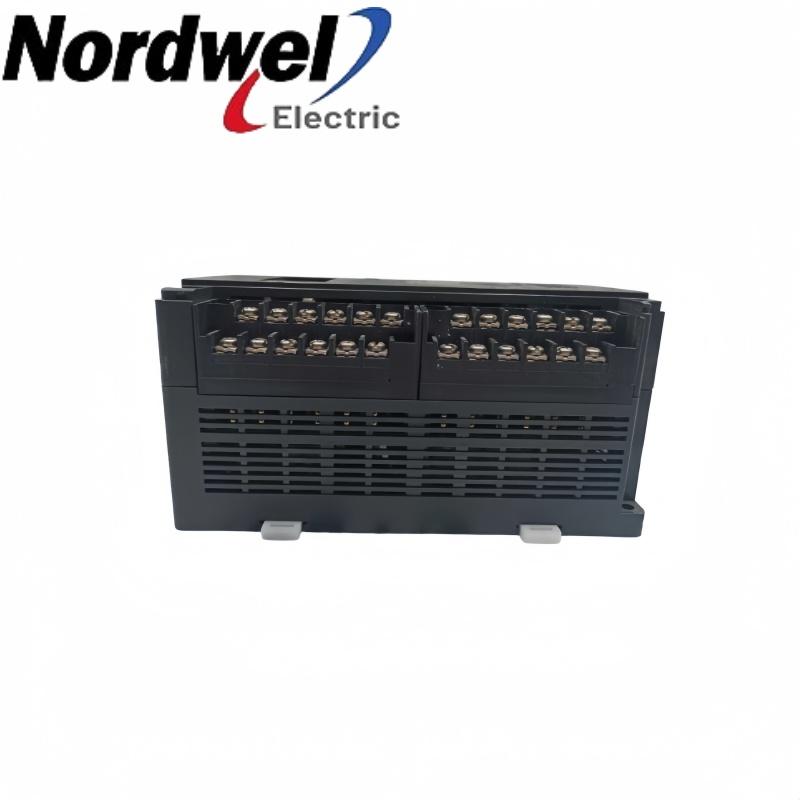

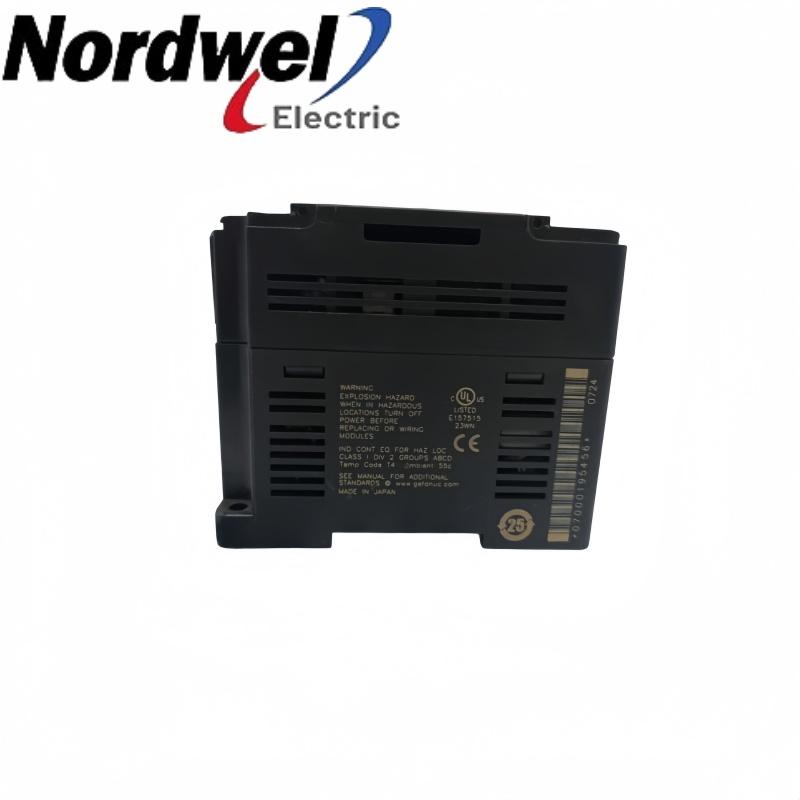

IC200UAA007 — AC-input AC-output micro controller

IC200UAA007 combines 16 AC inputs with 12 triac outputs for discrete control. The CPU uses AC mains power with separate field-load circuits.

General ElectricVersaMax Micro 28-point16 inputs and 12 triac outputs120 V AC field-input circuits

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UAA007 product profile

ManufacturerGeneral Electric

Exact modelIC200UAA007

Product typeAC-input AC-output micro controller

Product familyVersaMax Micro 28-point

Primary roleDiscrete AC machine control

Interface context120 V AC field-input circuits

Brand:
General Electric
Item NO.:
IC200UAA007
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UAA007 configuration inquiry

Get a precise quote for IC200UAA007

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

AC-input AC-output micro controller configuration

IC200UAA007 is intended for discrete AC control using nominal 120 V AC inputs and AC triac outputs. It has separate serial programming and communications interfaces and accepts supported Micro expansion units. Its AC input circuits do not provide the high-speed counter, pulse-train or PWM functions of DC-input variants.

AC state acquisitionReads discrete states from AC-powered field devices.

Triac load switchingSwitches suitable externally powered AC loads through the output circuits.

Program executionRuns the machine-control logic stored in the Micro CPU.

Serial integrationProvides distinct RS-232 and RS-485 paths for supported programming and serial communication.

Engineering selection points

The RJ45 connector is a serial interface, not an Ethernet port.
Separate output commons are not internally tied together, so retain the actual field-supply grouping.
AC inputs must not be connected as though they were nominal DC sensor inputs.

Official product data

IC200UAA007 key specifications

Discrete inputs	16 nominal 120 V AC inputs
Discrete outputs	12 AC triac outputs
CPU supply	100-240 V AC nominal
Input voltage range	85-132 V AC
Output resistive load	0.5 A maximum per point
Program memory	9K words
Register memory	2048 words
Serial interfaces	RS-232/RJ45 and RS-485/DB15
Expansion units	Up to 4

Emerson GFK-1645M, sections 6.1-6.4.4 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Provide an enclosure, protective grounding and approximately 50 mm ventilation clearance around the controller.
Match the AC CPU supply and nominal 120 V AC input circuits to their separate terminal functions.
Keep each triac output common and external AC load supply consistent with the installed wiring.
Power down before connecting expansion units and arrange the CPU and expansions to power up together.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Controller identity: Match IC200UAA007 and the installed controller revision.
Input devices: Use AC-compatible field inputs within the specified input voltage range.
Output loads: Match the triac output, per-point load rating and relevant common-circuit limits to the AC load.
Serial equipment: Use the correct RS-232 or RS-485 serial connection and supported protocol settings.
Expansion layout: Use supported Micro expansion units and the prescribed orientation and cable arrangement.

Keep AC input, CPU supply and triac load circuits distinct when selecting or replacing IC200UAA007.
