Bently Nevada ADAPT 3701/40

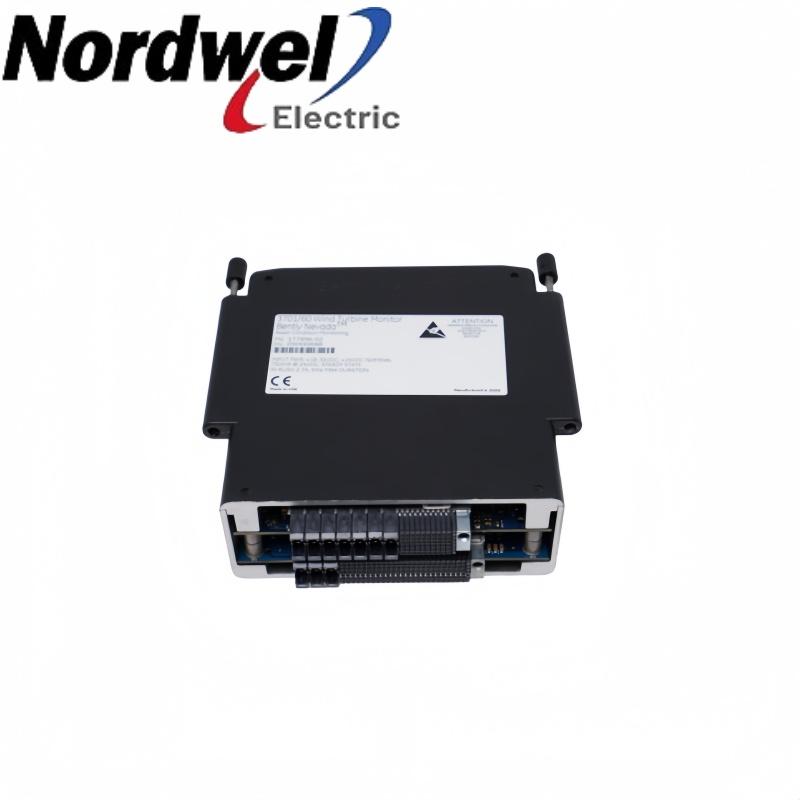

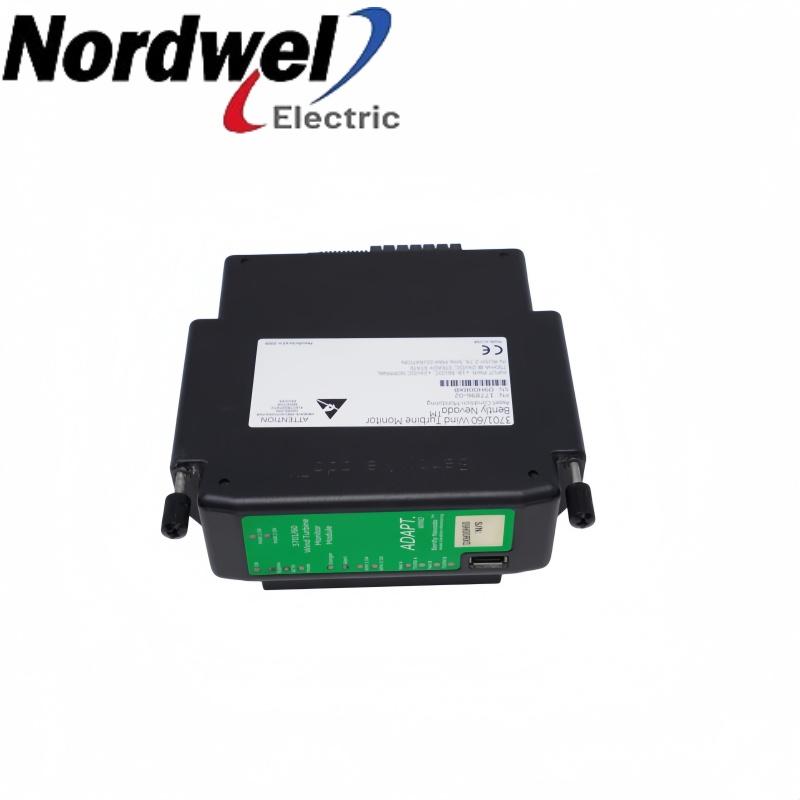

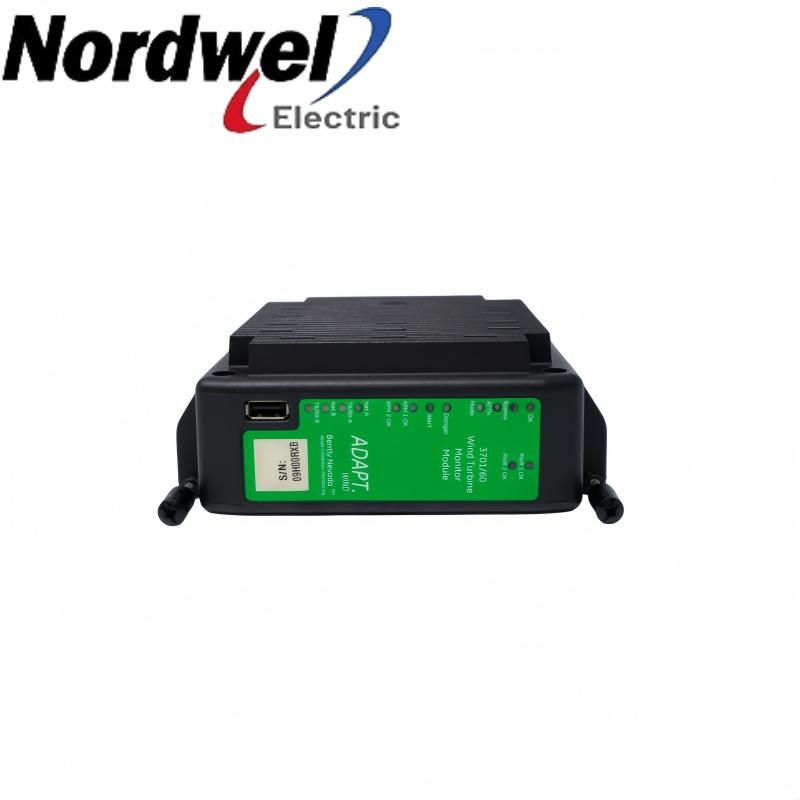

3701/40 177896-05 - machinery-dynamics processor module

3701/40 177896-05 processes monitoring signals and alarm logic. Its CPU also handles diagnostics and Ethernet communication.

Bently NevadaADAPT 3701/40Machinery-monitor processor

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3701/40 177896-05 product profile

ManufacturerBently Nevada

Exact model3701/40 177896-05

ComponentProcessor / CPU

DiagnosticsFault detection

Ethernet connectionsTwo physical RJ45 per CPU

Modbus roleServer only

Configuration softwareBNMC

Verified functionSignal processing and alarm logic

Brand:
Bently Nevada
Item NO.:
3701/40 177896-05
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

3701/40 177896-05 configuration inquiry

Get a precise quote for 3701/40 177896-05

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3701/40 177896-05 function and interfaces

3701/40 177896-05 is the processor-module spare for the ADAPT machinery-dynamics monitor. The processor carries out A/D conversion, digital signal processing, alarm and logic processing, diagnostics and digital communications. Sensor input modules, the terminal base and relay-output hardware have separate roles in the installed system.

Signal computationConvert conditioned inputs and execute the digital signal processing needed by the configured monitor.

Protection logicProcess measurement alarms and configured logic within the processor module.

Network communicationCommunicate with monitoring software and plant automation through the CPU Ethernet interfaces.

Diagnostic processingRun processor diagnostics and fault detection to support the monitoring system availability.

Installation and selection boundaries

The supplied part is a processor module, not a complete monitor with input modules, terminal base and relay outputs.
The simplex arrangement uses one processor; the duplex arrangement uses two processors with matched configuration.
The processor provides communications and computation; transducer field wiring is handled by the selected input modules and terminal-base arrangement.

Official product data

3701/40 177896-05 key specifications

Component	Processor module / CPU
Signal-conversion function	A/D conversion
Digital-processing function	Digital signal processing
Protection functions	Alarm and logic processing
Diagnostics	Diagnostics and fault detection
Ethernet connections	Two independent physical RJ45 per CPU
Plant protocols	Modbus TCP/IP and Ethernet Global Data
Modbus role	Server only
Configuration tool	BNMC; ordered separately

Bently Nevada datasheet 103M2037 Rev. K, pages 2-4, 19 and 22.

Pre-order check 01

Installation environment

Install the processor into the correct terminal-base arrangement and preserve the approved monitoring configuration.

Identify the correct processor position on the installed simplex or duplex terminal base.
Keep transducer wiring on the selected input/termination hardware rather than treating the CPU as a direct sensor termination unit.
Use an indoor installation and prevent condensation; verify the complete system environmental requirements.
Coordinate protection availability, configuration restoration and network connections before replacing the processor.

Keep the installed wiring and configuration records available for controlled commissioning checks.

Pre-order check 02

Compatibility confirmation

Review the complete identity together with the fitted interfaces and installed configuration.

Processor identity: 3701/40 177896-05; verify hardware and firmware revision against the installed system.
Terminal base: Match the installed simplex or duplex base and the required processor position.
Signal interfaces: Select the correct input modules for the field transducers; the CPU processes their conditioned signals.
Network arrangement: Two Ethernet connections per CPU; match software/network settings and the required plant protocol.
Configuration / redundancy: Restore and validate the BNMC configuration; duplex processors use identical configuration.

Check the complete processor identity with the terminal base, input modules, network settings and validated monitoring configuration.
