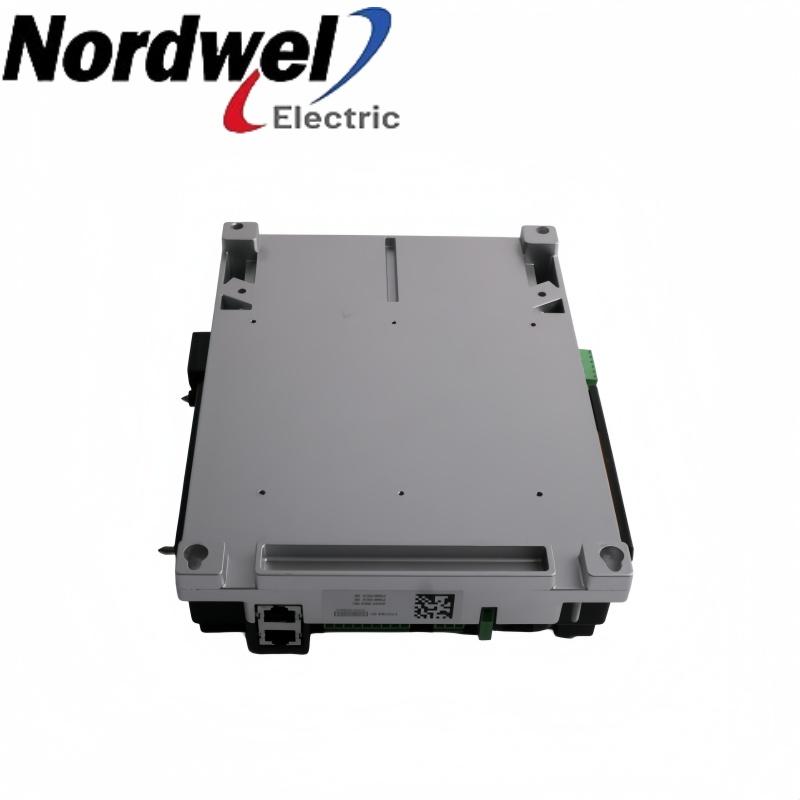

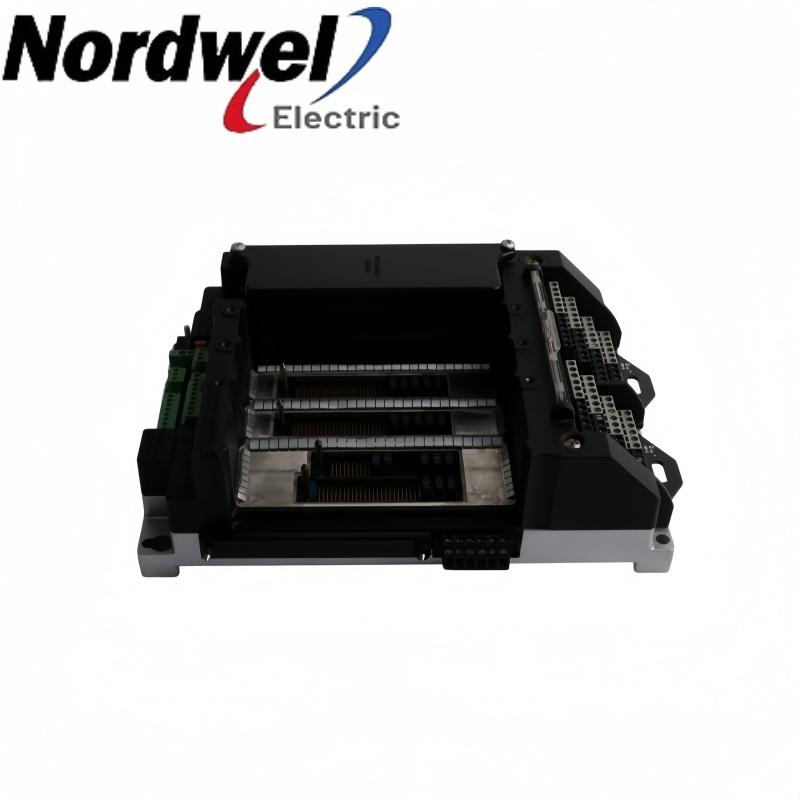

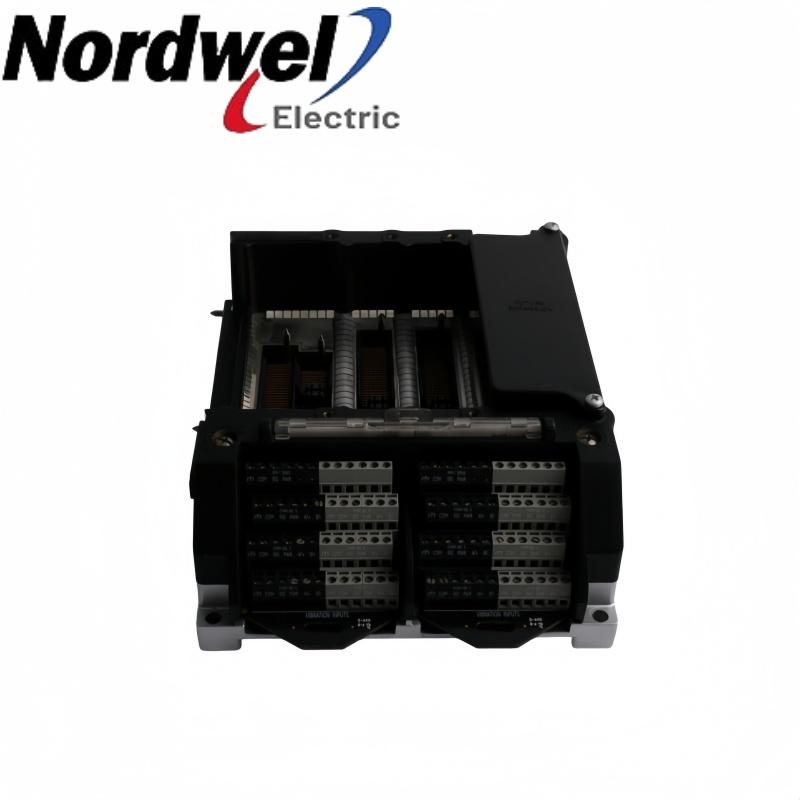

3701/44 175794 - simplex terminal base

3701/44 175794 supports the simplex aeroderivative monitor assembly. Match its module positions, field terminations and grounding arrangement.

Bently NevadaADAPT AeroderivativeSimplex terminal base

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3701/44 175794 product profile

Product familyADAPT Aeroderivative

Exact model3701/44 175794

Processor accommodation1 processor module

Input accommodation1 or 2 input modules

Output accommodation1 optional output module

Sensor terminations2 removable locking blocks

Brand:
Bently Nevada
Item NO.:
3701/44 175794

Inquiry now

3701/44 175794 configuration inquiry

Get a precise quote for 3701/44 175794

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3701/44 175794 functions and interfaces

3701/44 175794 is the simplex terminal base listed for the ADAPT aeroderivative monitor. It provides the installation platform for one processor, one or two input modules and an optional output module. Sensor wiring uses removable termination blocks, while the base carries the dedicated control-input, power and earthing connections. The base by itself is not a complete configured monitor.

Mechanical platformMount the matched processor and I/O hardware on the simplex installation base.

Field terminationsKeep labeled sensor wiring on the removable, locking termination blocks.

Grounding boundaryUse the dedicated earth terminal and the required chassis/common arrangement.

System controlsConnect the specified dry-contact controls independently of sensor measurement inputs.

Installation and selection boundaries

One processor position identifies the simplex arrangement; do not describe this base as a duplex processor assembly.
The sensor termination blocks and processor or I/O modules are distinct components that must be included explicitly in the supply scope.
Use vertical panel mounting and preserve ventilation, power and grounding provisions.

Official product data

3701/44 175794 key specifications

Architecture	Simplex: one processor position
Input-module positions	Supports one or two input modules
Output-module accommodation	One optional output module
Mounting points	Four corner holes for bulkhead or panel mounting
Preferred mounting	Vertical for convection cooling
Sensor termination blocks	Two removable, locking blocks
Power connections	Primary and secondary +24 V DC system connectors
System-earth connection	Dedicated terminal and single-point earth connection switch
Dedicated dry-contact controls	Six control inputs on the simplex base

Bently Nevada 100M8649 Rev. R, terminal-base description and spare listing (pages 2-5 and 23).

Pre-order check 01

Installation environment

Check the complete 3701/44 175794 identity and the actual installation before connection or replacement.

Identify the single-processor layout and compare the fitted input, output and termination components.
Use all four corner fixing points on a suitable vertical bulkhead or enclosure sub-panel.
Label and secure the removable sensor termination blocks; preserve the separate dry-contact control wiring.
Check system-earth continuity, the common-to-chassis arrangement and all fitted-module connections before commissioning.

Keep the approved field drawing and installation records available during verification.

Pre-order check 02

Compatibility confirmation

Match the complete component identity with the fitted interfaces and installed configuration.

Processor layout: Simplex arrangement with one installed processor module, not a two-processor base.
Input hardware: One or two input modules whose interfaces match the connected sensors and configuration.
Output option: Verify whether the installed assembly includes an output module and its separate wiring.
Field connections: Two removable sensor blocks plus the base-mounted control inputs and power connections.
Grounding and mounting: Vertical four-point mounting with the dedicated earth connection and approved common/chassis arrangement.

Confirm 3701/44 175794 against the fitted hardware, field wiring and approved commissioning records.
