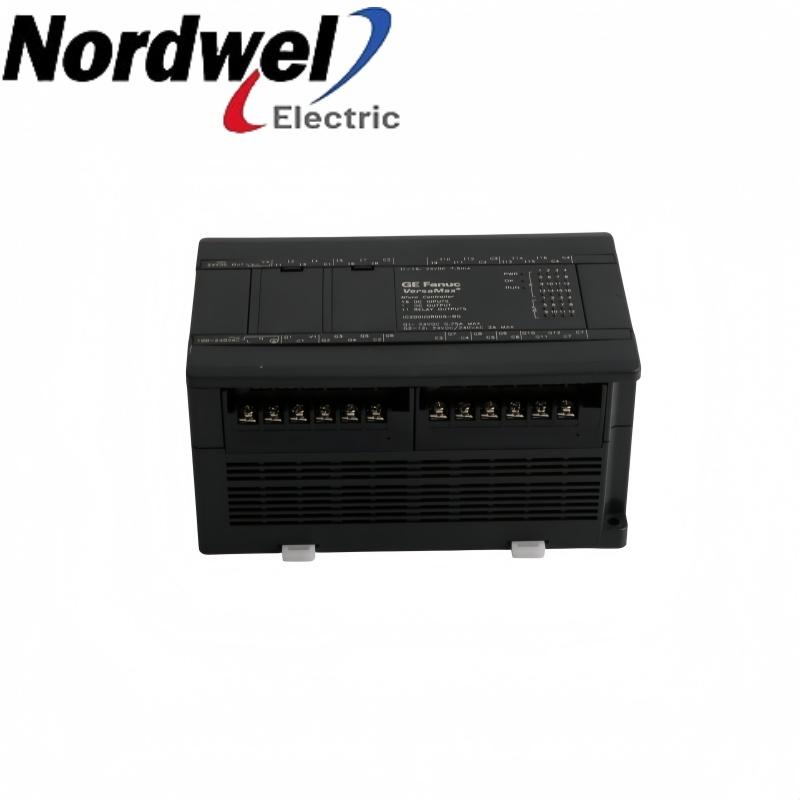

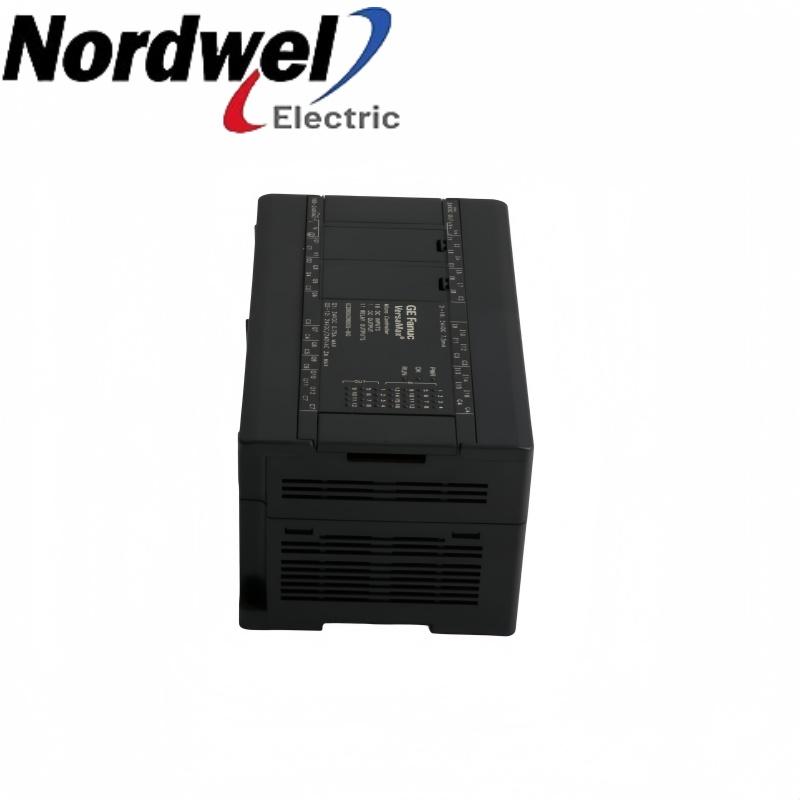

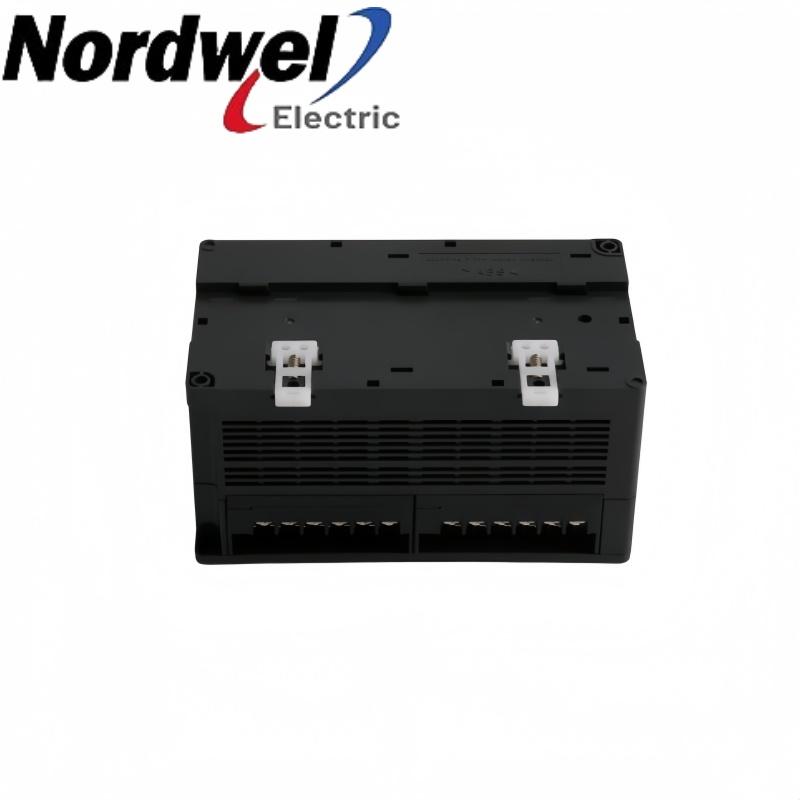

IC200UDR440 - 40-point 12/24 VDC relay-output micro controller

IC200UDR440 combines 24 DC inputs with 16 relay outputs. Its 12/24 V DC CPU supply is separate from field-load power.

General ElectricVersaMax Micro 40-point12/24 V DCRelay outputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR440 product profile

ManufacturerGeneral Electric

Exact modelIC200UDR440

Product type40-point relay controller

Product familyVersaMax Micro 40-point

Primary roleLocal discrete logic execution

Interface context12/24 V DC CPU power

Brand:
General Electric
Item NO.:
IC200UDR440
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDR440 configuration inquiry

Get a precise quote for IC200UDR440

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR440 function and field interfaces

IC200UDR440 is identified for nominal 12/24 V DC CPU power, 24 nominal 24 V DC inputs and 16 normally open relay outputs. The signal-input and relay field circuits have their own wiring requirements. The built-in serial interface and optional second port must be matched to the installed communication arrangement.

Discrete input acquisitionRead 24 nominal 24 V DC input signals with the configured input/common arrangement.

Field-load switchingSwitch separately supplied loads through 16 normally open relay contacts.

Program executionExecute the application in the 40-point Micro controller while preserving the installed configuration.

Serial communicationUse native RS-232 and check the fitted option before specifying a second interface.

Installation and selection boundaries

The CPU supply, nominal DC input signals and externally powered field loads are separate electrical functions.
Preserve the terminal/common allocation and the installed application configuration during replacement.
Relay contacts cannot be assigned pulse-train or PWM output operation.

Official product data

IC200UDR440 key specifications

Nominal CPU power	12/24 V DC
Input point count	24 nominal 24 V DC circuits
Output point count	16 normally open relay contacts
Contact form	Form A, single-pole single-throw
Resistive output capacity	2 A per point at 24 V DC or 240 V AC
Program memory allocation	24K words
Register memory allocation	32K words
Primary communication	Built-in RS-232 serial port
Maximum expansion	Four supported Micro expansion units

Emerson GFK-1645M, sections 7.1 and 7.6; chapter 15 installation requirements.

Pre-order check 01

Installation environment

Provide a grounded, ventilated installation and keep each field circuit matched to its terminal function.

Mount on a vertical surface in an appropriate enclosure; allow approximately 50 mm ventilation space and prevent condensation.
Identify the 12/24 V DC CPU power terminals separately from field input and output circuits.
Keep external relay-load supplies and output commons identified; distinguish Q1 where fitted.
Isolate power before changing expansion connections, preserve keyed orientation and coordinate host/expansion startup.

Keep the installed wiring and configuration record available for controlled restart checks.

Pre-order check 02

Compatibility confirmation

Check identity, power, field circuits and the actual host or controller configuration together.

Complete identity: IC200UDR440; match the required hardware revision.
Power arrangement: 12/24 V DC nominal CPU power; field circuits have separate requirements.
Input devices: 24 nominal 24 V DC input circuits; preserve the assigned commons and field-device wiring.
Output circuits: 16 normally open relay contacts; check individual and common-circuit loading.
Host / configuration: Restore the approved logic and configuration; match serial options, expansion allocation and hardware/firmware revision.

IC200UDR440 is identified for nominal 12/24 V DC CPU power, 24 nominal 24 V DC inputs and 16 normally open relay outputs. Keep the full model and actual terminal configuration matched before energizing.
