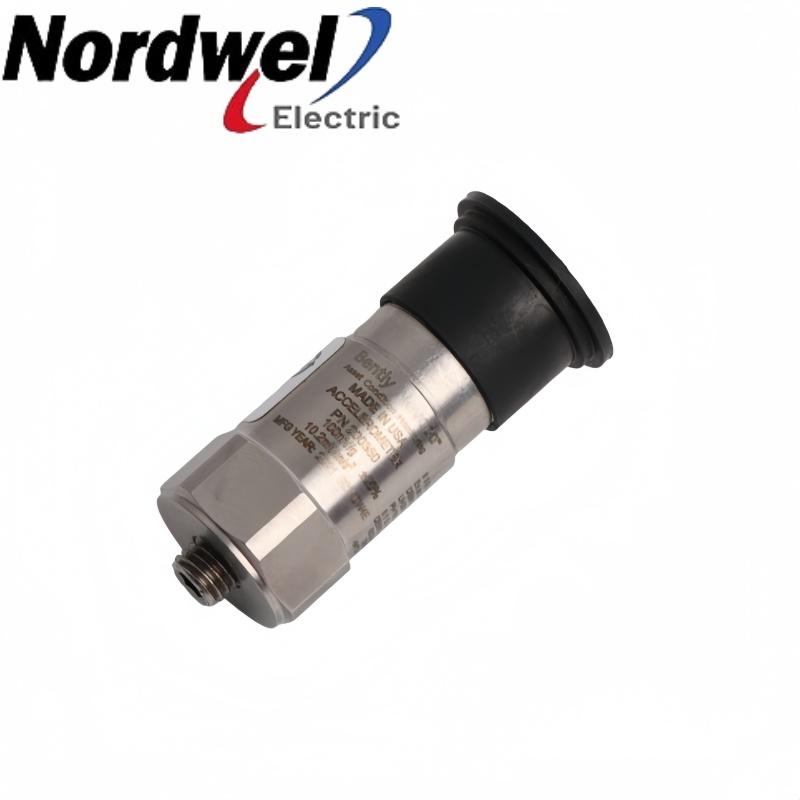

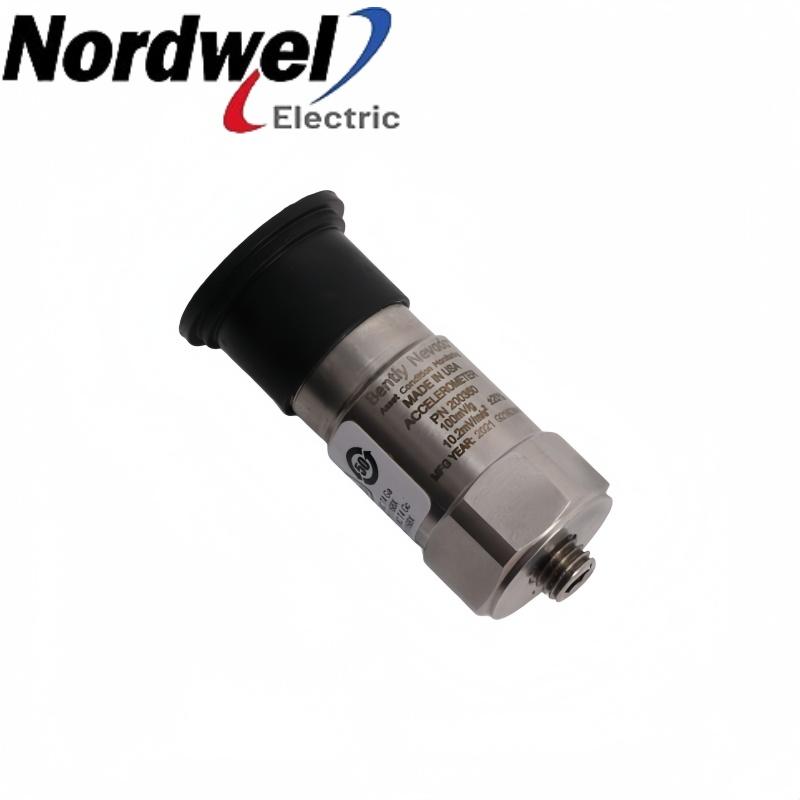

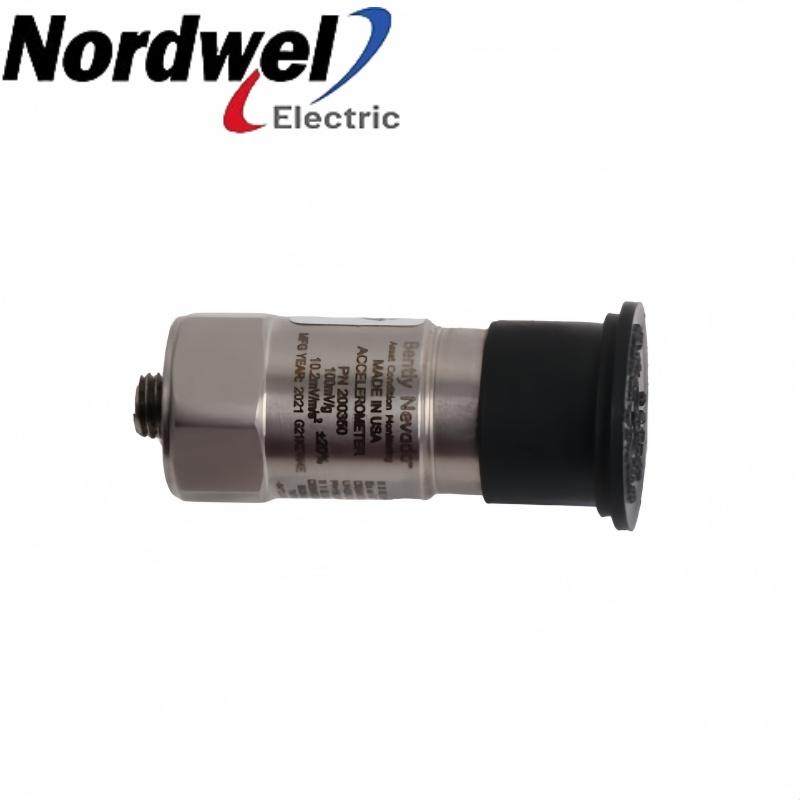

Bently Nevada 200355-00-00-00 100 mV/g piezoelectric accelerometer product image

Bently Nevada 200355-00-00-00 100 mV/g piezoelectric accelerometer

EMAIL SALES

Case-mounted accelerometer

200355-00-00-00 — 100 mV/g piezoelectric accelerometer

This casing accelerometer has nominal 100 mV/g sensitivity with ±5% tolerance. Its stated ±3 dB frequency band starts at 0.2 Hz.

Bently NevadaCase-mounted accelerometer100 mV/g; ±5%2-pin; constant-current excitation

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

200355-00-00-00 product profile

ManufacturerBently Nevada

Exact model200355-00-00-00

Product type100 mV/g piezoelectric accelerometer

Product familyCase-mounted accelerometer

Primary roleMachine casing acceleration

Interface context2-pin; constant-current excitation

Brand:
Bently Nevada
Item NO.:
200355-00-00-00
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

200355-00-00-00 configuration inquiry

Get a precise quote for 200355-00-00-00

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

100 mV/g piezoelectric accelerometer configuration

The hermetically sealed stainless-steel transducer is installed on a bearing housing or machine casing. Mounting quality and vibration transmission at the selected location are important to the observed amplitude and frequency response.

Casing measurementMeasures acceleration along the installed sensitive axis.

Signal interfaceA compatible constant-current measurement channel powers and reads the transducer.

Mechanical couplingA suitable mounting surface transmits machine vibration to the sensing element.

Environmental constructionWelded hermetic stainless-steel case with a top-mounted cable connector.

Engineering selection points

The specified transverse sensitivity is ≤5%; output impedance is <100 ohms.
Select the mounting position so relevant rotor vibration is transmitted into the casing measurement.
The stated environmental conditions include condensing humidity but not submerged service.

Official product data

200355-00-00-00 key specifications

Nominal sensitivity	100 mV/g; ±5%
Frequency band (±3 dB)	0.2–10,000 Hz
Acceleration range	±50 g
Excitation	18–28 V DC; 2–20 mA constant current
Output bias	8–12 V DC
Mounting thread	1/4-28 female; 00 stud option
Signal connection	Top-mounted 2-pin MIL-C-5015
Operating temperature	−54 to +121 °C
Housing	Hermetically sealed stainless steel; IP68, non-submerged conditions

Bently Nevada 164804, Rev. T.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Select a suitable bearing-housing or machine-casing measurement location.
Prepare the mounting surface and fit the correct threaded stud.
Use the specified mounting torque and secure the two-pin signal cable.
Check excitation, bias and channel response before relying on the measurement.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Measured quantity: Casing acceleration, not non-contact shaft displacement.
Measurement channel: Constant-current excitation compatible with the stated voltage and current limits.
Mechanical interface: 1/4-28 mounting arrangement and appropriate sensitive-axis direction.
Cable interface: Mating two-pin MIL-C-5015 connector with suitable cable protection.
Environmental limits: Check temperature, mounting and non-submerged conditions for the complete installation.

Measurement quality depends on mounting, excitation, cable integrity and the selected vibration-transmission location.
