Two temperature channels connect Pt100 or Pt1000 sensors. Match the sensor type, wiring arrangement and configured temperature scaling.
Brand:
SIEMENSItem NO.:

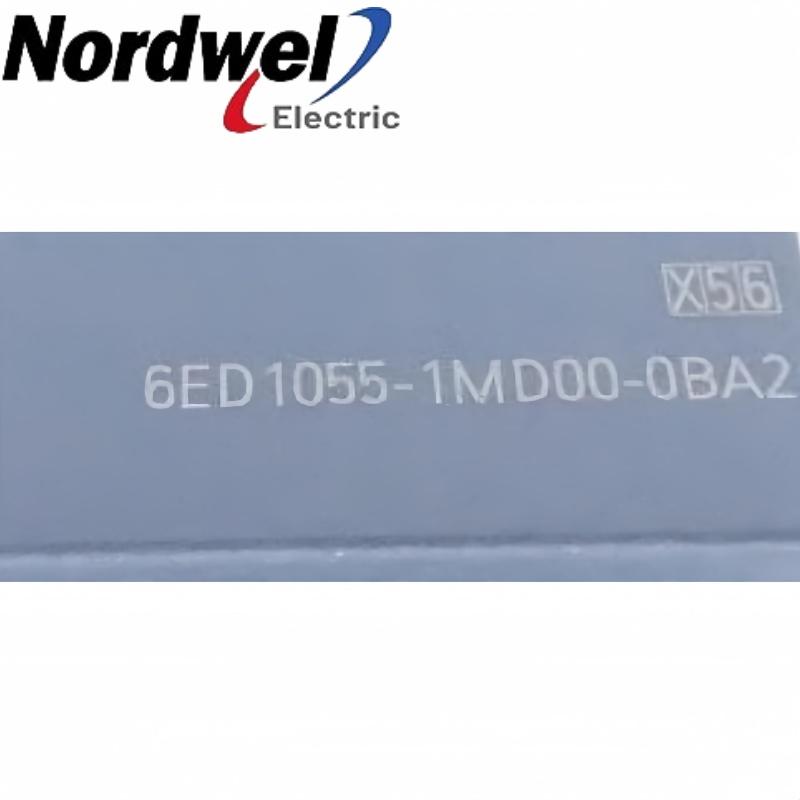

6ED1055-1MD00-0BA2Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

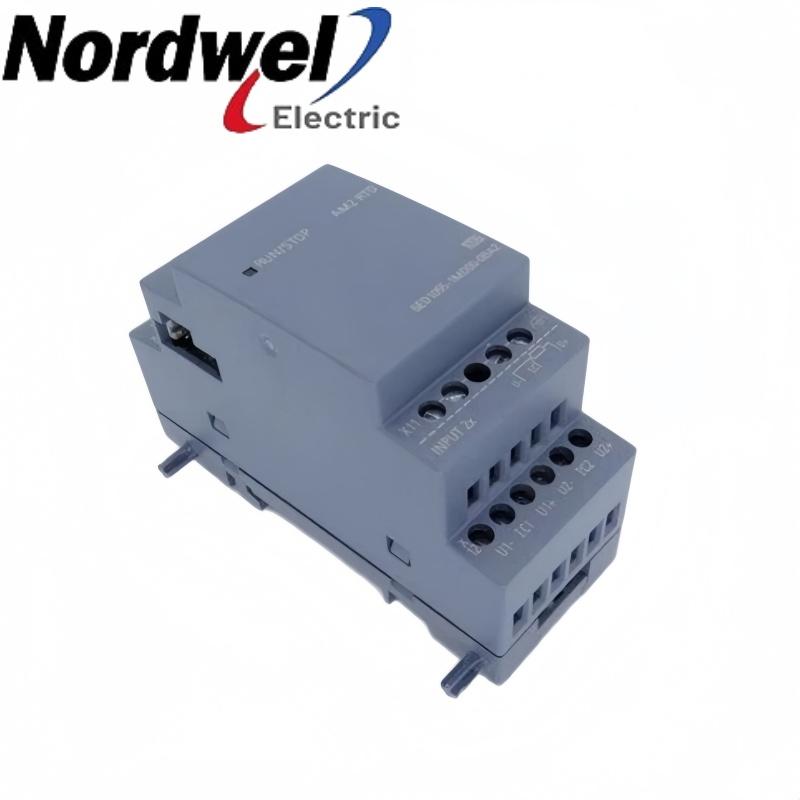

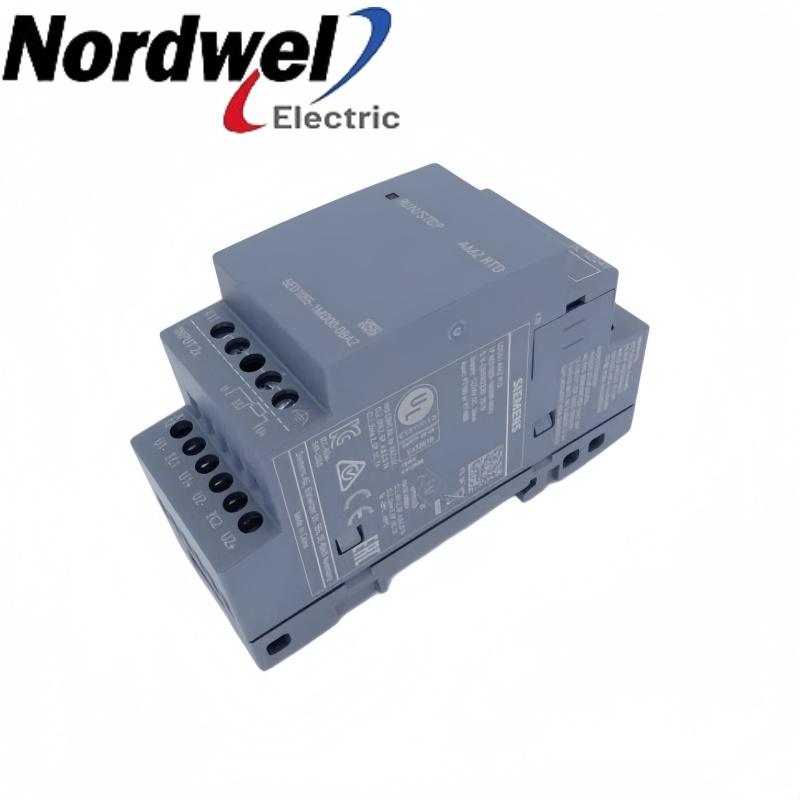

The LOGO! AM2 RTD is a local input expansion supplied at 12/24 V DC. Its two channels are selected for Pt100 / Pt1000; −50 to +200 °C, with the application configuration matched to the actual field connection.
| Product designation | LOGO! AM2 RTD |
|---|---|
| Nominal supply | 12/24 V DC |
| Channel arrangement | 2 temperature inputs |
| Signal / sensor range | Pt100 / Pt1000; −50 to +200 °C |
| Sensor wiring | 2-wire or 3-wire |
| Host context | LOGO! 8 expansion |
| Mounting | 35 mm DIN rail |
| Enclosure rating | IP20 |
| Enclosure W × H × D | 35.5 × 90 × 58 mm |
Siemens exact-product technical data.
Check the mounting, connection and operating conditions for this exact configuration before installation.
