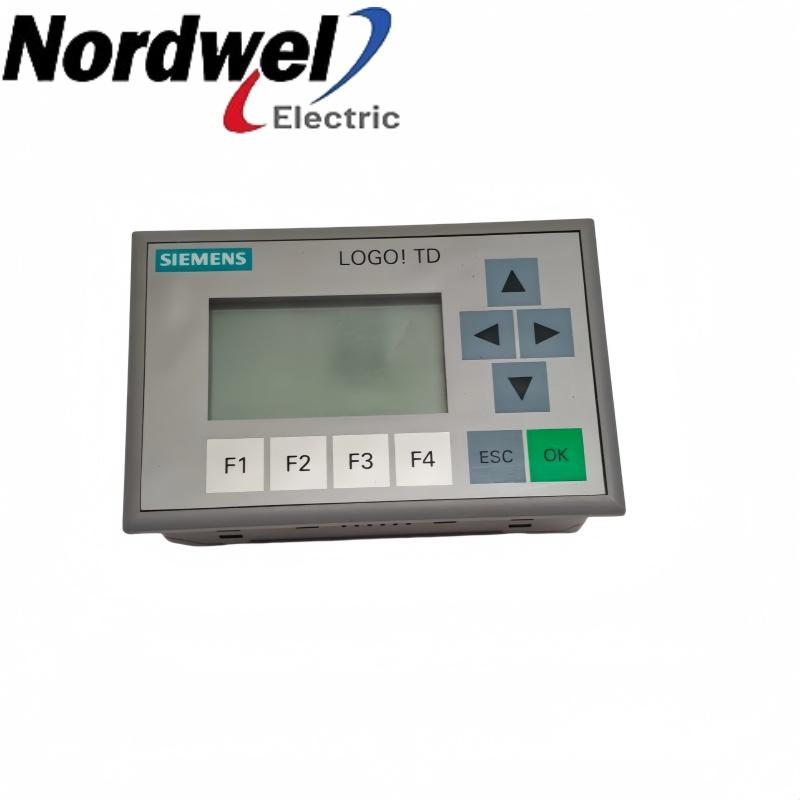

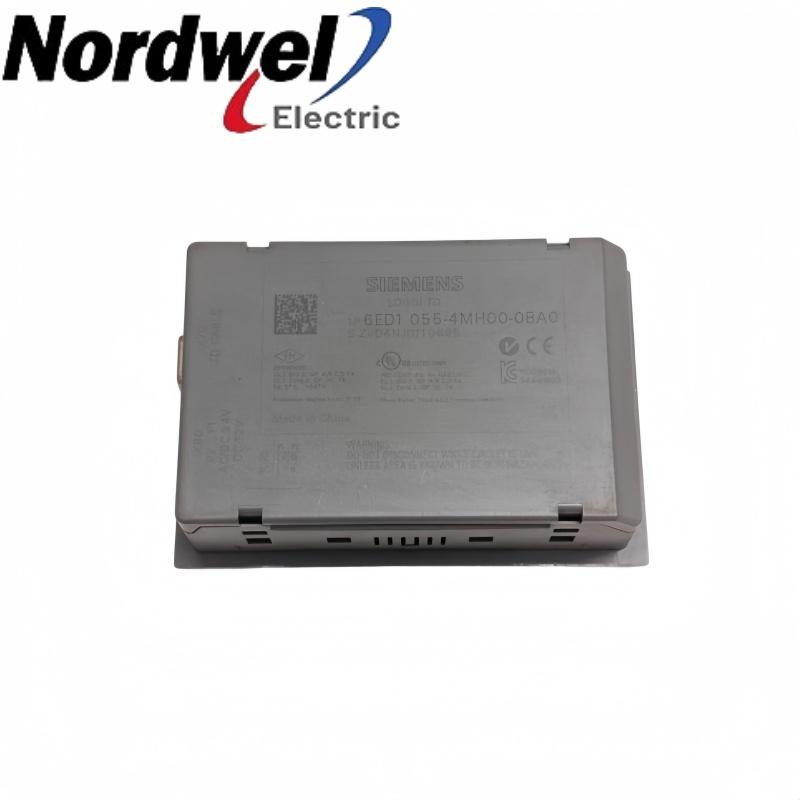

Six lines of configured messages support operator access to a compatible LOGO! base. Two Ethernet interfaces connect the display to the installation.
Brand:
SIEMENSItem NO.:
6ED1055-4MH08-0BA1Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:
The TDE gives the operator access to configured messages and values from the associated control installation. Match the exact display version, base generation, network connection and panel mounting before replacement.
| Display | 6-line text display |
|---|---|
| Characters per line | 20 |
| Display technology | FSTN |
| Background colors | 3 |
| Ethernet interfaces | 2 |
| Nominal supply | 12/24 V DC or 24 V AC |
| Front protection | IP65 when correctly installed |
| Operating ambient | −20 to +55 °C; avoid condensation |
| Enclosure W × H × D | 128.2 × 86 × 38.7 mm |
Siemens exact-product technical data.
Check the mounting, connection and operating conditions for this exact configuration before installation.
