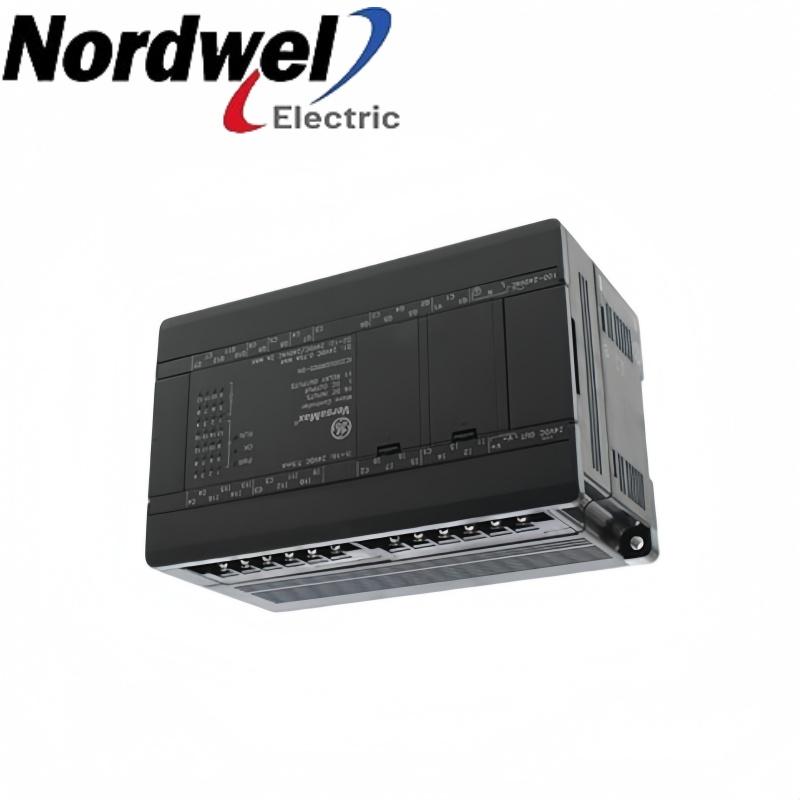

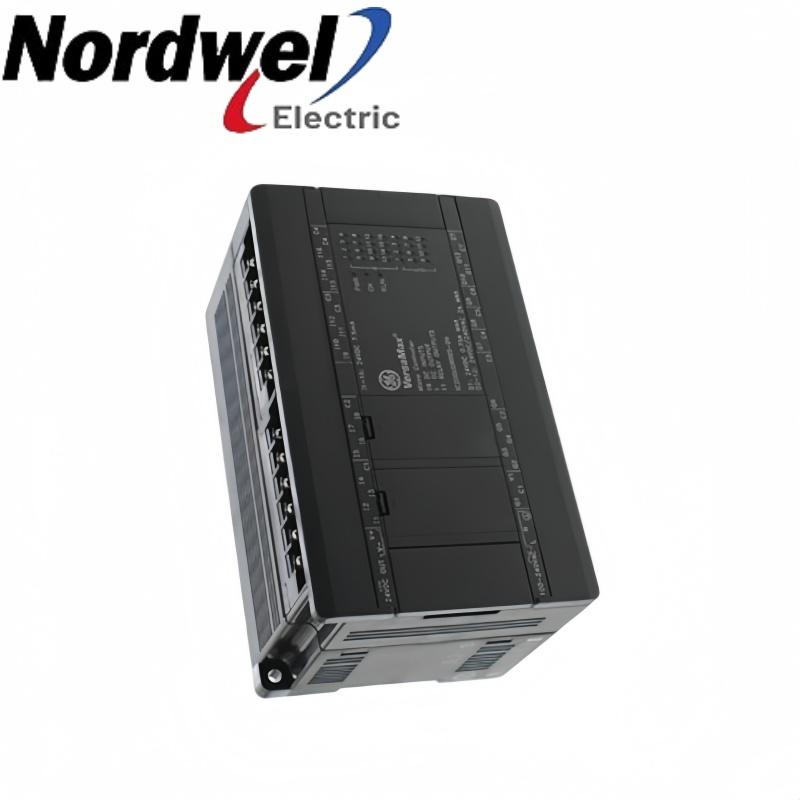

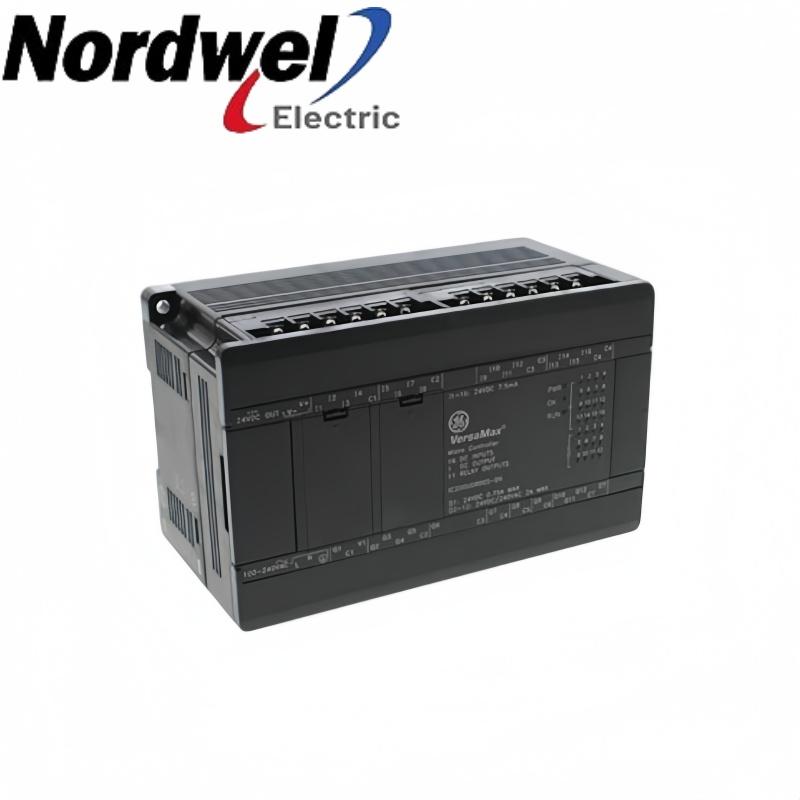

General Electric IC200UDD212 28-point 12 V DC transistor-output micro controller product view

General Electric IC200UDD212 28-point 12 V DC transistor-output micro controller

EMAIL SALES

General Electric VersaMax Micro 28-point

IC200UDD212 - 28-point 12 V DC transistor-output micro controller

IC200UDD212 combines 16 inputs with 12 DC transistor outputs. Match its 12 V supply and grouped output wiring to the installed machine.

General ElectricVersaMax Micro 28-point28-point DC controller

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDD212 product profile

Product familyVersaMax Micro 28-point

Exact modelIC200UDD212

CPU supply12 V DC nominal

Digital inputs16 × 12 V DC

Digital outputs12 × transistor

Counter-input limit10 kHz

Brand:
General Electric
Item NO.:
IC200UDD212

Inquiry now

IC200UDD212 configuration inquiry

Get a precise quote for IC200UDD212

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDD212 functions and interfaces

IC200UDD212 combines 16 nominal 12 V DC inputs with 12 transistor outputs. The controller uses 12 V DC input power, while the field-output circuits require the correct load supply and commons. The output circuits use two groups of six; fast external fusing is recommended. Standard I/O, counting and pulse functions depend on the actual application configuration.

Field-input acquisitionRead 16 nominal 12 V DC signals using the configured standard or counter-input assignments.

DC load switchingOperate 12 transistor outputs with the specified load supply and common connections.

High-speed operationAssign the supported counter and pulse/PWM functions without treating every I/O point as a high-speed channel.

Application continuityRetain the program, I/O map and startup settings when replacing the installed controller.

Installation and selection boundaries

Keep CPU power, input commons and external field-load wiring consistent with the exact controller.
Configured high-speed functions use their assigned inputs and outputs; standard-I/O timing limits still apply to other points.
Back up the application and verify loads and machine interlocks before controlled recommissioning.

Official product data

IC200UDD212 key specifications

CPU power	12 V DC nominal; 9.6-15 V DC
Digital inputs	16 nominal 12 V DC circuits
Digital outputs	12 transistor outputs
Input ON/OFF thresholds	9.5 V minimum / 2.5 V maximum
Regular input filter	0.5-20 ms configurable
Counter input frequency	10 kHz maximum
Configured pulse/PWM output	5 kHz maximum on the assigned high-speed outputs
Auxiliary field supply	12 V DC, 200 mA maximum; input circuits and user devices combined

Emerson / legacy GE VersaMax Micro User Manual GFK-1645M, printed pages 103-105.

Pre-order check 01

Installation environment

Check the complete IC200UDD212 identity and the actual installation before connection or replacement.

Verify 12 V DC CPU power within 9.6-15 V DC and isolate external field loads before wiring.
Match all 16 input signals to the specified voltage levels and the approved common/polarity arrangement.
Identify the two six-output supply/common groups and install the required external output protection.
Restore the saved application and test standard I/O, assigned high-speed functions and shutdown interlocks under controlled startup.

Keep the approved field drawing and installation records available during verification.

Pre-order check 02

Compatibility confirmation

Match the complete component identity with the fitted interfaces and installed configuration.

Electrical identity: 12 V DC CPU supply, 16 nominal 12 V DC inputs and 12 transistor outputs.
CPU supply range: 9.6-15 V DC; review startup capability separately from normal operating demand.
Load wiring: Two groups of six transistor outputs with separate incoming supply and common connections.
High-speed application: 10 kHz maximum counter input and 5 kHz maximum configured pulse/PWM output; apply the assigned channels and mode limits.
Auxiliary budget: 200 mA maximum from the 12 V DC auxiliary supply, shared by input circuits and external user devices.

Confirm IC200UDD212 against the fitted hardware, field wiring and approved commissioning records.
