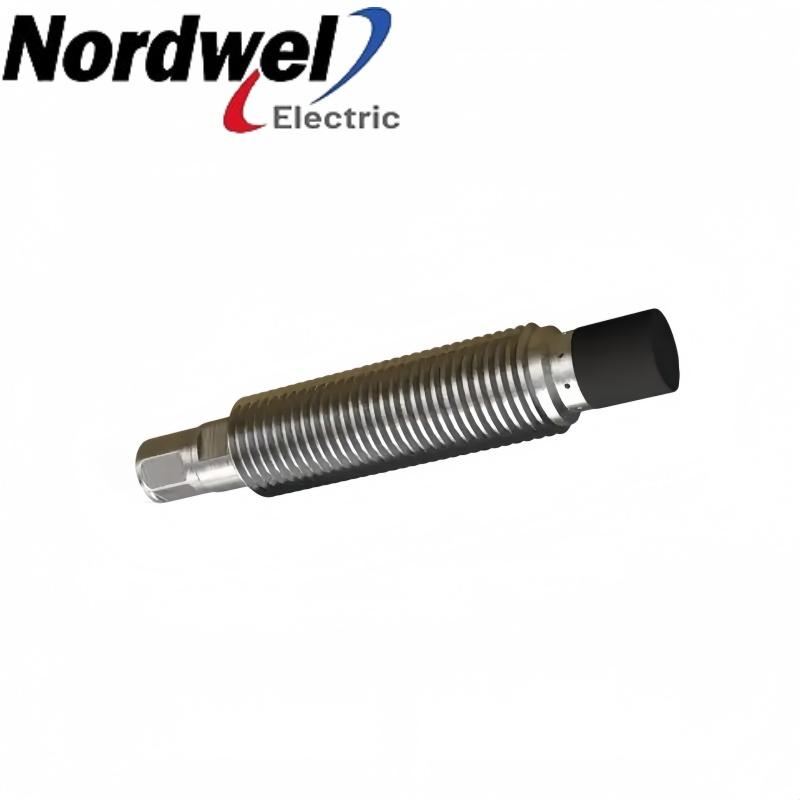

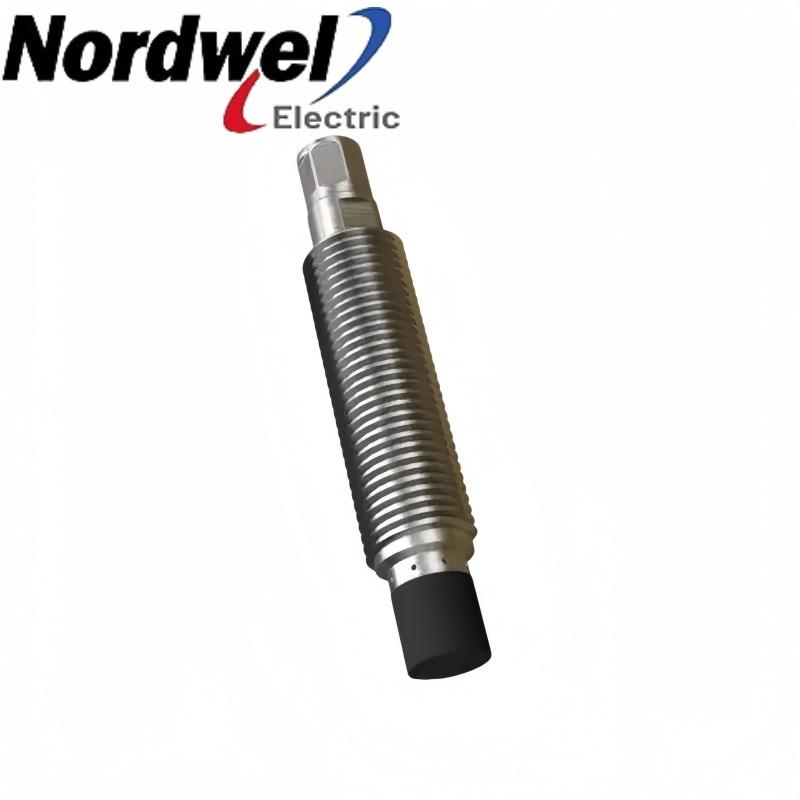

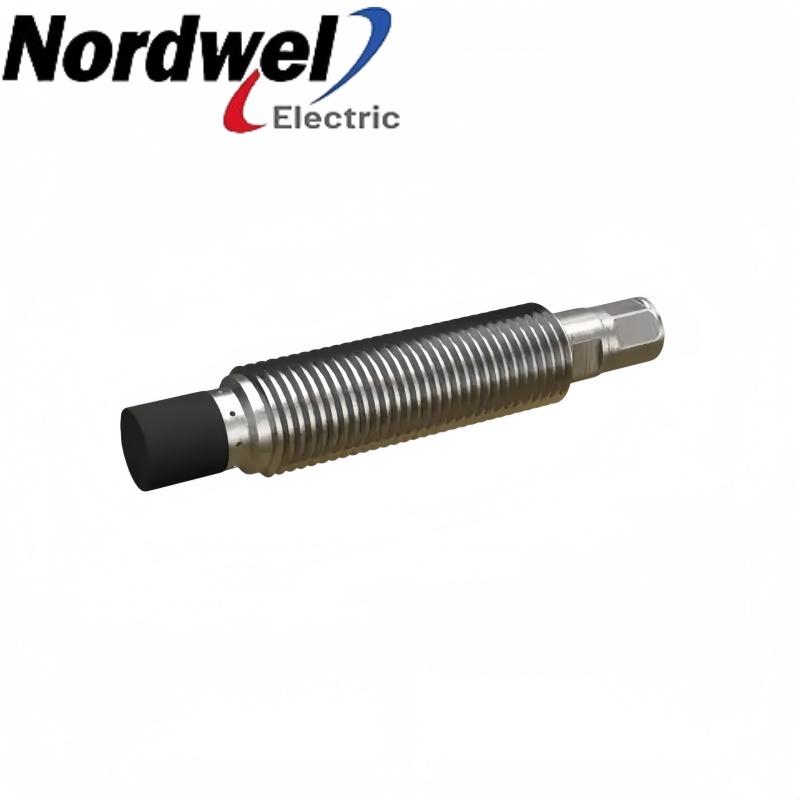

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 — Non-contact proximity sensor

An M10 × 1 thread and 42 mm body define this sensor configuration. Its 10 m cable and 9.8 m hose support the selected 10 m chain.

vibro-metervibro-meter proximity sensingA1 — standardM10 × 1; 10 m chain

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 product profile

Manufacturervibro-meter

Exact modelTQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10

Product typeNon-contact proximity sensor

Product familyvibro-meter proximity sensing

Primary roleShaft vibration and position

Interface contextM10 × 1; 10 m chain

Brand:
Others
Item NO.:
TQ902-011 111-902-00
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 configuration inquiry

Get a precise quote for TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Non-contact proximity sensor configuration

The complete ordering configuration selects the standard A1 environment, M10 × 1 thread, 42 mm body and 2 mm unthreaded length. Cable and protection selections must be checked independently from the mechanical fit.

Shaft observationRelative vibration and static gap/position in a matched chain.

Mechanical selectionM10 × 1 thread, 42 mm body and 2 mm unthreaded length.

Cable protectionFlexible hose with FEP sheath; no connector protector.

Electrical matchingMatch the 10 m total system selection to the configured signal conditioner.

Engineering selection points

A1 is the standard environment selection; do not treat it as the Ex version.
The target must be metallic and suitable for the matched calibration.
The selected 9,800 mm hose satisfies the nominal cable-length-minus-200-mm protection limit.

Official product data

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 key specifications

Environment	A1 — standard
Body thread	M10 × 1
Body length	42 mm
Unthreaded length	2 mm
Integral cable length	10,000 mm
Cable / connector protection	Flexible hose with FEP sheath; no connector protector
Hose length	9,800 mm
Total system length	10 m
Measurement principle	Non-contact eddy current; metallic target

Parker Meggitt vibro-meter DS 265-101, Version 10.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Verify the M10 × 1 mounting and the 42 mm body clearance.
Route the 10,000 mm cable and its selected protection without exceeding installation constraints.
Secure and protect the self-locking coaxial connection as required.
Establish the initial gap and test the configured 10 m measurement chain.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Full configuration: Match every environment, thread, body, cable, protection and system-length selection.
Mounting: M10 × 1 thread; 42 mm body; 2 mm unthreaded length.
Cable and protection: 10,000 mm integral cable; flexible hose with fep sheath; no connector protector.
Conditioner: Use the conditioner configured for the selected total electrical length and required output.
Target and commissioning: Use a suitable metallic target and verify the installed gap and signal response.

Match the full ordering configuration and complete calibrated chain; the sensor code alone does not define conditioner output settings.
