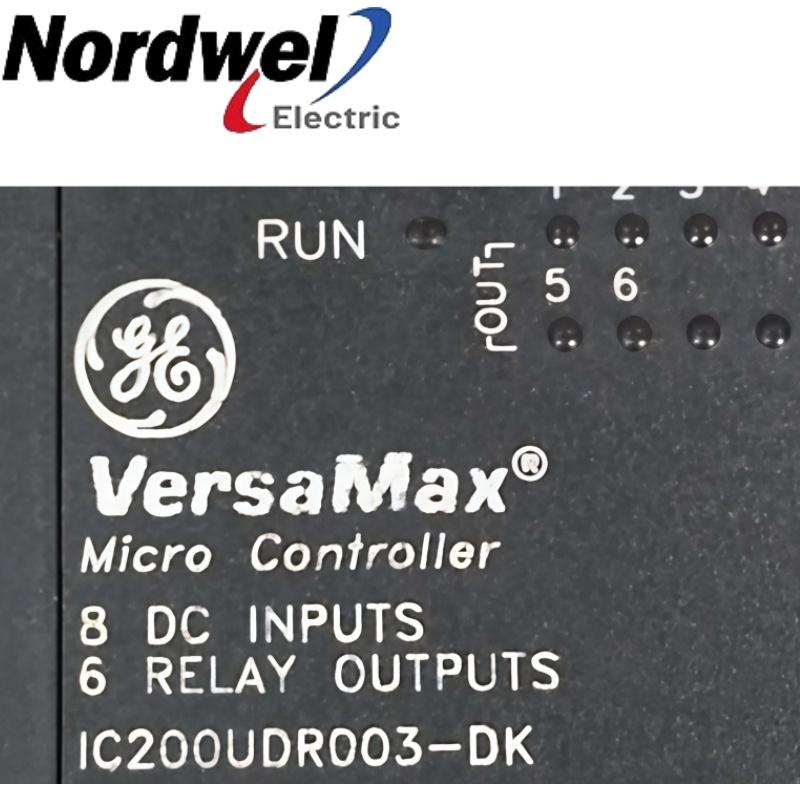

General Electric IC200UDR003 14-point relay-output micro controller product view

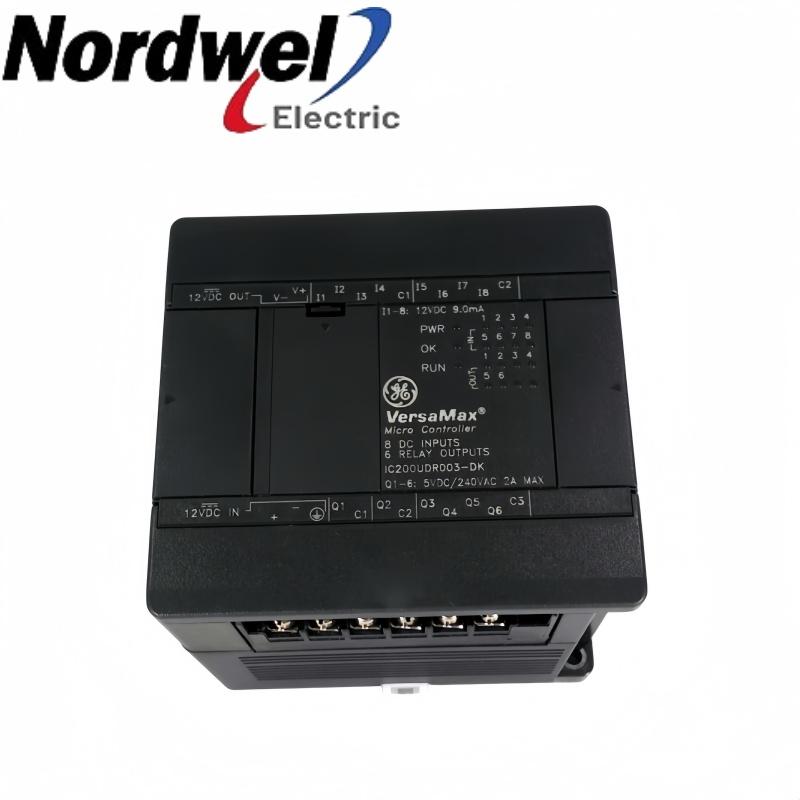

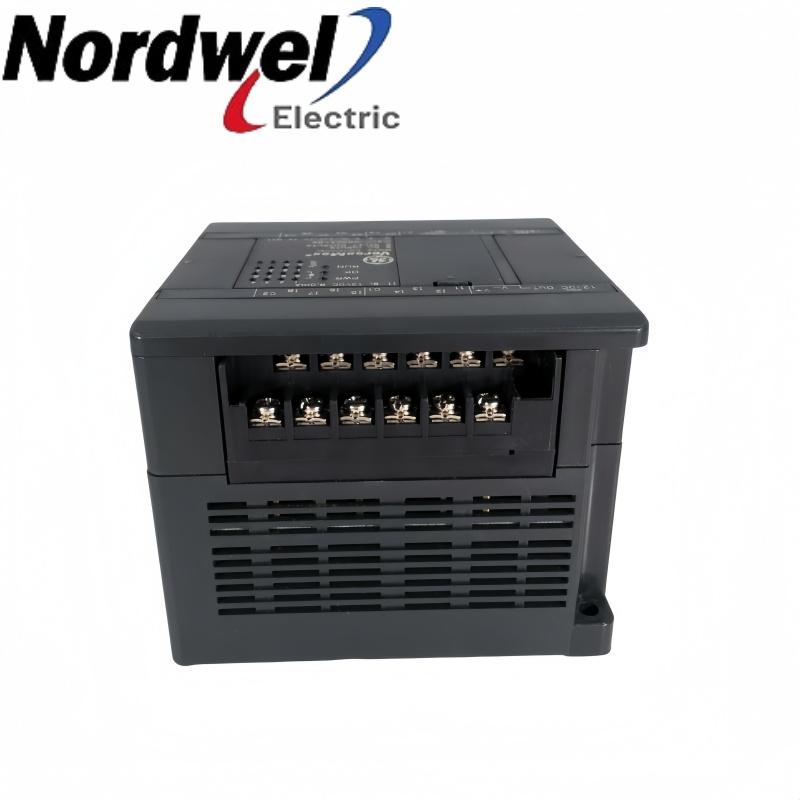

General Electric IC200UDR003 14-point relay-output micro controller

EMAIL SALES

General Electric VersaMax Micro 14-point

IC200UDR003 - 14-point relay-output micro controller

IC200UDR003 uses 12 V DC power with eight 12 V DC inputs and six relay outputs. Match the sensor levels and externally powered field loads.

General ElectricVersaMax Micro 14-point14-point relay controller

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR003 product profile

ManufacturerGeneral Electric

Exact modelIC200UDR003

CPU supply12 V DC nominal

Digital inputs8 × 12 V DC

Output arrangement6 normally open Form A relays

Serial interfacesRS-232

Program memory9K words

Verified functionDiscrete relay-output control

Brand:
General Electric
Item NO.:
IC200UDR003
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDR003 configuration inquiry

Get a precise quote for IC200UDR003

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR003 functions and interfaces

IC200UDR003 provides 8 nominal 12 V DC input circuits and 6 normally open form a relays. The controller electronics use 12 V DC nominal power. External field-load power, output commons and the stored application must be checked separately before replacing an installed unit.

Discrete input processingRead 8 nominal 12 V DC field inputs for the installed application logic.

Field-load commandsOperate the normally open relay contacts within their own electrical and load limits.

Serial integrationUse the configured RS-232 arrangement for the supported programming and equipment communication paths.

Application retentionRetain the program, I/O assignment and required startup behavior when replacing the controller.

Installation and selection boundaries

Controller supply and switched field-load power are different circuits; keep the approved output-common grouping.
Relay outputs cannot generate pulse-train or PWM signals, even when high-speed input counters are configured.
Back up the installed logic and configuration before de-energizing or exchanging the controller.

Official product data

IC200UDR003 key specifications

CPU power	12 V DC nominal; 9.6-15 V DC
Discrete inputs	8 positive/negative-logic 12 V DC circuits
Discrete outputs	6 normally open Form A relays
Relay resistive load	2 A per point at 24 V DC or 240 V AC
Program allocation	9K words
Register allocation	256 words
Serial arrangement	RS-232
Configured counter-input frequency	10 kHz
Auxiliary field supply	12 V DC, 200 mA maximum; input circuits and user devices combined

Emerson / legacy GE VersaMax Micro User Manual GFK-1645M, printed pages 33-34 and 52-54.

Pre-order check 01

Installation environment

Install the controller with the correct supply, input signal levels and output wiring for this exact catalog identity.

Verify 12 V DC CPU power and the permitted 9.6-15 V DC supply range before connection.
Identify all 8 input circuits as nominal 12 V DC signals; keep their logic commons and polarity consistent.
Isolate external field power and label the output-common groups before removing a terminal assembly.
Restore the saved application, communications and operating mode; test the I/O under the controlled machine-start procedure.

Keep the approved field drawing, application backup and commissioning plan available during installation.

Pre-order check 02

Compatibility confirmation

Match the complete controller identity with the installed wiring, software and communication arrangement.

Exact controller: IC200UDR003; match hardware revision and approved firmware to the installed application.
Supply and field inputs: 12 V DC nominal CPU supply with 8 nominal 12 V DC inputs.
Output hardware: 6 normally open Form A relays; verify each field-load supply and common group.
Application resources: 9K words of program allocation and 256 words of registers; preserve the actual configured I/O map.
Communication path: RS-232; match the actual cable, pinout, protocol and programmer settings.

Confirm IC200UDR003 against CPU power, input levels, output types, serial wiring and the backed-up application.
