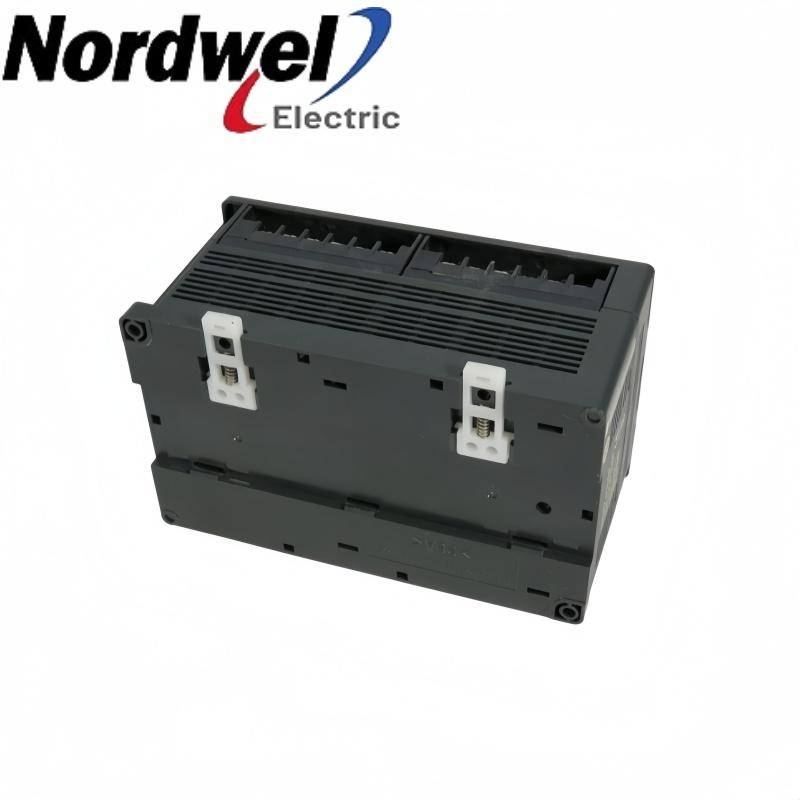

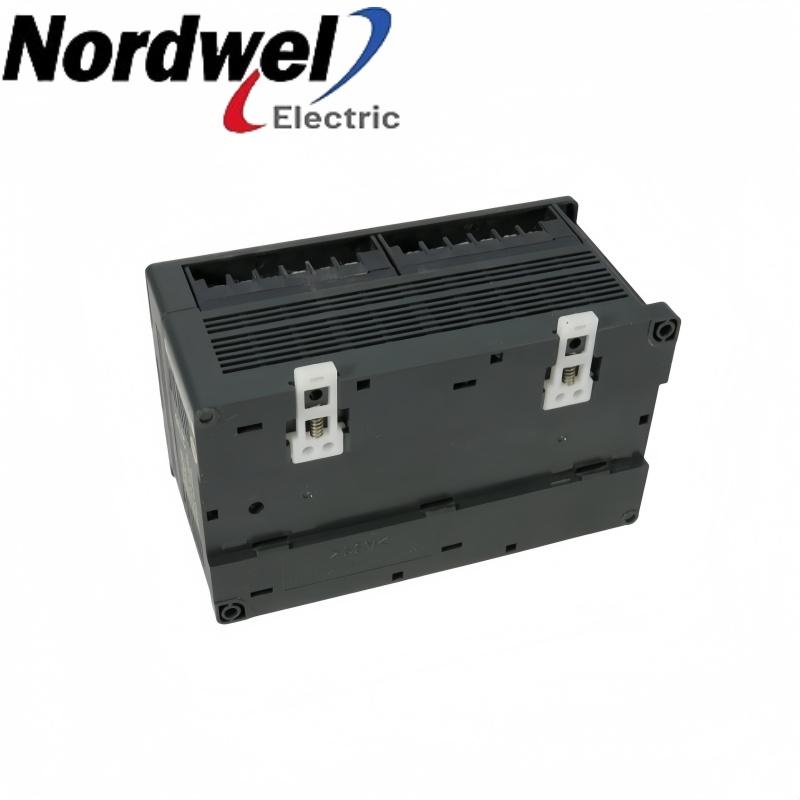

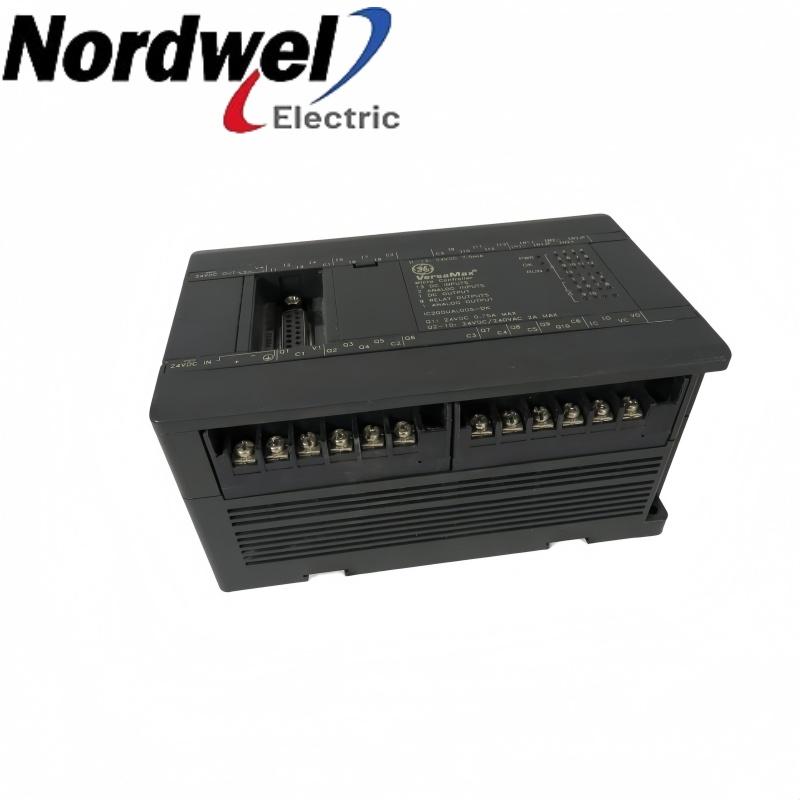

General Electric IC200UAR028 AC-input relay-output micro controller product images

General Electric IC200UAR028 AC-input relay-output micro controller

EMAIL SALES

VersaMax Micro 28-point

IC200UAR028 — AC-input relay-output micro controller

IC200UAR028 reads 16 AC inputs and controls 12 relay outputs in a Micro controller. CPU mains power and externally powered relay loads remain separate.

General ElectricVersaMax Micro 28-point16 inputs and 12 relay outputsAC inputs with external relay loads

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UAR028 product profile

ManufacturerGeneral Electric

Exact modelIC200UAR028

Product typeAC-input relay-output micro controller

Product familyVersaMax Micro 28-point

Primary roleAC sensing and relay sequencing

Interface contextAC inputs with external relay loads

Brand:
General Electric
Item NO.:
IC200UAR028
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UAR028 configuration inquiry

Get a precise quote for IC200UAR028

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

AC-input relay-output micro controller configuration

IC200UAR028 combines nominal 120 V AC discrete inputs with twelve relay outputs and an AC-powered CPU. The relays switch user-supplied load power, while the serial ports provide the supported programming and communications paths. Preserve the actual relay-load wiring and controller configuration during replacement.

AC input acquisitionReads suitable discrete AC switches and sensor interfaces.

Relay switchingControls externally supplied compatible load circuits through relay contacts.

Local logic executionExecutes the machine sequence and processes the discrete I/O state.

Serial monitoringProvides supported serial paths for programming, diagnostics and monitoring.

Engineering selection points

The AC input-signal range is not the same as the wider CPU mains-supply range.
Relay field power is external, and contact/load suitability must be checked for the installed circuit.
This AC-input controller does not provide high-speed counter, pulse-train or PWM operation.

Official product data

IC200UAR028 key specifications

Discrete inputs	16 nominal 120 V AC inputs
Discrete outputs	12 relay outputs
CPU supply	100-240 V AC nominal
Input-signal range	85-132 V AC
High-speed pulse functions	No HSC, pulse-train or PWM operation
Program memory	9K words
Register memory	2048 words
Serial ports	RS-232/RJ45 and RS-485/DB15
Expansion units	Up to 4

Emerson GFK-1645M, sections 6.1-6.3, 6.5-6.5.4 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Check the AC mains terminals independently from the nominal 120 V input-signal circuits.
Identify each external relay-load supply and preserve its common and load wiring.
Provide protective grounding, an appropriate enclosure and the recommended ventilation clearance.
Disconnect power before terminal or expansion work and preserve the controlled serial and application configuration.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Controller selection: Match IC200UAR028 and the installed hardware revision.
Input source: Use suitable AC field signals within the specified input-signal range.
Relay loads: Check the actual contact allocation and load requirements before connecting externally powered devices.
Communications: Match the configured protocol to the correct RS-232 or RS-485 port and cable.
Expansion station: Retain supported expansion units, cable orientation and coordinated power-up.

Match the AC input circuits, external relay loads and installed revision when selecting IC200UAR028.
