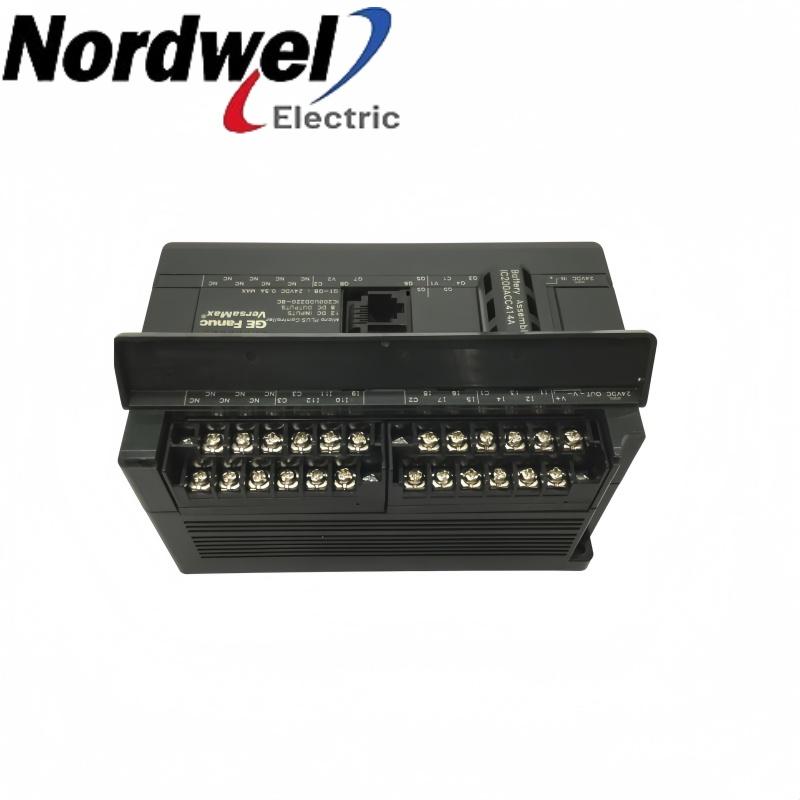

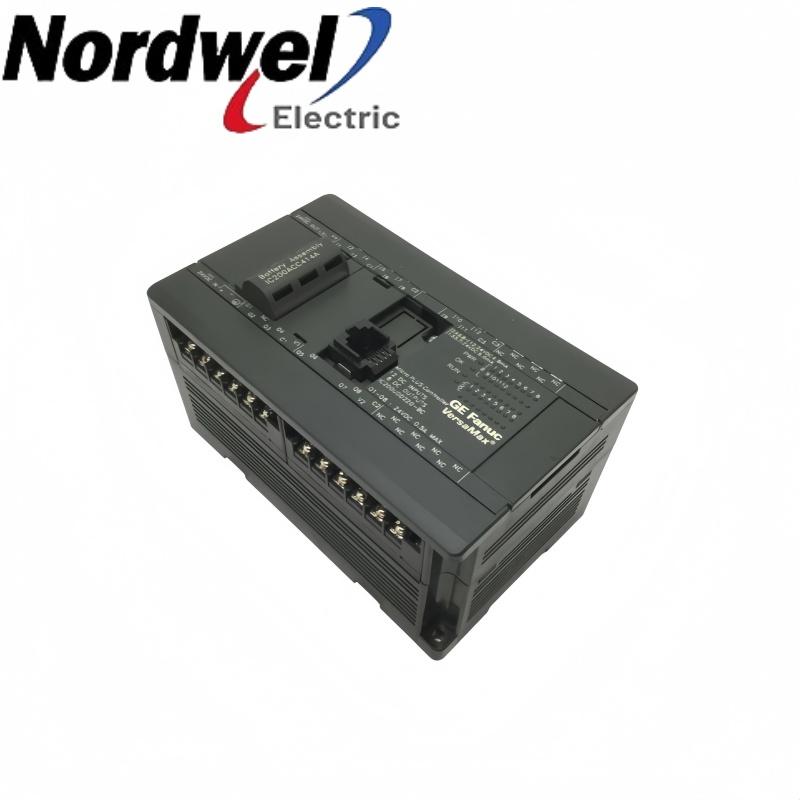

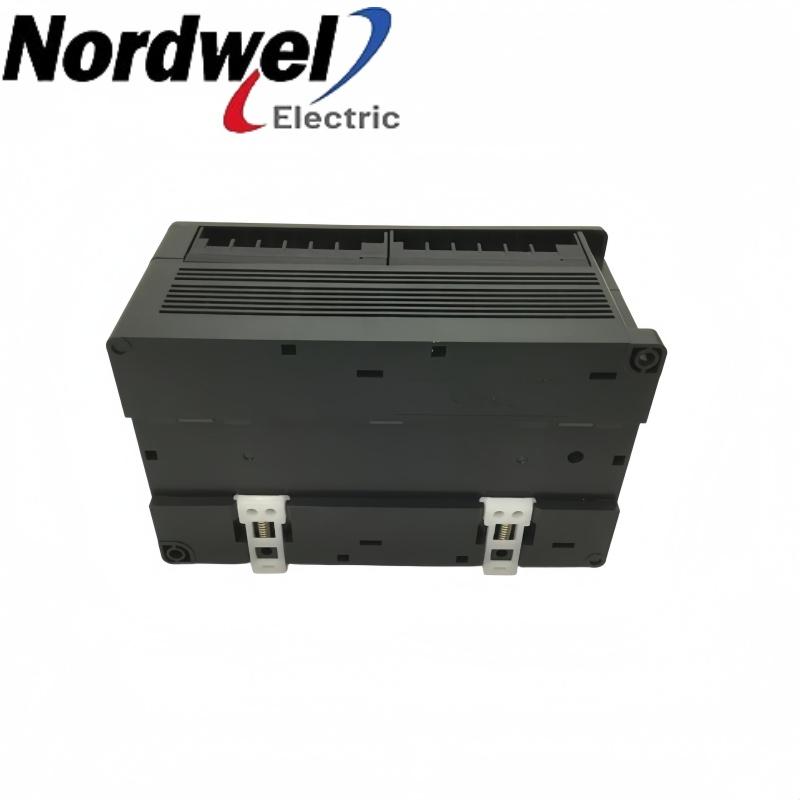

General Electric IC200UDD220 20-point sinking-output micro controller product view

General Electric IC200UDD220 20-point sinking-output micro controller

EMAIL SALES

General Electric VersaMax Micro 20-point

IC200UDD220 - 20-point sinking-output micro controller

IC200UDD220 combines 12 inputs with 8 DC transistor outputs. Match its 24 V supply and current-sinking field wiring to the installed machine.

General ElectricVersaMax Micro 20-point20-point DC controller

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDD220 product profile

Product familyVersaMax Micro 20-point

Exact modelIC200UDD220

CPU supply24 V DC nominal

Digital inputs12 × 24 V DC

Digital outputs8 × transistor (sinking)

Counter-input limit100 kHz

Brand:
General Electric
Item NO.:
IC200UDD220

Inquiry now

IC200UDD220 configuration inquiry

Get a precise quote for IC200UDD220

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDD220 functions and interfaces

IC200UDD220 combines 12 nominal 24 V DC inputs with 8 sinking transistor outputs. The controller uses 24 V DC input power, while the field-output circuits require the correct load supply and commons. Its sinking outputs must be wired as current-sinking circuits; input logic selection does not change the output topology. Standard I/O, counting and pulse functions depend on the actual application configuration.

Field-input acquisitionRead 12 nominal 24 V DC signals using the configured standard or counter-input assignments.

DC load switchingOperate 8 transistor outputs with the specified load supply and common connections.

High-speed operationAssign the supported counter and pulse/PWM functions without treating every I/O point as a high-speed channel.

Application continuityRetain the program, I/O map and startup settings when replacing the installed controller.

Installation and selection boundaries

Keep CPU power, input commons and external field-load wiring consistent with the exact controller.
Configured high-speed functions use their assigned inputs and outputs; standard-I/O timing limits still apply to other points.
Back up the application and verify loads and machine interlocks before controlled recommissioning.

Official product data

IC200UDD220 key specifications

CPU power	24 V DC nominal; 19.2-30 V DC
Digital inputs	12 nominal 24 V DC circuits
Digital outputs	8 sinking transistor outputs
Input ON/OFF thresholds	18 V minimum / 5 V maximum
Regular input filter	0.5-20 ms configurable
Counter input frequency	100 kHz maximum
Configured pulse/PWM output	65 kHz maximum on the assigned high-speed outputs
Auxiliary field supply	24 V DC, 435 mA maximum; input circuits and user devices combined
Output load at 24 V DC	0.5 A per point; apply the installed wiring and load conditions

Emerson / legacy GE VersaMax Micro User Manual GFK-1645M, printed pages 62-64.

Pre-order check 01

Installation environment

Check the complete IC200UDD220 identity and the actual installation before connection or replacement.

Verify 24 V DC CPU power within 19.2-30 V DC and isolate external field loads before wiring.
Match all 12 input signals to the specified voltage levels and the approved common/polarity arrangement.
Wire the 8 outputs as sinking circuits with the correct field-load supply, VC and COM arrangement.
Restore the saved application and test standard I/O, assigned high-speed functions and shutdown interlocks under controlled startup.

Keep the approved field drawing and installation records available during verification.

Pre-order check 02

Compatibility confirmation

Match the complete component identity with the fitted interfaces and installed configuration.

Electrical identity: 24 V DC CPU supply, 12 nominal 24 V DC inputs and 8 transistor outputs.
CPU supply range: 19.2-30 V DC; review startup capability separately from normal operating demand.
Load wiring: Sinking field outputs with correctly matched supply, commons and connected load polarity.
High-speed application: 100 kHz maximum counter input and 65 kHz maximum configured pulse/PWM output; apply the assigned channels and mode limits.
Auxiliary budget: 435 mA maximum from the 24 V DC auxiliary supply, shared by input circuits and external user devices.

Confirm IC200UDD220 against the fitted hardware, field wiring and approved commissioning records.
