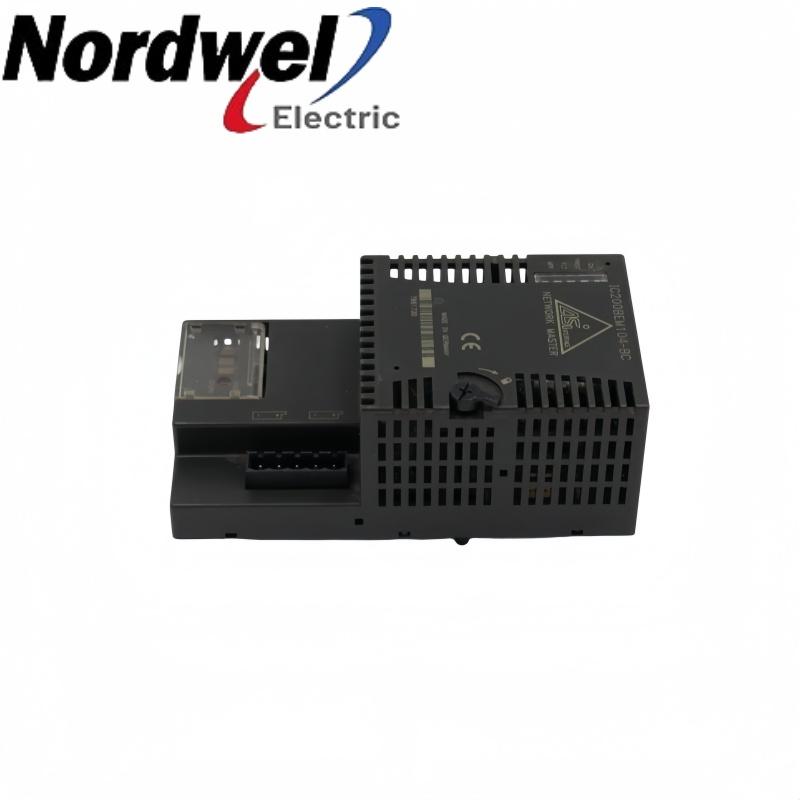

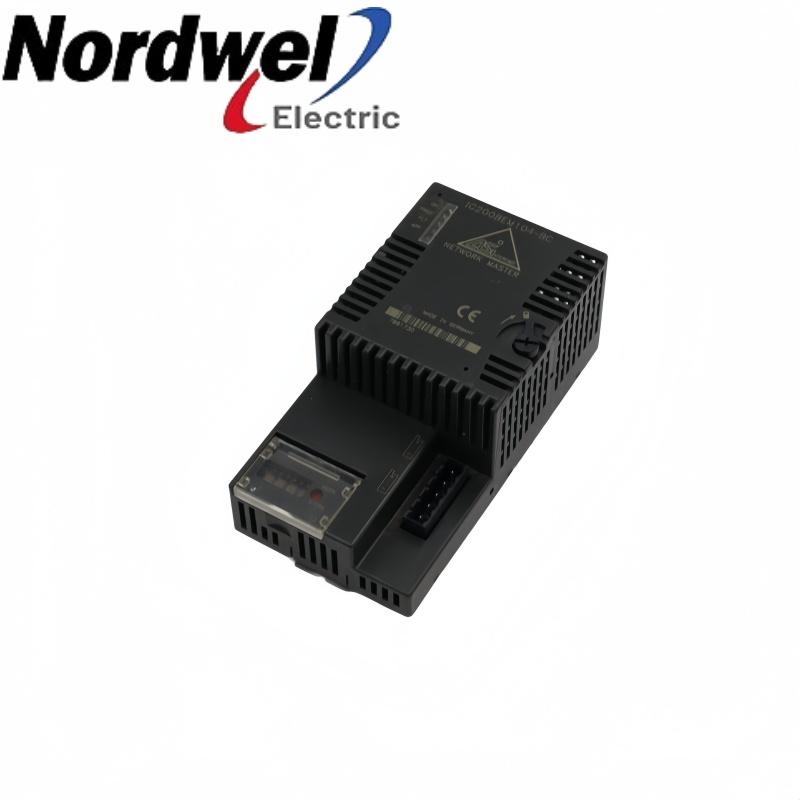

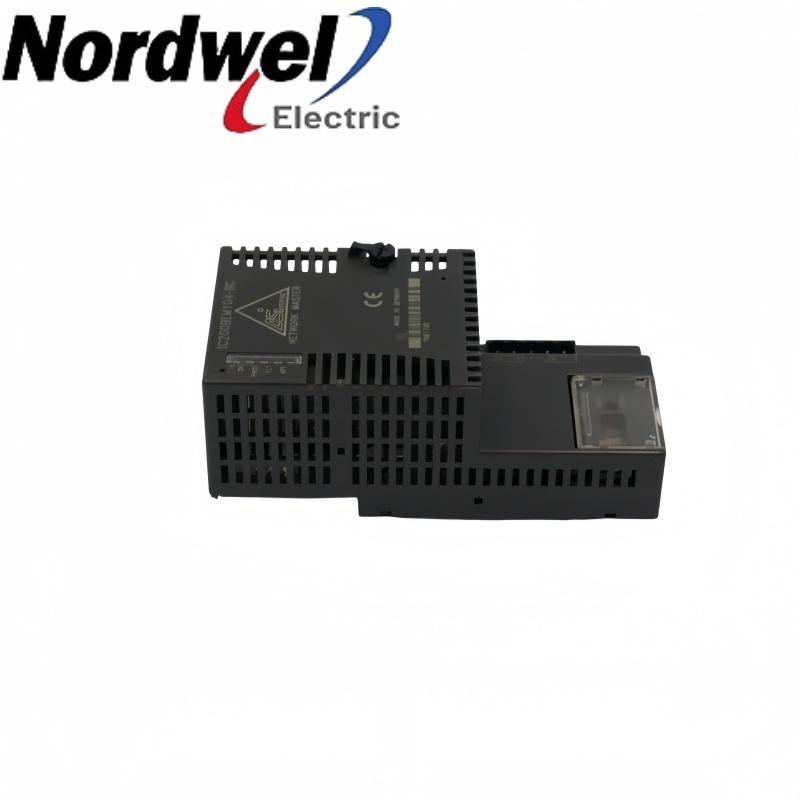

General Electric IC200BEM104 AS-Interface network master product images

General Electric IC200BEM104 AS-Interface network master

EMAIL SALES

VersaMax AS-Interface

IC200BEM104 — AS-Interface network master

IC200BEM104 connects a supported VersaMax host to an AS-Interface actuator-sensor network. It exchanges input and output data with up to 31 slave devices.

General ElectricVersaMax AS-InterfaceUp to 31 slave devicesVersaMax communications carrier

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200BEM104 product profile

ManufacturerGeneral Electric

Exact modelIC200BEM104

Product typeAS-Interface network master

Product familyVersaMax AS-Interface

Primary roleSensor and actuator networking

Interface contextVersaMax communications carrier

Brand:
General Electric
Item NO.:
IC200BEM104
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200BEM104 configuration inquiry

Get a precise quote for IC200BEM104

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

AS-Interface network master configuration

IC200BEM104 is a communications module for linking an AS-Interface field network to a compatible VersaMax PLC or I/O station. Its process-data exchange provides up to four input bits and four output bits for each slave address. The supported host, communications carrier and installed revision must remain matched during replacement.

Field-network controlActs as master for the connected AS-Interface slave devices.

Input-data exchangeTransfers slave input states into the supported VersaMax host context.

Output-data exchangeCarries host output commands to the addressed actuator-sensor network.

Station integrationUses a communications carrier and a supported host configuration rather than a general-purpose I/O carrier.

Engineering selection points

Plan both the number of slave addresses and the required input/output bits per address.
Include the 5 V backplane demand in the station power budget; backplane power is distinct from field-network power.
A physically related station is not automatically compatible: the PNS remote-node arrangement excludes this communications module.

Official product data

IC200BEM104 key specifications

Module function	AS-Interface network master
Host context	Supported VersaMax PLC or I/O station NIU
Network capacity	Up to 31 slave devices
Input data per slave address	Up to 4 bits
Output data per slave address	Up to 4 bits
Carrier arrangement	VersaMax communications carrier
5 V backplane current	350 mA
3.3 V backplane current	0 mA

Emerson GFK-1504Q, sections 1.24-1.28 and Appendix C.3; GFK-2721B, section 3.2.3.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Confirm the installed communications carrier, module latch and mating connections before fitting the replacement.
Record the module identity and installed host configuration before disconnecting the affected station.
Keep field-network wiring identified separately from the station backplane and power connections.
Restore the approved configuration and check both input-state transfer and output-command response before release.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Module identity: Match IC200BEM104 and the installed hardware revision.
Host arrangement: Use the supported VersaMax PLC or I/O station configuration; do not assume every NIU combination is valid.
Carrier type: Retain the communications-carrier arrangement required for the module.
Network allocation: Keep slave count and per-address process data within the supported network capacity.
PROFINET boundary: Do not place this module in the PNS remote node that excludes it.

Match the communications carrier, supported host and network address allocation before replacing IC200BEM104.
