Bently Nevada 3500/32M 125720-01 four-channel relay output module

Products

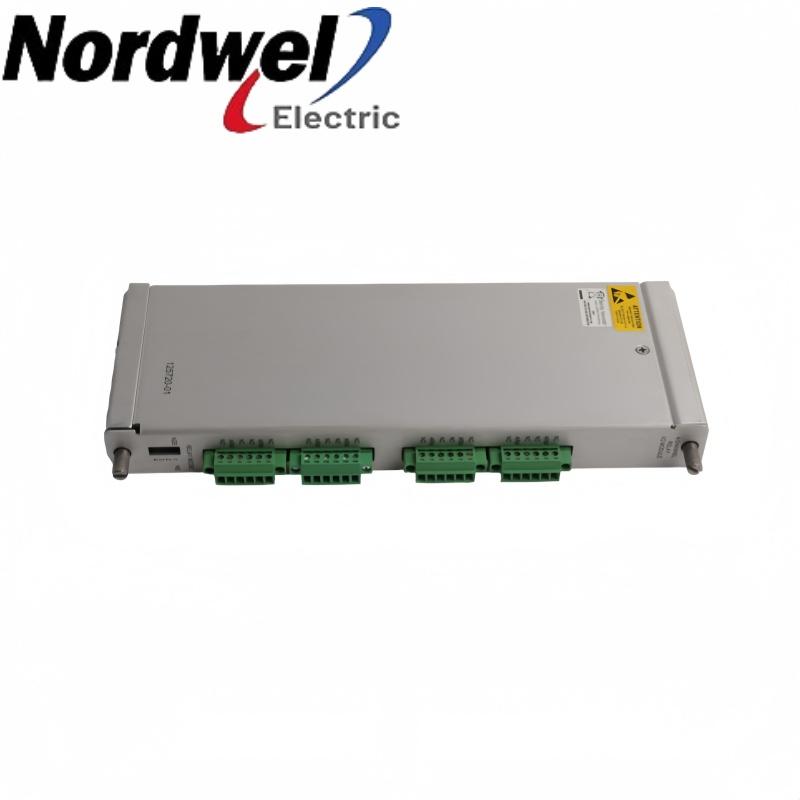

Bently Nevada 3500/32M 125720-01 four-channel relay output module product view

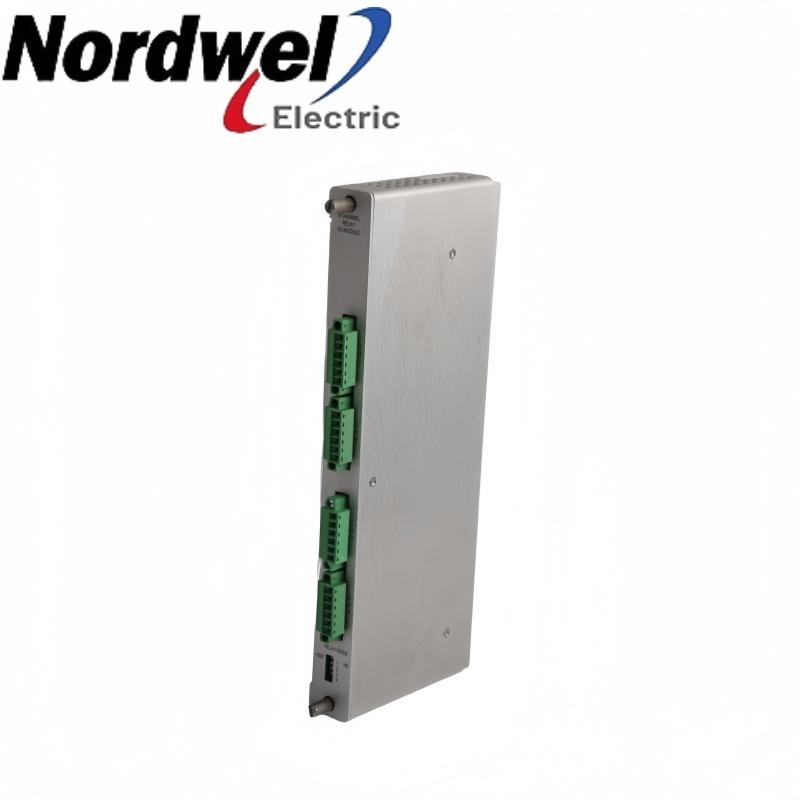

Bently Nevada 3500/32M 125720-01 four-channel relay output module product view

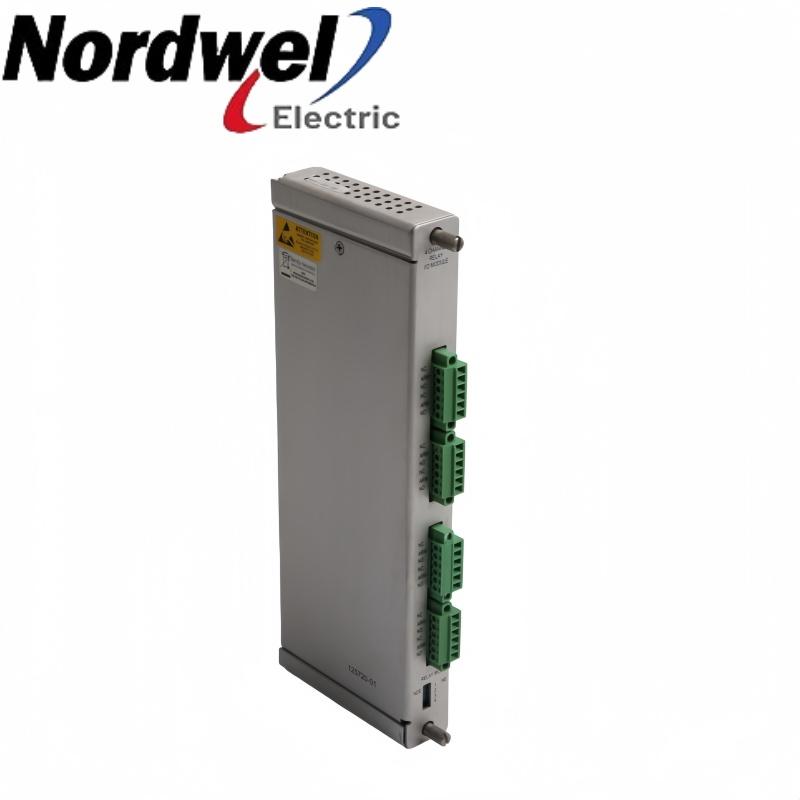

Bently Nevada 3500/32M 125720-01 four-channel relay output module product view

Bently Nevada 3500/32M 125720-01 four-channel relay output module

EMAIL SALES
Bently Nevada 3500/32M
3500/32M 125720-01 - four-channel relay output module

3500/32M 125720-01 provides four relay outputs for rack alarm actions. Check the selected relay state and the switched load.

Bently Nevada3500/32MFour-channel relay output
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
3500/32M 125720-01 product profile
ManufacturerBently Nevada
Exact model3500/32M 125720-01
Output channelsFour
Relay contactsSPDT
Relay sealingEpoxy-sealed
Operating stateNormally energized or de-energized
Service statusRepair only
Verified functionRelay output switching

  • Brand:

    Bently Nevada

  • Item NO.:

    3500/32M 125720-01

  • Part Number:

  • Weight:

  • Dimensions:

  • Manufacture Year:

  • Place of Origin:

  • Certification:

  • Description:

Inquiry now
3500/32M 125720-01 configuration inquiry

Get a precise quote for 3500/32M 125720-01

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313
Emailsales2@mooreplc.com

3500/32M 125720-01 function and interfaces

3500/32M 125720-01 is a four-channel relay output module for the 3500/32M installation. The current spare listing identifies this part as available for repair only.

Alarm-output connectionProvide the relay contact path driven by the matched rack control module.
Individual output behaviorUse a separately selected energized or de-energized operating state for each relay.
Plant circuit interfaceConnect the intended indication or alarm circuit within the applicable contact ratings.
Existing relay-panel serviceMaintain the rear field connections while coordinating repair of the listed output spare.

Installation and selection boundaries

  • The spare is the relay output module; the matched front control module and its programmed logic are separate.
  • The current spare listing identifies this part as available for repair only.
  • Check switched voltage, current, load type and site approval conditions together; a contact-life test value is not a universal switching rating.
Official product data

3500/32M 125720-01 key specifications

Component Rear relay output module
Relay count Four
Contact arrangement Single-pole, double-throw
Environmental sealing Epoxy-sealed
Arc suppressor 250 Vrms; installed as standard
Channel operation Normally energized or normally de-energized; switch selectable
I/O dimensions, H × W × D 241 × 24.4 × 99.1 mm
I/O weight 0.4 kg
Service status Repair only

Bently Nevada datasheet 141533 Rev. W, pages 1-3 and 6-7.

Pre-order check 01

Installation environment

Preserve the approved protection arrangement while installing the correct component and field connections.

  • Record the relay contact wiring and each channel normal-state switch position before disconnection.
  • Coordinate alarm availability and prevent unintended plant actions during relay-circuit work.
  • Check the load against the applicable contact rating rather than the contact-life test current.
  • Fit the rear assembly in the correct full-height slot and inspect all field terminations before functional testing.
Keep the installed wiring and configuration records available for controlled commissioning checks.
Pre-order check 02

Compatibility confirmation

Review the complete identity together with the fitted interfaces and installed configuration.

Component identity
3500/32M 125720-01; confirm the repair scope and actual supplied condition.
Contact wiring
Match common, normally open and normally closed conductors to the approved relay drawing.
Plant load
Check the circuit voltage, current, resistive-load limits and installation classification.
Alarm behavior
Preserve the programmed voting logic and the selected normal relay state for each output.
Site requirements
Check environmental limits, electrical isolation and any approval-dependent voltage restriction.
Match 3500/32M 125720-01 with the installed monitor, field wiring, configuration and applicable installation requirements.
Recommended model families

More Bently Nevada models

Bently Nevada selection 01Bently Nevada 330854-080-25-05Bently Nevada 330854-080-24-05Bently Nevada 330130-070-01-00

Confirm the complete order code and installed-system requirements before selecting a replacement.

Bently Nevada selection 02Bently Nevada 330130-075-01-00Bently Nevada 330104-00-08-15-02-00Bently Nevada 330102-00-12-10-01-05

Confirm the complete order code and installed-system requirements before selecting a replacement.

Bently Nevada selection 03Bently Nevada 330103-02-04-10-02-CNBently Nevada 330103-02-08-10-02-CNBently Nevada 330905-00-25-05-02-CN

Confirm the complete order code and installed-system requirements before selecting a replacement.

Bently Nevada selection 04Bently Nevada 330903-00-07-10-01-CNBently Nevada 330903-00-07-10-01-00Bently Nevada 330876-03-10-00-00

Confirm the complete order code and installed-system requirements before selecting a replacement.

Additional published brands

Additional Advantage Models

General ElectricGeneral Electric IC200BEM104General Electric IC200CHS003General Electric IC200UAA007

Confirm the complete order code and installed-system requirements before selecting a replacement.

General ElectricGeneral Electric IC200UAL004General Electric IC200UAL005General Electric IC200UAL006

Confirm the complete order code and installed-system requirements before selecting a replacement.

General ElectricGeneral Electric IC200UAR028General Electric IC200UDD112General Electric IC200UDD120

Confirm the complete order code and installed-system requirements before selecting a replacement.

General ElectricGeneral Electric DS200AAHAH1AGeneral Electric DS200SVIAG1AGeneral Electric DS200SPCBG1A

Confirm the complete order code and installed-system requirements before selecting a replacement.

SiemensSiemens 6ES7143-5BF00-0BA0Siemens 6ES7144-5KD00-0BA0Siemens 6ES7144-4PF00-0AB0

Confirm the complete order code and installed-system requirements before selecting a replacement.

SiemensSiemens 6ES7144-4JF00-0AB0Siemens 6ES7144-4FF01-0AB0Siemens 6ES7144-1JB31-0XB0

Confirm the complete order code and installed-system requirements before selecting a replacement.

SiemensSiemens 6ES7144-1GB31-0XB0Siemens 6GK5308-2FM10-2AA3Siemens 6ES7143-5AH00-0BA0

Confirm the complete order code and installed-system requirements before selecting a replacement.

SiemensSiemens 6ES7143-4BF50-0AA0Siemens 6ES7142-6BH00-0AB0Siemens 6GK1143-0TA02

Confirm the complete order code and installed-system requirements before selecting a replacement.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

3500/32M 125720-01 Order Guide

Selection checks for the complete 3500/32M 125720-01 identity and installed arrangement.
1Identify the complete assemblySpecify 3500/32M 125720-01 and retain the supplied hardware revision and installed rack position.
2Map the field connectionsMatch common, normally open and normally closed conductors to the approved relay drawing.
3Check the connected equipmentCheck the circuit voltage, current, resistive-load limits and installation classification.
4Retain the configurationPreserve the programmed voting logic and the selected normal relay state for each output.
5Review site conditionsCheck environmental limits, electrical isolation and any approval-dependent voltage restriction.
6Coordinate the replacementProvide the quantity, delivery destination and controlled verification requirements before the replacement window.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Check the complete ordering code and the installed interface requirements before selection.
General ElectricDS200SLCCG2A

Match the complete model, revision and required installed function before ordering.

Specialist model
General ElectricDS200SHVIG1A

Match the complete model, revision and required installed function before ordering.

Specialist model
General ElectricDS200PTCTG1A

Match the complete model, revision and required installed function before ordering.

Specialist model
General ElectricDS200PLIBG1A

Match the complete model, revision and required installed function before ordering.

Specialist model
General ElectricDS200PANAH1A

Match the complete model, revision and required installed function before ordering.

Specialist model
General ElectricDS200FHVAG1A

Match the complete model, revision and required installed function before ordering.

Specialist model
Nordwel customer support

Company Services & FAQ

Practical support for 3500/32M 125720-01 selection, quotation and order coordination.

Company services

Component and installation checkReview the complete ordering identity, actual interfaces and installed configuration before quotation.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

3500/32M 125720-01 FAQ

Is 3500/32M 125720-01 a complete relay controller?It is the four-channel relay output spare. The front control module processes the configured alarm-drive logic; the rear output assembly provides the associated relay contact connections.
What does repair-only status mean for 3500/32M 125720-01 procurement?The current spare listing marks this part as available for repair only. Confirm the service route, supplied condition and scope of work before ordering; do not assume that this listing represents newly manufactured stock.
Which contact configuration is used by 3500/32M 125720-01?The relays are single-pole, double-throw, or SPDT. Match the intended common, normally open and normally closed connections to the field drawing before transferring the existing wiring.
Can each 3500/32M 125720-01 relay have a different normal state?Each of the four channels is switch selectable for normally energized or normally de-energized operation. Preserve the approved channel selection and verify how the plant interprets a de-energized contact.
Does the 3500/32M 125720-01 contact-life figure authorize any 5 A load?No. The contact-life test is stated as 100,000 cycles at 5 A with 24 Vdc or 240 Vac. Actual switching limits must be checked separately for voltage, current, load type and installation classification.
How is arc suppression provided on 3500/32M 125720-01?A 250 Vrms arc suppressor is installed as standard. That feature does not override the applicable contact switching limits or the lower voltage restrictions that apply to hazardous-area or functional-safety installations.
What rear space should be allowed for 3500/32M 125720-01?The I/O assembly occupies one full-height rear slot. Its specified dimensions are 241 mm high, 24.4 mm wide and 99.1 mm deep; allow the additional clearance required by the connected field wiring.
Which logic operations can drive the 3500/32M 125720-01 outputs?The matched relay control system supports AND and OR alarm-drive logic using configured rack alarm statuses, Not-OK conditions or individual proportional-value levels. The logic is programmed in the control system, not by rewiring the output contacts.
Can 3500/32M 125720-01 field circuits be transferred without tracing them?Trace each existing relay circuit and its normal state before disconnecting it. A mechanically matching connector does not establish that the destination circuit, contact polarity or required alarm behavior is correct.
What environmental conditions apply around 3500/32M 125720-01?The relay-module specification gives an operating range of -30 to +65 degrees C and humidity of 95%, non-condensing. Apply any stricter site approval or enclosure conditions as well as the general environmental limits.
