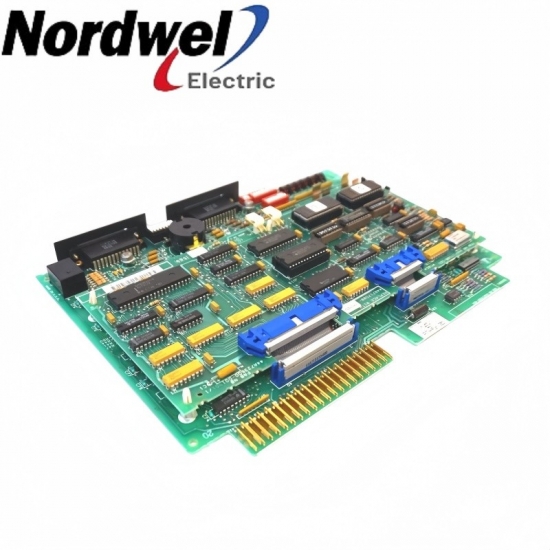

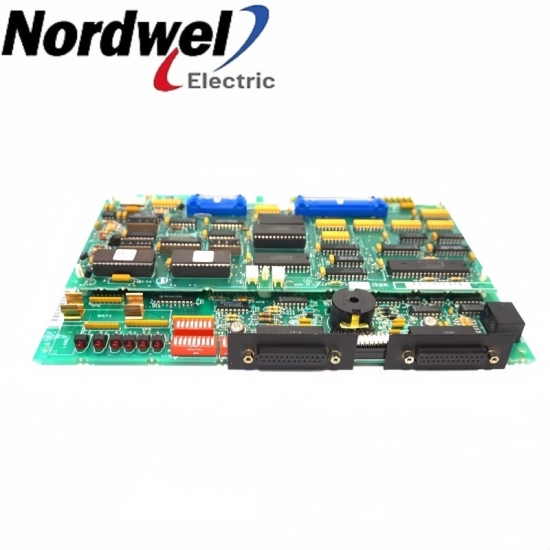

General Electric IC600BF948 I/O communications control module product view

General Electric IC600BF948 i/o communications control module

EMAIL SALES

Series Six

IC600BF948 — I/O communications control module

IC600BF948 links the Series Six CPU to external serial devices through two configurable ports. Check each port’s interface, operating mode and connected-device parameters independently before accepting the communication path.

General ElectricSeries Six2; independently configuredTwo independently configured serial ports

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC600BF948 product profile

ManufacturerGeneral Electric

Exact modelIC600BF948

Product typeI/O communications control module

Product familySeries Six

Primary roleExchanges serial data with external devices

Interface contextTwo independently configured serial ports

Brand:
General Electric
Item NO.:
IC600BF948

Inquiry now

IC600BF948 configuration inquiry

Get a precise quote for IC600BF948

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

I/O communications control module configuration

System roleIC600BF948 links the Series Six CPU to external serial devices through two configurable ports. Check each port’s interface, operating mode and connected-device parameters independently before accepting the communication path.

Electrical integrationMatch the chosen serial electrical interface and the connected device’s wiring arrangement.

Configuration reviewRetain each port’s mode, rate and addressing/data settings; do not apply an asynchronous limit to another mode without review.

CommissioningTest the intended data exchange on each configured port and verify the receiving application.

Engineering selection points

Serial ports: 2; independently configured.
Electrical interfaces: RS-232 and RS-422.
Asynchronous rate: Up to 19.2 kbit/s.
Rack occupancy: One I/O slot.

Official product data

IC600BF948 key specifications

Serial ports	2; independently configured
Electrical interfaces	RS-232 and RS-422
Asynchronous rate	Up to 19.2 kbit/s
Rack occupancy	One I/O slot
Applicable placement	CPU or high-capacity I/O rack, as configured
Supply rails	+5 V and +12 V
Operating ambient	0–60 °C

Technical reference: GEK-90824D I/O Communications Control Module instruction sheet.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Isolate the affected rack and external serial circuits under the site procedure.
Record port identities, cable wiring and the parameters for each connected device.
Confirm the applicable rack position and required power rails.
Restore port settings and test actual messages before returning communication to normal use.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Complete item: Retain IC600BF948 and record the supplied board revision.
Installed assembly: Two independently configured serial ports.
Electrical conditions: Match the chosen serial electrical interface and the connected device’s wiring arrangement.
Configuration: Retain each port’s mode, rate and addressing/data settings; do not apply an asynchronous limit to another mode without review.
Acceptance: Test the intended data exchange on each configured port and verify the receiving application.

Match the complete supplied identity, board revision and installed circuit requirements before operational release.
