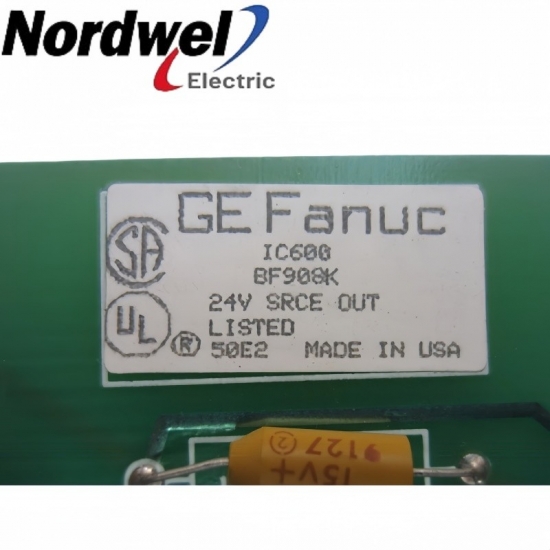

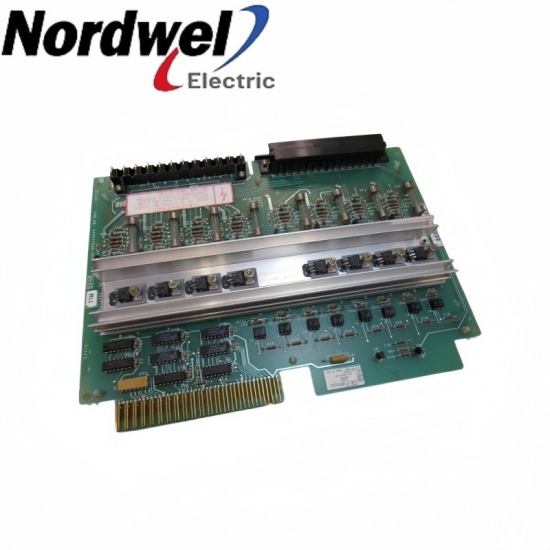

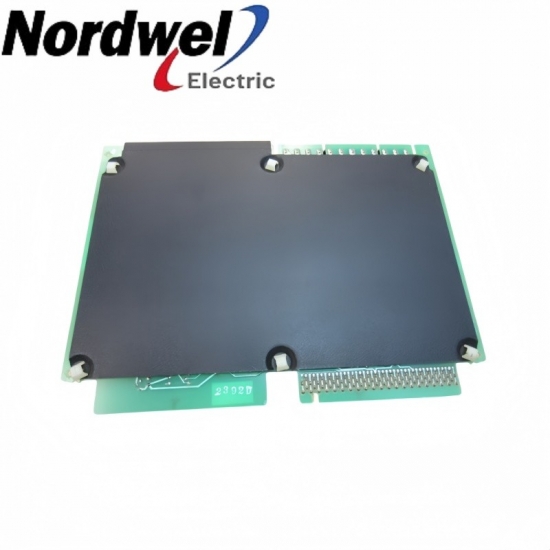

General Electric IC600BF908 8-channel 24 VDC source output module product view

General Electric IC600BF908 8-channel 24 vdc source output module

EMAIL SALES

Series Six

IC600BF908 — 8-channel 24 VDC source output module

IC600BF908 provides eight source outputs arranged in two groups. Evaluate the external DC supply, individual load current and temperature-dependent whole-module loading before reusing an existing field circuit.

General ElectricSeries Six8; two groups of fourTwo groups of four source outputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC600BF908 product profile

ManufacturerGeneral Electric

Exact modelIC600BF908

Product type8-channel 24 VDC source output module

Product familySeries Six

Primary roleSwitches DC field loads

Interface contextTwo groups of four source outputs

Brand:
General Electric
Item NO.:
IC600BF908

Inquiry now

IC600BF908 configuration inquiry

Get a precise quote for IC600BF908

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

8-channel 24 VDC source output module configuration

System roleIC600BF908 provides eight source outputs arranged in two groups. Evaluate the external DC supply, individual load current and temperature-dependent whole-module loading before reusing an existing field circuit.

Electrical integrationCheck the user-supplied DC circuit independently from the rack logic supply and apply the module-temperature limit.

Configuration reviewPreserve output grouping, circuit polarity and the commanded signal assignment.

CommissioningTest the restored source-output circuits with loads secured and verify the intended actuator response.

Engineering selection points

Outputs: 8; two groups of four.
Nominal output system: 24 VDC source outputs.
User supply range: 19–40 VDC.
Rack logic supply: 5 VDC; 400 mA maximum.

Official product data

IC600BF908 key specifications

Outputs	8; two groups of four
Nominal output system	24 VDC source outputs
User supply range	19–40 VDC
Rack logic supply	5 VDC; 400 mA maximum
Steady channel current	2 A maximum per output
Module current at 0–40 °C	16 A maximum
Module current at 60 °C	8 A maximum

Technical reference: GEK-83521B 24 VDC Source Output Module instruction sheet.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Isolate the rack and user field supply; secure equipment driven by these outputs.
Record both output groups, supply polarity and each load assignment.
Calculate steady loads and enclosure temperature before accepting the reused circuit.
Inspect wiring and test the intended outputs under the approved commissioning procedure.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Complete item: Retain IC600BF908 and record the supplied board revision.
Installed assembly: Two groups of four source outputs.
Electrical conditions: Check the user-supplied DC circuit independently from the rack logic supply and apply the module-temperature limit.
Configuration: Preserve output grouping, circuit polarity and the commanded signal assignment.
Acceptance: Test the restored source-output circuits with loads secured and verify the intended actuator response.

Match the complete supplied identity, board revision and installed circuit requirements before operational release.
