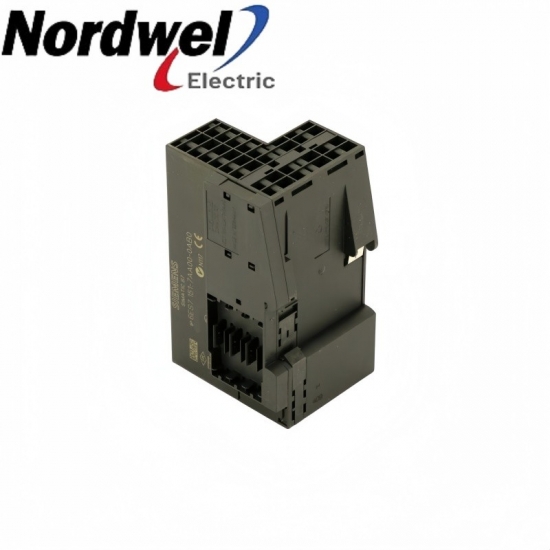

Siemens 6ES7151-7AA00-0AB0 IM151-7 CPU interface module product image

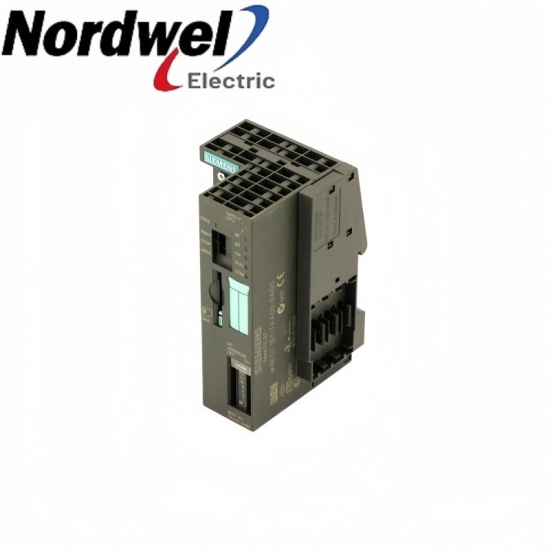

Siemens 6ES7151-7AA00-0AB0 IM151-7 CPU interface module

EMAIL SALES

ET 200S CPU

6ES7151-7AA00-0AB0 — IM151-7 CPU interface module

This early IM151-7 CPU combines an ET 200S station interface with local program execution. Size the application from its own memory limits and retain the installed project rather than transferring the specifications of a later CPU.

SiemensET 200S CPUIM151-7 CPULegacy CPU project and memory configuration

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7151-7AA00-0AB0 product profile

ManufacturerSiemens

Exact model6ES7151-7AA00-0AB0

Product typeIM151-7 CPU interface module

Product familyET 200S CPU

Primary roleExecutes distributed station control logic

Interface contextLegacy CPU project and memory configuration

Brand:
SIEMENS
Item NO.:
6ES7151-7AA00-0AB0

Inquiry now

6ES7151-7AA00-0AB0 configuration inquiry

Get a precise quote for 6ES7151-7AA00-0AB0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IM151-7 CPU interface module configuration

The early CPU configuration has distinct working-memory and RAM load-memory capacities. Preserve the application, communication configuration and installed hardware identity during a replacement.

Control-system purposeExecutes distributed station control logic.

Connection arrangementLegacy CPU project and memory configuration.

Installation planningVerify the DC supply is within 20.4-28.8 V and check polarity at the installed terminals.

Commissioning evidenceMatch the station supply, terminal arrangement and mechanical envelope before commissioning.

Engineering selection points

RAM load memory: 40 KB.
Nominal operating voltage: 24 V DC.
Permitted supply range: 20.4-28.8 V DC.
Current consumption: Approximately 250 mA.

Official product data

6ES7151-7AA00-0AB0 key specifications

CPU designation	IM151-7 CPU
Working memory	24 KB
RAM load memory	40 KB
Nominal operating voltage	24 V DC
Permitted supply range	20.4-28.8 V DC
Current consumption	Approximately 250 mA
Typical dissipation	3.3 W
Dimensions, W × H × D	60 × 119.5 × 75 mm
Mass	Approximately 200 g

Siemens early IM151-7 CPU manual, exact-order technical table; later CPU memory capacities do not apply.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Secure the controlled process and disconnect station power before removing the CPU.
Verify the DC supply is within 20.4-28.8 V and check polarity at the installed terminals.
Preserve the user project and current configuration before disturbing memory or station hardware.
Restore the ET 200S assembly and check the CPU mode and station diagnostics before enabling operation.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

CPU generation: Keep the complete early-generation ordering code in the replacement specification.
Application size: Check compiled program and data requirements against the 24 KB working-memory capacity.
Load-memory arrangement: Review the 40 KB RAM load-memory requirement separately from working memory.
Engineering version: Use the programming package applicable to the installed CPU firmware, not a later CPU default.
Electrical fit: Match the station supply, terminal arrangement and mechanical envelope before commissioning.

Check the saved project and the early CPU memory architecture before deciding that a replacement is application-compatible.
