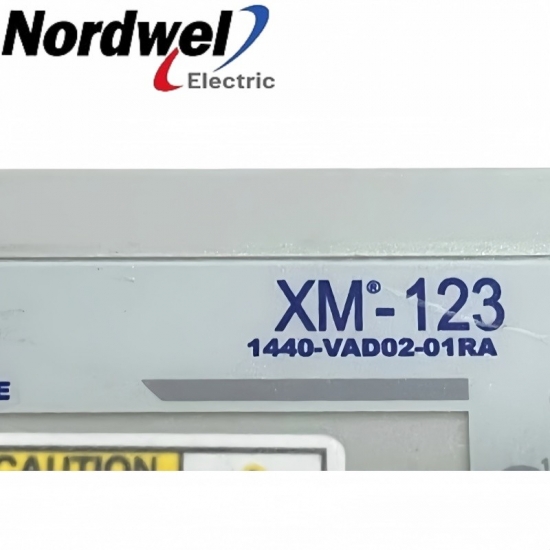

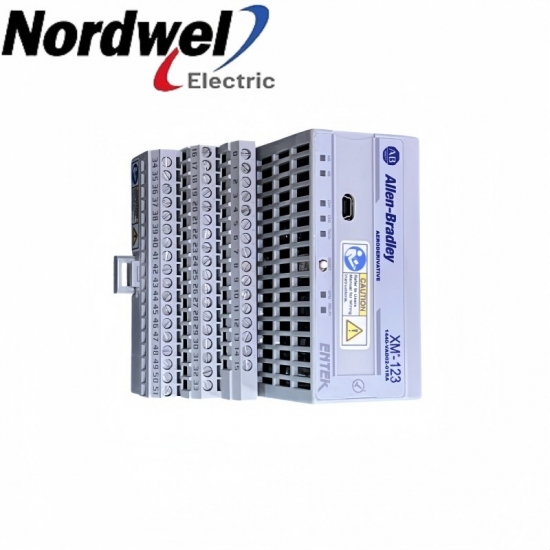

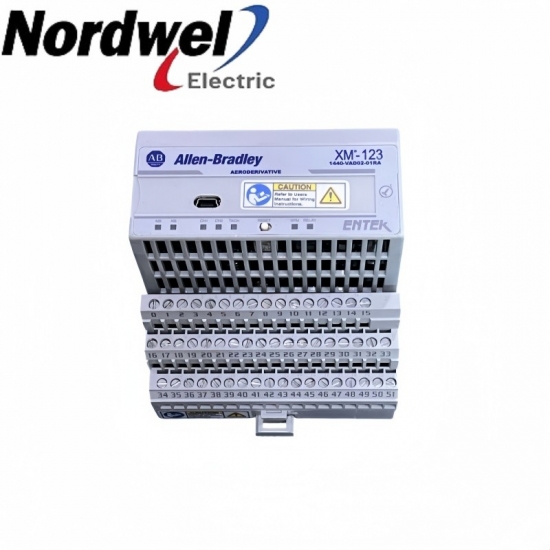

PLC 1440-VAD02-01RA 2-channel aeroderivative vibration monitor product view

PLC 1440-VAD02-01RA 2-channel aeroderivative vibration monitor

EMAIL SALES

Aeroderivative condition monitoring

1440-VAD02-01RA — 2-channel aeroderivative vibration monitor

1440-VAD02-01RA monitors two dynamic vibration channels for aeroderivative machinery and accepts a tachometer input for speed-related measurements. Match the transducers, filtering and alarm configuration with the application before restoring the monitor.

PLCAeroderivative condition monitoring2 channelsTwo dynamic inputs plus one tachometer input

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

1440-VAD02-01RA product profile

ManufacturerPLC

Exact model1440-VAD02-01RA

Product type2-channel aeroderivative vibration monitor

Product familyAeroderivative condition monitoring

Primary roleMeasures configured dynamic vibration

Interface contextTwo dynamic inputs plus one tachometer input

Brand:
PLC
Item NO.:
1440-VAD02-01RA

Inquiry now

1440-VAD02-01RA configuration inquiry

Get a precise quote for 1440-VAD02-01RA

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

2-channel aeroderivative vibration monitor configuration

System role1440-VAD02-01RA monitors two dynamic vibration channels for aeroderivative machinery and accepts a tachometer input for speed-related measurements. Match the transducers, filtering and alarm configuration with the application before restoring the monitor.

Electrical integrationMatch each transducer type and configured sensitivity; assess the 24 VDC supply and analog-output load separately.

Configuration reviewRestore tracking or bandpass selection, overall measurement, tachometer and alarm settings for the installed machinery.

CommissioningVerify channel signals, speed reference, output scaling and alarm/relay response with the process secured.

Engineering selection points

Dynamic inputs: 2 channels.
Speed reference: 1 tachometer input.
Input types: Eddy-current probes, IEPE accelerometers or suitable dynamic voltage signals.
Measurement selection: Tracking or bandpass per channel; continuous overall measurement.

Official product data

1440-VAD02-01RA key specifications

Dynamic inputs	2 channels
Speed reference	1 tachometer input
Input types	Eddy-current probes, IEPE accelerometers or suitable dynamic voltage signals
Measurement selection	Tracking or bandpass per channel; continuous overall measurement
Analog outputs	Two isolated 4–20 mA outputs; 300 Ω maximum load
On-board relay	1; expansion is a separate assembly
Supply	24 VDC, 0.3 A maximum, Class 2/SELV
Power dissipation	7 W maximum
Operating ambient	-20–65 °C; 5–95% noncondensing humidity

Technical reference: GMSI10-UM003D user guide and ENMON-IN120H installation instructions.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Isolate the affected circuits and apply the machinery’s protection bypass and restoration procedure.
Check the required terminal base, key position and fully extended side connector before seating the electronics.
Maintain grounding, the required protective enclosure and at least 25.4 mm clearance to adjacent equipment.
Restore sensor and alarm configuration and perform controlled signal and relay tests before service release.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Complete item: Retain 1440-VAD02-01RA and record the supplied board revision.
Installed assembly: Two dynamic inputs plus one tachometer input.
Electrical conditions: Match each transducer type and configured sensitivity; assess the 24 VDC supply and analog-output load separately.
Configuration: Restore tracking or bandpass selection, overall measurement, tachometer and alarm settings for the installed machinery.
Acceptance: Verify channel signals, speed reference, output scaling and alarm/relay response with the process secured.

Match transducer setup, speed reference, output scaling and alarm behavior before returning machinery monitoring to service.
