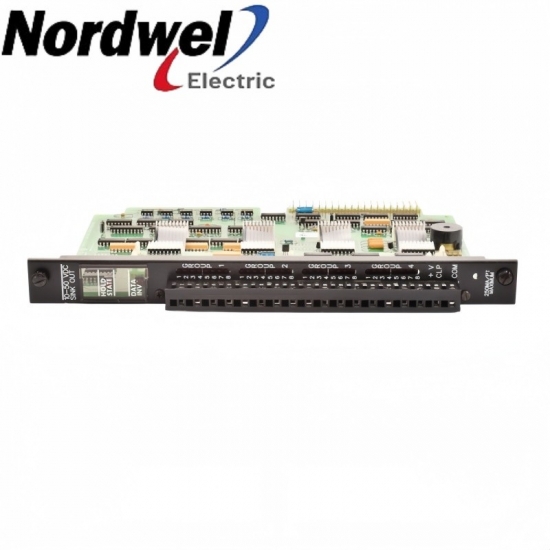

General Electric IC600BF923 32-channel DC digital output module product view

General Electric IC600BF923 32-channel dc digital output module

EMAIL SALES

Series Six

IC600BF923 — 32-channel DC digital output module

IC600BF923 provides thirty-two DC output circuits in four groups. Review the individual load, ambient-temperature current limit and configured failure response as distinct checks before reconnecting field wiring.

General ElectricSeries Six32Four output groups of eight

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC600BF923 product profile

ManufacturerGeneral Electric

Exact modelIC600BF923

Product type32-channel DC digital output module

Product familySeries Six

Primary roleSwitches grouped DC output circuits

Interface contextFour output groups of eight

Brand:
General Electric
Item NO.:
IC600BF923

Inquiry now

IC600BF923 configuration inquiry

Get a precise quote for IC600BF923

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

32-channel DC digital output module configuration

System roleIC600BF923 provides thirty-two DC output circuits in four groups. Review the individual load, ambient-temperature current limit and configured failure response as distinct checks before reconnecting field wiring.

Electrical integrationKeep the user supply including ripple within range and apply the current limit for the actual ambient temperature.

Configuration reviewCheck failure-response and logic-inversion jumpers against the intended application.

CommissioningValidate commanded switching and configured fault response with controlled loads.

Engineering selection points

Output count: 32.
Circuit grouping: 4 groups of 8.
User DC supply: 10–50 VDC, including ripple.
Logic supply: 5 VDC; 180 mA maximum.

Official product data

IC600BF923 key specifications

Output count	32
Circuit grouping	4 groups of 8
User DC supply	10–50 VDC, including ripple
Logic supply	5 VDC; 180 mA maximum
Channel current at 0–50 °C	250 mA maximum
Channel current at 51–60 °C	200 mA maximum
Maximum switching response	40 µs

Technical reference: GEK-84859B DC Output Module instruction sheet.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Secure connected loads and isolate rack and field power.
Identify all four output groups and retain the terminal schedule.
Record the failure-response and logic-inversion settings before exchanging hardware.
Verify field voltage, temperature-dependent loading and controlled output response before release.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Complete item: Retain IC600BF923 and record the supplied board revision.
Installed assembly: Four output groups of eight.
Electrical conditions: Keep the user supply including ripple within range and apply the current limit for the actual ambient temperature.
Configuration: Check failure-response and logic-inversion jumpers against the intended application.
Acceptance: Validate commanded switching and configured fault response with controlled loads.

Match the complete supplied identity, board revision and installed circuit requirements before operational release.
