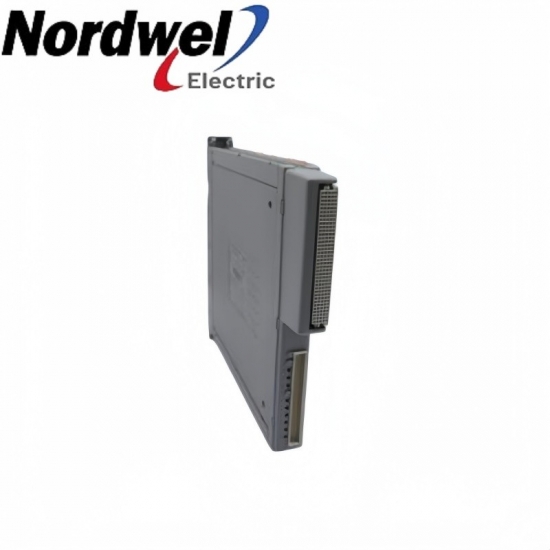

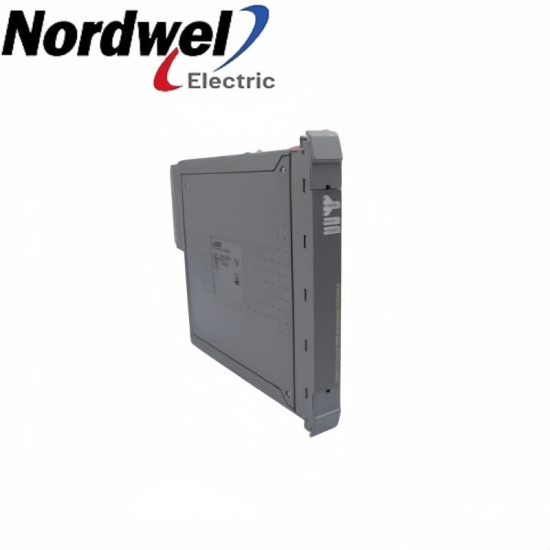

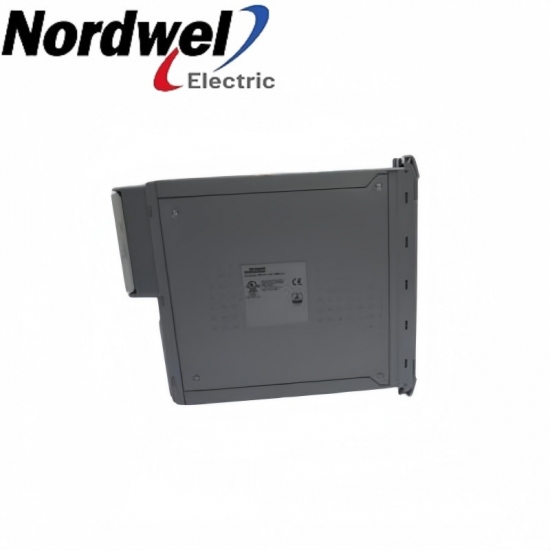

ICS TRIPLEX T8311CX Coated expander interface module product view

ICS TRIPLEX T8311CX coated expander interface module

EMAIL SALES

Trusted expansion interface

T8311CX — Coated expander interface module

T8311CX is the coated expander-interface configuration identified in the Trusted certification schedule. Match the hardware series, expansion assembly and installation conditions as one system; enclosure and cooling provisions remain part of the selection.

ICS TRIPLEXTrusted expansion interfaceCoated expander interface; Non-RoHSCertified Series B system installation

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

T8311CX product profile

ManufacturerICS TRIPLEX

Exact modelT8311CX

Product typeCoated expander interface module

Product familyTrusted expansion interface

Primary roleLinks the controller expansion architecture

Interface contextCertified Series B system installation

Brand:
ICS TRIPLEX
Item NO.:
T8311CX

Inquiry now

T8311CX configuration inquiry

Get a precise quote for T8311CX

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Coated expander interface module configuration

System roleT8311CX is the coated expander-interface configuration identified in the Trusted certification schedule. Match the hardware series, expansion assembly and installation conditions as one system; enclosure and cooling provisions remain part of the selection.

Electrical integrationApply the scheduled supply rating to the covered hardware series and review the certified system power arrangement.

Configuration reviewMatch the expansion chassis, installed hardware series and controller configuration; do not treat coating as proof of interchangeability.

CommissioningCheck the expansion-system diagnostics and the intended data exchange after a controlled installation.

Engineering selection points

Configuration: Coated expander interface; Non-RoHS.
Covered hardware: Series B, as listed in the certification schedule.
Scheduled supply rating: 20–32 VDC.
Scheduled power rating: 54 W; not a typical-consumption figure.

Official product data

T8311CX key specifications

Configuration	Coated expander interface; Non-RoHS
Covered hardware	Series B, as listed in the certification schedule
Scheduled supply rating	20–32 VDC
Scheduled power rating	54 W; not a typical-consumption figure
Covered ambient	0–60 °C
Protection marking	Ex ec IIC T4 Gc within the covered assembly
Final enclosure	At least IP54; open-type equipment
Environmental condition	Pollution Degree 2

Technical reference: IECEx ULD 17.0001X Issue 19 and the Trusted product certification schedule.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Verify the fitted hardware series and enclosure suitability before removing the existing expansion component.
Maintain vertical chassis installation, required fan trays and blanking plates in unused slots.
Provide the final enclosure and pollution control required for the intended location.
Review the expansion connection and diagnostics before the application returns to service.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Complete item: Retain T8311CX and record the supplied board revision.
Installed assembly: Certified Series B system installation.
Electrical conditions: Apply the scheduled supply rating to the covered hardware series and review the certified system power arrangement.
Configuration: Match the expansion chassis, installed hardware series and controller configuration; do not treat coating as proof of interchangeability.
Acceptance: Check the expansion-system diagnostics and the intended data exchange after a controlled installation.

Match the complete supplied identity, board revision and installed circuit requirements before operational release.
