PLC 1769-IQ16K 16-point 24 VDC conformally coated digital input module

EMAIL SALES

PLC 1769 I/O

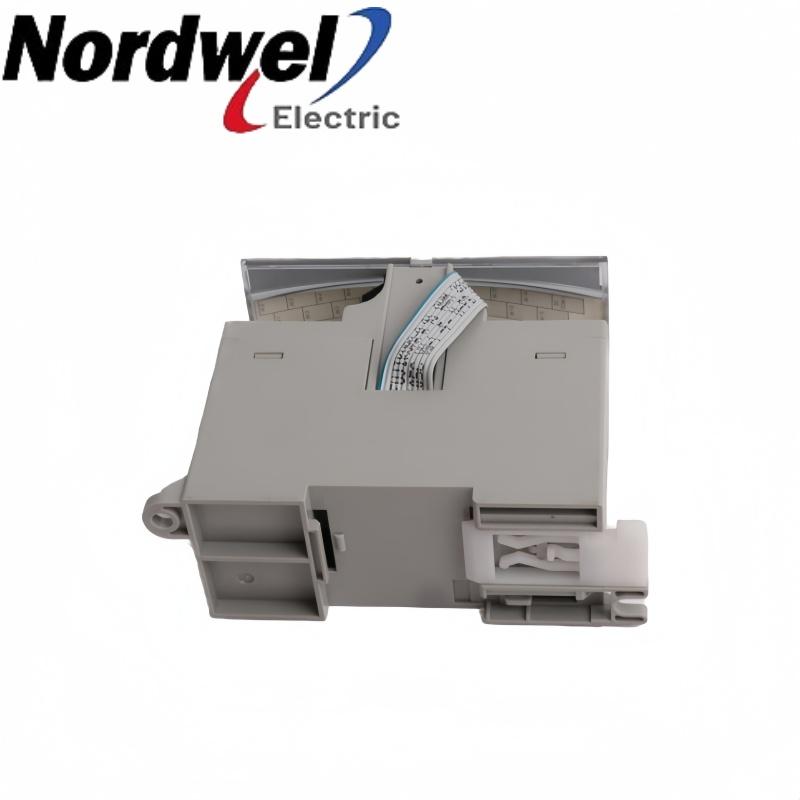

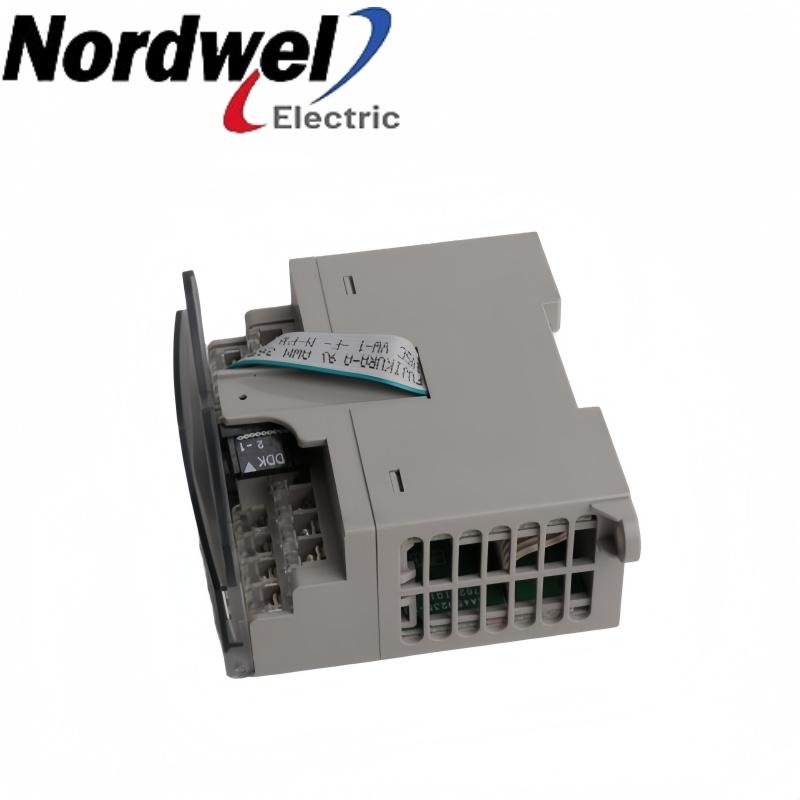

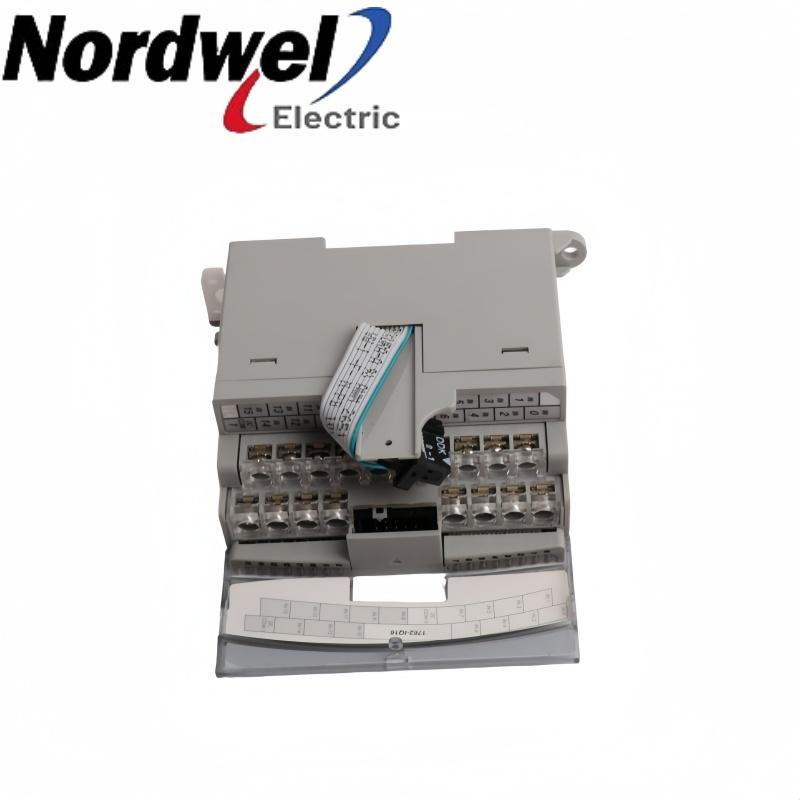

1769-IQ16K - Conformally coated DC input module

1769-IQ16K provides 16 sink/source DC inputs with conformal coating. Two eight-point groups organize field-device wiring through separate commons.

PLC1769 I/O16-point DC input module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

1769-IQ16K product profile

Product family1769 I/O

Exact model1769-IQ16K

Input grouping2 groups of 8 points

Voltage category24 V DC sink/source

Protective treatmentConformal coating

Signal response8 ms on / 8 ms off

Brand:
PLC
Item NO.:
1769-IQ16K

Inquiry now

1769-IQ16K configuration inquiry

Get a precise quote for 1769-IQ16K

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

1769-IQ16K functions and interfaces

1769-IQ16K is a conformally coated, sixteen-point digital input module for compatible 1769 I/O assemblies. The field inputs are divided into two eight-point groups with separate DC commons. Selection must account for the field-device current direction, temperature-dependent voltage limits, the I/O bus power budget and the installed module position. This is an input interface, not a field-load output module.

Discrete-state acquisitionAcquire sixteen DC input states for the configured control application; retain the input-point allocation and field labels during replacement.

Field-device polarity matchingWire each group common for the required sinking or sourcing circuit arrangement; check current direction between the field device and input circuit.

Grouped common arrangementInputs 0-7 and inputs 8-15 form separate groups. Keep each group return correctly identified instead of treating all terminals as one common circuit.

Coated hardware selectionThe complete 1769-IQ16K ordering identity specifies conformal coating. Keep that suffix in procurement and acceptance records; coating does not replace the required installation enclosure.

Installation and selection boundaries

The maximum input voltage depends on ambient temperature: 30 V DC at 30 C and 26.4 V DC at 60 C.
Check the two input groups, their separate commons and field-device polarity before energizing the installation.
Confirm the 5.1 V bus-current budget, power-supply distance rating and mechanically locked bus connection together.

Official product data

1769-IQ16K key specifications

Input arrangement	16 inputs; 8 points per group
Voltage category	24 V DC sinking/sourcing
Operating voltage	10-30 V DC at 30 C; 10-26.4 V DC at 60 C
Input delay	8 ms on; 8 ms off
Bus current draw	115 mA at 5.1 V DC
Maximum heat dissipation	3.55 W
Off-state limits	5 V DC maximum; 1.5 mA maximum
On-state limits	10 V DC minimum; 2 mA minimum
Isolation	1200 V AC / 1 s or 1697 V DC / 1 s dielectric test; 75 V DC working voltage, reinforced insulation

Technical data 1769-TD006H-EN-P, pages 2, 4 and 12; exact-product listing confirms the conformal-coated configuration.

Pre-order check 01

Installation environment

Install 1769-IQ16K as part of the correctly powered, grounded and mechanically secured I/O assembly; keep the field and bus circuits identified.

Remove power before module replacement, identify the bus and field supplies, and keep the bus connection and end-of-bank termination secure.
Use the specified DIN-rail or panel mounting arrangement. Provide a suitable enclosure because the module itself has no enclosure type rating.
Keep the operating ambient within 0-60 C and humidity within 5-95% noncondensing; apply the input-voltage limit appropriate to the actual temperature.
Use Cu-90 C conductors: 22-14 AWG solid or 22-16 AWG stranded. Distinguish 0.68 N m terminal-screw torque from 0.46 N m retaining-screw torque.

Keep the approved field drawing and installation records available during verification.

Pre-order check 02

Compatibility confirmation

Match the complete component identity with the fitted interfaces and installed configuration.

Complete identity: Match 1769-IQ16K and the installed hardware revision, including the required conformal-coated construction.
Field circuits: Check sixteen DC inputs in two eight-point groups, separate commons, sinking/sourcing direction and the temperature-dependent operating-voltage range.
Bus and power position: Allow 115 mA at 5.1 V DC in the bus budget; the power-supply distance rating is eight modules. Verify the complete bank arrangement.
Terminal hardware: Confirm conductor type, wire size, terminal identification and the separate terminal/retaining screw requirements before transferring field wiring.
Application timing: Include the specified 8 ms on/off input delay and the host application cycle when assessing the signal duration required for reliable acquisition.

Accept the module after complete identity, coated construction, polarity, terminal allocation, bus power, mounting and input-state checks have been recorded.
