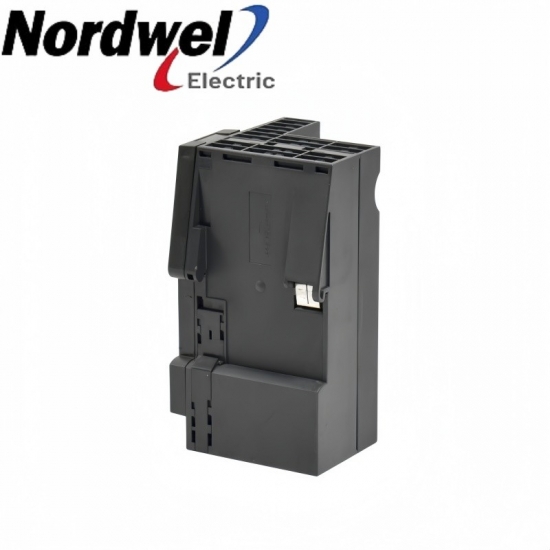

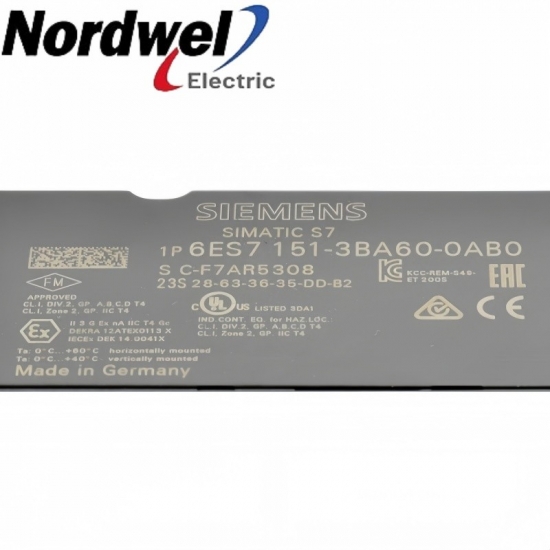

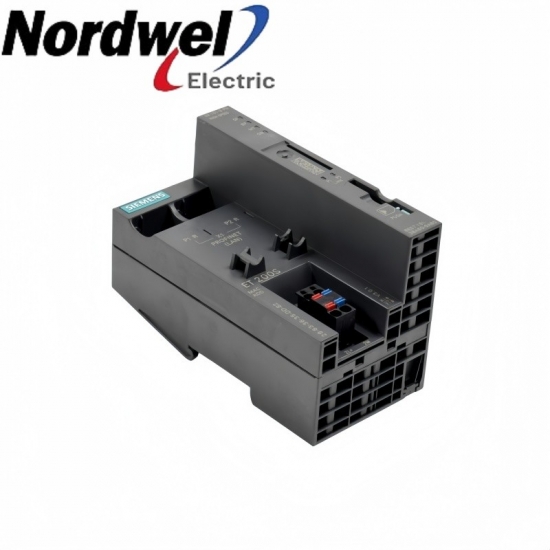

Siemens 6ES7151-3BA60-0AB0 IM151-3 PN HIGH SPEED interface product image

Siemens 6ES7151-3BA60-0AB0 IM151-3 PN HIGH SPEED interface

EMAIL SALES

ET 200S PROFINET

6ES7151-3BA60-0AB0 — IM151-3 PN HIGH SPEED interface

Connect an engineered ET 200S station through the IM151-3 PN HIGH SPEED interface. Its real-time operation must be configured with the controller, network timing and supported firmware rather than assumed from the Ethernet link alone.

SiemensET 200S PROFINETIM151-3 PN HIGH SPEEDCopper PROFINET with configured IRT timing

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7151-3BA60-0AB0 product profile

ManufacturerSiemens

Exact model6ES7151-3BA60-0AB0

Product typeIM151-3 PN HIGH SPEED interface

Product familyET 200S PROFINET

Primary roleProvides high-speed distributed-I/O communication

Interface contextCopper PROFINET with configured IRT timing

Brand:
SIEMENS
Item NO.:
6ES7151-3BA60-0AB0

Inquiry now

6ES7151-3BA60-0AB0 configuration inquiry

Get a precise quote for 6ES7151-3BA60-0AB0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IM151-3 PN HIGH SPEED interface configuration

This HS interface supports the documented IRT cycle range under the required system configuration. Assess timing, supply capacity and the actual station arrangement together rather than selecting by connector appearance alone.

Control-system purposeProvides high-speed distributed-I/O communication.

Connection arrangementCopper PROFINET with configured IRT timing.

Installation planningProvide the rated 24 V DC feed and include the interface in the station power budget.

Commissioning evidenceThe two RJ45 ports require a copper 100BASE-TX installation; optical-media specifications do not apply.

Engineering selection points

Connector count: 2 × RJ45.
Rated voltage: 24 V DC.
Current consumption: Approximately 350 mA.
Power dissipation: Maximum 3.5 W.

Official product data

6ES7151-3BA60-0AB0 key specifications

Product designation	IM151-3 PN HIGH SPEED
Network connection	PROFINET IO, 100BASE-TX
Connector count	2 × RJ45
Rated voltage	24 V DC
Current consumption	Approximately 350 mA
Power dissipation	Maximum 3.5 W
Width	60 mm
Documented IRT high-performance interval	250 µs to 4 ms in 125 µs increments; subject to the specified configuration

Siemens IM151-3 PN HIGH SPEED manual; real-time features require the specified hardware, firmware and network configuration.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Disconnect the station supply and secure the process before replacing the interface.
Provide the rated 24 V DC feed and include the interface in the station power budget.
Maintain the engineered Ethernet topology and industrial cable shielding.
Restore the approved controller, synchronization and station settings before evaluating real-time operation.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Speed variant: Check the complete HIGH SPEED ordering identity rather than a similar PN housing.
Station hardware: Match the installed ET 200S station and its configured electronic modules.
Controller support: Confirm that the controller and engineering configuration support the required communication functions.
IRT configuration: Use a documented timing interval, synchronization arrangement and firmware combination.
Physical network: The two RJ45 ports require a copper 100BASE-TX installation; optical-media specifications do not apply.

Evaluate the complete controller-to-I/O timing chain; the interface specification alone is not an application response-time guarantee.
