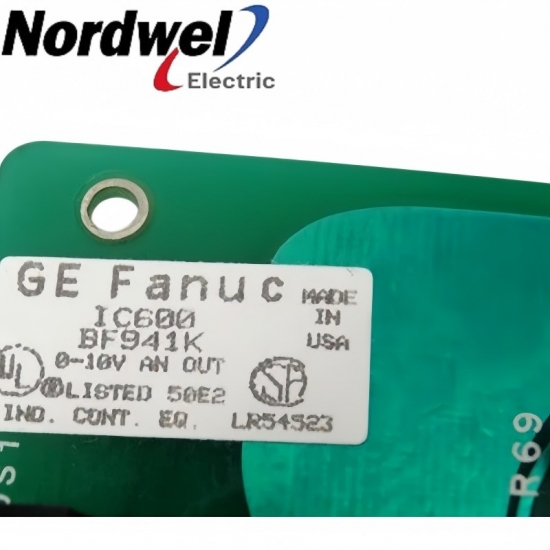

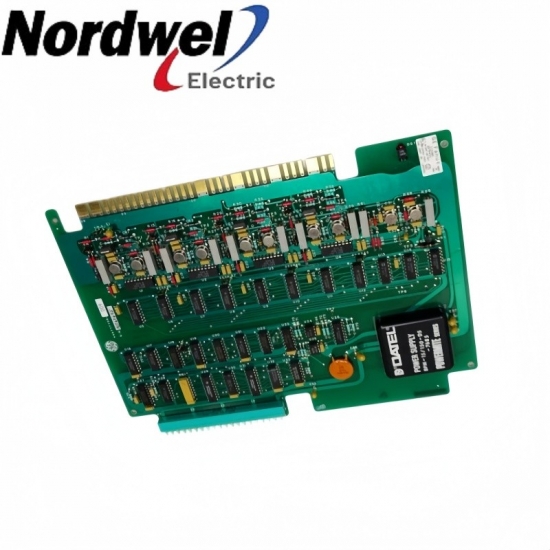

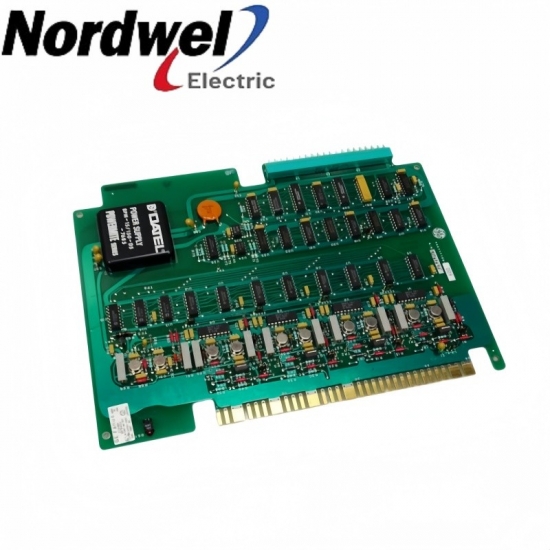

General Electric IC600BF941 4-channel unipolar analog voltage output module product view

General Electric IC600BF941 4-channel unipolar analog voltage output module

EMAIL SALES

Series Six

IC600BF941 — 4-channel unipolar analog voltage output module

IC600BF941 provides four unipolar analog voltage outputs. Match receiving-instrument range, output loading and channel calibration; a unipolar signal must not be treated as a bipolar command.

General ElectricSeries Six4Four 0 to +10 V output channels

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC600BF941 product profile

ManufacturerGeneral Electric

Exact modelIC600BF941

Product type4-channel unipolar analog voltage output module

Product familySeries Six

Primary roleConverts digital values to analog voltage

Interface contextFour 0 to +10 V output channels

Brand:
General Electric
Item NO.:
IC600BF941

Inquiry now

IC600BF941 configuration inquiry

Get a precise quote for IC600BF941

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

4-channel unipolar analog voltage output module configuration

IC600BF941 provides four unipolar analog voltage outputs. Match receiving-instrument range, output loading and channel calibration; a unipolar signal must not be treated as a bipolar command.

System roleIC600BF941 provides four unipolar analog voltage outputs. Match receiving-instrument range, output loading and channel calibration; a unipolar signal must not be treated as a bipolar command.

Electrical integrationKeep receiving circuits within voltage-output current and capacitance limits.

Configuration reviewVerify channel jumpers, calibration and local/remote arrangement for the actual A/B revision.

CommissioningCheck zero and full-scale mapping and receiver response for each configured channel.

Engineering selection points

Output channels: 4.
Voltage range: 0 to +10 V.
D/A resolution: 12 bit; 1/4096.
Rack supply: 5 VDC; 1.5 A.

Official product data

IC600BF941 key specifications

Output channels	4
Voltage range	0 to +10 V
D/A resolution	12 bit; 1/4096
Rack supply	5 VDC; 1.5 A
Voltage-output current	±5 mA
Maximum load capacitance	750 pF
Operating ambient	0–60 °C

Technical reference: GEK-83526D Analog Output instruction sheet, unipolar configuration.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Isolate analog circuits and secure equipment controlled by the signals.
Record channel allocation, jumpers and calibration information.
Check receiving loads, cable capacitance and installed revision.
Test representative voltages and receiving-device behavior under controlled conditions.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Complete item: Retain IC600BF941 and record the supplied board revision.
Installed assembly: Four 0 to +10 V output channels.
Electrical conditions: Keep receiving circuits within voltage-output current and capacitance limits.
Configuration: Verify channel jumpers, calibration and local/remote arrangement for the actual A/B revision.
Acceptance: Check zero and full-scale mapping and receiver response for each configured channel.

Match the complete supplied identity, board revision and installed circuit requirements before operational release.
