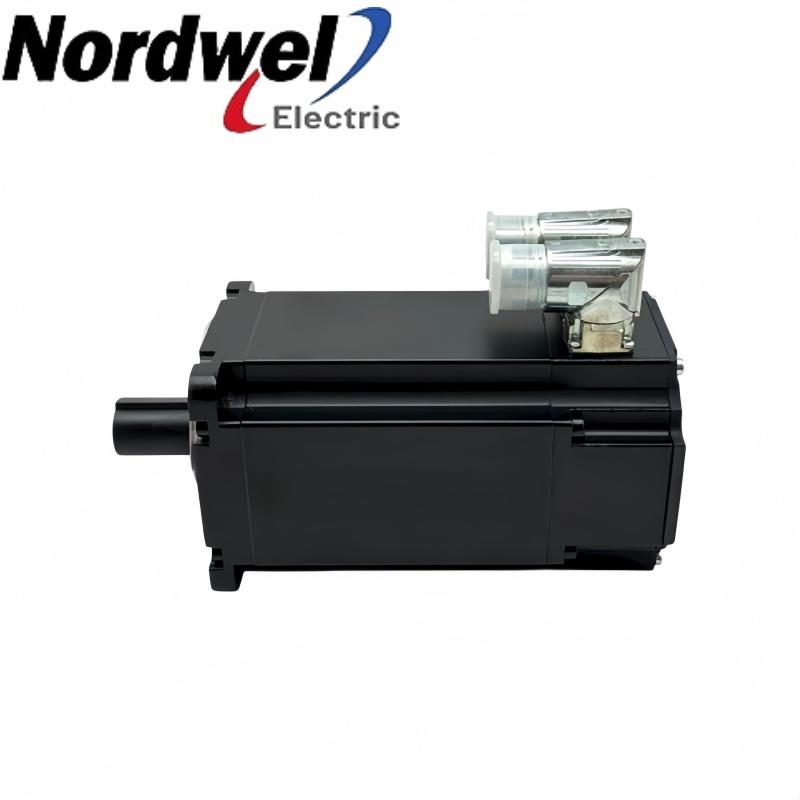

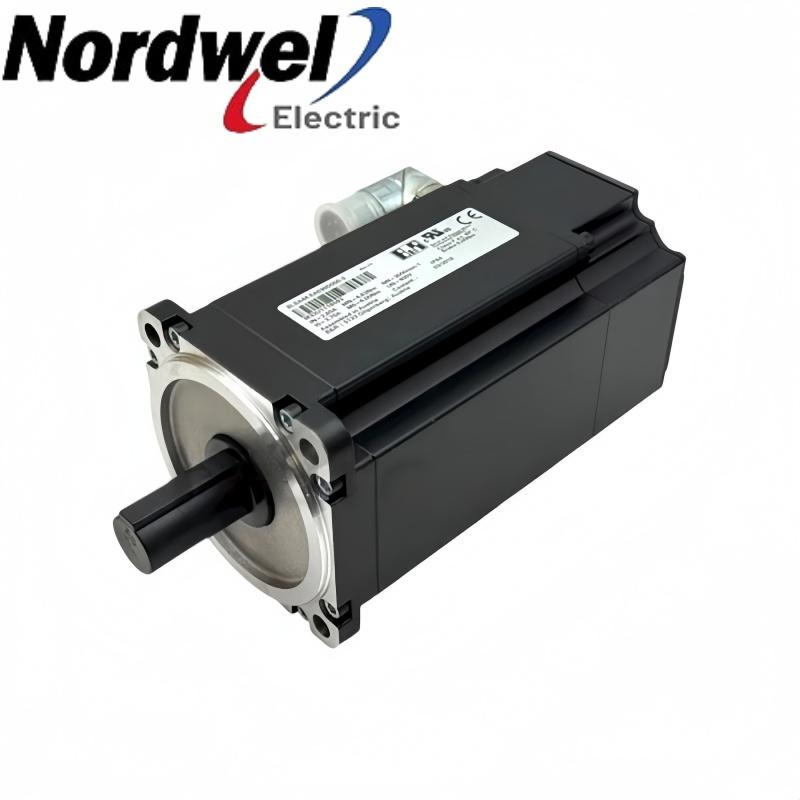

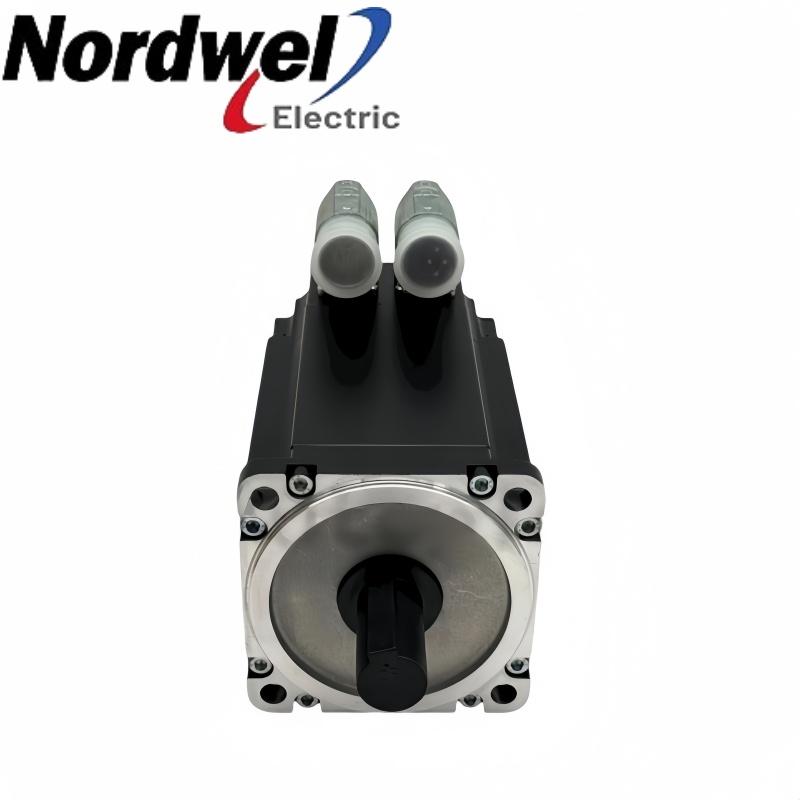

8LSA44.EA030D000-3 8LS Self-Cooled Synchronous Servo Motor

B&R 8LSA44.EA030D000-3 8LS Self-Cooled Synchronous Servo Motor

EMAIL SALES

B&R official data reviewed

8LSA44.EA030D000-3 — 8LS Self-Cooled Synchronous Servo Motor

A self-cooled 8LS synchronous motor rated at 3000 rpm and 4.62 Nm, using a smooth shaft and inductive single-turn encoder.

8LS synchronous motorsHigh-performance rotary servo actuationExact-order review

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Officially reviewed product profile

Product family8LS synchronous motors

Exact model8LSA44.EA030D000-3

Verified functionHigh-performance rotary servo actuation

Interface boundary400 VAC motor with swivel connector and EnDat single-turn feedback

Pole pairs5

Selection basisConfirm 400 VAC drive pairing, torque/speed duty, feedback interface, connector orientation and shaft geometry.

Brand:
Others
Item NO.:
8LSA44.EA030D000-3
Goods Stock:
1
Part Number:
8LSA44.EA030D000-3
Description:
A self-cooled 8LS synchronous motor rated at 3000 rpm and 4.62 Nm, using a smooth shaft and inductive single-turn encoder.

Inquiry now

8LSA44.EA030D000-3 configuration inquiry

Get a precise quote for 8LSA44.EA030D000-3

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

8LSA44.EA030D000-3 official identification

A self-cooled 8LS synchronous motor rated at 3000 rpm and 4.62 Nm, using a smooth shaft and inductive single-turn encoder.

System responsibilityHigh-performance rotary servo actuation

Connection envelope400 VAC motor with swivel connector and EnDat single-turn feedback

Procurement decisionConfirm 400 VAC drive pairing, torque/speed duty, feedback interface, connector orientation and shaft geometry.

Acceptance recordMotor nameplate, feedback check, phase-resistance test, rotation test and current trend

Engineering and installation checks

The controlling identity is 8LSA44.EA030D000-3; every character remains part of the order reference.
Support the motor mechanically so no load is transferred through the encoder or connector.
Published facts are limited to B&R official product record for 8LSA44.EA030D000-3.

Official product data

8LSA44.EA030D000-3 key specifications

Nominal speed	3000 rpm
Nominal torque	4.62 Nm
Nominal power	1451 W
Nominal current	2.8 A
Stall torque	6 Nm
Maximum torque	22.8 Nm
Maximum speed	12000 rpm
Pole pairs	5
Encoder	EA inductive single-turn
Shaft	Smooth, 19 mm k6 × 40 mm
Connection	Angled swivel connector
Weight without brake	5.4 kg

Source: B&R official product record for 8LSA44.EA030D000-3.

Pre-order check 01

Installation environment

Prepare the 8ls self-cooled synchronous servo motor by recording the installed connections, settings and complete nameplate.

Support the motor mechanically so no load is transferred through the encoder or connector.
Confirm the drive’s motor data and feedback interface before enabling torque.
Check coupling alignment and the 19 mm smooth-shaft fit.
Commission at limited speed and monitor current, direction and feedback stability.

Close the work with motor nameplate, feedback check, phase-resistance test, rotation test and current trend.

Pre-order check 02

Compatibility confirmation

Approve 8LSA44.EA030D000-3 only when its documented function and every listed boundary agree with the installed design.

Drive voltage class: 400 VAC motor application
Nominal duty: 4.62 Nm at 3000 rpm
Feedback: EA inductive single-turn encoder
Mechanical output: 19 mm smooth shaft
Brake: No holding-brake torque for this code

Final selection: Use only the values published for 8LSA44.EA030D000-3 in B&R official product record for 8LSA44.EA030D000-3; site suitability remains an engineering decision.
