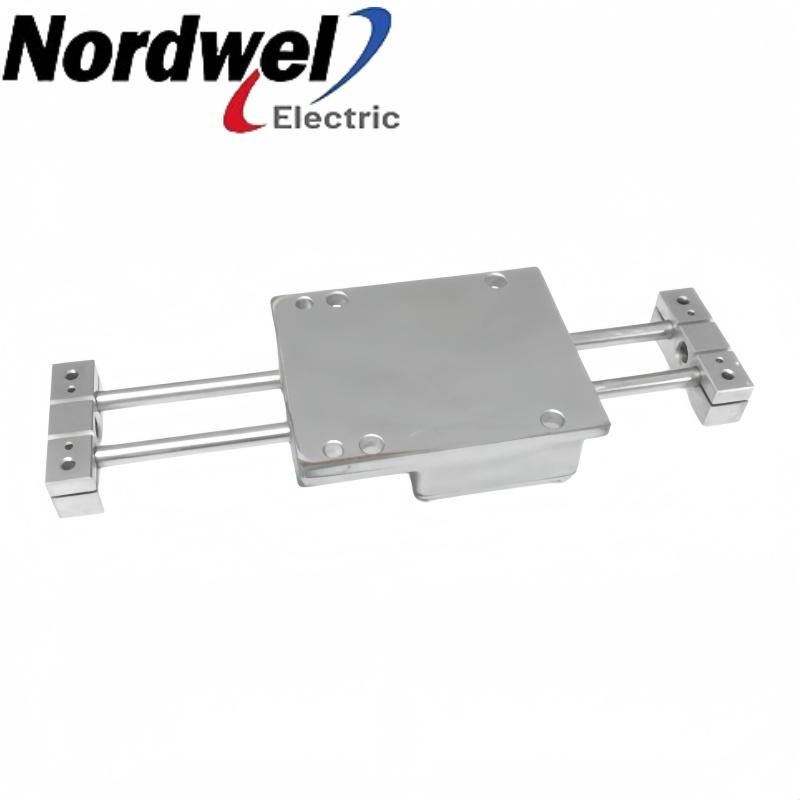

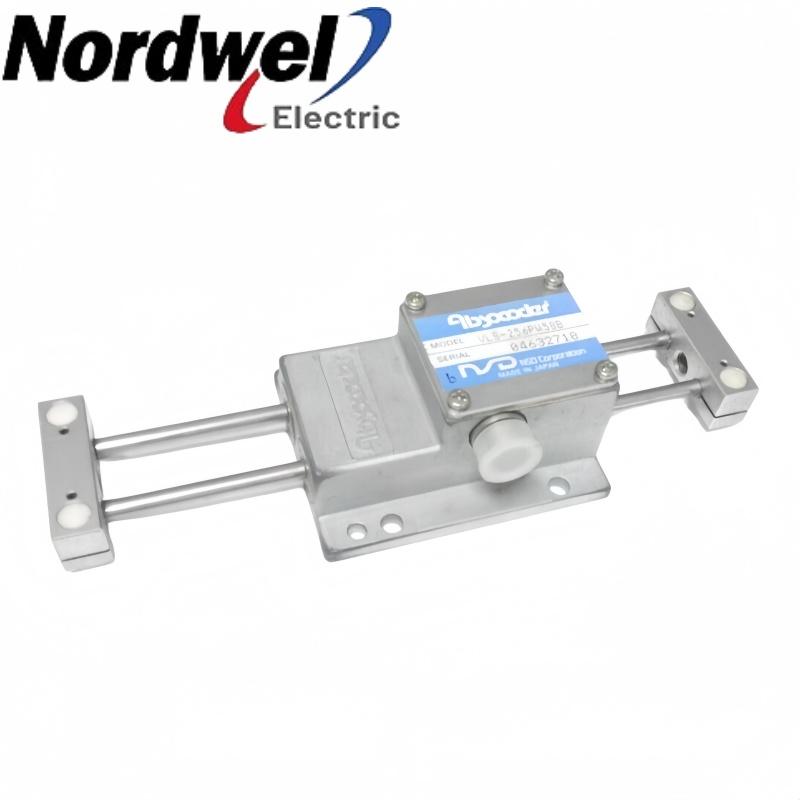

VLS-256PW58B VLS Linear ABSOCODER Position Sensor

NSD VLS-256PW58B VLS Linear ABSOCODER Position Sensor

EMAIL SALES

NSD official data reviewed

VLS-256PW58B — VLS Linear ABSOCODER Position Sensor

A VLS dual-rod absolute linear sensor with a 256 mm absolute detection range and 58 mm maximum detection stroke.

NSD VLS linear absolute sensorsNon-contact absolute linear-position detectionExact-order review

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Officially reviewed product profile

Product familyNSD VLS linear absolute sensors

Exact modelVLS-256PW58B

Verified functionNon-contact absolute linear-position detection

Interface boundaryDual-rod sensor used with a compatible NSD converter or controller

Linearity error0.05 mm maximum

Selection basisConfirm the 58 mm stroke, compatible converter, cable type, mounting drawing and environmental limits.

Brand:
Others
Item NO.:
VLS-256PW58B
Goods Stock:
1
Part Number:
VLS-256PW58B
Description:
A VLS dual-rod absolute linear sensor with a 256 mm absolute detection range and 58 mm maximum detection stroke.

Inquiry now

VLS-256PW58B configuration inquiry

Get a precise quote for VLS-256PW58B

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

VLS-256PW58B official identification

A VLS dual-rod absolute linear sensor with a 256 mm absolute detection range and 58 mm maximum detection stroke.

System responsibilityNon-contact absolute linear-position detection

Connection envelopeDual-rod sensor used with a compatible NSD converter or controller

Procurement decisionConfirm the 58 mm stroke, compatible converter, cable type, mounting drawing and environmental limits.

Acceptance recordExact model label, mechanical stroke check, converter identity, zero-position test and linearity record

Engineering and installation checks

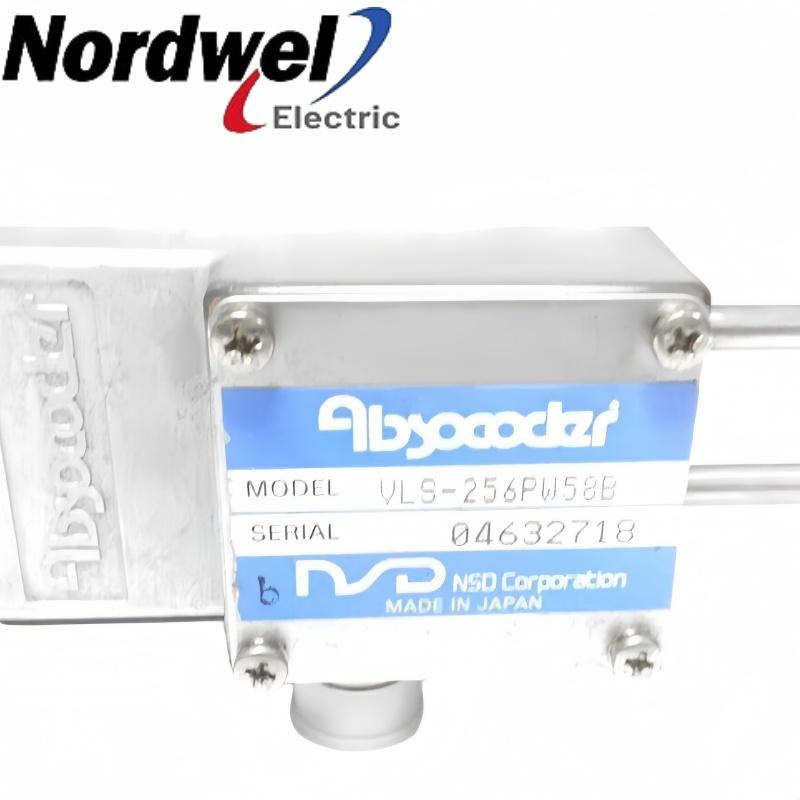

The controlling identity is VLS-256PW58B; every character remains part of the order reference.
Mount the dual-rod sensor from the documented reference surfaces without side loading.
Published facts are limited to NSD official VLS linear ABSOCODER product record.

Official product data

VLS-256PW58B key specifications

Sensor type	Absolute dual-rod
Absolute detection range	256 mm
Maximum detection stroke	58 mm
Resolution basis	0.00391 mm for the 256PWB family
Linearity error	0.05 mm maximum
Mechanical speed	1000 mm/s
Operating temperature	−20 to +60 °C
Storage temperature	−30 to +90 °C
Protection	IP40
Rated voltage	15 VAC
Overall length for 58 mm version	198 mm
Reference dimension A	76 mm

Source: NSD official VLS linear ABSOCODER product record.

Pre-order check 01

Installation environment

Prepare the vls linear absocoder position sensor by recording the installed connections, settings and complete nameplate.

Mount the dual-rod sensor from the documented reference surfaces without side loading.
Keep travel within the 58 mm mechanical stroke.
Pair the sensor only with a compatible converter or controller and verify its resolution setting.
Move through the full working range and compare position output with a calibrated reference.

Close the work with exact model label, mechanical stroke check, converter identity, zero-position test and linearity record.

Pre-order check 02

Compatibility confirmation

Approve VLS-256PW58B only when its documented function and every listed boundary agree with the installed design.

Model identity: VLS-256PW58B
Mechanical stroke: 58 mm maximum
Detection family: 256 mm absolute range
Electronics: Compatible NSD converter or controller required
Environment: IP40, −20 to +60 °C

Final selection: Use only the values published for VLS-256PW58B in NSD official VLS linear ABSOCODER product record; site suitability remains an engineering decision.
