3IF782.9 aPCI POWERLINK and RS485 Interface Module

B&R 3IF782.9 aPCI POWERLINK and RS485 Interface Module

EMAIL SALES

B&R official data reviewed

3IF782.9 — aPCI POWERLINK and RS485 Interface Module

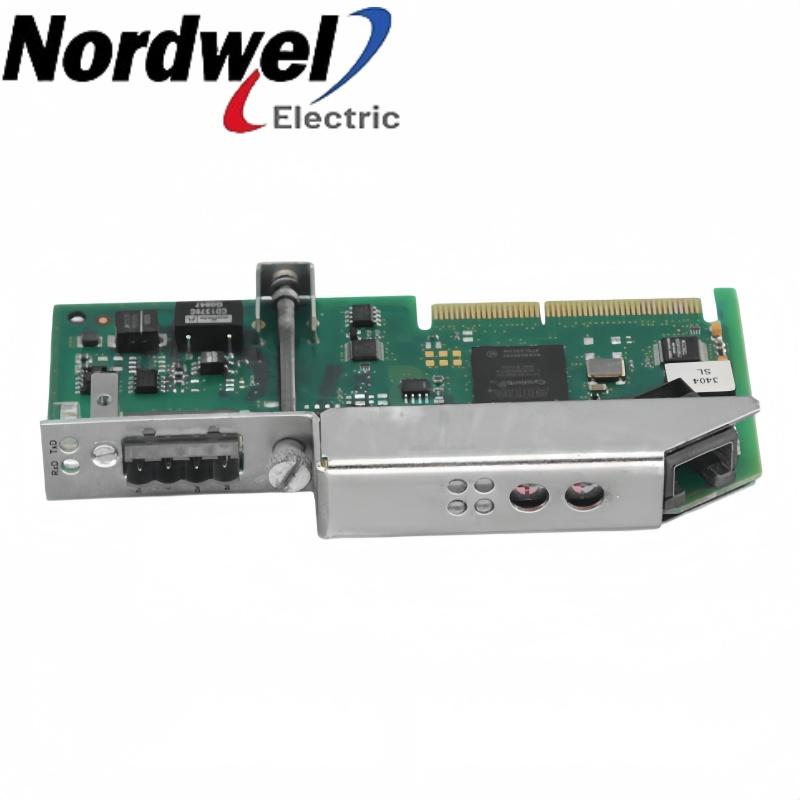

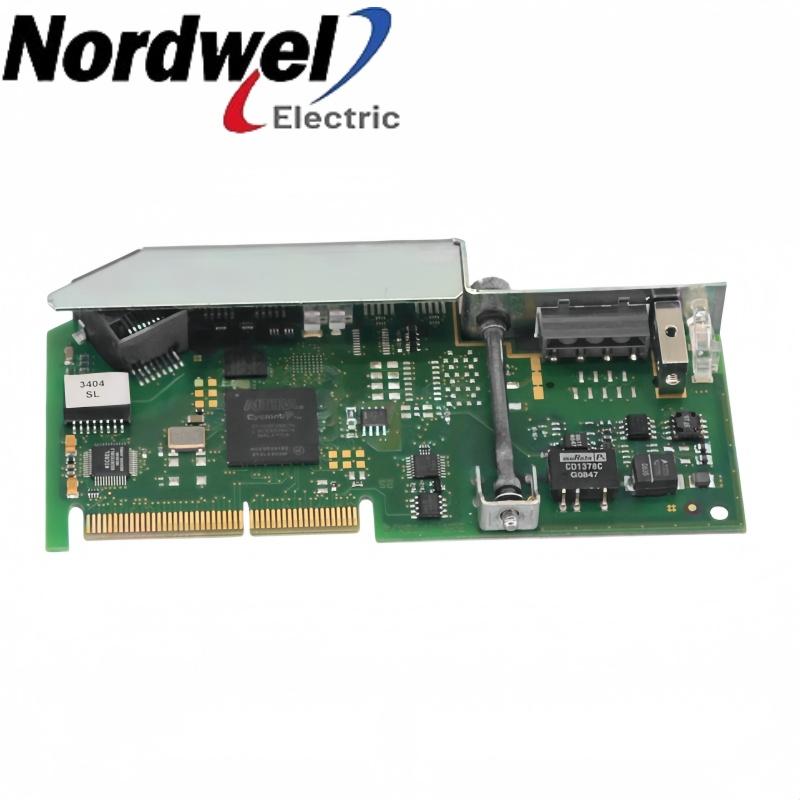

An aPCI communication module combining a 100 Mbit/s POWERLINK managing or controlled node with an electrically isolated RS485 interface.

B&R aPCI interface modulesCombined POWERLINK and isolated RS485 communicationExact-order review

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Officially reviewed product profile

Product familyB&R aPCI interface modules

Exact model3IF782.9

Verified functionCombined POWERLINK and isolated RS485 communication

Interface boundaryOne 100 Mbit/s RJ45 POWERLINK port and one four-pin RS485 terminal

Electrical isolationIF1 to IF2 and host to interfaces

Selection basisConfirm aPCI host slot, POWERLINK node role, RS485 baud rate, terminal block and environmental limits.

Brand:
Others
Item NO.:
3IF782.9
Goods Stock:
1
Part Number:
3IF782.9
Description:
An aPCI communication module combining a 100 Mbit/s POWERLINK managing or controlled node with an electrically isolated RS485 interface.

Inquiry now

3IF782.9 configuration inquiry

Get a precise quote for 3IF782.9

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

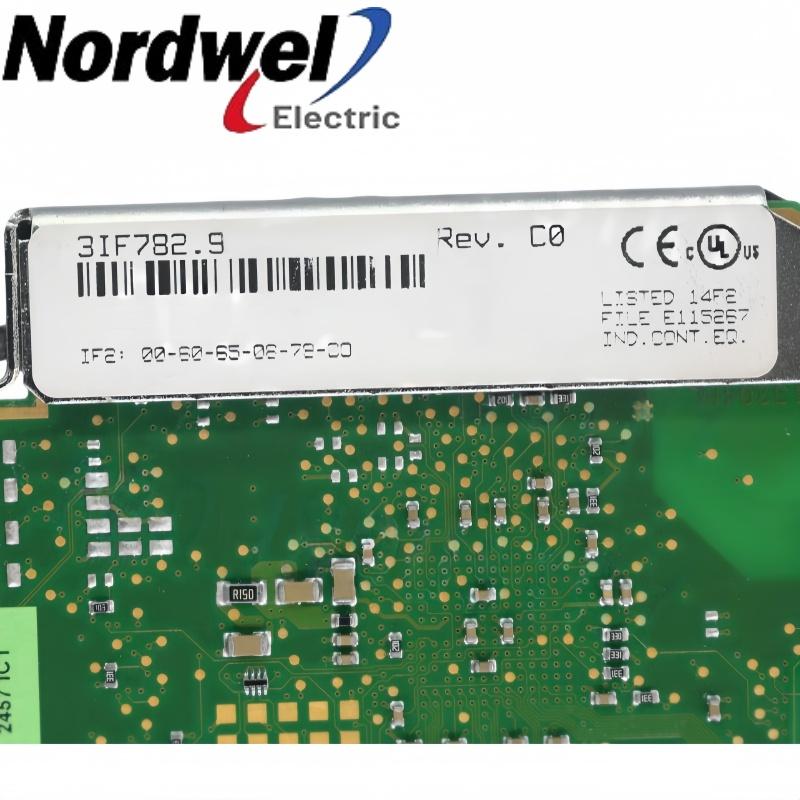

3IF782.9 official identification

An aPCI communication module combining a 100 Mbit/s POWERLINK managing or controlled node with an electrically isolated RS485 interface.

System responsibilityCombined POWERLINK and isolated RS485 communication

Connection envelopeOne 100 Mbit/s RJ45 POWERLINK port and one four-pin RS485 terminal

Procurement decisionConfirm aPCI host slot, POWERLINK node role, RS485 baud rate, terminal block and environmental limits.

Acceptance recordHost-slot check, node-role record, RS485 loopback, link test and diagnostics capture

Engineering and installation checks

The controlling identity is 3IF782.9; every character remains part of the order reference.
Confirm the host provides the required aPCI slot and project support.
Published facts are limited to B&R official product record for 3IF782.9.

Official product data

3IF782.9 key specifications

POWERLINK ports	1 shielded RJ45
POWERLINK role	Managing or controlled node
POWERLINK rate	100 Mbit/s
POWERLINK segment	100 m maximum
Serial interfaces	1 RS485
RS485 maximum rate	115.2 kbit/s
Electrical isolation	IF1 to IF2 and host to interfaces
Power consumption	2.8 W total
Protection	IP20
Operating temperature	0 to 60 °C
Required terminal	0TB704.9 or 0TB704.91
Host form	aPCI slot module

Source: B&R official product record for 3IF782.9.

Pre-order check 01

Installation environment

Prepare the apci powerlink and rs485 interface module by recording the installed connections, settings and complete nameplate.

Confirm the host provides the required aPCI slot and project support.
Order and identify the correct four-pin TB704 terminal separately.
Set the POWERLINK managing or controlled-node role to match the network plan.
Test RS485 and POWERLINK diagnostics independently after installation.

Close the work with host-slot check, node-role record, RS485 loopback, link test and diagnostics capture.

Pre-order check 02

Compatibility confirmation

Approve 3IF782.9 only when its documented function and every listed boundary agree with the installed design.

Host interface: aPCI slot
POWERLINK: 100 Mbit/s managing or controlled node
Serial channel: RS485 up to 115.2 kbit/s
Terminal accessory: TB704 four-pin terminal
Environment: IP20, 0 to 60 °C

Final selection: Use only the values published for 3IF782.9 in B&R official product record for 3IF782.9; site suitability remains an engineering decision.
