An eight-channel dry-contact relay output module for switching documented DC or AC loads from an expandable S7-200 SMART station.
Brand:
SIEMENSItem NO.:
6ES7288-2DR08-0AA0Part Number:
6ES7288-2DR08-0AA0Weight:
166.3 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:

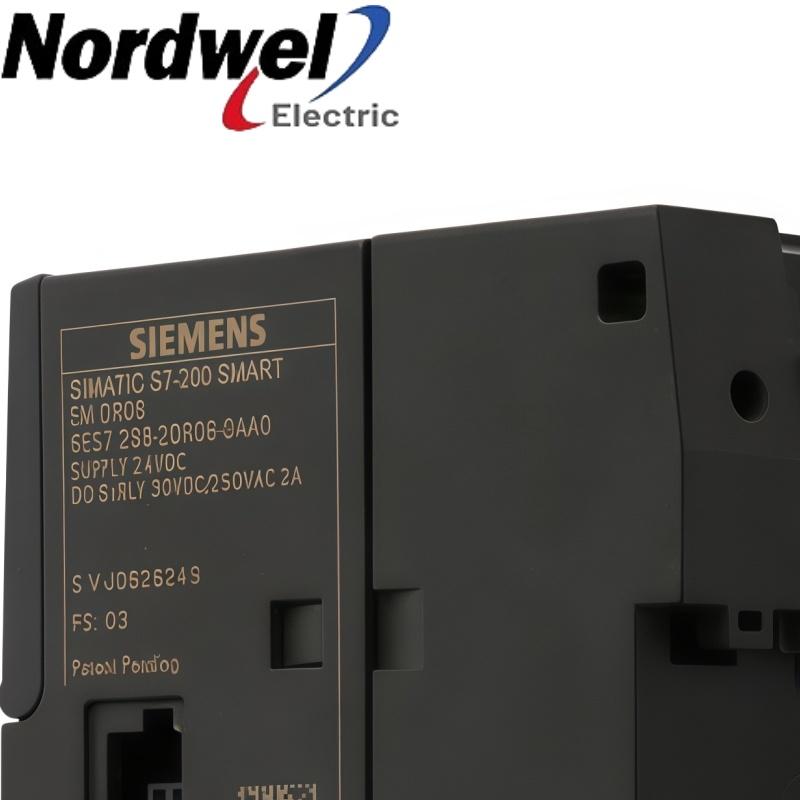

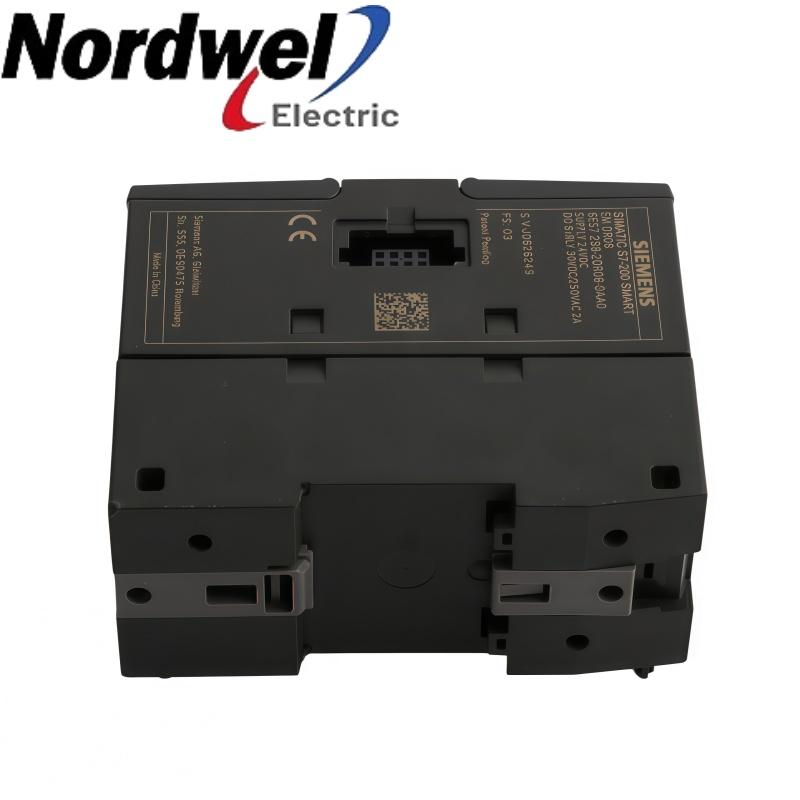

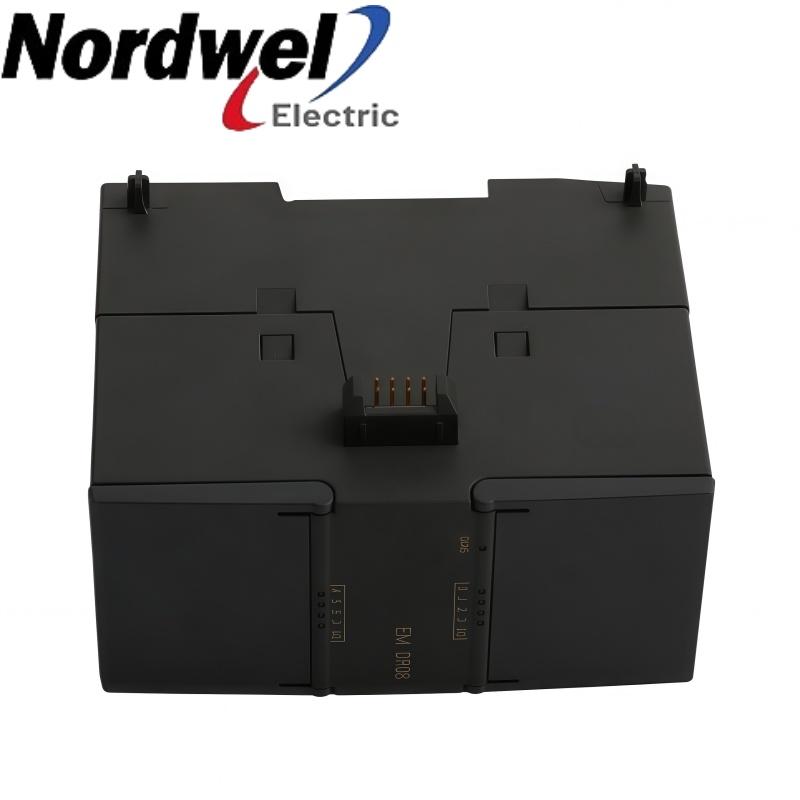

An eight-channel dry-contact relay output module for switching documented DC or AC loads from an expandable S7-200 SMART station.Siemens identifies 6ES7288-2DR08-0AA0 as the SIMATIC S7-200 SMART EM DR08 / DQ 8 × Relay. An eight-channel dry-contact relay output module for switching documented DC or AC loads from an expandable S7-200 SMART station.
Published digital and analog input modules for adding field signals.
Sourcing MOSFET options for fast 24 V DC output expansion.
Dry-contact relay options for documented AC and DC field loads.
Published standard S7-200 SMART CPUs that support expansion-module architectures.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Record voltage, steady current, inrush and inductive characteristics before assigning a relay point.
Keep each output group within the documented 8 A common-terminal limit.
Provide external fusing and suppression because the relay outputs are not short-circuit protected.
Compare switching frequency with the 100,000-cycle rated-load contact-life figure.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
No. EM DR08 is an eight-channel digital output module using relay dry contacts.
Siemens rates each output at 2.0 A, with an 8 A maximum per common group.
The documented range is 5–30 V DC or 5–250 V AC.
No. External circuit protection must be provided for the connected loads.
The maximum switching delay is 10 ms.
Siemens lists 100,000 open/close cycles at rated load. Actual life depends on the load and switching duty.
Its body measures 45 × 100 × 81 mm and weighs 166.3 g.
No. CPU CR40s is non-expandable; EM DR08 requires an expandable S7-200 SMART CPU.
Software, licensing, controller, interface, shield and power-supply references.
Internal cable references for 40-channel input and output connections to field termination assemblies.
I/O Companion Slot to FTA · 2.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
I/O Companion Slot to FTA · 10.5 m
I/O Companion Slot to FTA · 12.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
Use the verified electrical and system limits—not generic family assumptions—to decide suitability.
