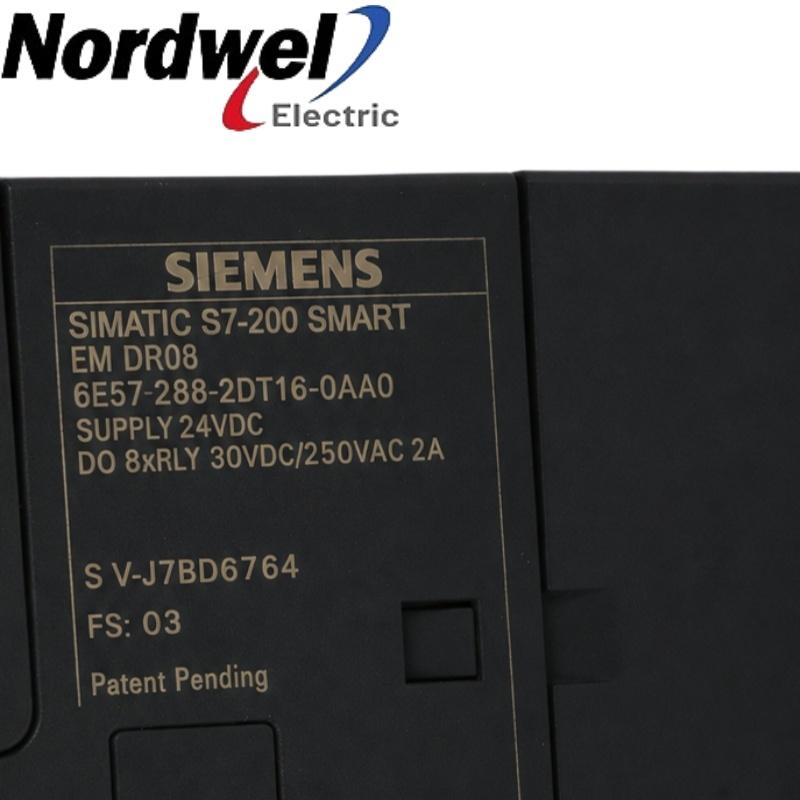

A balanced mixed-I/O module combining eight 24 V DC inputs with eight sourcing transistor outputs in one 45 mm expansion position.
Brand:
SIEMENSItem NO.:
6ES7288-2DT16-0AA0Part Number:
6ES7288-2DT16-0AA0Weight:
179.7 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:
A balanced mixed-I/O module combining eight 24 V DC inputs with eight sourcing transistor outputs in one 45 mm expansion position.Siemens identifies 6ES7288-2DT16-0AA0 as the SIMATIC S7-200 SMART EM DT16 / 8 DI + 8 Transistor DQ. A balanced mixed-I/O module combining eight 24 V DC inputs with eight sourcing transistor outputs in one 45 mm expansion position.
Published digital and analog input modules for adding field signals.
Sourcing MOSFET options for fast 24 V DC output expansion.
Dry-contact relay options for documented AC and DC field loads.
Published standard S7-200 SMART CPUs that support expansion-module architectures.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Allocate eight DI bits and eight DQ bits before updating the hardware configuration.
Choose the Siemens filter interval for each group of four inputs based on noise and response needs.
Verify 24 V DC polarity, inrush current, the 0.75 A point limit and 3 A common limit.
Add fusing and inductive suppression because the MOSFET points are not short-circuit protected.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
It provides eight 24 V DC digital inputs and eight sourcing transistor digital outputs.
No. Its sixteen channels are split evenly between 8 DI and 8 DQ.
Yes. Siemens provides filter selections from 0.2 to 12.8 ms in groups of four inputs.
Each output is rated 0.75 A, and each output common is limited to 3 A.
Both sides are intended for 24 V DC systems; the sourcing output supply range is 20.4 to 28.8 V DC.
No. External branch protection is required.
Siemens lists 145 mA from the SM bus, plus 4 mA at 24 V DC for each used input.
6ES7288-2DT16-0AA0 measures 45 × 100 × 81 mm, weighs 179.7 g and consumes 2.5 W.
Software, licensing, controller, interface, shield and power-supply references.
Internal cable references for 40-channel input and output connections to field termination assemblies.
I/O Companion Slot to FTA · 2.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
I/O Companion Slot to FTA · 10.5 m
I/O Companion Slot to FTA · 12.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
Use the verified electrical and system limits—not generic family assumptions—to decide suitability.
