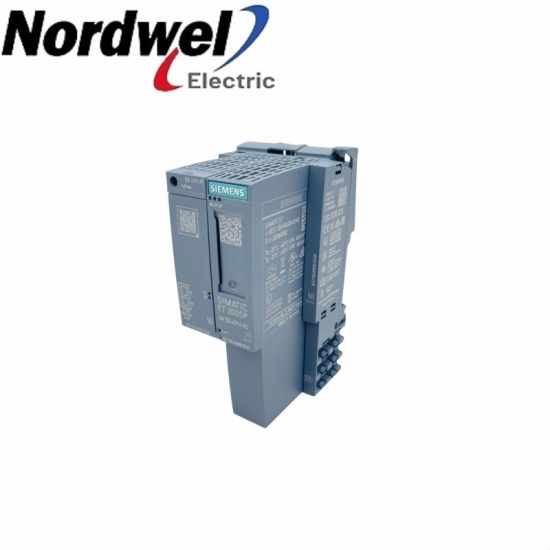

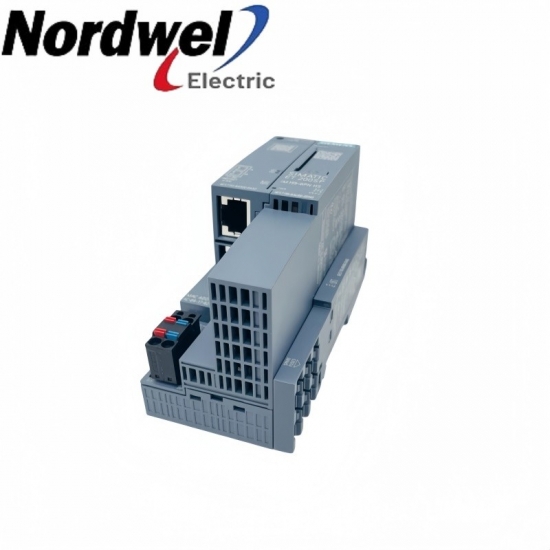

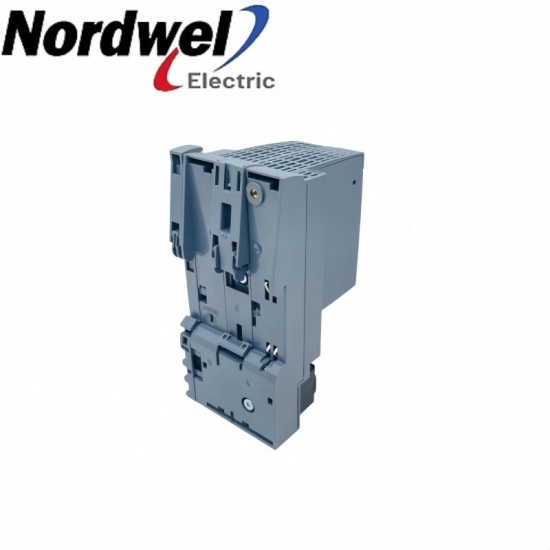

Siemens 6ES7155-6AU00-0DN0 IM 155-6 PN HS interface module kit product views

Siemens 6ES7155-6AU00-0DN0 IM 155-6 PN HS interface module kit

EMAIL SALES

Siemens ET 200SP

6ES7155-6AU00-0DN0 — IM 155-6 PN HS interface module kit

Connect a high-speed ET 200SP station to PROFINET IO with the IM 155-6 PN HS interface kit. Plan its module count and cycle timing together with the selected BusAdapter and controller configuration.

SiemensET 200SPIM 155-6 PN HS interface module kit

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7155-6AU00-0DN0 product profile

Product familyET 200SP

Exact model6ES7155-6AU00-0DN0

CommunicationPROFINET IO

Rated supply24 VDC; permitted range 19.2–28.8 VDC

I/O module capacityUp to 30 ET 200SP I/O modules

Network connectionTwo ports through the selected BusAdapter

Brand:
SIEMENS
Item NO.:
6ES7155-6AU00-0DN0

Inquiry now

6ES7155-6AU00-0DN0 configuration inquiry

Get a precise quote for 6ES7155-6AU00-0DN0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7155-6AU00-0DN0 functions and installation

The HS interface supports an ET 200SP station with up to 30 I/O modules. Its minimum isochronous bus cycle is 125 µs; actual timing, address allocation and supported functions depend on the complete engineered station.

Fast station connectionLinks a high-speed I/O station to PROFINET IO.

Cyclic exchangeCoordinate the cycle with controller and module capabilities.

Adapter selectionUse a BusAdapter approved for the HS interface.

Station completionInclude the required server and configured I/O assembly.

Installation and selection boundaries

Keep the station within its 30-module limit.
Shared Device configuration can impose additional address-area restrictions.
Select network hardware for the HS interface rather than by connector appearance.

Official product data

6ES7155-6AU00-0DN0 key specifications

Communication	PROFINET IO
Rated supply	24 VDC; permitted range 19.2–28.8 VDC
I/O module capacity	Up to 30 ET 200SP I/O modules
Network connection	Two ports through the selected BusAdapter
Minimum isochronous bus cycle	125 µs
Maximum station address area	968 bytes per direction; configuration restrictions apply
Maximum supply current	700 mA
Typical power loss	2.4 W
Dimensions W × H × D	50 × 117 × 74 mm

Siemens IM 155-6 PN HS equipment manual, A5E34928685-AA, September 2016; technical and station-configuration sections.

Pre-order check 01

Installation environment

Prepare the installed ET 200SP assembly for a controlled component exchange.

Secure the process and isolate the relevant electronics and field supplies before changing the station.
Record the BusAdapter, server module, module order and terminal assignments.
Check the incoming supply against the 19.2–28.8 VDC operating range.
Restore the controller configuration and verify station diagnostics, timing and controlled signal operation.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Station size: Match the actual module sequence to the maximum 30-module HS assembly.
Controller timing: Check controller support and the complete isochronous configuration before selecting the cycle.
BusAdapter: Verify the fitted adapter against HS support; do not treat every ET 200SP adapter as interchangeable.
Address allocation: Review input and output space independently, including any Shared Device restrictions.
Supplied assembly: Confirm the interface kit, required server and separately selected network connection hardware.

Release the installation only after its configured function and required acceptance checks agree.
