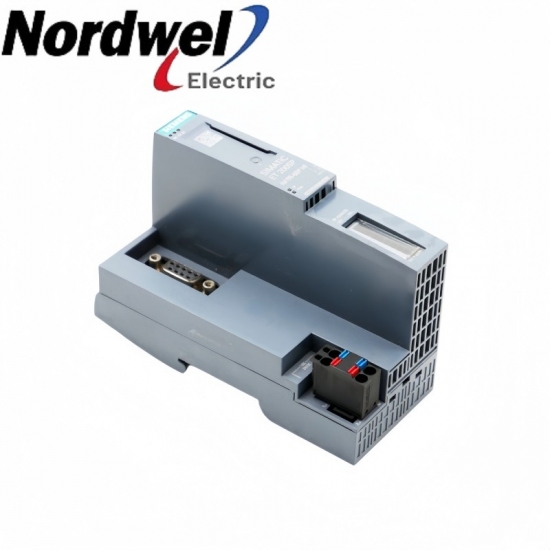

Siemens 6ES7155-6BA00-0CN0 IM 155-6 DP HF interface module kit product views

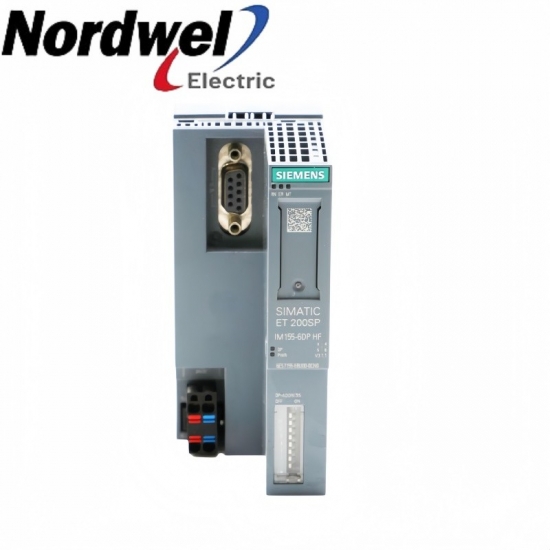

Siemens 6ES7155-6BA00-0CN0 IM 155-6 DP HF interface module kit

EMAIL SALES

Siemens ET 200SP

6ES7155-6BA00-0CN0 — IM 155-6 DP HF interface module kit

Use the IM 155-6 DP HF kit for a PROFIBUS-connected ET 200SP station. Check the original kit scope, configured module sequence and address allocation before arranging a replacement.

SiemensET 200SPIM 155-6 DP HF interface module kit

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7155-6BA00-0CN0 product profile

Product familyET 200SP

Exact model6ES7155-6BA00-0CN0

NetworkPROFIBUS DP

Interface designationIM 155-6 DP HF

Module capacityMaximum 32 modules

I/O address area244 bytes

Brand:
SIEMENS
Item NO.:
6ES7155-6BA00-0CN0

Inquiry now

6ES7155-6BA00-0CN0 configuration inquiry

Get a precise quote for 6ES7155-6BA00-0CN0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7155-6BA00-0CN0 functions and installation

This ordering configuration combines the DP HF interface with a PROFIBUS FastConnect connector and server module. The 2013 product information specifies a maximum of 32 modules and a 244-byte I/O address area for the original interface.

PROFIBUS station couplingConnects the ET 200SP station to PROFIBUS DP.

Kit-based supplyIncludes the bus connector and server for the original kit scope.

Configuration matchingPreserve the configured module sequence and address assignments.

Maintenance planningApply hot-swap support only within the permitted station arrangement.

Installation and selection boundaries

Apply the original 32-module configuration limit.
Confirm the FastConnect connector and server when comparing kit and component-only offers.
Retain the original interface configuration rather than transferring successor specifications.

Official product data

6ES7155-6BA00-0CN0 key specifications

Network	PROFIBUS DP
Interface designation	IM 155-6 DP HF
Module capacity	Maximum 32 modules
I/O address area	244 bytes
Included bus hardware	PROFIBUS FastConnect connector
Station completion	Server module included in the kit
Maintenance feature	Multi-module hot swapping supported under the required station conditions

Siemens ET 200SP product information, A5E03799595-05, September 2013; original DP HF kit and configuration table.

Pre-order check 01

Installation environment

Prepare the installed ET 200SP assembly for a controlled component exchange.

Secure the controlled equipment and follow the station procedure before any module exchange.
Label the PROFIBUS connector, station wiring and module sequence.
Check the connector termination and station address against the installed bus design.
Verify PROFIBUS communication, device configuration and controlled I/O response after restoration.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Kit identity: Match the complete requested kit and the fitted interface revision.
PROFIBUS configuration: Retain the station address, bus arrangement and appropriate device configuration.
Capacity: Keep module count and I/O allocation within the original interface limits.
Hot-swap conditions: Confirm which modules may be exchanged under the actual station configuration and maintenance procedure.
Included parts: Agree the interface, FastConnect connector and server module as the supplied scope.

Release the installation only after its configured function and required acceptance checks agree.
