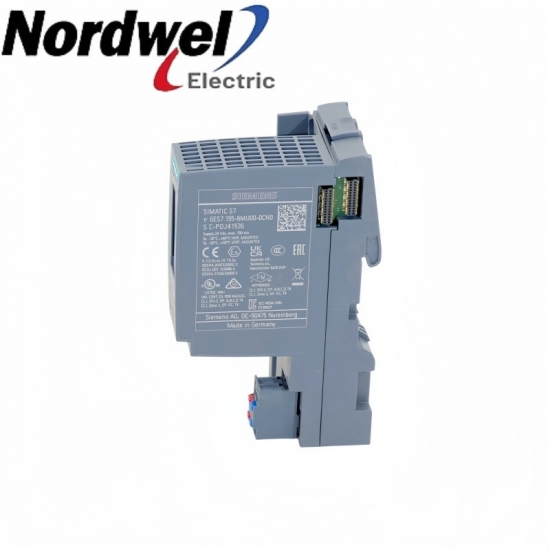

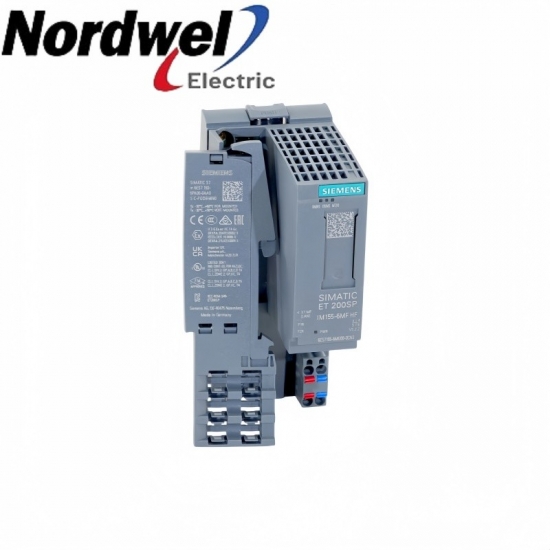

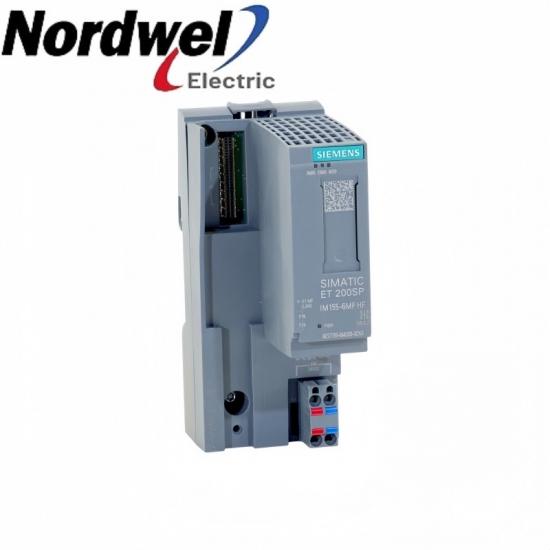

Siemens 6ES7155-6MU00-0CN0 IM 155-6 MF HF multiprotocol interface

Products
Siemens 6ES7155-6MU00-0CN0 IM 155-6 MF HF multiprotocol interface product views
Siemens 6ES7155-6MU00-0CN0 IM 155-6 MF HF multiprotocol interface product views
Siemens 6ES7155-6MU00-0CN0 IM 155-6 MF HF multiprotocol interface product views

Siemens 6ES7155-6MU00-0CN0 IM 155-6 MF HF multiprotocol interface

EMAIL SALES
Siemens ET 200SP
6ES7155-6MU00-0CN0 — IM 155-6 MF HF multiprotocol interface

Connect ET 200SP I/O through the IM 155-6 MF HF multiprotocol interface. Select the network protocol and permitted station features together, rather than assuming every protocol offers the same functions.

SiemensET 200SPIM 155-6 MF HF multiprotocol interface
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
6ES7155-6MU00-0CN0 product profile
Product familyET 200SP
Exact model6ES7155-6MU00-0CN0
Network protocolsPROFINET IO, EtherNet/IP and Modbus TCP
Rated supply24 VDC; permitted range 19.2–28.8 VDC
ET 200SP capacityUp to 64 ET 200SP I/O modules
ET 200AL capacityUp to 16 ET 200AL modules under the supported connection arrangement

  • Brand:

    SIEMENS

  • Item NO.:

    6ES7155-6MU00-0CN0
Inquiry now
6ES7155-6MU00-0CN0 configuration inquiry

Get a precise quote for 6ES7155-6MU00-0CN0

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313
Emailsales2@mooreplc.com

6ES7155-6MU00-0CN0 functions and installation

The MF HF interface supports PROFINET IO, EtherNet/IP and Modbus TCP. Its station planning distinguishes ET 200SP module capacity from connected ET 200AL capacity, and its address allocation and feature support depend on the selected protocol.

Protocol flexibilityConnects an I/O station through the selected supported protocol.
Station architecturePlan ET 200SP and ET 200AL portions under their respective limits.
Address planningAllocate data according to the actual network configuration.
Engineering supportUse the firmware and protocol-specific configuration environment together.

Installation and selection boundaries

  • Do not add the separate SP and AL limits into an unconditional station total.
  • Module availability and network features vary with the configured protocol.
  • The MF HF interface does not support isochronous operation.
Official product data

6ES7155-6MU00-0CN0 key specifications

Network protocols PROFINET IO, EtherNet/IP and Modbus TCP
Rated supply 24 VDC; permitted range 19.2–28.8 VDC
ET 200SP capacity Up to 64 ET 200SP I/O modules
ET 200AL capacity Up to 16 ET 200AL modules under the supported connection arrangement
Network hardware Two ports through BusAdapter
Maximum I/O area Up to 1440 bytes; protocol and configuration dependent
Maximum supply current 700 mA
Typical power loss 2.4 W
Isochronous operation Not supported

Siemens IM 155-6 MF HF equipment manual, A5E48752830-AD, January 2022; protocol and technical-data sections.

Pre-order check 01

Installation environment

Prepare the installed ET 200SP assembly for a controlled component exchange.

  • Secure the process and isolate affected station and field circuits before assembly work.
  • Record the selected protocol, BusAdapter, module arrangement and connected field wiring.
  • Confirm the 24 VDC supply remains within 19.2–28.8 VDC.
  • Check protocol-specific configuration, station diagnostics and the mapped I/O before operational release.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Protocol choice
Match the configured PROFINET IO, EtherNet/IP or Modbus TCP connection to the controller.
Module mix
Validate supported module types and separate SP/AL limits for the chosen protocol.
Data allocation
Check actual I/O mapping and the applicable address-area restrictions.
Timing needs
Do not specify an isochronous application for this interface.
Engineering tools
Match firmware, device configuration and the supported protocol setup method.
Release the installation only after its configured function and required acceptance checks agree.
Recommended model families

More Siemens models

SiemensSiemens 6ES7144-4PF00-0AB0Siemens 6ES7144-4JF00-0AB0Siemens 6ES7144-4FF01-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7144-1JB31-0XB0Siemens 6ES7144-1GB31-0XB0Siemens 6GK5308-2FM10-2AA3

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7143-5AH00-0BA0Siemens 6ES7143-4BF50-0AA0Siemens 6ES7142-6BH00-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6GK1143-0TA02Siemens 6GK1143-0AA01Siemens 6ES5951-7LB21

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

Bently NevadaBently Nevada 330103-02-04-10-02-CNBently Nevada 330103-02-08-10-02-CNBently Nevada 330905-00-25-05-02-CN

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330903-00-07-10-01-CNBently Nevada 330903-00-07-10-01-00Bently Nevada 330876-03-10-00-00

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330906-02-12-10-02-05Bently Nevada 330902-00-95-05-02-05Bently Nevada 330876-01-50-01-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330851-01-000-020-10-00-00Bently Nevada 330879-03-00Bently Nevada 330851-02-000-040-10-00-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330180-X1-05 MOD 145004-75Bently Nevada 330851-02-000-080-90-01-05Bently Nevada 24701-28-05-XX-014-04-XX MOD 323933-40-02

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 24701-28-05-XX-025-04-XX MOD 323933-30-02Bently Nevada 129716-XXX-040-15 MOD 166797-0133Bently Nevada 24701-28-05-XX-104-03-XX MOD 323933-00-02

Separate product references; inclusion does not establish compatibility or interchangeability.

vibro-meter / ABBvibro-meter VM600 RPS6U SIM-275D-24 200-582-200-013ABB V18345-1010261001ABB 3HAC061275-001

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB PM5132-T-ETHABB PM5112-R-ETHABB PM5072-T-ETH

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

6ES7155-6MU00-0CN0 Order Guide

Check the complete requested item against the actual installation before ordering.
1Identify the itemUse 6ES7155-6MU00-0CN0 and record the fitted hardware revision before selecting the supplied scope.
2Define the stationMatch the configured PROFINET IO, EtherNet/IP or Modbus TCP connection to the controller.
3Check connectionsRecord the selected protocol, BusAdapter, module arrangement and connected field wiring.
4Review operating limitsDo not add the separate SP and AL limits into an unconditional station total.
5Agree the supplied scopeMatch firmware, device configuration and the supported protocol setup method.
6Validate the installationCheck protocol-specific configuration, station diagnostics and the mapped I/O before operational release.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
Siemens6ES7143-5BF00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-5KD00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES5948-3UA23

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES5948-3UA13

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES5945-7UA23

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES5941-7UA12

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for 6ES7155-6MU00-0CN0 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

6ES7155-6MU00-0CN0 FAQ

Which network protocols are available on 6ES7155-6MU00-0CN0?PROFINET IO, EtherNet/IP and Modbus TCP are supported. Select the protocol required by the controller and validate the features and modules permitted under that protocol.
Are all MF HF station functions identical across the three protocols?No. Supported functions and module combinations depend on the selected protocol and configuration. Review the engineered station rather than transferring a feature from one network mode to another.
How should SP and AL expansion capacities be interpreted?The stated limits are up to 64 ET 200SP modules and up to 16 ET 200AL modules under the supported connection arrangement. They are separate planning limits, not an unconditional total for every station.
Can the MF HF interface provide isochronous I/O operation?Isochronous operation is not supported by this interface. If the application requires that timing mode, establish a suitable system design before selecting the station interface.
What supply voltage is required by the MF HF unit?It requires a rated 24 VDC supply within 19.2–28.8 VDC. Include the interface demand when reviewing the station electronics supply and consider field loads separately.
Is the advertised maximum I/O area available for every configuration?The area can be up to 1440 bytes, subject to protocol and configuration limits. The actual module arrangement and mapped data determine what can be used.
How is the physical Ethernet connection provided?The interface uses a two-port BusAdapter arrangement. Confirm the supported adapter and required connector type as part of the installation scope.
What should be backed up before changing a multiprotocol station?Retain the protocol selection, controller mapping, device parameters, firmware identification and physical module sequence. A working backup must describe the configured network role as well as the I/O hardware.
Does a healthy Ethernet link prove the selected protocol is working?It proves only part of the physical connection. Verify the intended controller relationship, protocol diagnostics and mapped input/output behavior before releasing the station.
Which current value belongs in the interface electronics budget?The maximum supply current is 700 mA; typical power loss is 2.4 W. Keep this interface allowance distinct from the power demand of field devices and other station components.
