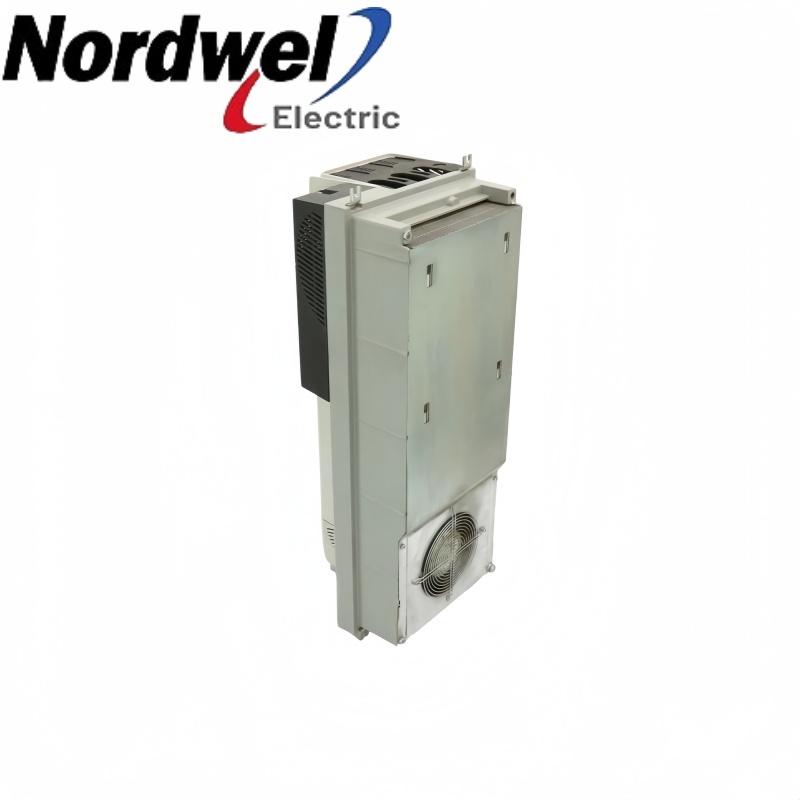

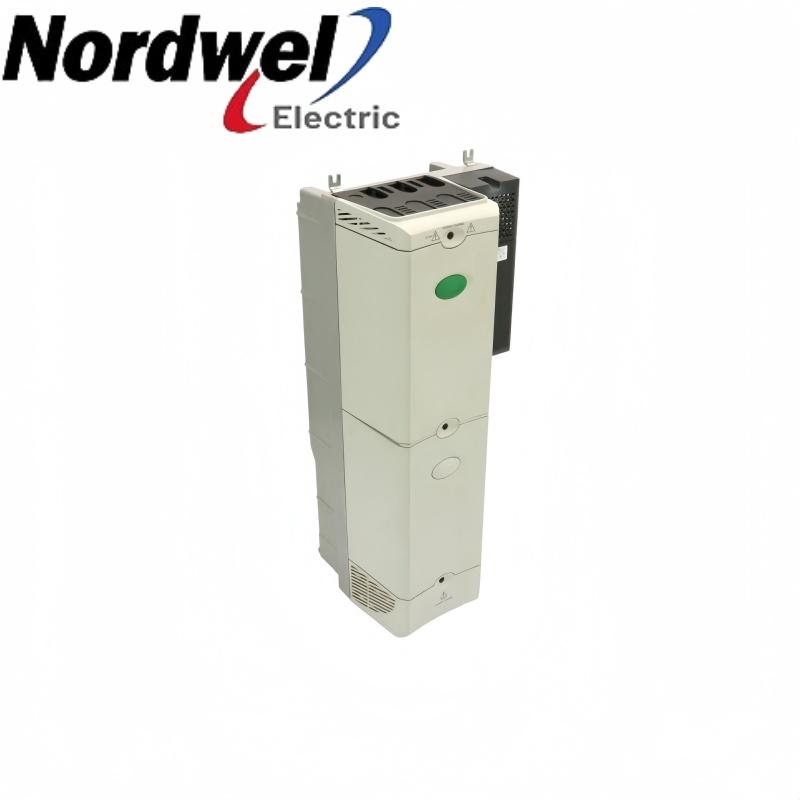

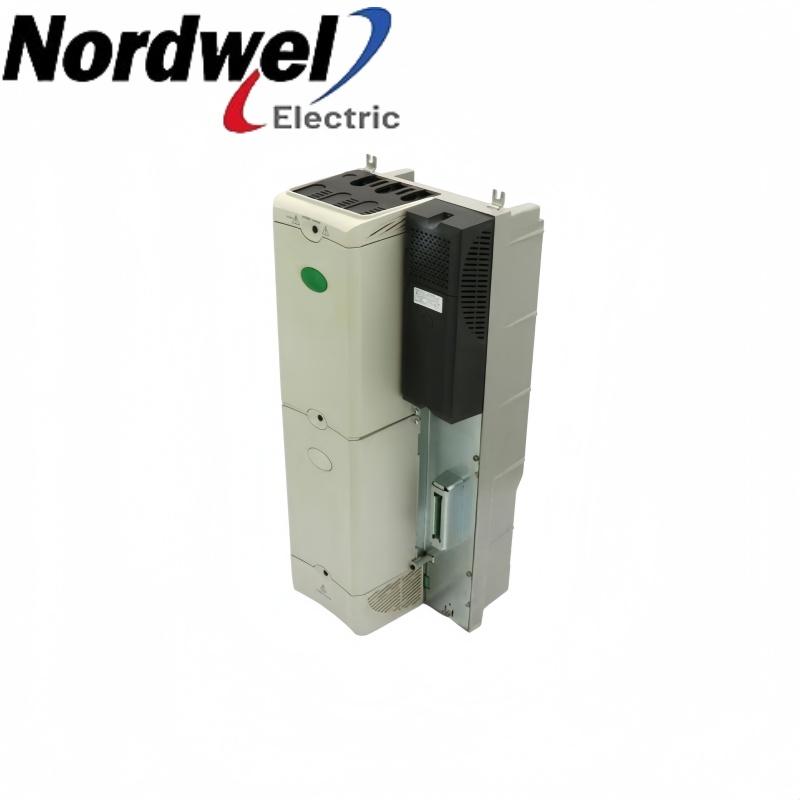

SPMD1423 — DC-input inverter power module

Provides a DC-to-AC motor power stage in a matched modular drive system. Select duty, cooling and external power components for the actual installation.

Control TechniquesUnidrive SPMDC-input inverter power module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

SPMD1423 product profile

Product familyUnidrive SPM

Exact modelSPMD1423

Primary roleConverts DC power to motor AC

Normal-duty current290 A; ≤40°C, 1000 m, 3.0 kHz

Heavy-duty current246 A; ≤40°C, 1000 m, 3.0 kHz

Brake transistorNot fitted in configuration 2

Brand:
Others
Item NO.:
SPMD1423

Inquiry now

SPMD1423 configuration inquiry

Get a precise quote for SPMD1423

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

SPMD1423 functions and installation

Provides a DC-to-AC motor power stage in a matched modular drive system. Select duty, cooling and external power components for the actual installation.

Power conversionProvides a DC-to-AC inverter stage.

Thermal selectionUse the rating basis and applicable derating.

System componentsMatch rectification, control and braking hardware.

Controlled testingValidate motor direction, feedback and protection under the approved commissioning procedure.

Installation and selection boundaries

Motor power values are typical figures at the stated voltage and duty.
Individual-module ratings are not the same as multi-module system ratings.
Confirm whether control hardware, rectifier, reactors or braking components are included in the supplied scope.

Official product data

SPMD1423 key specifications

Power-stage arrangement	DC-input inverter module, size 1
Voltage class	380–480 V AC system class; module input is DC
Normal-duty continuous output	290 A
Typical normal-duty motor	160 kW at 400 V; 250 hp at 460 V
Heavy-duty continuous output	246 A
Typical heavy-duty motor	132 kW at 400 V; 200 hp at 460 V
Rating basis	Maximum 40°C, 1000 m altitude and 3.0 kHz switching frequency; derate outside stated conditions
Internal brake transistor	Not fitted (configuration digit 2)

Control Techniques Unidrive SPM User Guide, issue 5, sections 2.4, 2.7 and 3.1; Table 3-7.

Pre-order check 01

Installation environment

Engineer the inverter stage together with its DC source, control hardware and motor.

Isolate AC/DC sources, wait at least ten minutes and confirm discharge before opening the drive.
Provide the approved cooling airflow and enclosure arrangement for the selected duty.
If supplied from AC, use the matching rectifier and input line reactor arrangement.
For parallel output modules, apply the specified output-sharing chokes and system derating.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

DC supply arrangement: Confirm the actual DC source and the complete drive-system power architecture.
Motor duty: Choose normal or heavy duty from the required current, torque and overload profile.
Environmental basis: Check ambient temperature, altitude and switching frequency before using tabulated ratings.
Braking hardware: Configuration 2 has no internal brake transistor; design the braking arrangement separately.
Parallel operation: Use a permitted module combination with matching control and sharing components.

Accept the complete installed drive only after the approved motor, protection and control tests.
