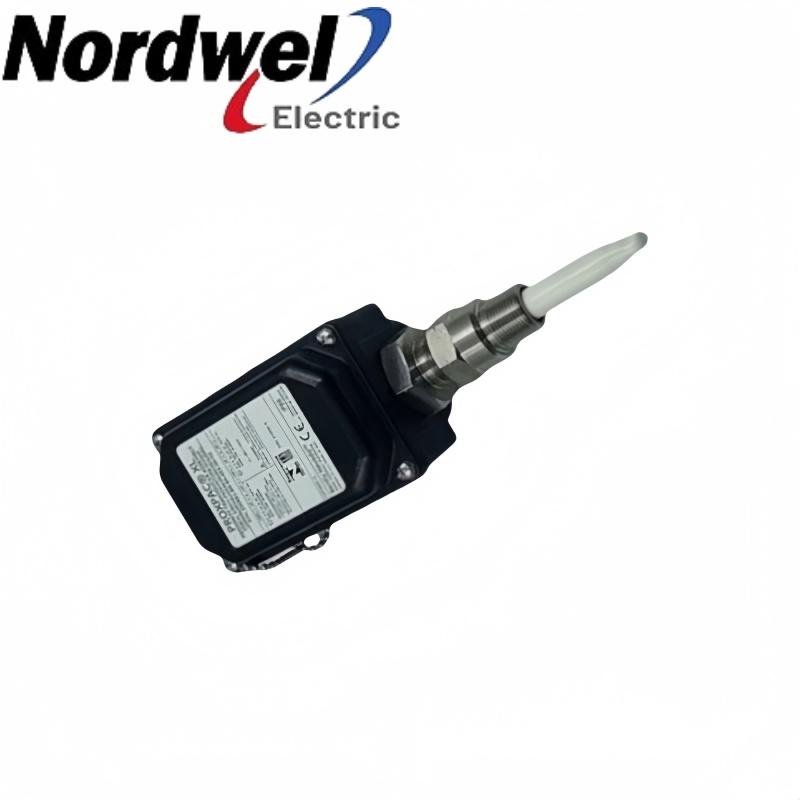

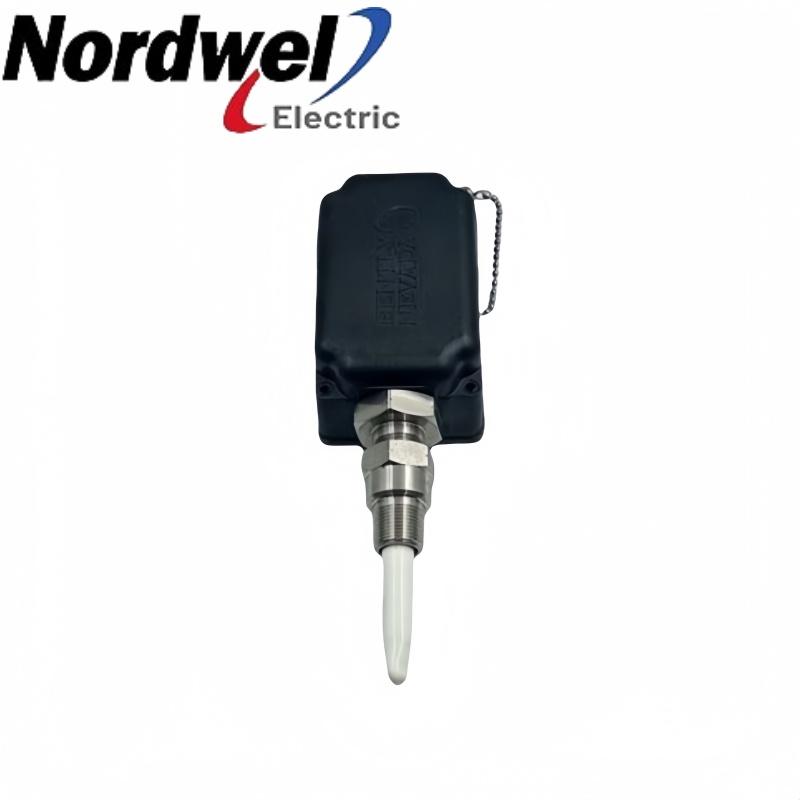

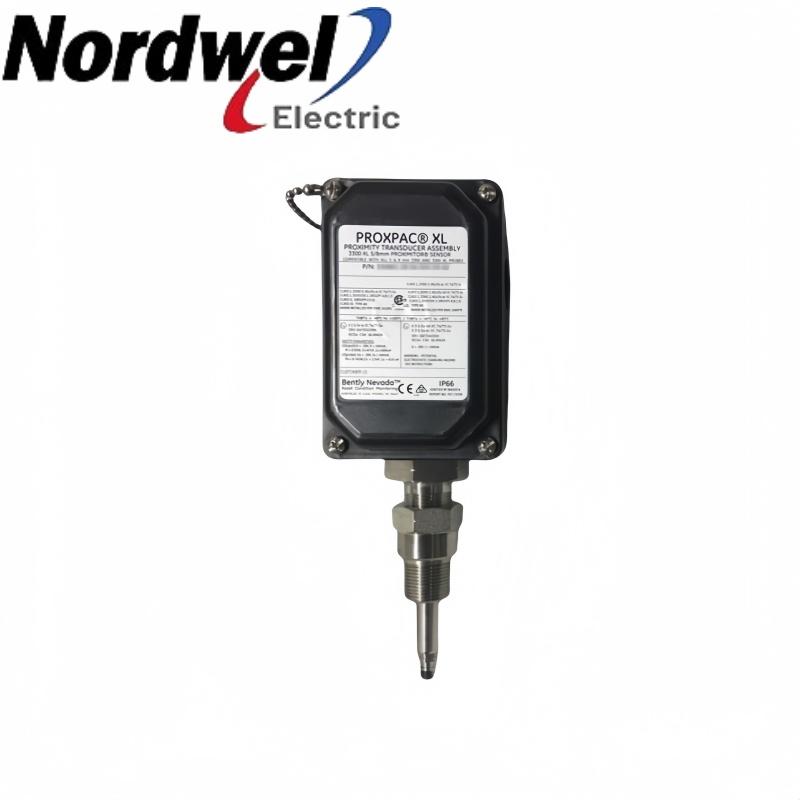

Bently Nevada 330880-01-20-058-03-02 Proximitor housing assembly without probe product views

Bently Nevada 330880-01-20-058-03-02 Proximitor housing assembly without probe

EMAIL SALES

Bently Nevada PROXPAC XL

330880-01-20-058-03-02 — Proximitor housing assembly without probe

330880-01-20-058-03-02 selects a PROXPAC XL housing and Proximitor arrangement without a supplied probe. Its English mechanical options include a 2.0-inch standoff and 5.8-inch penetration selection.

Bently NevadaPROXPAC XLProximitor housing assembly without probe

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

330880-01-20-058-03-02 product profile

Product familyPROXPAC XL

Exact model330880-01-20-058-03-02

Probe supplyNo probe included

Standoff adapter2.0 in

Probe penetration selection5.8 in

Mounting thread3/4-14 NPT

Brand:
Bently Nevada
Item NO.:
330880-01-20-058-03-

Inquiry now

330880-01-20-058-03-02 configuration inquiry

Get a precise quote for 330880-01-20-058-03-02

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

330880-01-20-058-03-02 functions and installation

330880-01-20-058-03-02 selects a PROXPAC XL housing and Proximitor arrangement without a supplied probe. Its English mechanical options include a 2.0-inch standoff and 5.8-inch penetration selection. Provides the selected housing and Proximitor arrangement for a correctly specified transducer installation. The 01 option does not include a probe; keep that boundary explicit when assembling the required installation.

Housing and conditioningProvides the selected housing and Proximitor arrangement for a correctly specified transducer installation.

Supply-scope reviewThe 01 option does not include a probe; keep that boundary explicit when assembling the required installation.

Mechanical matchingMatch the standoff, penetration and 3/4-14 NPT mounting against the machine arrangement.

Connection preparationCheck the selected conduit fitting, stainless reducer and opening closures before installation.

Installation and selection boundaries

Probe and approval option: 01: no probe; Proximitor with multiple approvals.
Mounting thread: 3/4-14 NPT.
System measurement performance requires the correctly selected complete probe arrangement.

Official product data

330880-01-20-058-03-02 key specifications

Probe and approval option	01: no probe; Proximitor with multiple approvals
Standoff adapter	2.0 in
Probe penetration selection	5.8 in
Fitting	One 3/4-14 NPT fitting
Reducer	3/4-14 NPT to 1/2-14 NPT stainless steel
Opening closures	Two plugs
Mounting thread	3/4-14 NPT

Source: Bently Nevada PROXPAC XL Proximity Transducer Assembly datasheet 178554 Rev. E, English option table.

Pre-order check 01

Installation environment

Prepare the actual mounting and connections for 330880-01-20-058-03-02 before installation.

Check the intended housing mounting and the selected English mechanical dimensions.
Make the machine safe and verify the separately selected probe arrangement.
Install the correct fitting, reducer and plugs and protect field connections.
Verify the complete assembled transducer configuration before accepting a measurement.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Supplied scope: No probe is included in the selected 01 configuration.
Mechanical selection: Match the 2.0-inch standoff and 5.8-inch penetration selection.
Mounting: Use the intended 3/4-14 NPT machine interface.
Fitting arrangement: Check the NPT fitting, stainless reducer and two plugs.
Measurement: System measurement performance requires the correctly selected complete probe arrangement.

Accept the replacement only after its complete identity, installation and required operating function have been checked.
