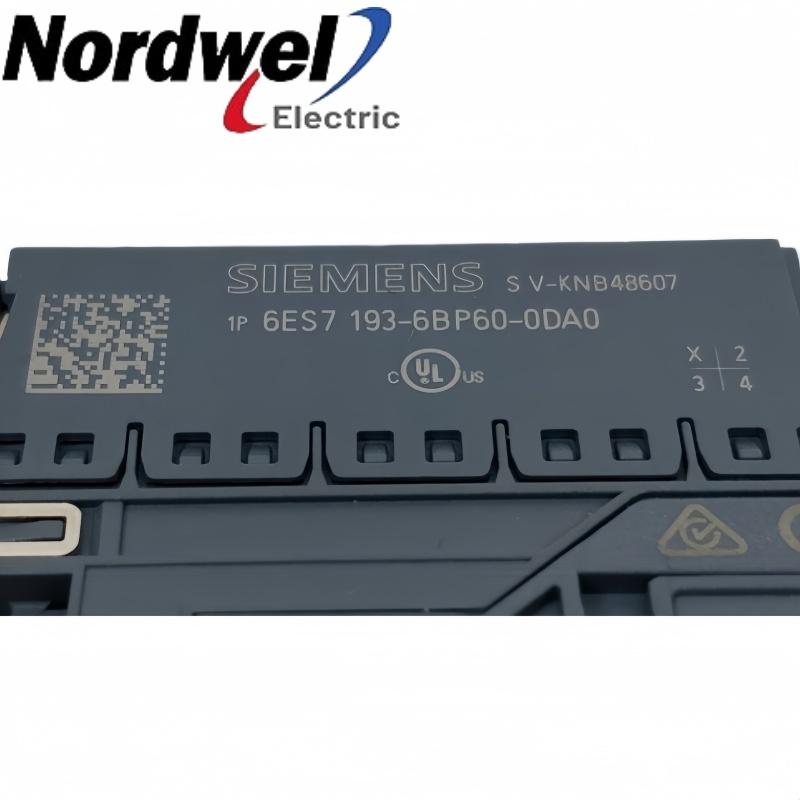

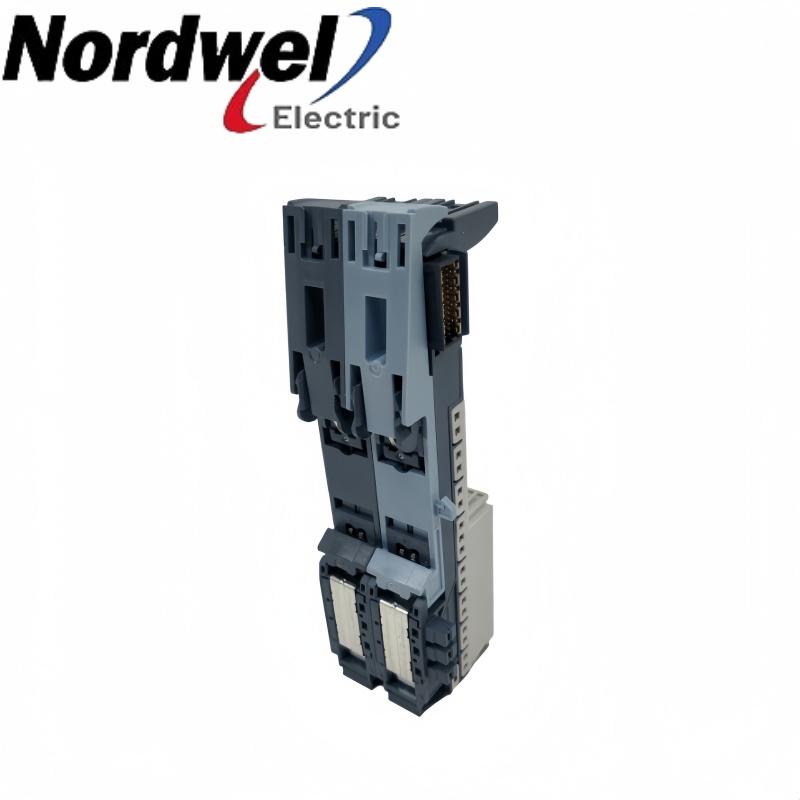

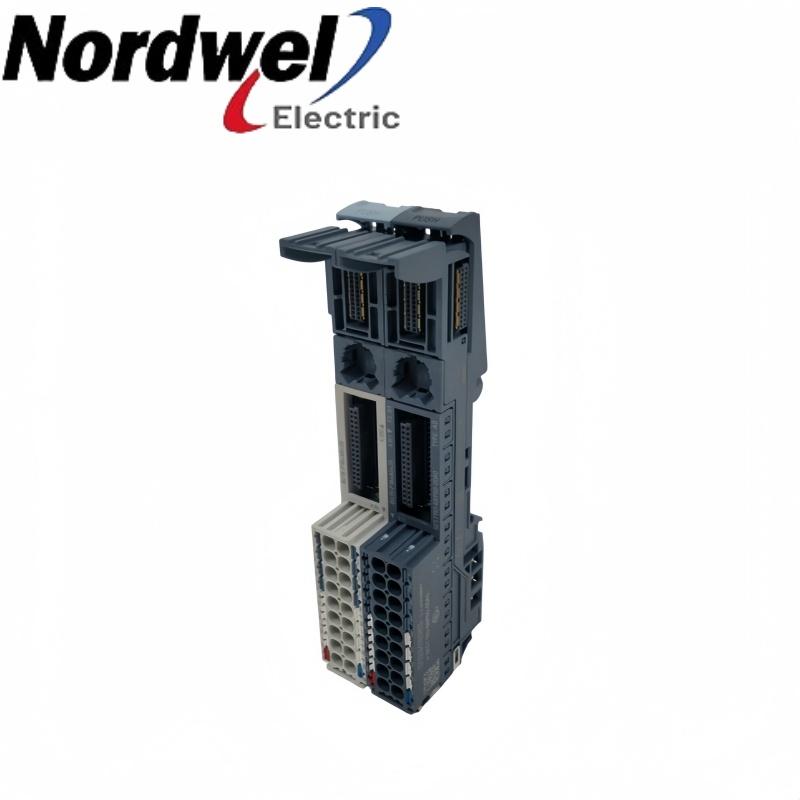

Siemens 6ES7193-6BP60-0DA0 two-slot A0 light-dark BaseUnit product views

Siemens 6ES7193-6BP60-0DA0 two-slot A0 light-dark BaseUnit

EMAIL SALES

Siemens ET 200SP

6ES7193-6BP60-0DA0 — two-slot A0 light-dark BaseUnit

6ES7193-6BP60-0DA0 combines two ET 200SP A0 BaseUnit positions in a 30 mm body. The light side starts a potential group and the dark side continues it within the assembly.

SiemensET 200SPTwo-slot A0 BaseUnit

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP60-0DA0 product profile

Product familyET 200SP

Exact model6ES7193-6BP60-0DA0

BaseUnit positions2

Supply-group layoutLight-dark

Bus current limit10 A maximum

Dimensions W × H × D30 × 117 × 35 mm

Brand:
SIEMENS
Item NO.:
6ES7193-6BP60-0DA0

Inquiry now

6ES7193-6BP60-0DA0 configuration inquiry

Get a precise quote for 6ES7193-6BP60-0DA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP60-0DA0 functions and installation

The 6ES7193-6BP60-0DA0 terminal base provides two process-wiring positions without AUX or add-on terminals. Its paired construction preserves the new-group feed and its continuation without making the shared supply capacity additive.

Two-position installationCombines two neighboring BaseUnit positions in one physical component.

Supply-group entryEstablishes the new potential group at its light-colored half.

Internal continuityCarries that group to the adjacent dark half.

Field-circuit accessProvides separate process-terminal sets for the fitted electronic modules.

Installation and selection boundaries

Each fitted I/O module determines the signal assignment of its own terminal set.
The two halves do not create two independently rated full-current supply groups.
The assembly has no terminal access to the AUX bus and no add-on supply-terminal banks.

Official product data

6ES7193-6BP60-0DA0 key specifications

Construction	Two-slot A0 BaseUnit; light-dark version
Supply voltage	24 V DC nominal
Potential-group arrangement	Light side starts a group; dark side continues that same group
Bus capacity	P1/P2 maximum 10 A for the shared group
Process-terminal limit	Maximum 2 A per terminal
Terminal arrangement	16 process terminals and 2 supply terminals per slot
Connection technology	Push-in; no AUX or add-on terminals
Integrated mains filter	Yes
Dimensions W × H × D	30 × 117 × 35 mm

Siemens Product Information on 2x BaseUnit, A5E45575771-AA, August 2018, English section, pages 19–22; Catalog ST 70, 2021, pages 10/241–10/242.

Pre-order check 01

Installation environment

Prepare the matched station, conductor records and controlled installation of 6ES7193-6BP60-0DA0.

Isolate the affected supply and identify both electronic-module positions before replacement.
Record the light-side supply feed and the conductors belonging to each terminal set.
Check module suitability, the shared group current budget and all push-in conductor connections.
Inspect both module seats and test the two restored field-circuit groups under controlled process conditions.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Complete part: Confirm 6ES7193-6BP60-0DA0, not a single-position terminal base.
Physical space: Provide the paired 30 mm base width and the complete fitted-module clearance.
Power arrangement: Retain the new group on the light side and continuation to the dark side.
Terminal map: Keep the two module-specific process assignments separate.
Supply capacity: Apply the common bus limit to the combined module and external-load current.

Verify both module positions and wiring maps, the light-dark group arrangement and the shared current budget; supply electronics separately as agreed.
