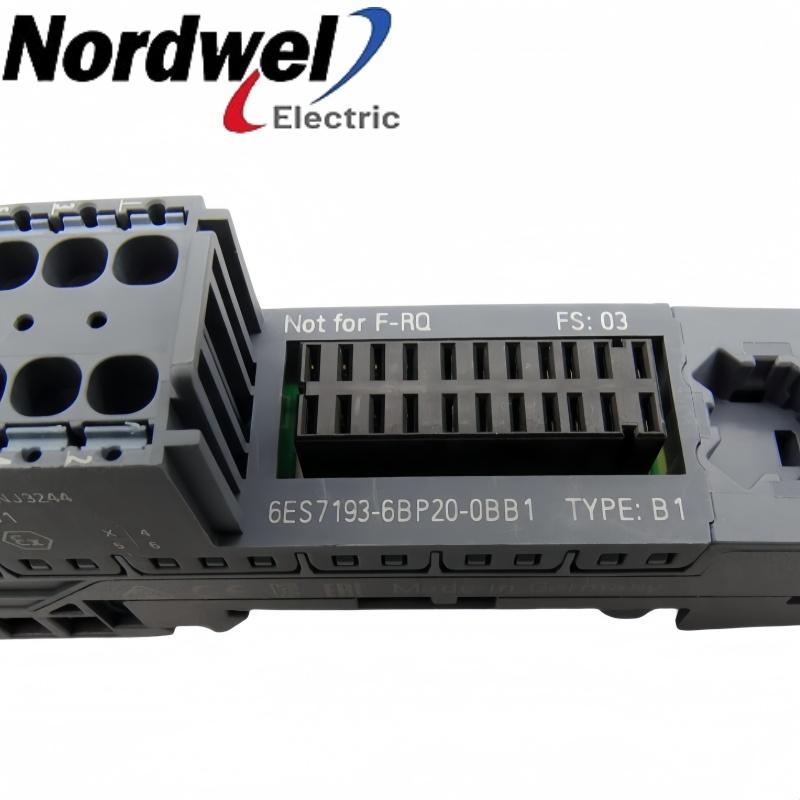

Siemens 6ES7193-6BP20-0BB1 B1 twelve-terminal push-in BaseUnit product views

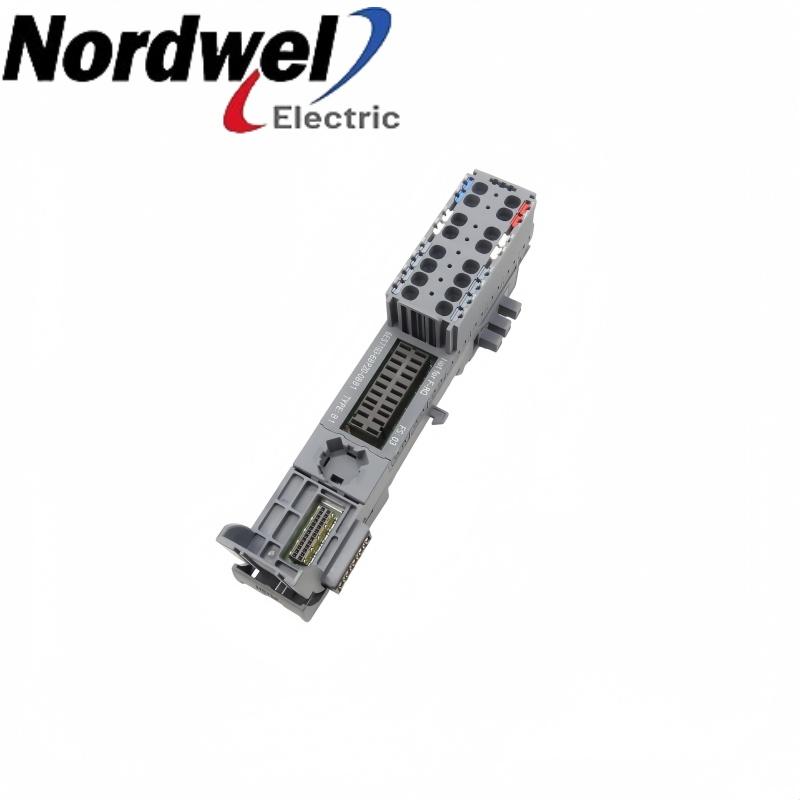

Siemens 6ES7193-6BP20-0BB1 B1 twelve-terminal push-in BaseUnit product views

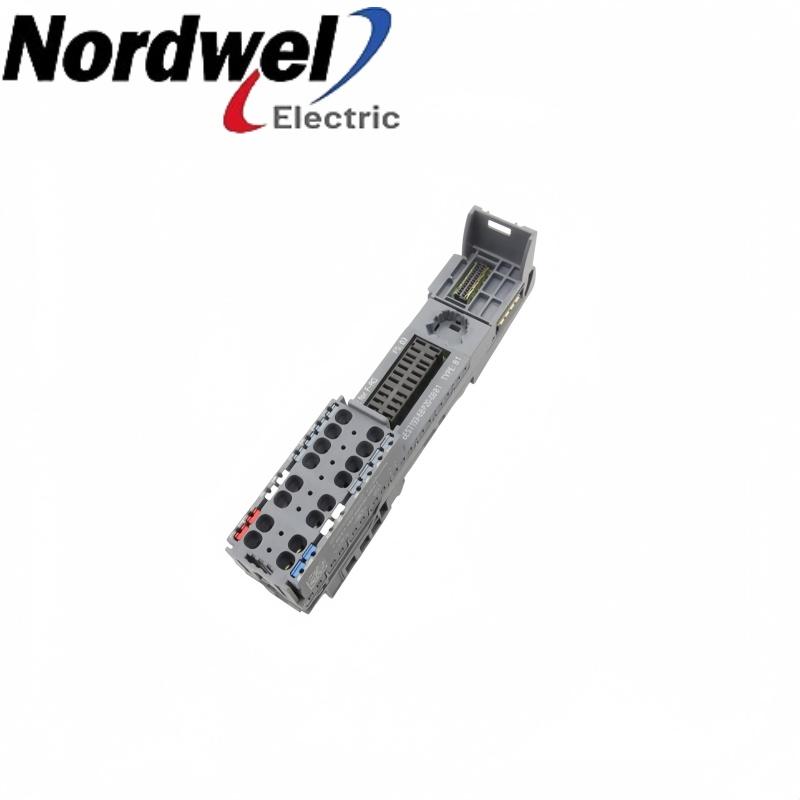

Siemens 6ES7193-6BP20-0BB1 B1 twelve-terminal push-in BaseUnit product views

Siemens 6ES7193-6BP20-0BB1 B1 twelve-terminal push-in BaseUnit

EMAIL SALES
Siemens ET 200SP
6ES7193-6BP20-0BB1 — B1 twelve-terminal push-in BaseUnit

6ES7193-6BP20-0BB1 is a Siemens ET 200SP B1 twelve-terminal push-in BaseUnit. Retain the actual terminal assignment, fitted module and station configuration when selecting a replacement.

SiemensET 200SPB1 push-in BaseUnit
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
6ES7193-6BP20-0BB1 product profile
Product familyET 200SP
Exact model6ES7193-6BP20-0BB1
BaseUnit classB1
Process terminals12 per slot
Connection technologyPush-in
Dimensions20 × 117 × 35 mm
  • Brand:

    SIEMENS
  • Item NO.:

    6ES7193-6BP20-0BB1
  • Part Number:

  • Weight:

  • Dimensions:

  • Manufacture Year:

  • Place of Origin:

  • Certification:

  • Description:

6ES7193-6BP20-0BB1 configuration inquiry

Get a precise quote for 6ES7193-6BP20-0BB1

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

6ES7193-6BP20-0BB1 functions and installation

The 6ES7193-6BP20-0BB1 component connects the matched b1 i/o assembly. Match the BaseUnit class and field wiring to the fitted I/O module; retain the actual hardware functional status when applying the specifications.

Connection functionConnects the matched B1 I/O assembly.
Assembly selectionMatch the I/O module to the required BaseUnit class.
Wiring preservationKeep field labels, polarity and the accepted process-terminal map.
Controlled restorationCheck the restored field circuits before returning the station to process operation.

Installation and selection boundaries

  • The physical terminal arrangement does not by itself define the electronic I/O function.
  • Keep the actual functional version in the selection record; older versions can have different permitted applications.
  • Inspect the mating contacts, connection mechanism and retaining features before energizing the assembly.
Official product data

6ES7193-6BP20-0BB1 key specifications

BaseUnit class B1, dark-colored
Connection technology Push-in
Process terminals 12 per slot; pin assignment by the I/O module
Potential group Continued from the left
Busbar terminal access No terminal access to P1, P2 or AUX busbars
Shield terminals Not suitable for the shield connection terminals
Dimensions (W × H × D) 20 × 117 × 35 mm
Process-terminal current (FS10+) Max. 5 A per process terminal
Functional-version boundary Versions below 04: potential groups ≤48 VDC or 24 VAC

Siemens BaseUnits equipment manual, June 2025, B1 section; verify actual functional version.

Pre-order check 01

Installation environment

Prepare the wiring, assembly check and controlled acceptance of 6ES7193-6BP20-0BB1.

  • Make equipment served by 6ES7193-6BP20-0BB1 safe and isolate the affected assembly before changing connections.
  • Record conductor labels, terminal positions and the fitted I/O or power-module arrangement.
  • Check BaseUnit class, functional status and potential-group continuity against the station design.
  • Test the affected field signals with hazardous process outputs inhibited before handover.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Exact identity
6ES7193-6BP20-0BB1; preserve the complete ordering suffix.
Matched assembly
I/O module requiring BaseUnit class B1.
Connection arrangement
Use the current terminal map and the specified connection technology.
Installation boundary
Check actual functional version, potential group and application voltage.
Acceptance evidence
Confirm correct seating and the required field-circuit response.
Match complete identity, actual assembly, terminal or cable assignments and the required supply scope before energizing the installation.
Recommended model families

More Siemens models

SiemensSiemens 6ES7143-5AH00-0BA0Siemens 6ES7143-4BF50-0AA0Siemens 6ES7142-6BH00-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6GK1143-0TA02Siemens 6GK1143-0AA01Siemens 6ES5951-7LB21

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5948-3UA23Siemens 6ES5948-3UA13Siemens 6ES5945-7UA23

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5941-7UA12Siemens 6ES5921-3WB12Siemens 6ES5541-8AA11

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

Bently NevadaBently Nevada 330854-080-25-05Bently Nevada 330854-080-24-05Bently Nevada 330130-070-01-00

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330130-075-01-00Bently Nevada 330104-00-08-15-02-00Bently Nevada 330102-00-12-10-01-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330103-02-04-10-02-CNBently Nevada 330103-02-08-10-02-CNBently Nevada 330905-00-25-05-02-CN

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330903-00-07-10-01-CNBently Nevada 330903-00-07-10-01-00Bently Nevada 330876-03-10-00-00

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF830General Electric IC600BF908General Electric IC600BF914

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF915General Electric IC600BF923General Electric IC600BF940

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF941General Electric IC600BF942General Electric IC600BF948

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600CB504General Electric IC600CB507General Electric IC600CB513

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

6ES7193-6BP20-0BB1 Order Guide

Check the complete requested item against the actual installation before ordering.
1Confirm the complete codeCheck 6ES7193-6BP20-0BB1 and the actual hardware or functional-status marking.
2Match the assemblyRecord the fitted electronic module and the terminal-base relationship.
3Record existing connectionsRetain field-wire labels and the approved terminal map.
4Define supplied scopeList the component, accessories and actual quantity required.
5Plan controlled workPrepare isolation, connection inspection and the agreed installation procedure.
6Set the acceptance testAgree the field-signal and application checks required before release.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
Siemens6ES7143-5BF00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-5KD00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4PF00-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4JF00-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4FF01-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-1JB31-0XB0

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for 6ES7193-6BP20-0BB1 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

6ES7193-6BP20-0BB1 FAQ

What electronic-module class is required by 6ES7193-6BP20-0BB1?Use an I/O module intended for BaseUnit type B1. Mechanical insertion or matching width does not establish the correct process-terminal and supply arrangement.
Does 6ES7193-6BP20-0BB1 provide a new potential group?Its dark-colored B1 arrangement continues the potential group from the BaseUnit on the left. Retain the engineered group boundary elsewhere in the station.
Can the power and AUX busbars be reached through 6ES7193-6BP20-0BB1 process terminals?The BaseUnit has no terminal access to the P1, P2 or AUX busbars through that arrangement. The 12 process terminals follow the I/O module assignment; do not reinterpret them as generic busbar terminals.
What wiring technology and process-terminal count apply to 6ES7193-6BP20-0BB1?It uses push-in connections and provides 12 process terminals per slot. Restore each conductor using the terminal map for the actual fitted I/O module.
Is 6ES7193-6BP20-0BB1 suitable for shield connection terminals?The BaseUnits manual states that this B1 arrangement is not suitable for the shield connection terminals. Use the shielding provisions required by the approved complete installation.
What restriction applies to older 6ES7193-6BP20-0BB1 functional versions?Versions below functional version 04 are restricted to potential groups with rated voltages of 48 VDC or less, or 24 VAC. Verify the supplied version before adopting a different voltage application.
How wide is 6ES7193-6BP20-0BB1?The base component is 20 mm wide; the manual also lists 117 mm height and 35 mm depth. Keep the complete module assembly and field-wiring space in the cabinet layout check.
What current-carrying limit is stated for the 6ES7193-6BP20-0BB1 process terminals?For the FS10-and-higher specification, each process terminal is rated up to 5 A. Check the fitted module and the entire circuit as well; the terminal maximum is not an output-load rating for every module.
Does 6ES7193-6BP20-0BB1 include the I/O electronics?The ordering code identifies the BaseUnit component. Agree the required electronic module and other station accessories separately, and confirm the actual supplied quantity.
What record should be kept before replacing 6ES7193-6BP20-0BB1?Retain the full BaseUnit identity and functional status, the I/O module terminal assignment, and the station potential-group layout. Use that record to verify the restored connections before the functional test.
