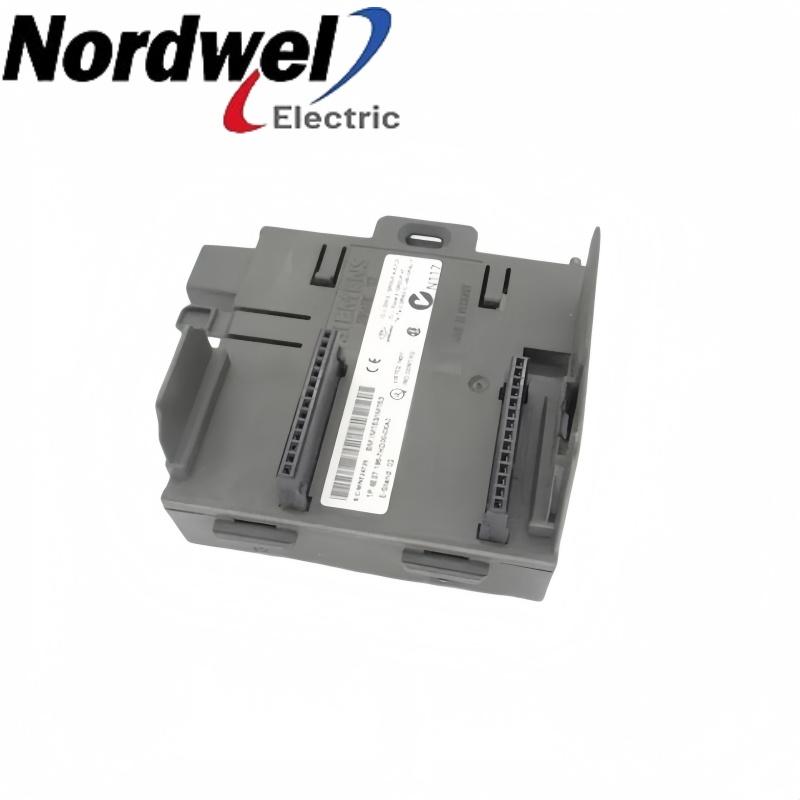

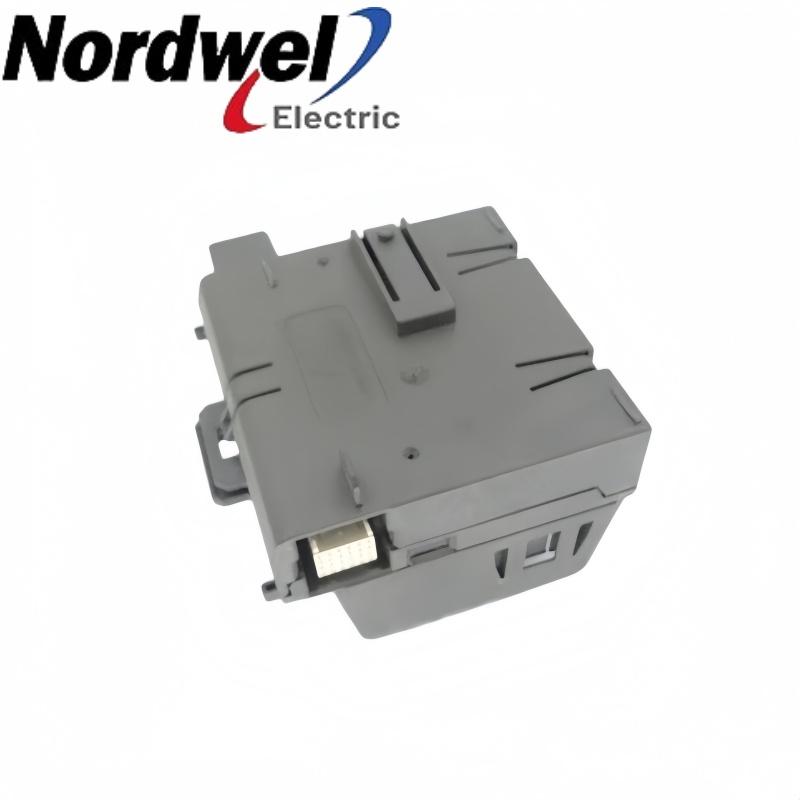

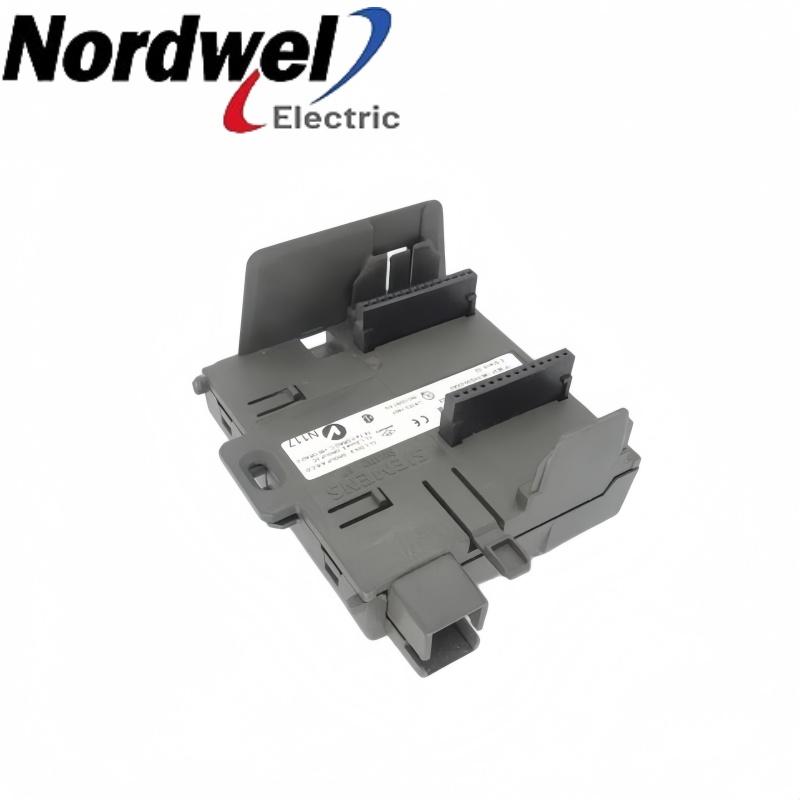

Siemens 6ES7195-7HD00-0XA0 BM IM/IM active bus module for redundant interfaces product photographs

Siemens 6ES7195-7HD00-0XA0 BM IM/IM active bus module for redundant interfaces

EMAIL SALES

Siemens ET 200M

6ES7195-7HD00-0XA0 — BM IM/IM active bus module for redundant interfaces

6ES7195-7HD00-0XA0 is a Siemens BM IM/IM active bus module for redundant interfaces for ET 200M installations. It provides the bus-module arrangement for a matched pair of legacy interfaces.

SiemensET 200MRedundant bus module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7195-7HD00-0XA0 product profile

Product familyET 200M

Exact model6ES7195-7HD00-0XA0

Primary roleRedundant-interface bus arrangement

Interface positions2

Hardware contextLegacy matched interface revisions

Configuration boundaryRetain the permitted operating mode

Brand:
SIEMENS
Item NO.:
6ES7195-7HD00-0XA0

Inquiry now

6ES7195-7HD00-0XA0 configuration inquiry

Get a precise quote for 6ES7195-7HD00-0XA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7195-7HD00-0XA0 functions and installation

6ES7195-7HD00-0XA0 belongs in the connection architecture of the matched ET 200M installation. Provides the bus-module arrangement for a matched pair of legacy interfaces. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeProvides the bus-module arrangement for a matched pair of legacy interfaces.

Mating arrangementMatch both legacy interface revisions to the bus-module compatibility table.

Field-circuit planningRecord both interface identities, revisions and the accepted redundant configuration.

Return to serviceConfirm the restored redundant interface state and station communication before process release.

Installation and selection boundaries

Retain any configuration restrictions of the permitted compatibility mode.
Use the complete bus-module suffix, not a shared designation alone.
Identify the bus module separately from either active interface module.

Official product data

6ES7195-7HD00-0XA0 key specifications

Bus-module designation	BM IM/IM
Component category	Active bus module
System arrangement	Redundant interface pair
Interface positions	2
Compatibility basis	Match the supported interface revisions and configuration

Siemens ET 200M operating instructions. PDF 244–245、247，表B-1.

Pre-order check 01

Installation environment

Prepare 6ES7195-7HD00-0XA0 with the equipment safely isolated and its existing connection record available.

Make the station and affected process equipment safe before bus-module replacement.
Record both interface identities, revisions and the accepted redundant configuration.
Inspect bus contacts, mounting features and complete module seating.
Confirm the restored redundant interface state and station communication before process release.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Interface pair: Match both legacy interface revisions to the bus-module compatibility table.
Operating mode: Retain any configuration restrictions of the permitted compatibility mode.
Bus-module identity: Use the complete bus-module suffix, not a shared designation alone.
Assembly condition: Verify undamaged contacts and correct mounting of the complete interface arrangement.
Supplied hardware: Identify the bus module separately from either active interface module.

Approve the mating arrangement and field-circuit checks before returning the installation to service.
