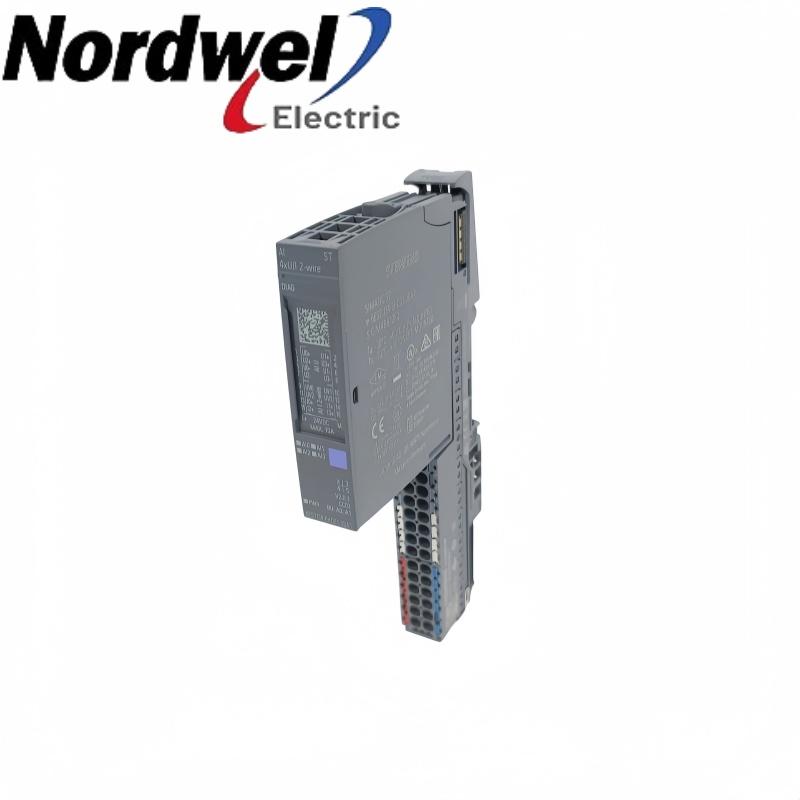

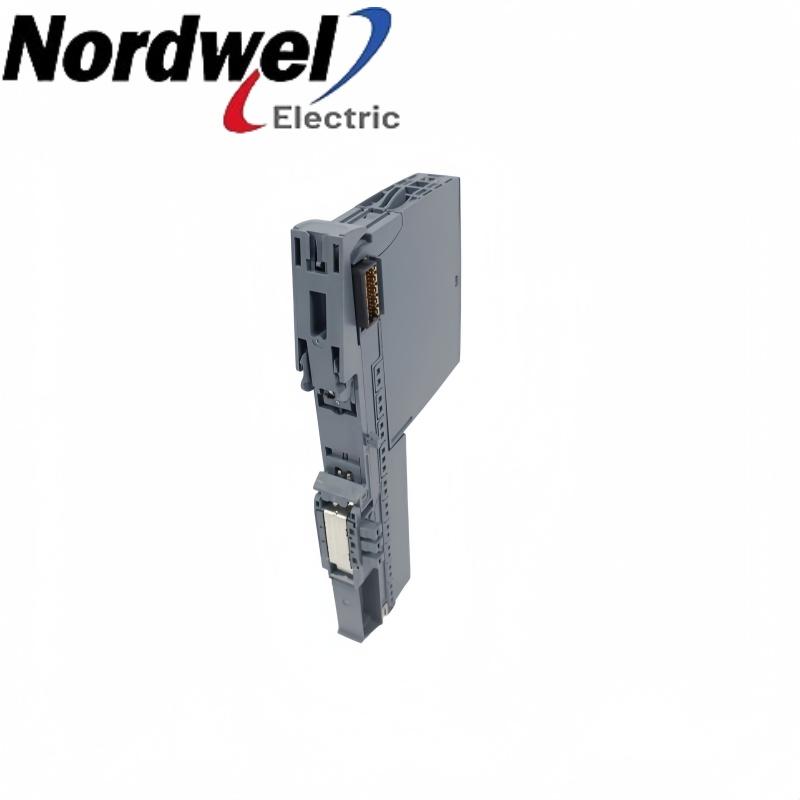

Siemens 6ES7193-6BP40-0BA1 A1 dark BaseUnit with temperature acquisition product views

Siemens 6ES7193-6BP40-0BA1 A1 dark BaseUnit with temperature acquisition

EMAIL SALES

Siemens ET 200SP

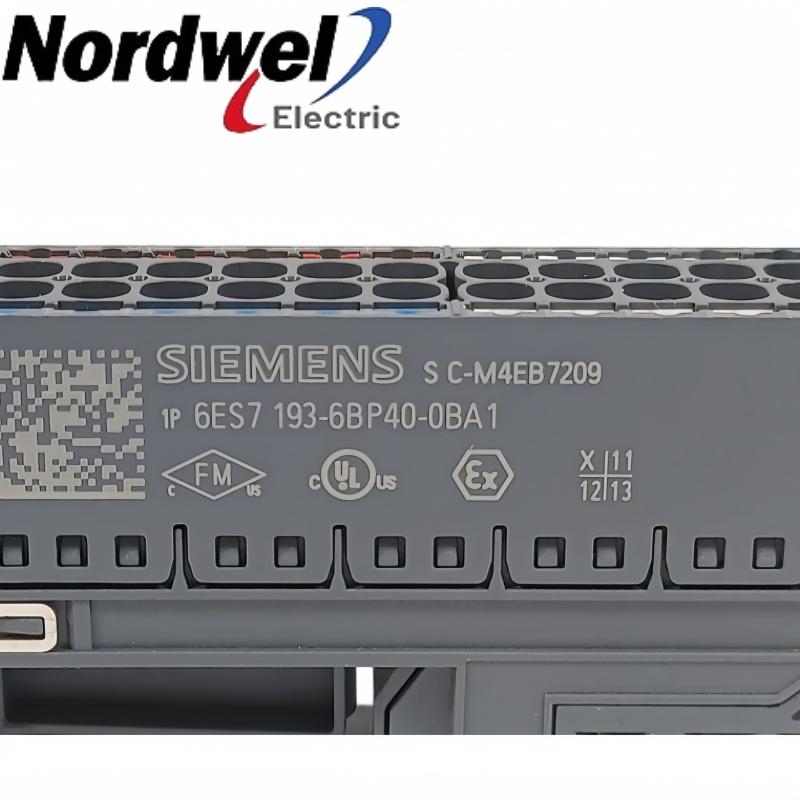

6ES7193-6BP40-0BA1 — A1 dark BaseUnit with temperature acquisition

6ES7193-6BP40-0BA1 is an ET 200SP A1 BaseUnit with temperature acquisition. Its dark terminal base continues the existing potential group and provides two banks of add-on supply terminals.

SiemensET 200SPA1 dark BaseUnit

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP40-0BA1 product profile

Product familyET 200SP

Exact model6ES7193-6BP40-0BA1

BaseUnit typeA1

Potential groupContinued from the left

Process-terminal limit2 A maximum

Dimensions W × H × D15 × 141 × 35 mm

Brand:
SIEMENS
Item NO.:
6ES7193-6BP40-0BA1

Inquiry now

6ES7193-6BP40-0BA1 configuration inquiry

Get a precise quote for 6ES7193-6BP40-0BA1

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP40-0BA1 functions and installation

The 6ES7193-6BP40-0BA1 base connects field wiring to a matched A1 electronic module. The internal reference junction supports thermocouple compensation, while the electronic module provides the actual measurement function.

Signal connectionProvides the process-terminal path for the fitted A1 electronics.

Supply continuityCarries the existing potential group through the station.

Reference-junction functionRecords terminal temperature for internal thermocouple compensation.

Additional supply wiringProvides two five-terminal banks separate from the I/O-module contacts.

Installation and selection boundaries

The 16 process terminals are wiring points, not a declaration of 16 measured channels.
The add-on terminals do not provide terminal access to the AUX bus.
Electronics shown in an assembled photograph are a separate item unless expressly included in the quotation.

Official product data

6ES7193-6BP40-0BA1 key specifications

Product construction	Dark BaseUnit, A1, with add-on terminals
Rated supply	24 V DC
Potential-group behavior	Continues from the left; no new group
Bus current capacity	P1 and P2: maximum 10 A
Process terminals	16; maximum 2 A per terminal
Add-on connection	2 × 5 supply terminals; separate from I/O-module contacts
Temperature acquisition	Internal reference junction for thermocouple compensation
Hardware functional status	FS10 and higher for the listed technical data
Dimensions W × H × D	15 × 141 × 35 mm

Siemens BaseUnits Equipment Manual, A5E03727049-AN, June 2025, section 7.8.

Pre-order check 01

Installation environment

Prepare the matched station, conductor records and controlled installation of 6ES7193-6BP40-0BA1.

Isolate the affected field circuits and record the existing terminal numbers and conductor labels.
Check that the fitted electronic module requires an A1 BaseUnit before inserting it.
Preserve the left-hand supply-group connection and the separate add-on-terminal wiring.
Check seating, conductor retention and the configured thermocouple compensation before releasing the signals.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Complete identity: Match 6ES7193-6BP40-0BA1 and the actual functional-status marking.
Electronic module: Use the A1 BaseUnit requirement and the electronic module terminal assignment together.
Potential group: Retain continuity from the left; this dark base does not start a new load group.
Current budget: Assess the shared bus capacity and the lower per-process-terminal limit independently.
Measurement setup: Check the selected compensation method and the field thermocouple wiring in the fitted electronics.

Match the A1 electronics, left-continuing potential group and field-terminal assignment; agree electronic modules separately from the BaseUnit.
