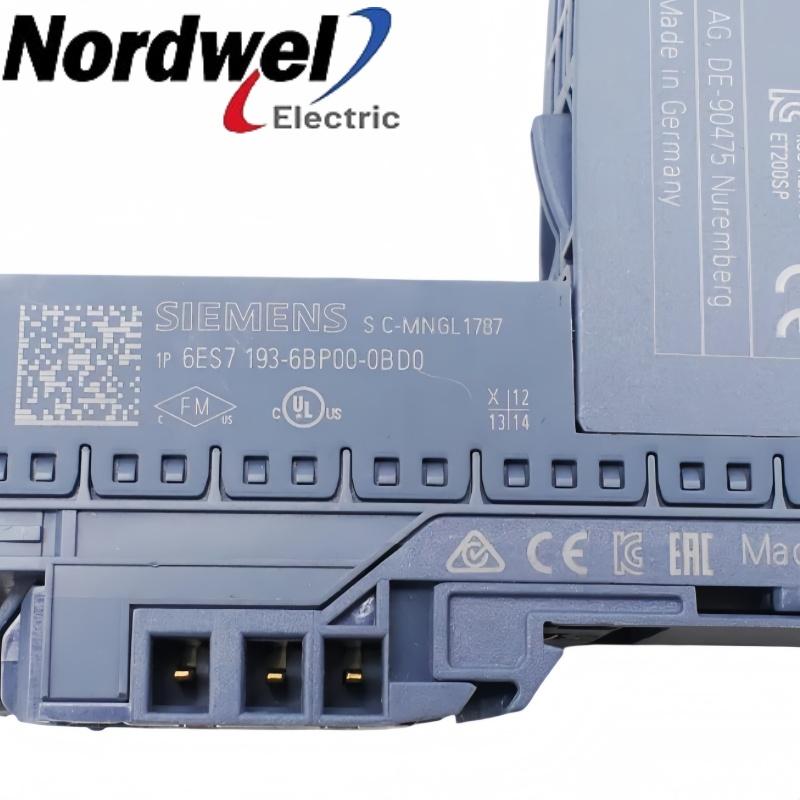

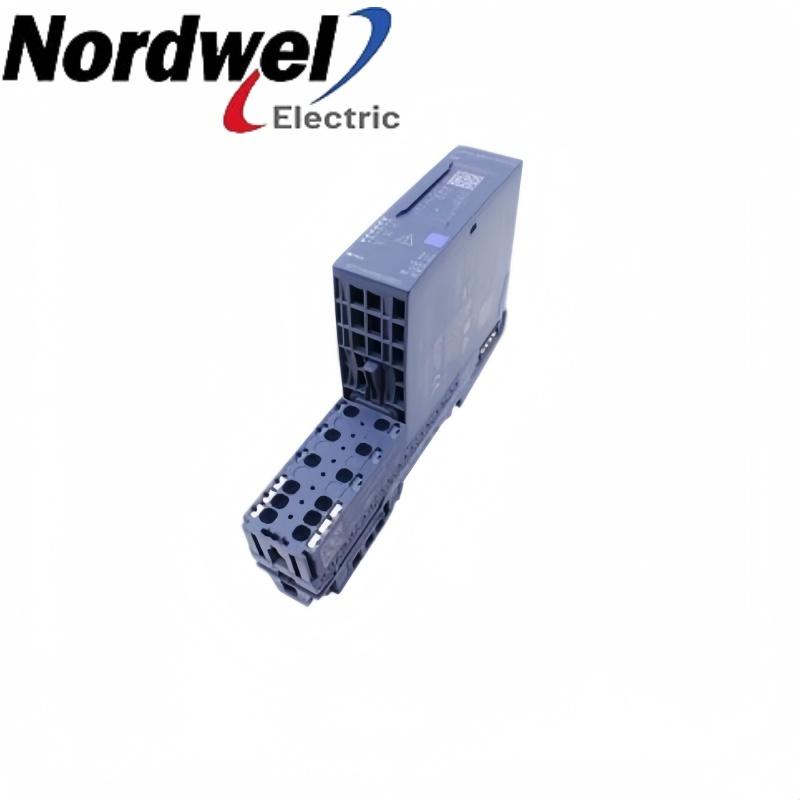

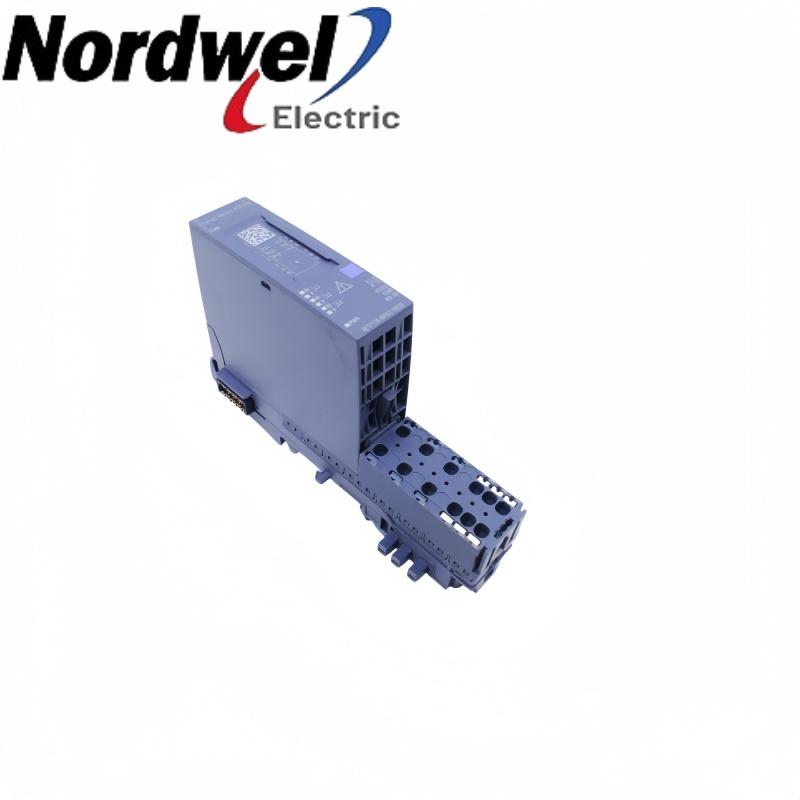

Siemens 6ES7193-6BP00-0BD0 D0 twelve-terminal push-in BaseUnit product views
Siemens 6ES7193-6BP00-0BD0 D0 twelve-terminal push-in BaseUnit product views
Siemens 6ES7193-6BP00-0BD0 D0 twelve-terminal push-in BaseUnit product views

Siemens 6ES7193-6BP00-0BD0 D0 twelve-terminal push-in BaseUnit

EMAIL SALES
Siemens ET 200SP
6ES7193-6BP00-0BD0 — D0 twelve-terminal push-in BaseUnit

6ES7193-6BP00-0BD0 is a Siemens ET 200SP D0 twelve-terminal push-in BaseUnit. Retain the actual terminal assignment, fitted module and station configuration when selecting a replacement.

SiemensET 200SPD0 push-in BaseUnit
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
6ES7193-6BP00-0BD0 product profile
Product familyET 200SP
Exact model6ES7193-6BP00-0BD0
BaseUnit classD0
Process terminals12 per slot
AUX terminal accessNone
Dimensions20 × 117 × 35 mm
  • Brand:

    SIEMENS
  • Item NO.:

    6ES7193-6BP00-0BD0
  • Part Number:

  • Weight:

  • Dimensions:

  • Manufacture Year:

  • Place of Origin:

  • Certification:

  • Description:

6ES7193-6BP00-0BD0 configuration inquiry

Get a precise quote for 6ES7193-6BP00-0BD0

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

6ES7193-6BP00-0BD0 functions and installation

The 6ES7193-6BP00-0BD0 component connects the matched d0 i/o assembly. Match the BaseUnit class and field wiring to the fitted I/O module; retain the actual hardware functional status when applying the specifications.

Connection functionConnects the matched D0 I/O assembly.
Assembly selectionMatch the I/O module to the required BaseUnit class.
Wiring preservationKeep field labels, polarity and the accepted process-terminal map.
Controlled restorationCheck the restored field circuits before returning the station to process operation.

Installation and selection boundaries

  • The physical terminal arrangement does not by itself define the electronic I/O function.
  • Keep the actual functional version in the selection record; older versions can have different permitted applications.
  • Inspect the mating contacts, connection mechanism and retaining features before energizing the assembly.
Official product data

6ES7193-6BP00-0BD0 key specifications

BaseUnit class D0, dark-colored
Connection technology Push-in
Process terminals 12 per slot; assignment by the I/O module
Potential group Continued from the left
AUX terminals No terminal access
Shield connection Shield support and shield terminal must not be fitted
Dimensions (W × H × D) 20 × 117 × 35 mm
Process-terminal limit (FS10+) Max. 5 A per process terminal; check complete circuit
Older functional versions Below 04: potential groups limited to ≤48 VDC or 24 VAC

Siemens BaseUnits equipment manual, June 2025, D0 section and functional-version restriction.

Pre-order check 01

Installation environment

Prepare the wiring, assembly check and controlled acceptance of 6ES7193-6BP00-0BD0.

  • Make equipment served by 6ES7193-6BP00-0BD0 safe and isolate the affected assembly before changing connections.
  • Record conductor labels, terminal positions and the fitted I/O or power-module arrangement.
  • Check BaseUnit class, functional status and potential-group continuity against the station design.
  • Test the affected field signals with hazardous process outputs inhibited before handover.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Exact identity
6ES7193-6BP00-0BD0; preserve the complete ordering suffix.
Matched assembly
I/O module requiring BaseUnit class D0.
Connection arrangement
Use the current terminal map and the specified connection technology.
Installation boundary
Check actual functional version, potential group and application voltage.
Acceptance evidence
Confirm correct seating and the required field-circuit response.
Match complete identity, actual assembly, terminal or cable assignments and the required supply scope before energizing the installation.
Recommended model families

More Siemens models

SiemensSiemens 6GK5308-2FM10-2AA3Siemens 6ES7143-5AH00-0BA0Siemens 6ES7143-4BF50-0AA0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7142-6BH00-0AB0Siemens 6GK1143-0TA02Siemens 6GK1143-0AA01

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5951-7LB21Siemens 6ES5948-3UA23Siemens 6ES5948-3UA13

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5945-7UA23Siemens 6ES5941-7UA12Siemens 6ES5921-3WB12

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

ABBABB DO525ABB CM576-PNIOABB DI525

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330854-080-25-05Bently Nevada 330854-080-24-05Bently Nevada 330130-070-01-00

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330130-075-01-00Bently Nevada 330104-00-08-15-02-00Bently Nevada 330102-00-12-10-01-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330103-02-04-10-02-CNBently Nevada 330103-02-08-10-02-CNBently Nevada 330905-00-25-05-02-CN

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330903-00-07-10-01-CNBently Nevada 330903-00-07-10-01-00Bently Nevada 330876-03-10-00-00

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF830General Electric IC600BF908General Electric IC600BF914

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF915General Electric IC600BF923General Electric IC600BF940

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF941General Electric IC600BF942General Electric IC600BF948

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

6ES7193-6BP00-0BD0 Order Guide

Check the complete requested item against the actual installation before ordering.
1Confirm the complete codeCheck 6ES7193-6BP00-0BD0 and the actual hardware or functional-status marking.
2Match the assemblyRecord the fitted electronic module and the terminal-base relationship.
3Record existing connectionsRetain field-wire labels and the approved terminal map.
4Define supplied scopeList the component, accessories and actual quantity required.
5Plan controlled workPrepare isolation, connection inspection and the agreed installation procedure.
6Set the acceptance testAgree the field-signal and application checks required before release.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
Siemens6ES7143-5BF00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-5KD00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4PF00-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4JF00-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4FF01-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-1JB31-0XB0

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for 6ES7193-6BP00-0BD0 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

6ES7193-6BP00-0BD0 FAQ

Which BaseUnit type is 6ES7193-6BP00-0BD0?It is the dark-colored ET 200SP BaseUnit type D0. The required I/O module must be selected for that BaseUnit type, not just for a similar physical width.
How are process connections assigned on 6ES7193-6BP00-0BD0?There are 12 process terminals per slot, with the signal assignment determined by the fitted I/O module. Retain the actual module terminal map before reconnecting the circuit.
Does 6ES7193-6BP00-0BD0 isolate a new potential group from the left?It continues the existing potential group from the left-hand neighboring BaseUnit. Do not use it as an assumed new-group boundary in the station design.
Are external AUX terminals present on 6ES7193-6BP00-0BD0?No AUX terminal access is provided. The internal bus arrangement and an externally available auxiliary terminal are different features and must not be confused when planning the wiring.
Can a shield connection assembly be fitted to 6ES7193-6BP00-0BD0?The manufacturer states that the shield support and shield terminal are not intended for this D0 BaseUnit and must not be installed. Preserve the approved alternative shield arrangement for the actual application.
Why does the functional version matter for 6ES7193-6BP00-0BD0 voltage selection?The manual restricts functional versions below 04 to potential groups rated at no more than 48 VDC or 24 VAC. Check the delivered functional version and the complete I/O application before accepting any higher-voltage arrangement.
What dimensions identify the 6ES7193-6BP00-0BD0 base component?The listed dimensions are 20 × 117 × 35 mm in width, height and depth. Confirm the associated I/O module and mounting clearances separately.
Is 6ES7193-6BP00-0BD0 a screw-terminal base?The specified connection method is push-in. Check the actual wiring preparation and conductor condition before reconnecting the retained field circuit.
What process-terminal current is listed for 6ES7193-6BP00-0BD0?The current manual specification for FS10 and higher gives a maximum of 5 A per process terminal. This does not remove the separate bus, module, temperature and external circuit-protection requirements.
How should a 6ES7193-6BP00-0BD0 replacement be released safely?Verify the functional version, D0 module match, potential-group continuity and retained terminal assignment before energizing. Test the affected circuit with the process inhibited before authorizing normal operation.
