Siemens ET 200SP

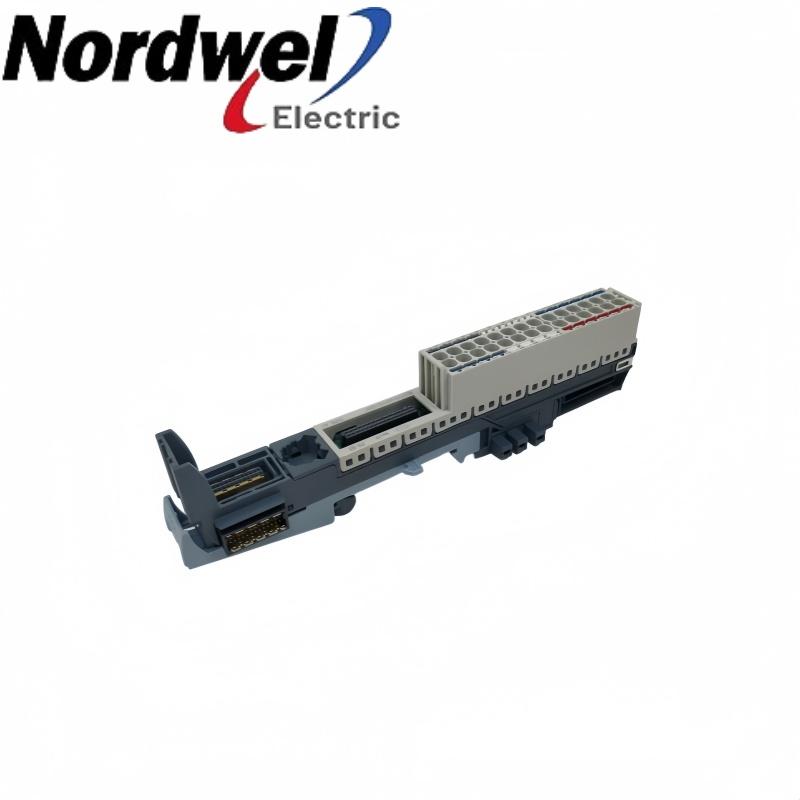

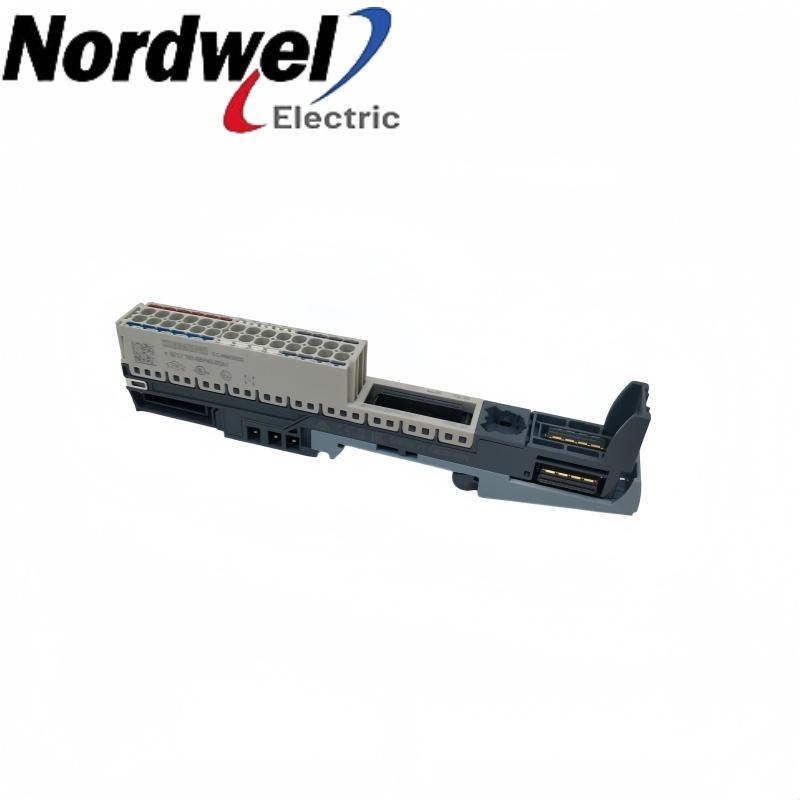

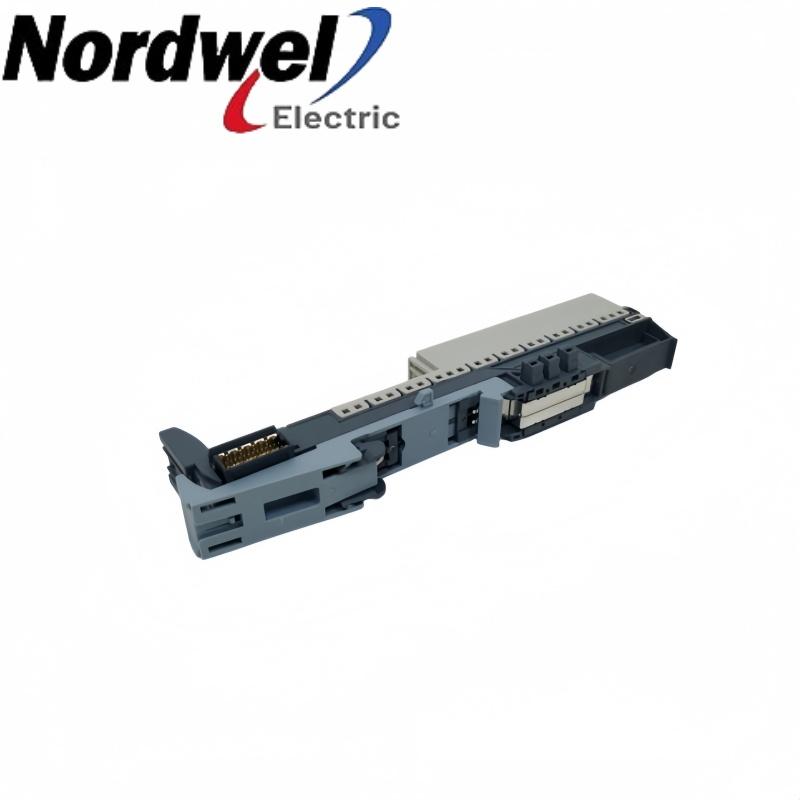

6ES7193-6BP40-0DA1 — A1 light BaseUnit for a new potential group

6ES7193-6BP40-0DA1 is a light ET 200SP A1 BaseUnit for a new potential group. It combines process wiring, add-on supply terminals and terminal-temperature acquisition in one base.

SiemensET 200SPA1 light BaseUnit

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP40-0DA1 product profile

Product familyET 200SP

Exact model6ES7193-6BP40-0DA1

BaseUnit typeA1

Potential groupNew group

Process-terminal limit2 A maximum

Dimensions W × H × D15 × 141 × 35 mm

Brand:
SIEMENS
Item NO.:
6ES7193-6BP40-0DA1

Inquiry now

6ES7193-6BP40-0DA1 configuration inquiry

Get a precise quote for 6ES7193-6BP40-0DA1

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP40-0DA1 functions and installation

The 6ES7193-6BP40-0DA1 base separates its supply group from the neighbor on the left. It supports matched A1 electronics and provides an internal reference junction without replacing the electronic module measurement function.

Group segmentationInterrupts the left-hand voltage buses to begin the next potential group.

Field-signal terminationConnects the matched electronic module to its assigned field circuits.

Thermal referenceSupplies the terminal reference used for internal thermocouple compensation.

Supply distributionProvides add-on-terminal banks for the permitted additional supply.

Installation and selection boundaries

The new group requires the correct supply connection; it is not powered merely by a matching-looking left neighbor.
The number of connected modules is governed by the complete group current budget.
The additional supply terminals are separate from the process-terminal contacts and do not constitute extra I/O channels.

Official product data

6ES7193-6BP40-0DA1 key specifications

Base version	Light-colored A1 BaseUnit with add-on terminals
Rated supply	24 V DC
Potential group	Starts a new group; not continued from the left
Bus carrying capacity	P1 and P2: maximum 10 A
Process connection	16 push-in terminals; maximum 2 A per terminal
Additional terminals	2 × 5; supply distribution separate from electronic-module contacts
Temperature reference	Internal terminal-temperature acquisition
Functional-status scope	FS10 and higher for the listed technical data
Dimensions W × H × D	15 × 141 × 35 mm

Siemens BaseUnits Equipment Manual, A5E03727049-AN, June 2025, section 7.6.

Pre-order check 01

Installation environment

Prepare the matched station, conductor records and controlled installation of 6ES7193-6BP40-0DA1.

Make the affected supply and field circuits safe before moving any conductors.
Identify the new-group boundary and preserve the correct L+ and M feed.
Verify A1 module suitability, conductor retention and the separate add-on-terminal circuits.
Confirm the group supply and the configured temperature-reference method before controlled signal testing.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Ordering identity: Retain 6ES7193-6BP40-0DA1 and inspect the installed hardware status.
Group boundary: Use a new-group position with the correct supply feed and isolation toward the left.
A1 electronics: Match the electronic-module BaseUnit requirement and its process-terminal map.
Load calculation: Include both electronic-module consumption and external loads in the group budget.
Reference junction: Match the temperature-compensation setup to the sensor wiring and installed electronics.

Preserve the new potential-group boundary, A1 module requirement and approved supply protection when selecting or replacing this BaseUnit.
