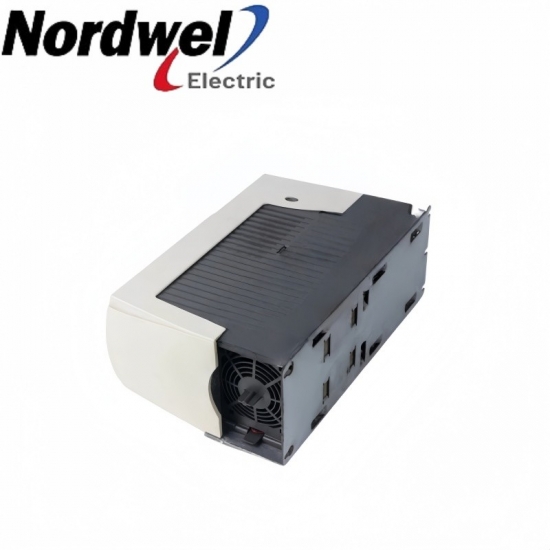

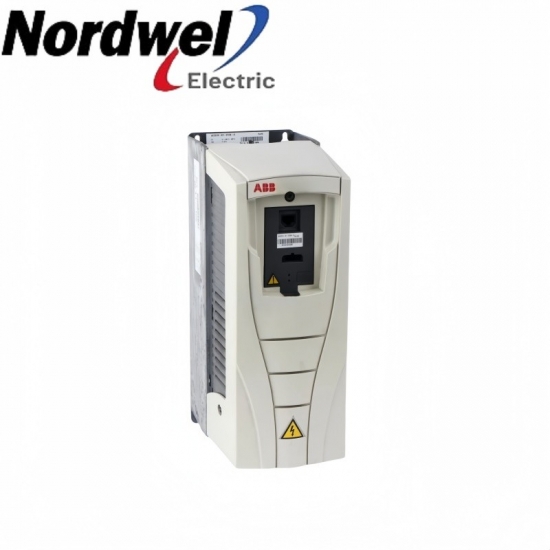

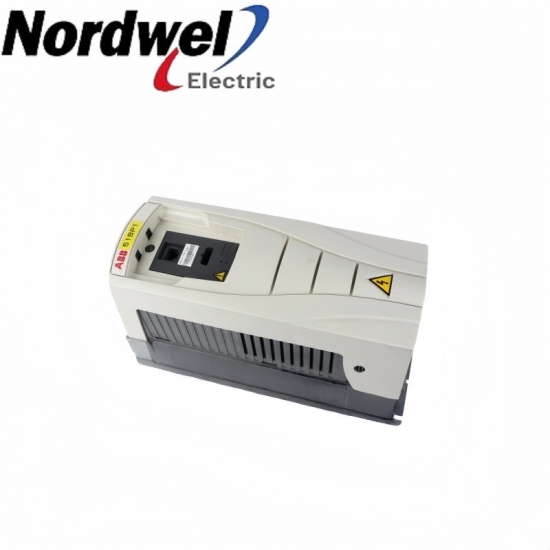

ABB ACS510-01-012A-4 5.5 kW wall-mounted variable-speed drive product views

ABB ACS510-01-012A-4 5.5 kW wall-mounted variable-speed drive

EMAIL SALES

ABB ACS510

ACS510-01-012A-4 — 5.5 kW wall-mounted variable-speed drive

ACS510-01-012A-4 is an ACS510 three-phase 380–480 V drive with a normal-use rating of 5.5 kW and 11.9 A output. Check frame size, cooling and enclosure option before matching an existing installation.

ABBACS510ACS510 variable-speed drive

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

ACS510-01-012A-4 product profile

Product familyACS510

Exact modelACS510-01-012A-4

Normal-use motor power5.5 kW

Nominal output current11.9 A

Frame sizeR1

Listed power loss172 W

Brand:
ABB
Item NO.:
ACS510-01-012A-4

Inquiry now

ACS510-01-012A-4 configuration inquiry

Get a precise quote for ACS510-01-012A-4

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

ACS510-01-012A-4 functions and installation

The catalogue specifies frame R1, 172 W power loss and 44 m³/h airflow for this rating. The motor-power value is based on normal use at 400 V; output current, incoming protection and operating conditions require distinct selection checks.

Motor speed controlProvides the 5.5 kW normal-use motor-drive selection.

Output matchingCompare actual motor duty with 11.9 A nominal output current.

Thermal integrationPlan for 172 W drive heat and the specified airflow.

Enclosure matchingConfirm base IP21 or the separately specified IP54 option.

Installation and selection boundaries

Treat motor-side output current separately from input protection and wiring.
Keep 200 mm free above and below the wall-mounted unit.
Apply the required current derating for operation above 40 °C.

Official product data

ACS510-01-012A-4 key specifications

Input supply	Three-phase 380–480 V
Normal-use motor power	5.5 kW at 400 V
Nominal output current	11.9 A
Frame size	R1
Power loss	172 W
Cooling airflow	44 m³/h
Vertical free space	200 mm above and 200 mm below
Enclosure configuration	IP21 base; IP54 with +B055 option
Ambient selection	40 °C normal; up to 50 °C with applicable derating

ABB ACS510 catalogue, 3ABD00017601 Rev D EN, 2009-04-01; normal-use ratings, cooling and installation data.

Pre-order check 01

Installation environment

Prepare the wall-mounted drive, motor circuit and cooling path before a controlled exchange.

Secure the process, isolate the affected electrical supplies and verify safe conditions before terminal work.
Record the incoming supply, motor connection, protective conductor and control-terminal assignments.
Check frame R1, the enclosure option, 200 mm vertical clearances and the 44 m³/h cooling arrangement.
Restore motor and control parameters, then test direction, reference response and interlocks under controlled conditions.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Motor selection: Check the 5.5 kW normal-use power basis and 11.9 A nominal output current against the actual motor and duty.
Supply connection: Match the three-phase 380–480 V input and engineered protection.
Mechanical fit: Use the frame R1 mounting arrangement and required vertical cooling space.
Enclosure option: Confirm whether the supplied unit is IP21 or includes the +B055 IP54 option.
Application settings: Review the retained motor data, command/reference sources, ramps, limits and process interlocks.

Confirm the exact drive type, enclosure option, electrical installation and tested application settings before release.
