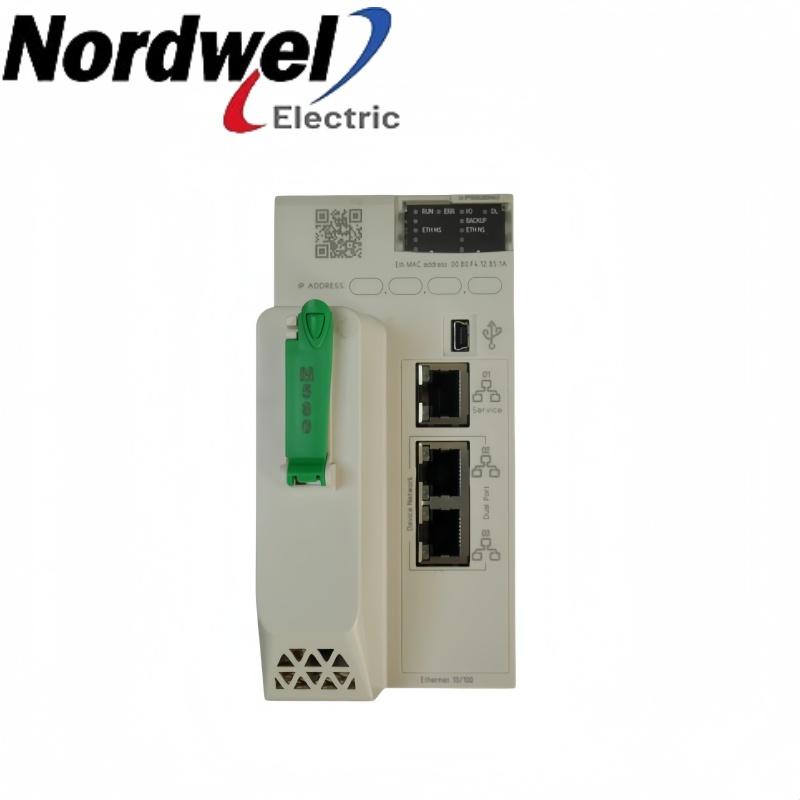

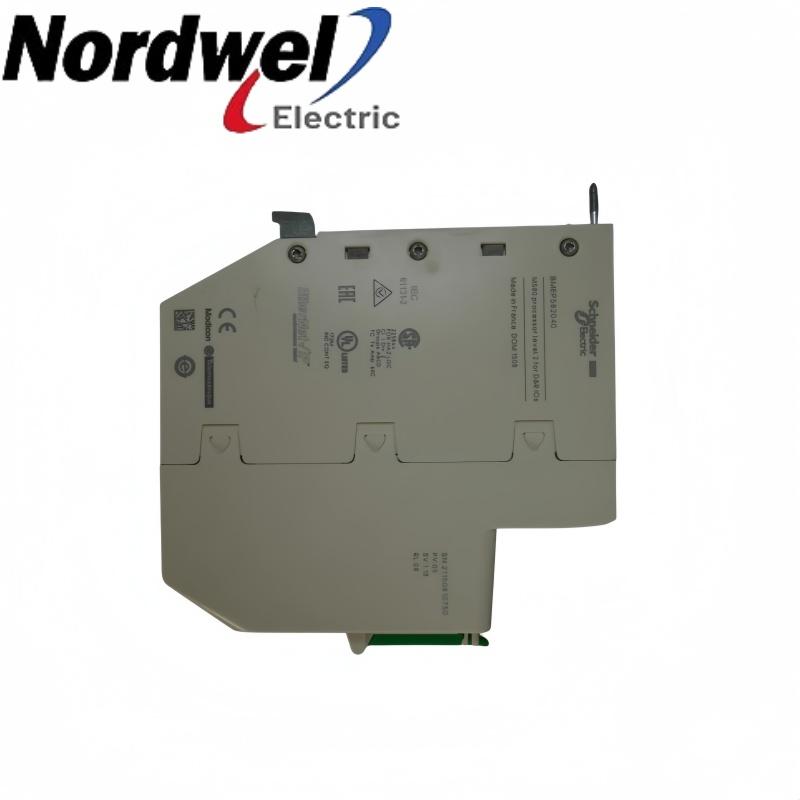

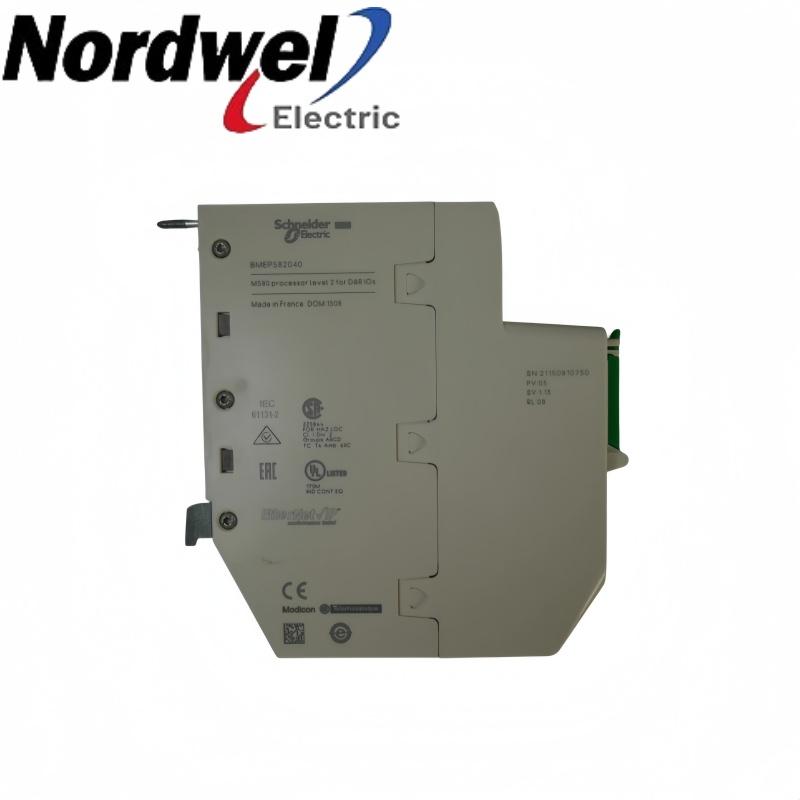

Schneider Electric BMEP582040H hardened standalone processor module product photographs

Schneider Electric BMEP582040H hardened standalone processor module

EMAIL SALES

Schneider Electric Modicon M580

BMEP582040H — hardened standalone processor module

Controls an M580 system with embedded remote and distributed I/O scanning. The hardened processor must be selected with the correct rack, network and application configuration.

Schneider ElectricModicon M580hardened standalone processor module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

BMEP582040H product profile

Product familyModicon M580

Exact modelBMEP582040H

Primary roleExecutes M580 control applications

I/O capacityUp to 2048 discrete and 512 analog

Local rack limitUp to 4 racks

Network ports1 service and 2 RIO/DIO ports

Brand:
Others
Item NO.:
BMEP582040H
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

BMEP582040H configuration inquiry

Get a precise quote for BMEP582040H

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

BMEP582040H functions and installation

Controls an M580 system with embedded remote and distributed I/O scanning. The hardened processor must be selected with the correct rack, network and application configuration.

Control executionRuns the configured standalone M580 application.

Network architectureUses separate service and RIO/DIO network connections.

System capacityApply channel, slot, rack and drop limits together.

Maintenance continuityRetain project backups and verify the restored process configuration.

Installation and selection boundaries

H identifies a hardened standalone processor, not a hot-standby CPU.
Capacity values are maxima subject to the configured system and available rack positions.
State whether the CPU alone, memory accessories or a larger rack assembly is required.

Official product data

BMEP582040H key specifications

Processor arrangement	Standalone M580 CPU; H denotes the hardened version
Discrete I/O capacity	Up to 2048 channels
Analog I/O capacity	Up to 512 channels
Application-specific channels	Up to 72
Local racks	Up to 4 including main and extended racks
RIO drops	Up to 8; at most 2 racks per drop, subject to supported adapters
Ethernet service port	1
Ethernet RIO/DIO ports	2
Distributed-device connections	64 total; 3 reserved for local slaves, leaving 61 for scanning

Schneider Electric Modicon M580 Hardware Reference Manual EIO0000001578, 10/2019, pages 22–26 and 43.

Pre-order check 01

Installation environment

Plan the CPU, rack and I/O network as one configured M580 system.

Isolate the rack supply before installing or removing the processor.
Use the two-module position immediately to the right of the power supply in the main local rack.
Route and label the service and device-network cables according to their different roles.
Restore the accepted application and check CPU/network diagnostics before enabling process outputs.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Rack position: Use the CPU location in the main local rack, not an arbitrary remote drop slot.
I/O architecture: Match local I/O density, available slots and remote-drop adapters to the intended system.
Processor variant: Retain the complete H suffix and the standalone architecture requirement.
Ethernet usage: Distinguish the service connection from the two RIO/DIO network ports.
Application restore: Confirm project and firmware compatibility before loading and testing the application.

Record the restored application, CPU status and I/O communication checks before enabling the process.
