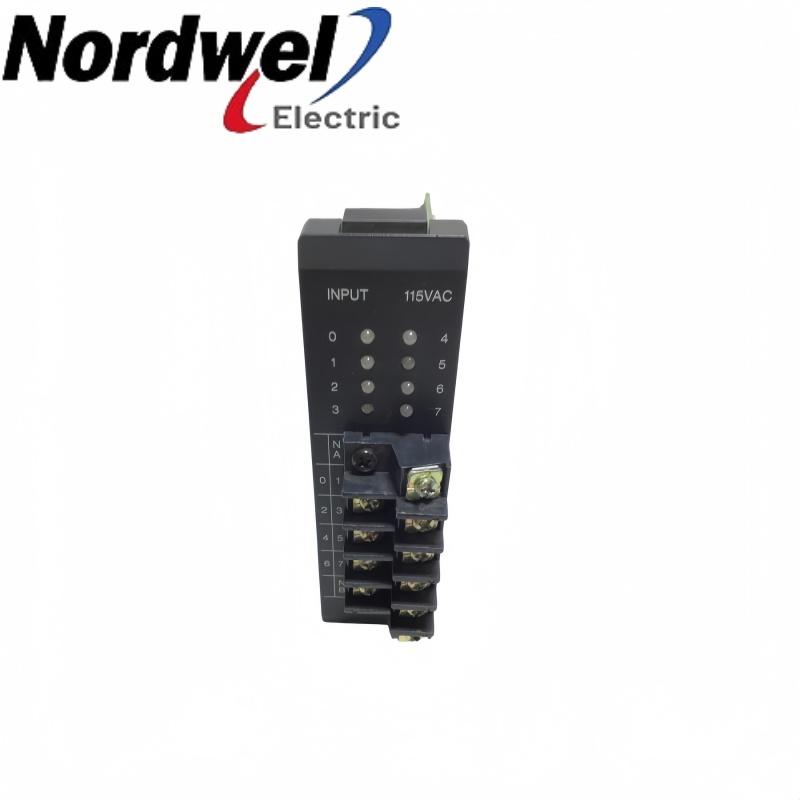

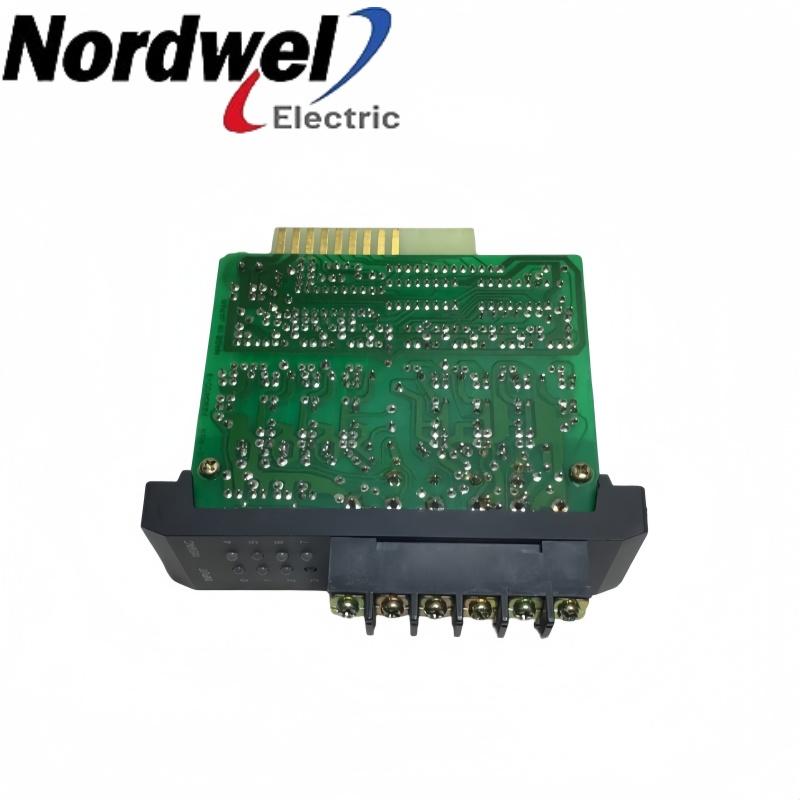

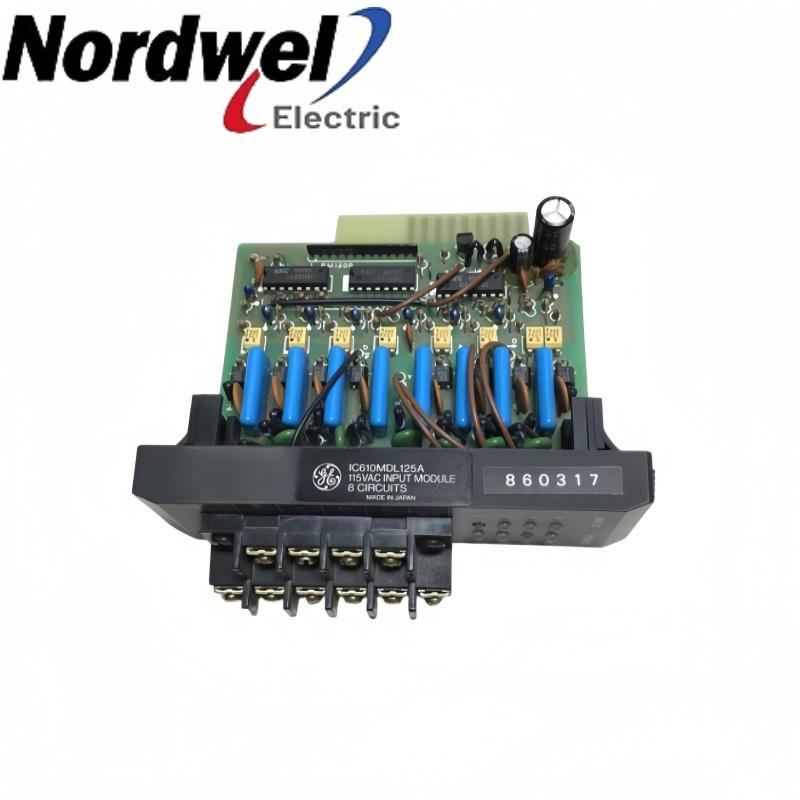

General Electric IC610MDL125 8-point 115 VAC digital input module product views

General Electric IC610MDL125 8-point 115 VAC digital input module

EMAIL SALES

General Electric Series One

IC610MDL125 — 8-point 115 VAC digital input module

IC610MDL125 is an eight-point 115 VAC input module for the GE Series One system. Its two four-point groups receive discrete field signals within the specified AC operating range.

General ElectricSeries One8-point 115 VAC digital input module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC610MDL125 product profile

Product familySeries One

Exact modelIC610MDL125

Input points8

Operating voltage97–132 VAC

Input groupingTwo groups of four

Input frequency47–63 Hz

Brand:
General Electric
Item NO.:
IC610MDL125
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC610MDL125 configuration inquiry

Get a precise quote for IC610MDL125

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC610MDL125 functions and installation

IC610MDL125 is an eight-point 115 VAC input module for the GE Series One system. Its two four-point groups receive discrete field signals within the specified AC operating range. Receives ON/OFF signals from suitable field switching devices. The eight input circuits are arranged as two groups of four.

Discrete sensingReceives ON/OFF signals from suitable field switching devices.

Grouped field wiringThe eight input circuits are arranged as two groups of four.

Signal evaluationCheck actual AC signal levels and response times against the circuit requirements.

Input acceptanceTest each transferred field circuit and its controller indication before operation.

Installation and selection boundaries

Input points: 8.
ON to OFF response: 10–60 ms.
The user supplies the power for the field devices.

Official product data

IC610MDL125 key specifications

Input points	8
Operating voltage	97–132 VAC
AC frequency	47–63 Hz
Input grouping	Two groups of four
ON level	Above 80 VAC
OFF level	Below 20 VAC
OFF to ON response	10–30 ms
ON to OFF response	10–60 ms

Source: GE Series One / Series One Plus User’s Manual, GEK-90842C, original manufacturer manual in the authorized archive.

Pre-order check 01

Installation environment

Prepare the actual mounting and connections for IC610MDL125 before installation.

Check the correct rack location, mating connector and mechanical retention before installation.
Isolate the affected supply and field circuits before handling the module or its connections.
Retain the approved wiring and configuration records; keep low-level signals separated from power wiring.
Check the restored installation and perform a controlled functional test before normal operation.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Controller system: Match the intended Series One rack and input-point assignment.
Field voltage: Use 97–132 VAC signals at 47–63 Hz.
Signal levels: Check ON above 80 VAC and OFF below 20 VAC.
Grouping: Preserve the two four-point input groups and their correct common wiring.
Supply scope: The user supplies the power for the field devices.

Accept the replacement only after its complete identity, installation and required operating function have been checked.
