Home /

PLC Systems

/

ABB PM5650-2ETH-XC control processor

Products
ABB PM5650-2ETH-XC control processor product views

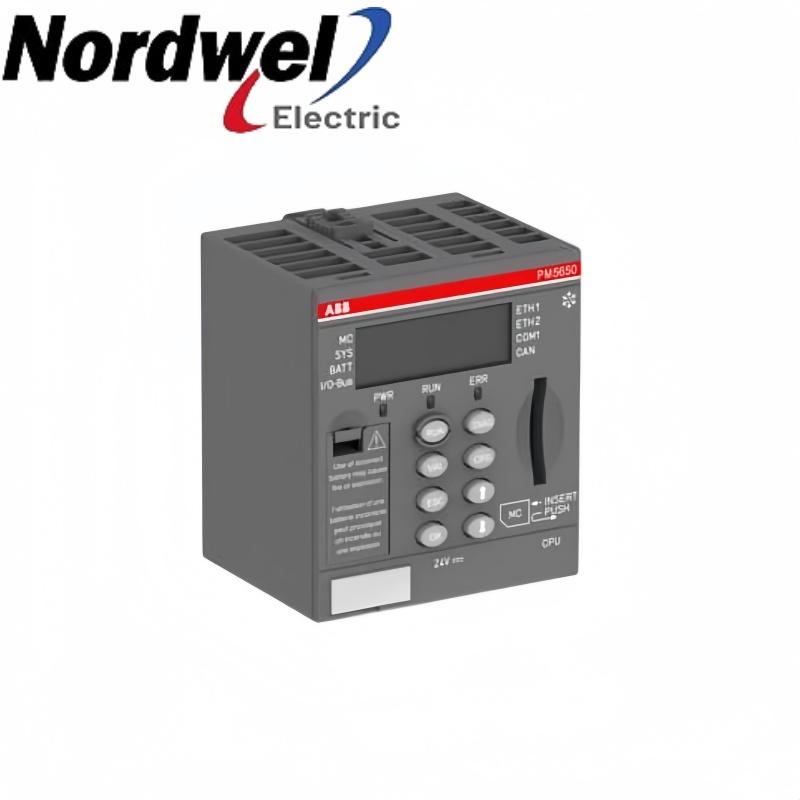

ABB PM5650-2ETH-XC control processor product views

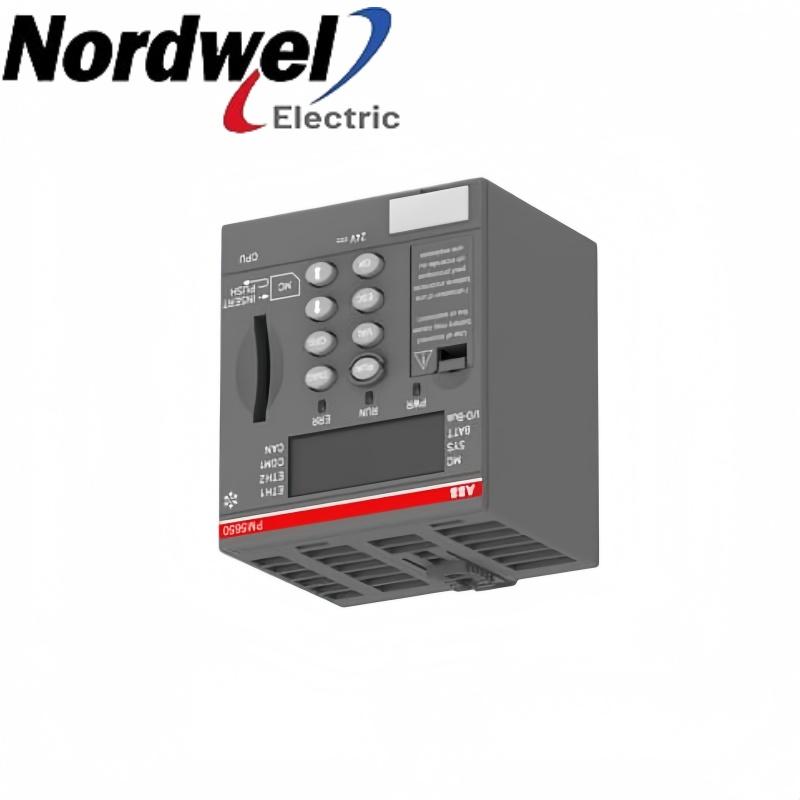

ABB PM5650-2ETH-XC control processor product views

ABB PM5650-2ETH-XC control processor

EMAIL SALES
ABB AC500 V3
PM5650-2ETH-XC — XC control processor

PM5650-2ETH-XC provides two independent Ethernet interfaces in an AC500 V3 processor. Select the terminal base and confirm the hardware revision before restoring the engineered control application.

ABBAC500 V3Control processor
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
PM5650-2ETH-XC product profile
Product familyAC500 V3
Exact modelPM5650-2ETH-XC
Rated supply24 VDC
Ethernet interfacesTwo
Communication expansionUp to 4 base slots
ExecutionXC version

  • Brand:

    ABB

  • Item NO.:

    PM5650-2ETH-XC
Inquiry now
PM5650-2ETH-XC configuration inquiry

Get a precise quote for PM5650-2ETH-XC

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313
Emailsales2@mooreplc.com

PM5650-2ETH-XC functions and installation

The PM5650-2ETH-XC processor fits a matching two-Ethernet terminal-base assembly. Its display and memory-card provision support local operation and application handling, while the selected base determines the available communication-module arrangement.

Program executionRuns the accepted control application on the matched processor hardware.
Network separationProvides two independent Ethernet connections for the configured network arrangement.
Local operationProvides a display for the processor operating interface.
Base integrationUses a matching terminal assembly for field connections and permitted communication expansion.

Installation and selection boundaries

  • Inspect the actual hardware revision before choosing the firmware and engineering-software version.
  • The communication expansion arrangement is limited to the supported 4-slot base configuration.
  • Ethernet protocol availability and application behavior depend on the configured project and applicable software functions.
Official product data

PM5650-2ETH-XC key specifications

Rated supply 24 VDC
Ethernet hardware 2 independent RJ45 Ethernet interfaces
Local operator interface Display
Removable storage Memory-card slot
Terminal assembly Matching two-Ethernet terminal base required
Communication-module capacity Up to 4 terminal-base slots
Serial connection RS-232/RS-485 through the terminal-base arrangement
Environmental execution XC version; confirm installation-specific operating limits

ABB AC500 processor ordering data and terminal-base combination table.

Pre-order check 01

Installation environment

Prepare the cabinet, wiring and controlled commissioning plan for PM5650-2ETH-XC.

  • Isolate the PM5650-2ETH-XC assembly and verify the cabinet mounting and matched terminal base.
  • Check the 24 VDC supply wiring, polarity, grounding and cable strain relief.
  • Record the hardware revision, project backup, communication settings and actual module sequence.
  • Check processor diagnostics and communications with outputs held safe, then perform the controlled application acceptance test.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Terminal assembly
Use a supported two-Ethernet terminal base and inspect the actual connector arrangement.
Expansion capacity
Match the required communication-module count to the supported 4-slot configuration.
Hardware and firmware
Revision 3 requires CPU/boot firmware V3.6.x or newer and cannot be used with firmware below V3.6.0.
Engineering project
When moving an older project to revision 3 hardware, use Automation Builder 2.6.0 or newer and validate the upgraded project.
Installed function
Confirm I/O mapping, interface settings and application acceptance rather than assuming compatibility from the housing.
Confirm the complete processor identity, actual hardware revision, wiring and accepted application before energizing the equipment.
Recommended model families

More ABB models

ABBABB PM5072-T-ETHABB PM5072-R-ETHABB IM60

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB SDCS-UCM-1-COAT 3ADT220090R0008ABB IIMKM02AABB DO525

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB CM576-PNIOABB DI525ABB PM573-ETH-XC

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB PM583-ETH-XCABB PM591-2ETHABB PM591-ETH-XC

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

General ElectricGeneral Electric IC600BF830General Electric IC600BF908General Electric IC600BF914

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF915General Electric IC600BF923General Electric IC600BF940

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF941General Electric IC600BF942General Electric IC600BF948

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600CB504General Electric IC600CB507General Electric IC600CB513

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7143-5BF00-0BA0Siemens 6ES7144-5KD00-0BA0Siemens 6ES7144-4PF00-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7144-4JF00-0AB0Siemens 6ES7144-4FF01-0AB0Siemens 6ES7144-1JB31-0XB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7144-1GB31-0XB0Siemens 6GK5308-2FM10-2AA3Siemens 6ES7143-5AH00-0BA0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7143-4BF50-0AA0Siemens 6ES7142-6BH00-0AB0Siemens 6GK1143-0TA02

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

PM5650-2ETH-XC Order Guide

Check the complete requested item against the actual installation before ordering.
1Record the complete codeConfirm PM5650-2ETH-XC, hardware revision and any environmental execution.
2Match the terminal baseCheck the two-Ethernet base and the required communication-slot count.
3Check the firmware planSelect software and firmware suitable for the actual processor revision.
4Identify retained accessoriesRecord the removable card, fitted modules and required supplied items.
5Preserve the control projectRetain the application, address plan and module mapping before the change.
6Validate the machine functionInspect diagnostics, communications and safe process response before handover.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
ABBV18345-1010261001

A separate product reference; verify its own installation and configuration.

Specialist model
ABB3HAC061275-001

A separate product reference; verify its own installation and configuration.

Specialist model
ABBPM5132-T-ETH

A separate product reference; verify its own installation and configuration.

Specialist model
ABBPM5112-R-ETH

A separate product reference; verify its own installation and configuration.

Specialist model
ABBPM592-ETH-XC

A separate product reference; verify its own installation and configuration.

Specialist model
ABBPM595-4ETH-F

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for PM5650-2ETH-XC selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

PM5650-2ETH-XC FAQ

How is the four-slot expansion option used with PM5650-2ETH-XC?A supported four-slot terminal-base combination is available for this processor. Select the matching base and approved module arrangement; the CPU alone does not supply four fitted communication modules.
Can PM5650-2ETH-XC be fitted to a one-Ethernet terminal base?The two-Ethernet processor requires a compatible two-Ethernet base. Mechanical appearance alone is not sufficient evidence that a different terminal assembly is suitable.
What supply should be planned for a PM5650-2ETH-XC installation?The processor is rated for 24 VDC. Check the terminal-base supply wiring, polarity and the complete station power arrangement before energizing it.
Does PM5650-2ETH-XC provide serial communication independently of its base?The ordering configuration includes an RS-232/RS-485 interface arrangement, with the connections provided through the terminal base. Match the actual base, cable and configured serial mode.
What should I record before replacing PM5650-2ETH-XC in a working cabinet?Keep the hardware revision, project archive, network addresses, serial settings and communication-module order. These records allow the replacement to be compared with the accepted station rather than only with its front label.
Can the environmental suitability of PM5650-2ETH-XC be decided from the XC letters alone?The XC execution must still be assessed against the actual temperature, contamination and cabinet conditions applicable to the supplied revision. It is not an unrestricted environmental or hazardous-area approval.
Does the PM5650-2ETH-XC processor code guarantee every Ethernet protocol is enabled?No. Physical Ethernet hardware and enabled protocol functions are different selection points. Confirm the application, firmware and any required software-function selection before promising a particular network service.
Why must a revision 3 PM5650-2ETH-XC not be loaded with an old firmware image?ABB specifies firmware V3.6.x or newer for revision 3 and excludes operation below V3.6.0. Use the hardware revision to select the correct supported firmware path.
How should a PM5650-2ETH-XC startup be checked after hardware replacement?Verify processor status, the loaded application and the configured communication paths while the process is in a safe state. Then test the required I/O behavior and machine sequence before releasing normal operation.
What separates a PM5650-2ETH-XC CPU quotation from a complete controller-station quotation?The CPU quotation identifies the processor. A complete station quotation must also define the matched terminal base, communication modules, power arrangement and required accessories.
