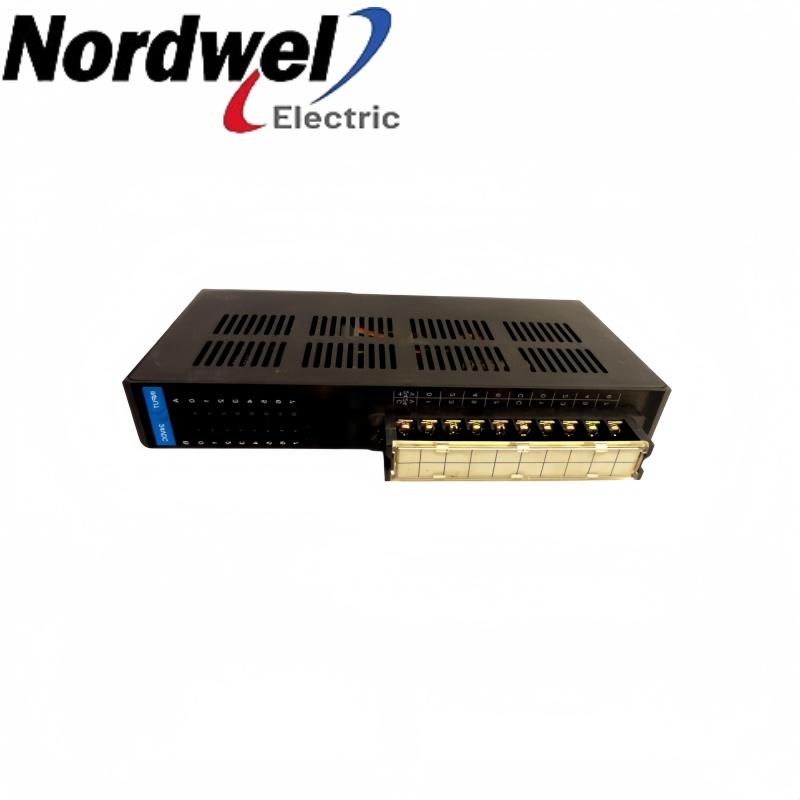

General Electric IC630MDL301 16-circuit 24 VDC input module product views

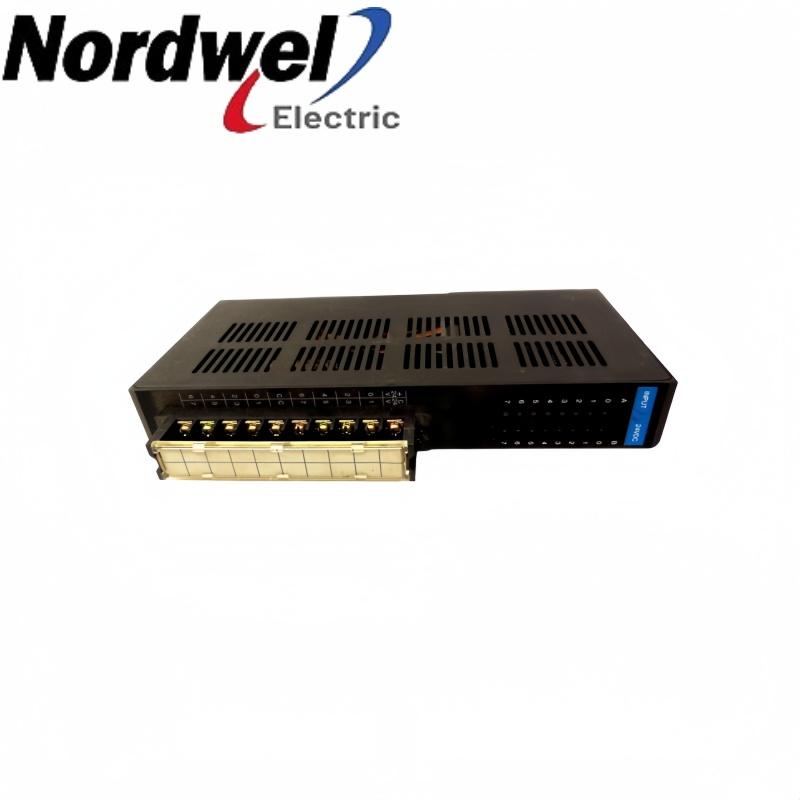

General Electric IC630MDL301 16-circuit 24 VDC input module product views

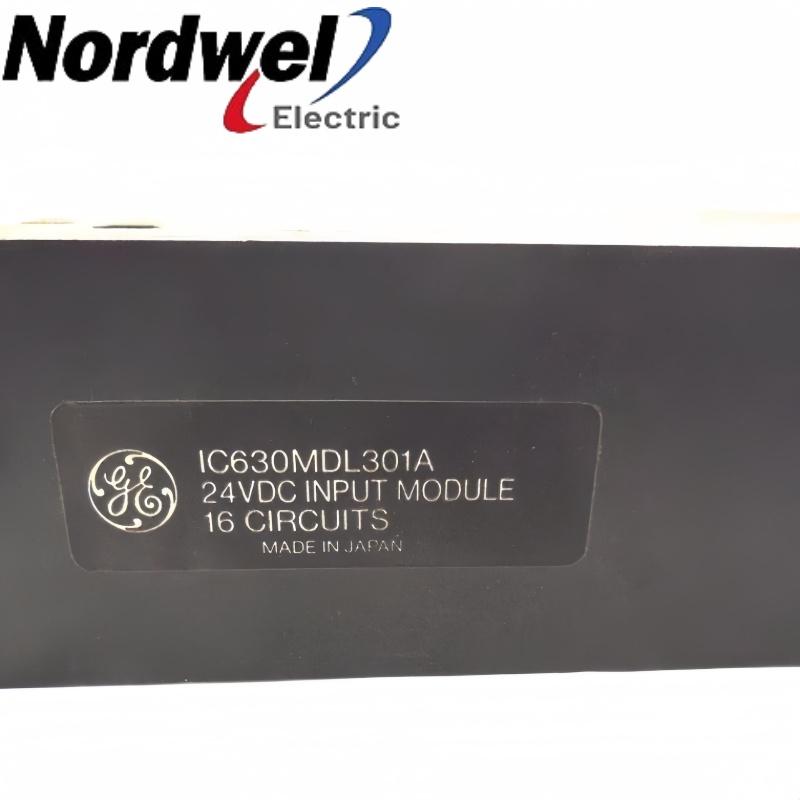

General Electric IC630MDL301 16-circuit 24 VDC input module product views

General Electric IC630MDL301 16-circuit 24 VDC input module

EMAIL SALES
General Electric Series Three
IC630MDL301 — 16-circuit 24 VDC input module

IC630MDL301 is a Series Three 16-circuit 24 VDC input module. Match its installed function, connections and required accessories before planning a controlled replacement.

General ElectricSeries Three16-circuit input module
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
IC630MDL301 product profile
Product familySeries Three
Exact modelIC630MDL301
Input circuits16
Nominal sensing voltage24 VDC
Primary roleAcquires discrete field input states
Revision checkMatch terminal assignment to the actual unit.

  • Brand:

    General Electric

  • Item NO.:

    IC630MDL301

  • Part Number:

  • Weight:

  • Dimensions:

  • Manufacture Year:

  • Place of Origin:

  • Certification:

  • Description:

Inquiry now
IC630MDL301 configuration inquiry

Get a precise quote for IC630MDL301

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313
Emailsales2@mooreplc.com

IC630MDL301 functions and installation

IC630MDL301 is a Series Three 16-circuit 24 VDC input module. Match the actual revision, connection arrangement and intended function before replacement. Electrical details below apply to the A-revision specification; check the supplied hardware revision and terminal arrangement before use.

Installed functionAcquires discrete field input states.
System integrationWorks within the matched Series Three installation and its accepted application.
Connection reviewCheck the actual connector assignment and retained cable or field wiring.
Return to serviceTest the intended signal or communication function under controlled operating conditions.

Installation and selection boundaries

  • Preserve the complete unit identity and readable revision markings in the replacement record.
  • Record the installed terminal and cable assignments before removal.
  • Validate the actual required operating function, not only a power-on indication.
Official product data

IC630MDL301 key specifications

Product family Series Three
Input circuits 16
External sensing source 24 VDC ±10%; less than 3% RMS ripple
Input ON condition Below 6.0 VDC and above 8.0 mA
Input OFF condition Above 18.0 VDC and below 4.0 mA
ON / OFF delay 3–12 ms for each transition
Internal power 5 VDC, 30 mA + 5 mA per point
Simultaneous activation 16 circuits through 55°C; 13 at 60°C (A-revision chart)

GEK-25376, A-revision input/output specification and connection diagrams; match the actual hardware revision.

Pre-order check 01

Installation environment

Plan the safe removal, connection checks and acceptance test for IC630MDL301.

  • Make the equipment served by IC630MDL301 safe and isolate the affected assembly before disturbing connections.
  • Mark the actual connector positions, field-circuit identities and retained settings.
  • Verify the actual supply arrangement, connector condition and connection assignments before energizing.
  • Check the intended operation with hazardous equipment inhibited before releasing normal service.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

System identity
Series Three installation; preserve the complete current unit code.
Required role
Acquires discrete field input states.
Mating hardware
Match the existing connector, cable or terminal arrangement before reuse.
Configuration record
Keep the actual wiring, circuit assignment and operational settings.
Acceptance boundary
Confirm the required operating behavior before returning the machine to service.
Confirm complete identity, actual connections, installed configuration and the required supply scope before energizing the assembly.
Recommended model families

More General Electric models

General ElectricGeneral Electric IC600CB504General Electric IC600CB507General Electric IC600CB513

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600CB516General Electric IC600CB525General Electric IC600CB536

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600CB537General Electric DS200SHVIG1AGeneral Electric DS200PTCTG1A

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric DS200PLIBG1AGeneral Electric DS200PANAH1AGeneral Electric IC600BF830

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

ABBABB PM5112-R-ETHABB PM5072-T-ETHABB PM5072-R-ETH

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB IM60ABB SDCS-UCM-1-COAT 3ADT220090R0008ABB IIMKM02A

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB DO525ABB CM576-PNIOABB DI525

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330854-080-25-05Bently Nevada 330854-080-24-05Bently Nevada 330130-070-01-00

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330130-075-01-00Bently Nevada 330104-00-08-15-02-00Bently Nevada 330102-00-12-10-01-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330103-02-04-10-02-CNBently Nevada 330103-02-08-10-02-CNBently Nevada 330905-00-25-05-02-CN

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330903-00-07-10-01-CNBently Nevada 330903-00-07-10-01-00Bently Nevada 330876-03-10-00-00

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7143-5BF00-0BA0Siemens 6ES7144-5KD00-0BA0Siemens 6ES7144-4PF00-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

IC630MDL301 Order Guide

Check the complete requested item against the actual installation before ordering.
1Identify the exact itemRecord IC630MDL301 and the readable hardware revision.
2Define the assemblyState the unit and required accessories without assuming a complete station.
3Record the connectionsProvide clear connector, terminal and installed-wiring photographs.
4Preserve the applicationKeep the accepted machine application and relevant configuration before service.
5Plan the changePrepare isolation, connection inspection and controlled startup with the responsible engineering team.
6Agree acceptanceSet the functional checks and supplied-scope confirmation required before handover.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
Siemens6ES7144-4JF00-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-4FF01-0AB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-1JB31-0XB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7144-1GB31-0XB0

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6GK5308-2FM10-2AA3

A separate product reference; verify its own installation and configuration.

Specialist model
Siemens6ES7143-5AH00-0BA0

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for IC630MDL301 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

IC630MDL301 FAQ

How many field states can IC630MDL301 acquire?It provides 16 discrete input circuits. Typical field devices include pushbuttons, limit switches and relay contacts wired to the module input circuit arrangement.
Why is the ON voltage low on IC630MDL301?The documented A-revision input is active low: ON is below 6.0 VDC with more than 8.0 mA, while OFF is above 18.0 VDC with less than 4.0 mA. Do not apply the opposite logic interpretation when troubleshooting.
What external sensing supply is required for IC630MDL301?The A-revision specification requires a user-supplied 24 VDC source with a plus-or-minus 10 percent tolerance and less than 3 percent RMS ripple. This is the field-sensing supply, distinct from internal rack power.
How quickly does IC630MDL301 respond to a state change?The documented ON and OFF delays are each 3 to 12 ms for the A revision. Assess the complete application timing rather than using those delays as a controller scan-time specification.
Does each IC630MDL301 input have an indication?The 16 circuits have corresponding LED indications. Compare an indication with the field voltage, wiring and application state when diagnosing a channel.
Can every IC630MDL301 input stay ON at the highest plotted temperature?The A-revision chart permits all 16 circuits ON through 55 degrees C and shows 13 circuits ON at 60 degrees C. Apply the simultaneous-ON limit to the actual cabinet temperature.
Which wire arrangement is documented for IC630MDL301 terminals?The A-revision instructions recommend stranded No. 12 AWG wire and permit two No. 14 AWG wires per terminal. Match the actual connector and retain the correct field connection assignment.
What is the internal power demand of IC630MDL301?For the A revision, the internal requirement is 5 VDC at 30 mA plus 5 mA per point. Calculate the populated rack demand separately from the user-supplied input-sensing power.
How should an IC630MDL301 contact input be checked after wiring?With hazardous outputs inhibited, operate the intended contact and compare its channel LED and application indication. Check the correct common and external sensing supply if the state does not change as expected.
What should be matched before reusing the IC630MDL301 field connector?Inspect the terminal condition, wire identification and complete module revision. Reuse it only after confirming that the retained wiring follows the accepted input connection arrangement.
