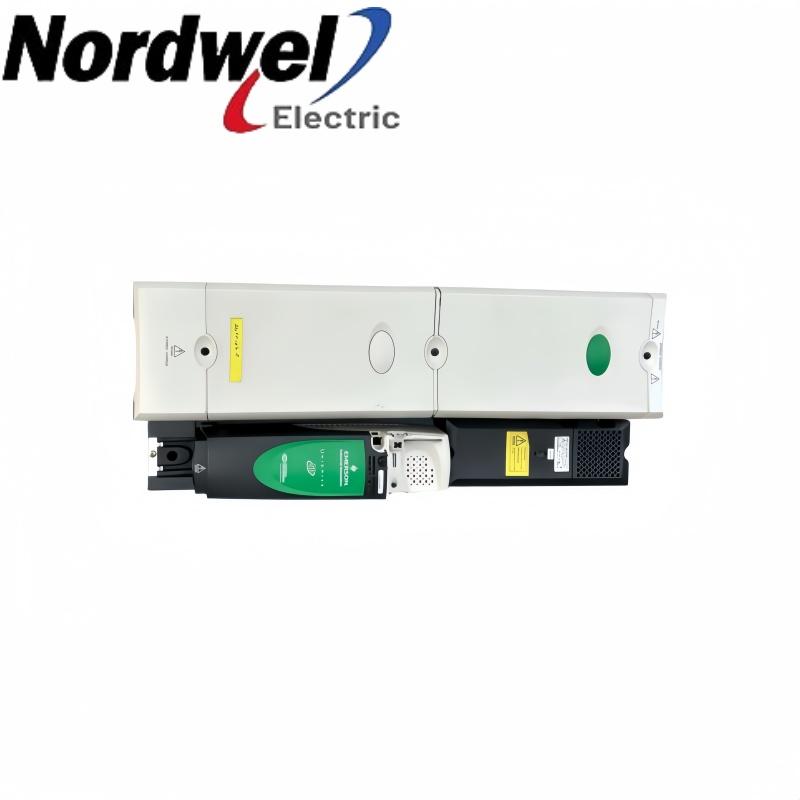

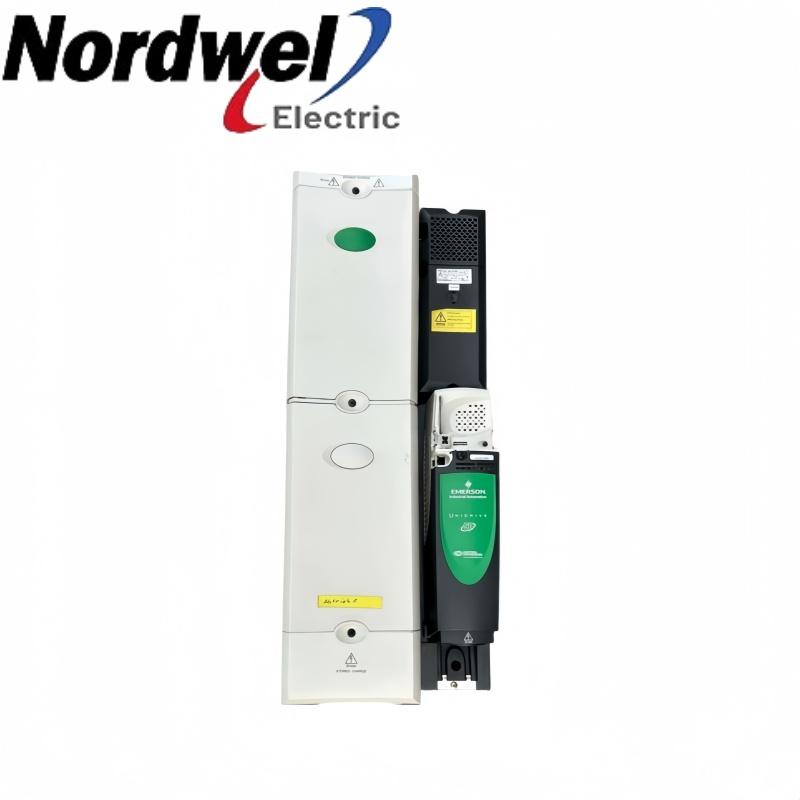

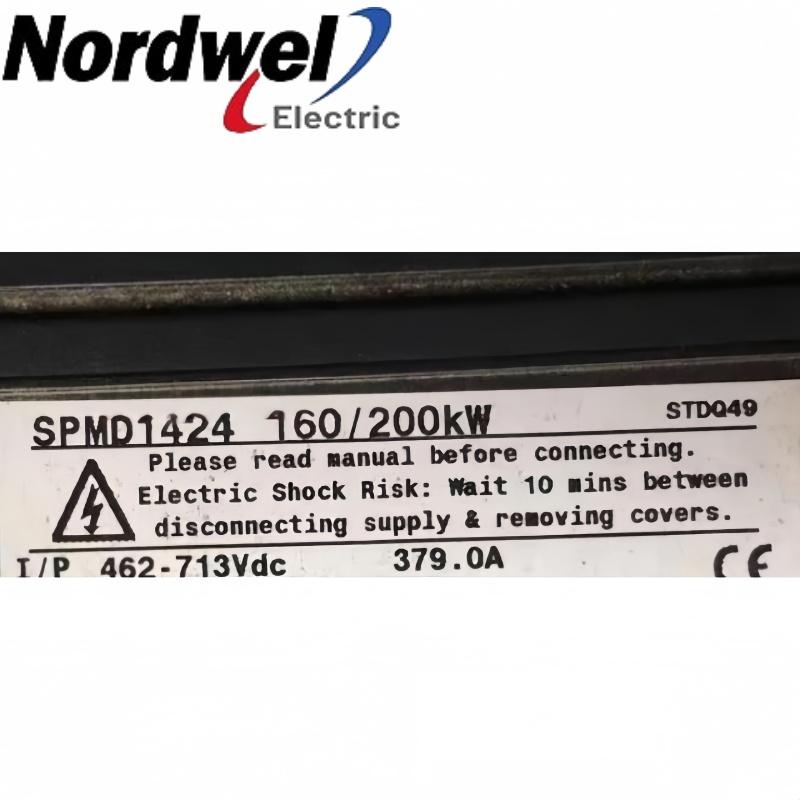

Control Techniques SPMD1424 DC-input inverter power module product photographs

Control Techniques SPMD1424 DC-input inverter power module

EMAIL SALES

Control Techniques Unidrive SPM

SPMD1424 — DC-input inverter power module

Supplies the inverter stage of a modular motor drive. Continuous-current and overload selection depend on rectifier mounting and the stated thermal conditions.

Control TechniquesUnidrive SPMDC-input inverter power module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

SPMD1424 product profile

Product familyUnidrive SPM

Exact modelSPMD1424

Primary roleSupplies the motor inverter stage

Docked normal duty335 A; overload requires ≤35°C

Undocked normal duty350 A only at ≤35°C

Brake arrangementNo internal brake transistor

Brand:
Others
Item NO.:
SPMD1424

Inquiry now

SPMD1424 configuration inquiry

Get a precise quote for SPMD1424

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

SPMD1424 functions and installation

Supplies the inverter stage of a modular motor drive. Continuous-current and overload selection depend on rectifier mounting and the stated thermal conditions.

Inverter functionConverts DC-link power into controlled motor AC.

Mounting conditionDocked and undocked arrangements use different normal-duty rating rows.

Thermal boundaryThe model-specific temperature notes govern maximum and overload use.

Supply definitionSeparate the inverter module from control, rectifier and accessory scope.

Installation and selection boundaries

The 350 A / 200 kW normal-duty figure requires undocked mounting and ambient temperature no higher than 35°C.
The docked overload rating also has a 35°C ambient limit.
Confirm every attached control unit, rectifier and accessory separately in the quotation.

Official product data

SPMD1424 key specifications

Power-stage type	Size 1 DC-input inverter; configuration 2 without internal brake transistor
System voltage class	380–480 V AC system class; DC-fed inverter stage
Docked normal-duty output	335 A; typical 185 kW at 400 V / 300 hp at 460 V
Docked heavy-duty output	290 A; typical 160 kW at 400 V / 250 hp at 460 V
Docked overload condition	Overload rating applies only at ambient temperatures of 35°C or lower
Undocked normal-duty output	350 A; typical 200 kW at 400 V / 300 hp at 460 V
Undocked thermal condition	Maximum continuous-current and overload ratings apply only at 35°C or lower
Other tabulated rating conditions	1000 m altitude and 3.0 kHz switching frequency; apply original derating rules

Control Techniques Unidrive SPM User Guide, issue 5, sections 2.4, 2.7 and 3.1; Table 3-7 and notes 2–3.

Pre-order check 01

Installation environment

Identify rectifier mounting before selecting the continuous-current and overload ratings.

Disconnect all supplies, wait at least ten minutes and confirm the DC bus is discharged before access.
Record whether the rectifier is docked directly to the inverter or independently mounted.
Provide the specified airflow and verify ambient temperature at the installation.
Check all separately required control, rectifier and reactor components before commissioning.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Mounting arrangement: Choose the docked or undocked rating that matches the actual rectifier installation.
Supply conversion: Use the correct DC source; an AC-fed system also needs the approved rectification and input reactor.
Overload temperature: For the stated overload capability, keep ambient temperature at or below 35°C.
Motor selection: Compare motor voltage, duty current and overload demand with the complete-system limits.
Supplied components: Treat attached control or rectifier components as separate scope unless explicitly included.

Record mounting, thermal conditions and completed motor-control tests before returning the drive to service.
