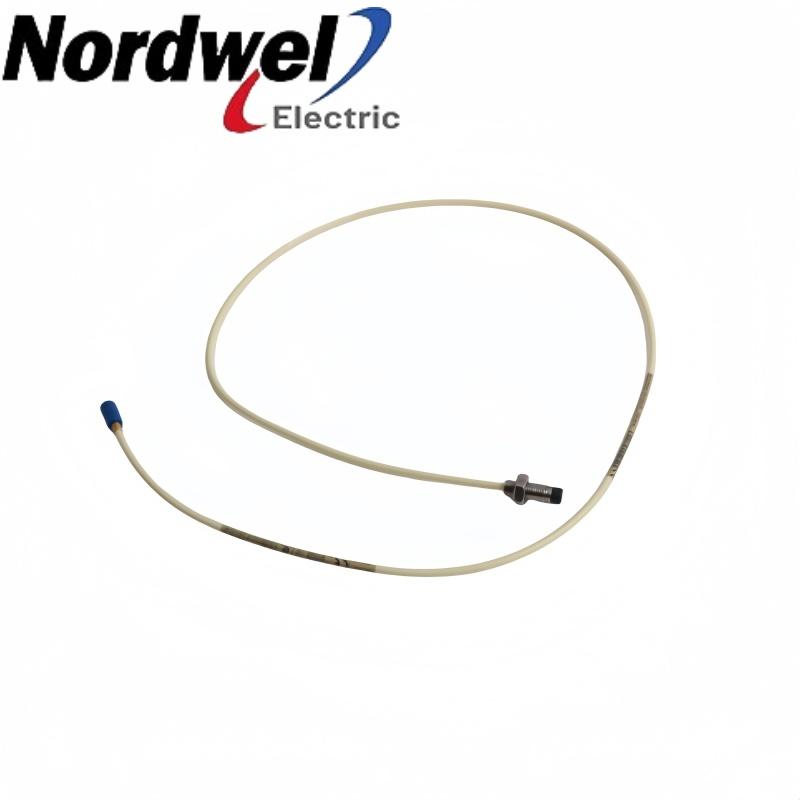

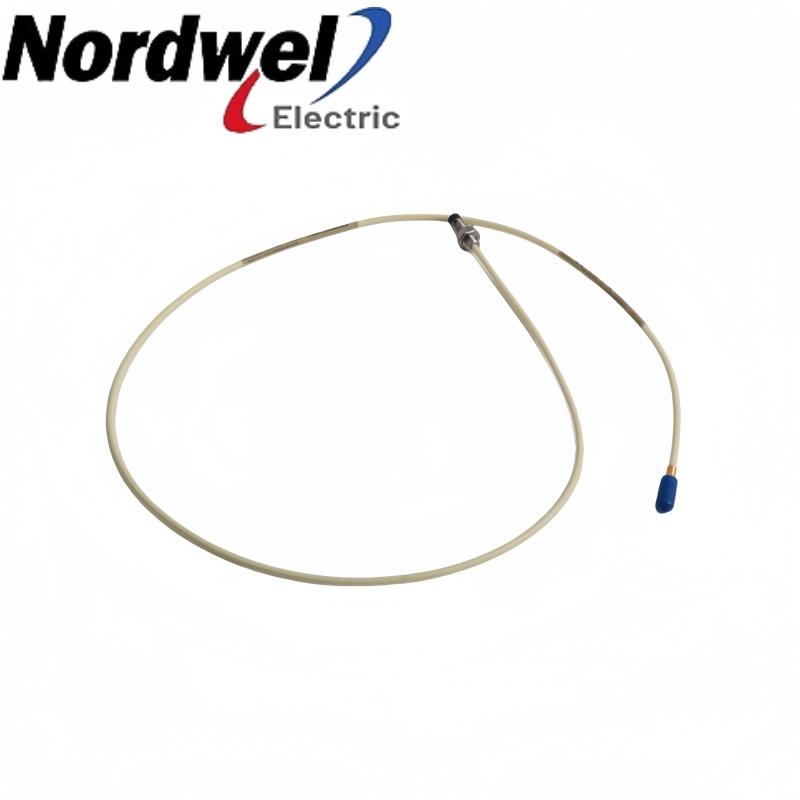

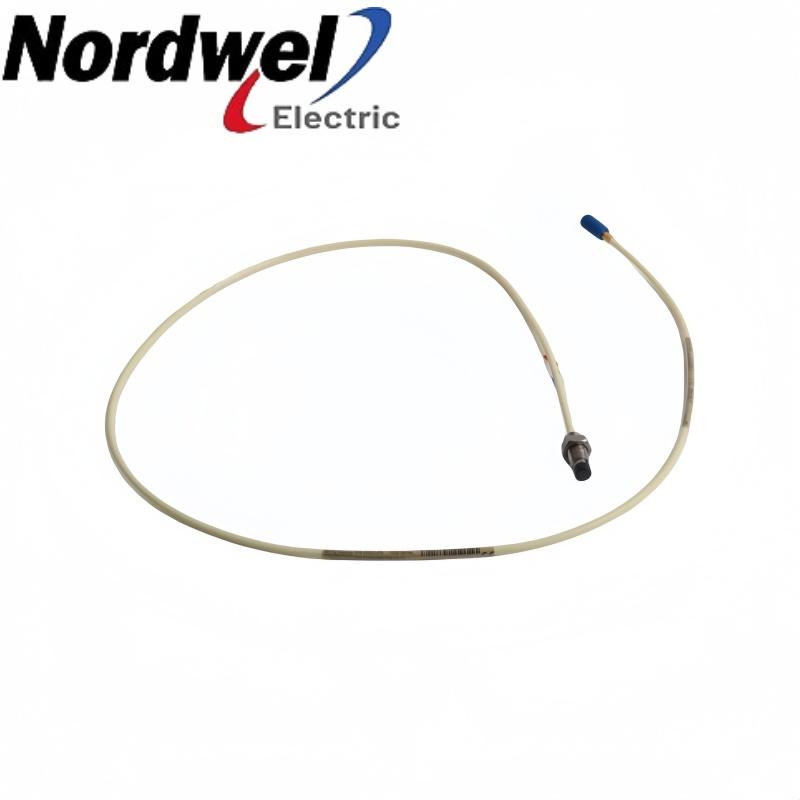

Bently Nevada 21504-000-040-10-02 8 mm standard-mount proximity probe product views

Bently Nevada 21504-000-040-10-02 8 mm standard-mount proximity probe

EMAIL SALES

Bently Nevada 7200 proximity transducers

21504-000-040-10-02 — 8 mm standard-mount proximity probe

Bently Nevada7200 proximity transducers8 mm standard-mount proximity probe

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

21504-000-040-10-02 product profile

Product family7200 proximity transducers

Exact model21504-000-040-10-02

Probe tip diameter8 mm

Case thread3/8-24

Lead armorNone

Sensing principleEddy current

Brand:
Bently Nevada
Item NO.:
21504-000-040-10-02
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

21504-000-040-10-02 configuration inquiry

Get a precise quote for 21504-000-040-10-02

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

21504-000-040-10-02 functions and installation

21504-000-040-10-02 identifies an 8 mm standard-mount probe reference in the Bently Nevada 7200 proximity-transducer family. Match the complete supplied marking, actual case dimensions and the installed probe/cable/conditioner arrangement before replacement. Works within a matched eddy-current measuring chain for distance-related shaft measurements. The base construction uses a standard mount and 3/8-24 case thread.

Noncontact displacementWorks within a matched eddy-current measuring chain for distance-related shaft measurements.

Mechanical mountingThe base construction uses a standard mount and 3/8-24 case thread.

Lead protectionRoute and support the unarmored coaxial lead against mechanical damage.

Configuration reviewRetain every field of the complete marking and compare actual dimensions with the approved assembly drawing.

Installation and selection boundaries

Probe tip diameter: 8 mm.
Tip material: Polyphenylene sulfide (PPS).
Verify the required gap-related output and machine measurement under the approved commissioning procedure.

Official product data

21504-000-040-10-02 key specifications

Probe tip diameter	8 mm
Mounting configuration	Standard mount
Case thread	3/8-24
Lead armor	No armor
Tip material	Polyphenylene sulfide (PPS)

Source: Bently Nevada L5001 (04/90), 7200 Proximity Transducer Systems, construction table and installation context; original pages preserved in NASA report 19960001274, PDF pages 106-109.

Pre-order check 01

Installation environment

Prepare the installation and controlled change plan for 21504-000-040-10-02.

Check the actual thread, unthreaded section, case length, target access and mounting clearance before fitting.
Protect the unarmored lead and connector and keep contamination away from the measuring chain.
Match the probe lead, any extension cable and the identified conditioner to the approved total system length.
Set and verify the target gap with the applicable system procedure, then record the controlled functional checks.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Mechanical fit: Compare the full marking, actual dimensions, standard mount and 3/8-24 thread with the installed assembly.
Measuring chain: Select the probe, lead, extension cable and conditioner as a correctly matched arrangement.
Target: Confirm the observed conductive target and the accepted calibration conditions.
Cable condition: Inspect the unarmored lead, junction and connector before installation.
Acceptance: Verify the required gap-related output and machine measurement under the approved commissioning procedure.

Confirm the complete item, installed arrangement and controlled acceptance results before normal operation.
