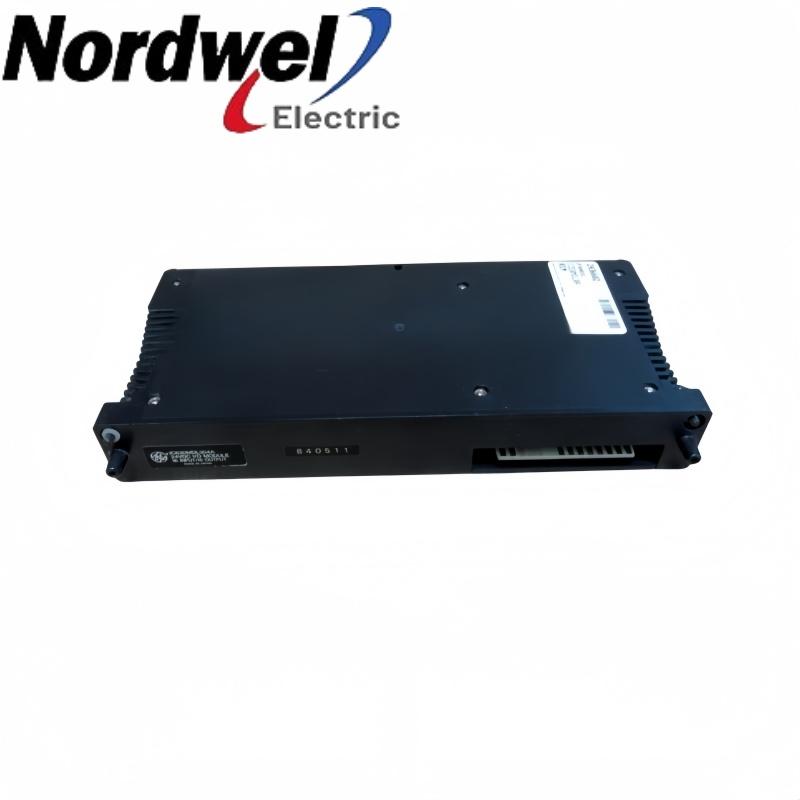

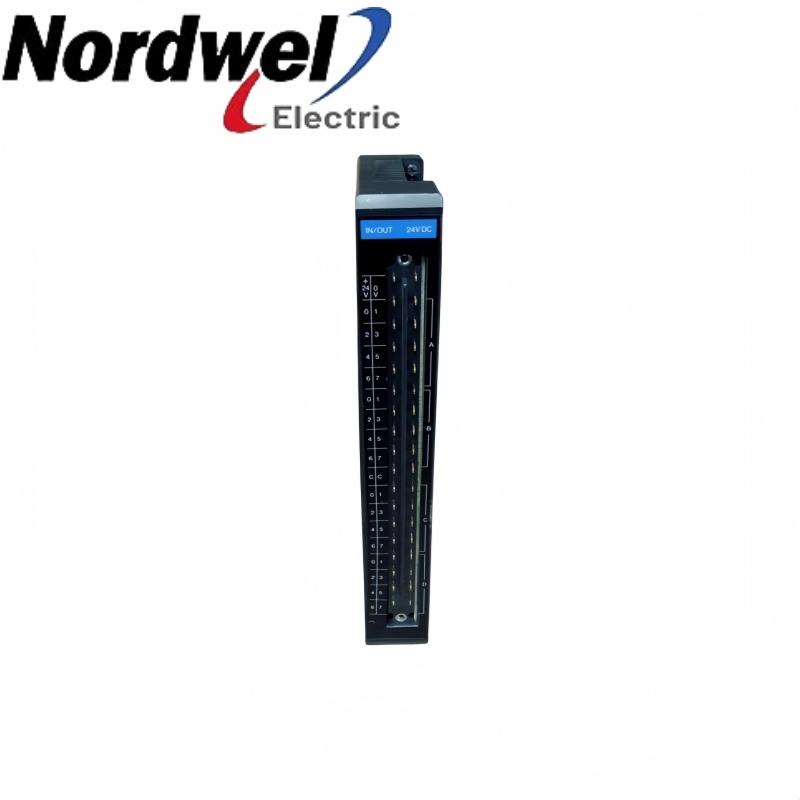

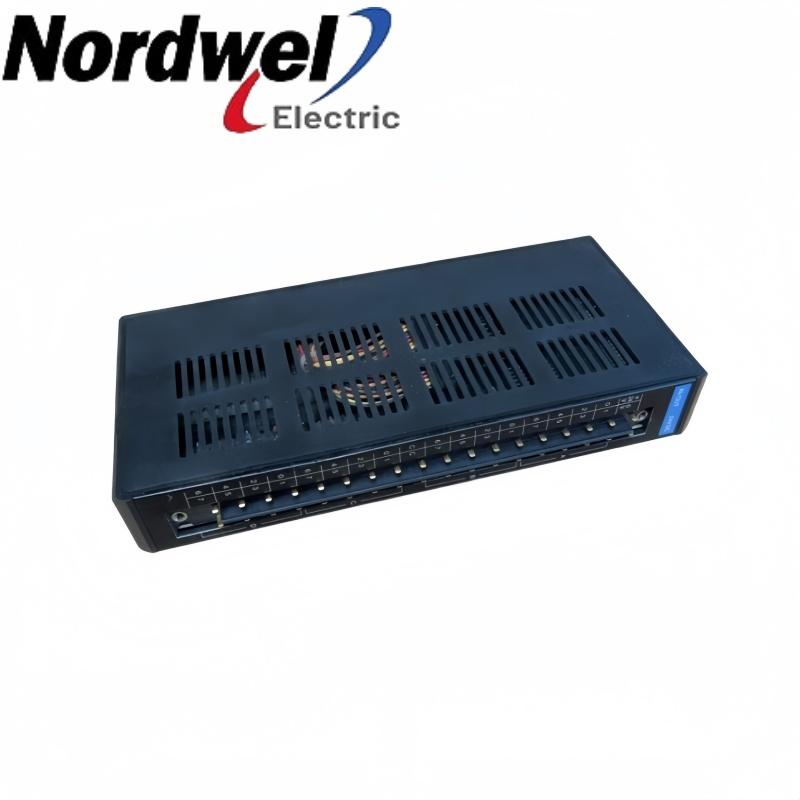

General Electric IC630MDL304 16-input 16-output 24 VDC sink I-O module product views

General Electric IC630MDL304 16-input 16-output 24 VDC sink I-O module

EMAIL SALES

General Electric Series Three

IC630MDL304 — 16-input 16-output 24 VDC sink I-O module

IC630MDL304 is a Series Three 16-input 16-output 24 VDC sink I-O module. Match its installed function, connections and required accessories before planning a controlled replacement.

General ElectricSeries Three24 VDC mixed I/O module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC630MDL304 product profile

Product familySeries Three

Exact modelIC630MDL304

Channel allocation16 inputs / 16 outputs

Field connector36 screw terminals

Primary roleReads inputs and switches DC load circuits

Revision checkMatch terminal assignment to the actual unit.

Brand:
General Electric
Item NO.:
IC630MDL304
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC630MDL304 configuration inquiry

Get a precise quote for IC630MDL304

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC630MDL304 functions and installation

IC630MDL304 is a Series Three 16-input 16-output 24 VDC sink I-O module. Match the actual revision, connection arrangement and intended function before replacement. Electrical details below apply to the A-revision specification; check the supplied hardware revision and terminal arrangement before use.

Installed functionReads inputs and switches DC load circuits.

System integrationWorks within the matched Series Three installation and its accepted application.

Connection reviewCheck the actual connector assignment and retained cable or field wiring.

Return to serviceTest the intended signal or communication function under controlled operating conditions.

Installation and selection boundaries

Preserve the complete unit identity and readable revision markings in the replacement record.
Record the installed terminal and cable assignments before removal.
Validate the actual required operating function, not only a power-on indication.

Official product data

IC630MDL304 key specifications

Product family	Series Three
Input / output allocation	16 discrete inputs + 16 sink outputs
External source	24 VDC ±10%; sensing and output supply
Field connector	36 screw terminals
Output current boundary	0.5 A per circuit subject to simultaneous-ON and temperature limits
Thermal loading	All 32 circuits ON through 45°C at 0.5 A/output, or through 55°C at 0.25 A/output; derate above
Output ON drop	0.8 VDC typical at 0.5 A
Output transition response	100 µs OFF-to-ON and ON-to-OFF
Internal output fusing	5 A common-line fuse for each group of eight outputs

GEK-25376, A-revision input/output specification and connection diagrams; match the actual hardware revision.

Pre-order check 01

Installation environment

Plan the safe removal, connection checks and acceptance test for IC630MDL304.

Make the equipment served by IC630MDL304 safe and isolate the affected assembly before disturbing connections.
Mark the actual connector positions, field-circuit identities and retained settings.
Verify the actual supply arrangement, connector condition and connection assignments before energizing.
Check the intended operation with hazardous equipment inhibited before releasing normal service.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

System identity: Series Three installation; preserve the complete current unit code.
Required role: Reads inputs and switches DC load circuits.
Mating hardware: Match the existing connector, cable or terminal arrangement before reuse.
Configuration record: Keep the actual wiring, circuit assignment and operational settings.
Acceptance boundary: Confirm the required operating behavior before returning the machine to service.

Confirm complete identity, actual connections, installed configuration and the required supply scope before energizing the assembly.
